Jenn-Air
Gas Range

Model # JGRP636HM01 Official Jenn-Air range/oven, gas, professional-style, 36 inch

Here are the diagrams and repair parts for Official Jenn-Air JGRP636HM01 range/oven, gas, professional-style, 36 inch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

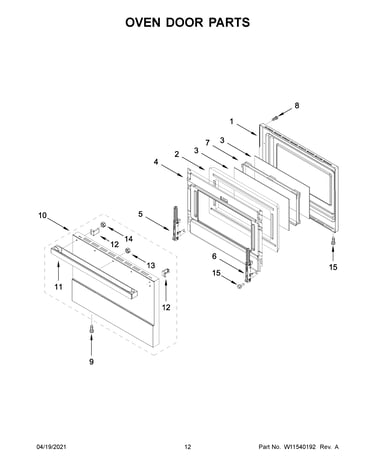

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Cleaner 31464
#NI

Optional parts (not included) diagram

Cleaner

Part #31464

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 31464. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Wako Minerva W10622170
#2

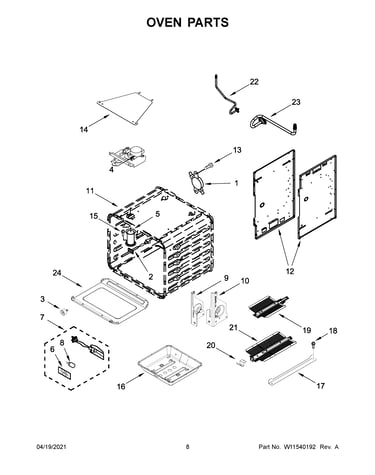

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
BEST SELLER
$100.74 |
11% OFF Phone Price : $112.74
In Stock
Range Spark Module W10511278
#31

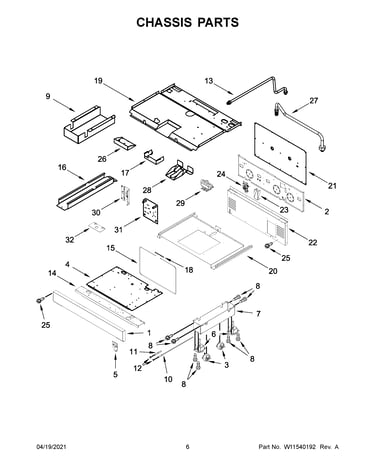

Chassis parts diagram

Range spark module

Part #W10511278

Replaced by #WPW10511278

?
Manufacturer substitution
This part replaces W10511278. Substitute parts can look different from the original.
$120.09 |
9% OFF Phone Price : $132.09
In Stock
Screw 3196176
#15

Oven parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Wall Oven Light Bulb W10169757
#8

Oven parts diagram

Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$33.50 |
15% OFF Phone Price : $39.50
In Stock
Motorized Latch W10830016
#4

Oven parts diagram

Motorized latch

Part #W10830016

Replaced by #W11029221

?
Manufacturer substitution
This part replaces W10830016. Substitute parts can look different from the original.
$119.37 |
9% OFF Phone Price : $131.37
In Stock
Range Screw 4449154
#14

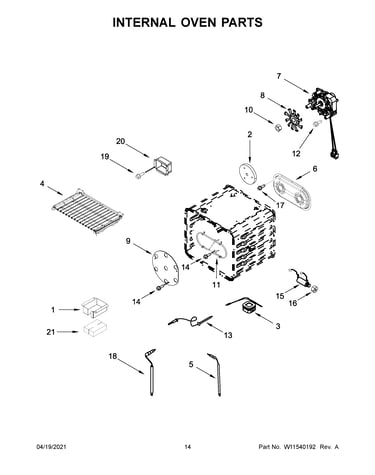

Internal oven parts diagram

Range screw

Part #4449154

Replaced by #WP4449154

?
Manufacturer substitution
This part replaces 4449154. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Enclosed Spe W10568405
#43

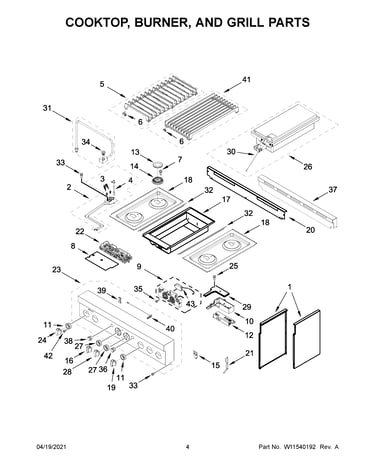

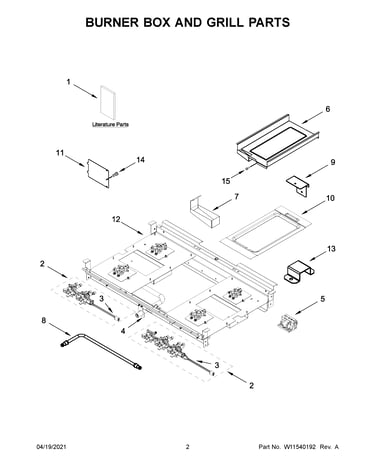

Cooktop, burner, and grill parts diagram

Enclosed spe

Part #W10568405

Replaced by #W11123146

?
Manufacturer substitution
This part replaces W10568405. Substitute parts can look different from the original.
$34.91 |
15% OFF Phone Price : $40.91
In Stock
Knob, Burner (for 6 Cooktop Burners) (stainless) W10887596
#24

Cooktop, burner, and grill parts diagram

Knob, burner (for 6 cooktop burners) (stainless)

Part #W10887596

Replaced by #W11317537

?
Manufacturer substitution
This part replaces W10887596. Substitute parts can look different from the original.
$189.77 |
6% OFF Phone Price : $201.77
In Stock
Screw 3400805
#6

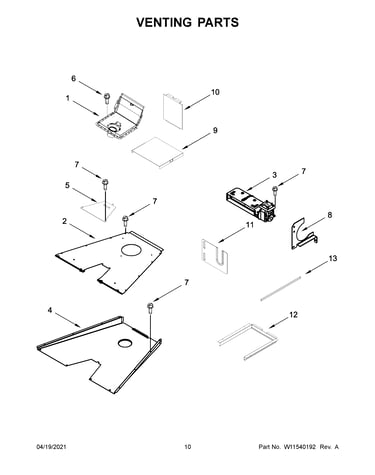

Venting parts diagram

Screw

Part #3400805

Replaced by #WP3400805

?
Manufacturer substitution
This part replaces 3400805. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
