Model # JP626CC1CC Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP626CC1CC electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Terminal Block Assembly WB17K5017
#82

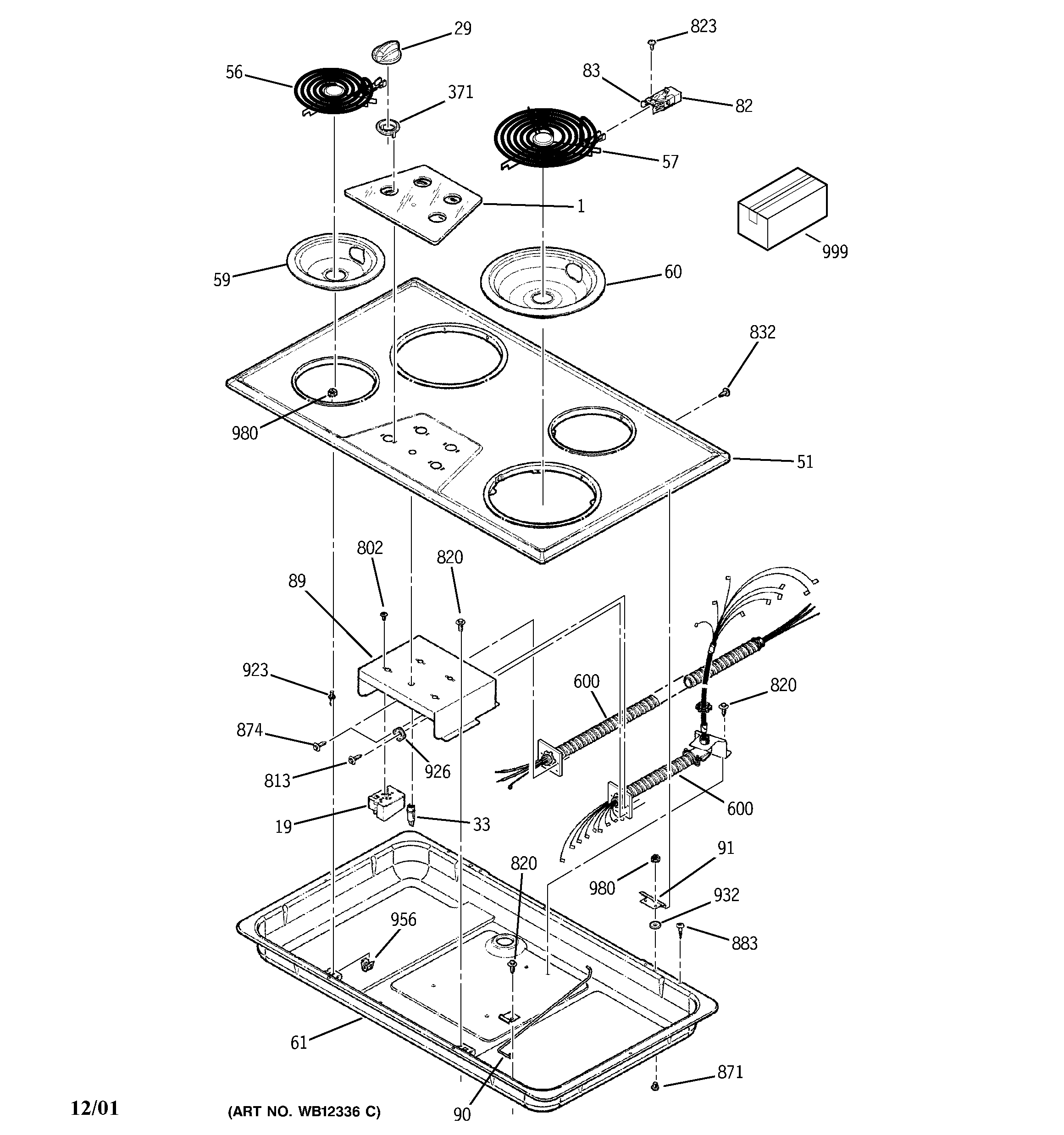

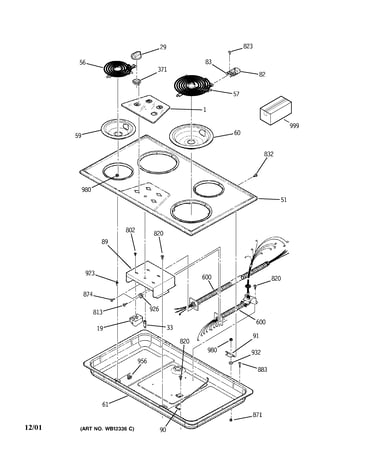

Cooktop diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Screw WB01X1261
#813

Cooktop diagram

Screw

Part #WB01X1261

Replaced by #WB1X1261

?
Manufacturer substitution
This part replaces WB01X1261. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01X1158
#832

Cooktop diagram

Screw

Part #WB01X1158

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces WB01X1158. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Wiring Diagram SR13105
#999

Cooktop diagram

Wiring diagram

Part #SR13105

$17.99
In Stock
Cooktop Element Control Switch, 2,400-watt WB23K5043
#19

Cooktop diagram

Cooktop element control switch, 2,400-watt

Part #WB23K5043

$103.19 |
10% OFF Phone Price : $115.19
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

$17.64 |
10% OFF Phone Price : $19.64
In Stock
Range Drip Pan (replaces Wb32x10014) WB31T10011
#60

Cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

$15.02 |
12% OFF Phone Price : $17.02
In Stock
Indicator Light WB25K5018
#33

Cooktop diagram

Indicator light

Part #WB25K5018

Replaced by #WB25X10024

?
Manufacturer substitution
This part replaces WB25K5018. Substitute parts can look different from the original.
$18.89 |
29% OFF Was : $26.64
In Stock
Screw WB01X1315
#883

Cooktop diagram

Screw

Part #WB01X1315

Replaced by #WB01X32746

?
Manufacturer substitution
This part replaces WB01X1315. Substitute parts can look different from the original.
$9.54
In Stock
Unit Asm 6" WB30X5119
#56

Cooktop diagram

Unit asm 6"

Part #WB30X5119

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5119. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
