Model # PFACR-0 Official Proform air cyclist ergometer

Here are the diagrams and repair parts for Official Proform PFACR-0 air cyclist ergometer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Exercise Equipment Screw 013540
#48

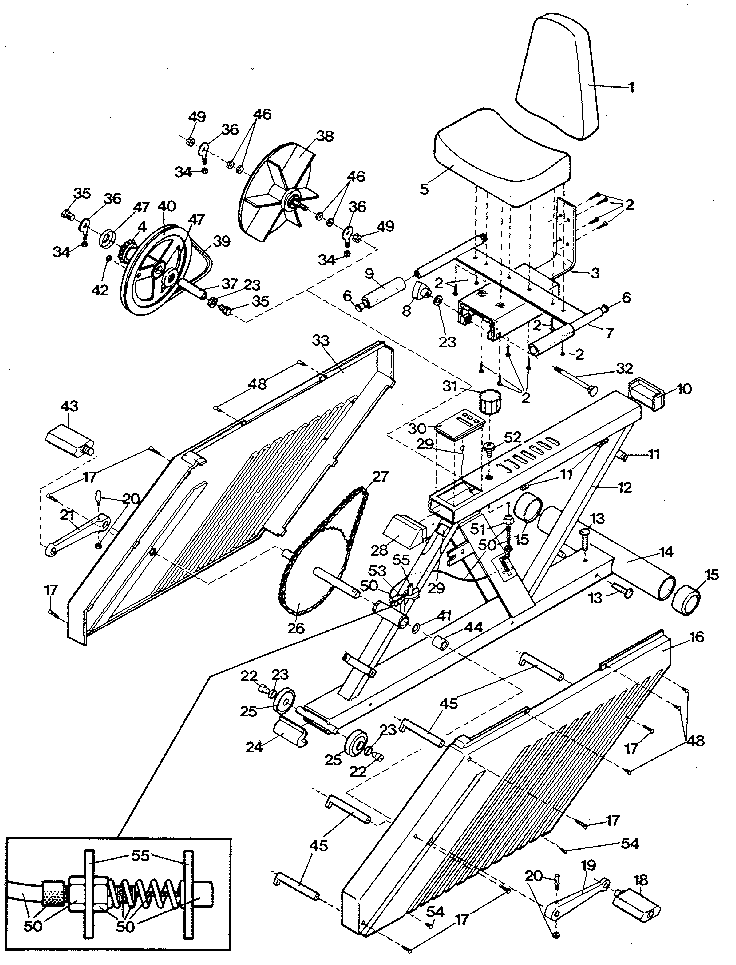

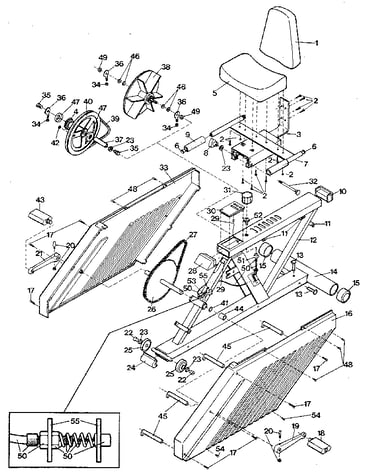

Unit parts diagram

Exercise equipment screw

Part #013540

This item is not returnable
$2.16
In Stock
Weslo Screw,abphoh 013592
#17

Unit parts diagram

Weslo screw,abphoh

Part #013592

This item is not returnable
$2.16
In Stock
Carriage Bolt 013595
#32

Unit parts diagram

Carriage bolt

Part #013595

This item is not returnable
$2.16
In Stock
Healthrider Exercise Equipment Screw 013603
#13

Unit parts diagram

Healthrider exercise equipment screw

Part #013603

This item is not returnable
$2.16
In Stock
Exercise Equipment Flat Washer 014073
#23

Unit parts diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
$2.16
In Stock
Mag,rnd,for 033066
#42

Unit parts diagram

Mag,rnd,for

Part #033066

Replaced by #113842

?
Manufacturer substitution
This part replaces 033066. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Batt,a-76,wa 033134

#NI

All parts diagram

Batt,a-76,wa

Part #033134

The manufacturer no longer makes this part, and there's no substitute part

Screw,phrwms 013604
#53

Unit parts diagram

Screw,phrwms

Part #013604

Replaced by #013527

?
Manufacturer substitution
This part replaces 013604. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw,hhcs,b 013537
#35

Unit parts diagram

Screw,hhcs,b

Part #013537

Replaced by #013093

?
Manufacturer substitution
This part replaces 013537. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cap,front Ra 040222
#28

Unit parts diagram

Cap,front ra

Part #040222

The manufacturer no longer makes this part, and there's no substitute part
