Model # ZIF360NXALH Official GE freezer - x series

Here are the diagrams and repair parts for Official GE ZIF360NXALH freezer - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Temperature Sensor WR55X10711
#268

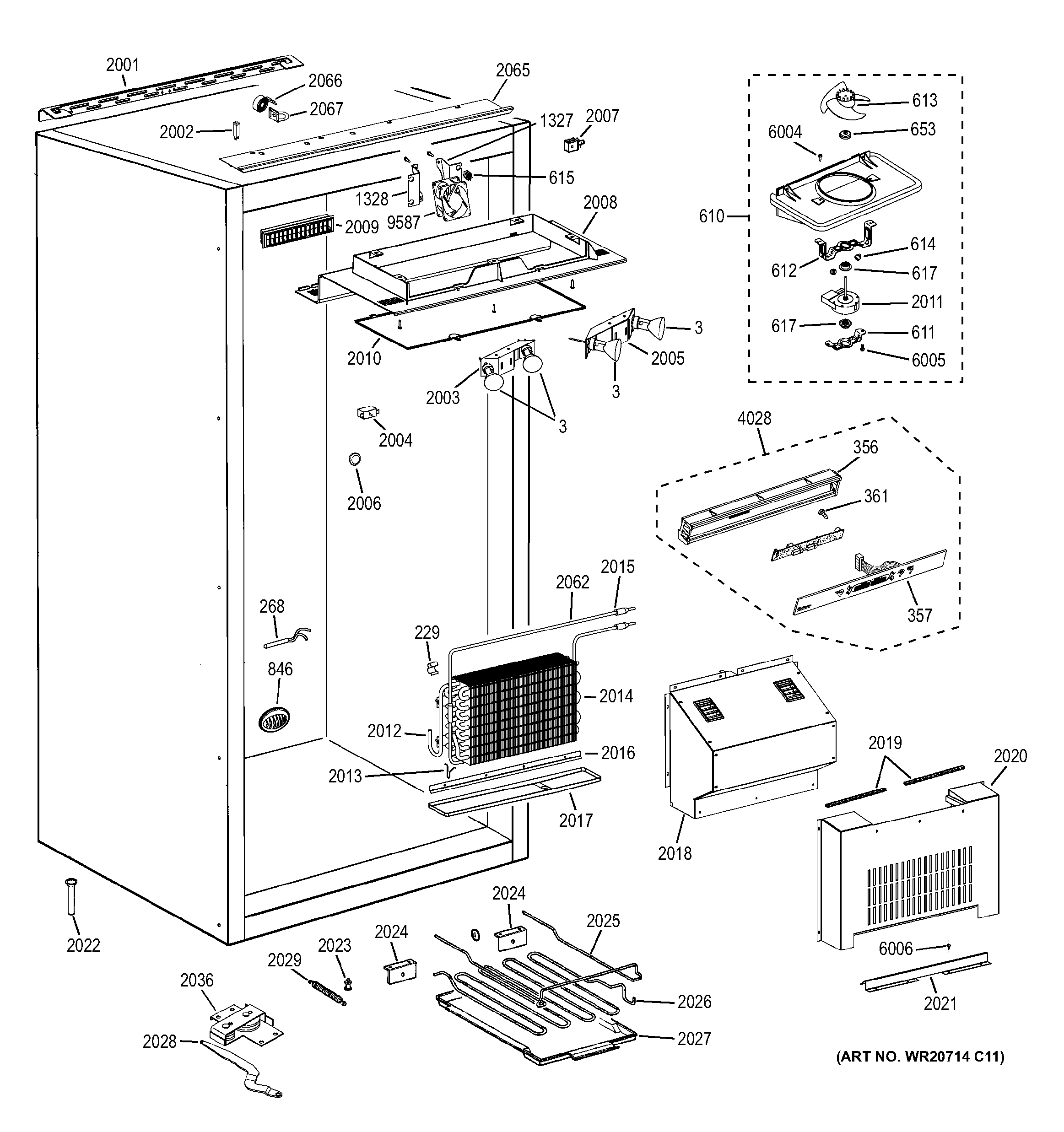

Cabinet (1) diagram

Temperature sensor

Part #WR55X10711

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10711. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Bifurc WR86X10030
#740

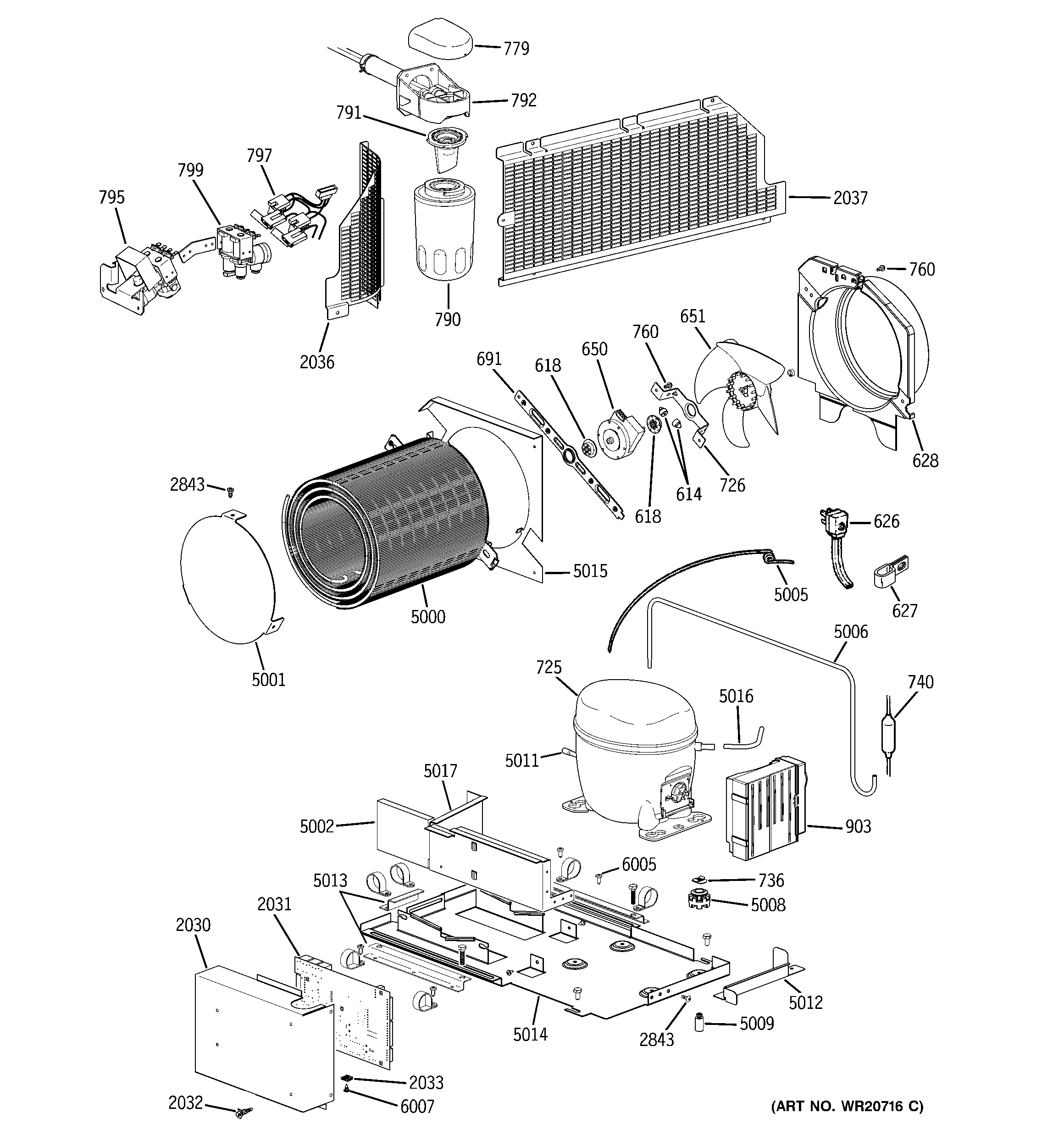

Machine compartment diagram

Dryer bifurc

Part #WR86X10030

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10030. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Inverter WR55X10685
#903

Machine compartment diagram

Inverter

Part #WR55X10685

Replaced by #WR49X10283

?
Manufacturer substitution
This part replaces WR55X10685. Substitute parts can look different from the original.
BEST SELLER
$214.52 |
5% OFF Phone Price : $226.52
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Cabinet (1) diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Compressor (replaces Wr87x10044, Wr87x10064, Wr87x10121, Wr87x10123, Wr87x10180) WR87X10111
#725

Machine compartment diagram

Refrigerator compressor (replaces wr87x10044, wr87x10064, wr87x10121, wr87x10123, wr87x10180)

Part #WR87X10111

BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

Cabinet (1) diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Water Filter Bypass WR02X11705
#791

Machine compartment diagram

Refrigerator water filter bypass

Part #WR02X11705

Replaced by #WR17X22070

?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#790

Machine compartment diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
$64.22
In Stock
Freezer Electronic Control Board WR55X10922
#2031

Machine compartment diagram

Freezer electronic control board

Part #WR55X10922

This item is not returnable
$363.58 |
$12.00 OFF Phone Price : $375.58
In Stock
Ac/dc Motor WR60X10140
#650

Machine compartment diagram

Ac/dc motor

Part #WR60X10140

Replaced by #WR60X10348

?
Manufacturer substitution
This part replaces WR60X10140. Substitute parts can look different from the original.
$81.44 |
7% OFF Phone Price : $87.44
In Stock
