Model # 11915020 Official Kenmore gas hot plate
Here are the diagrams and repair parts for Official Kenmore 11915020 gas hot plate, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11915020 Gas Hot Plate
#2B

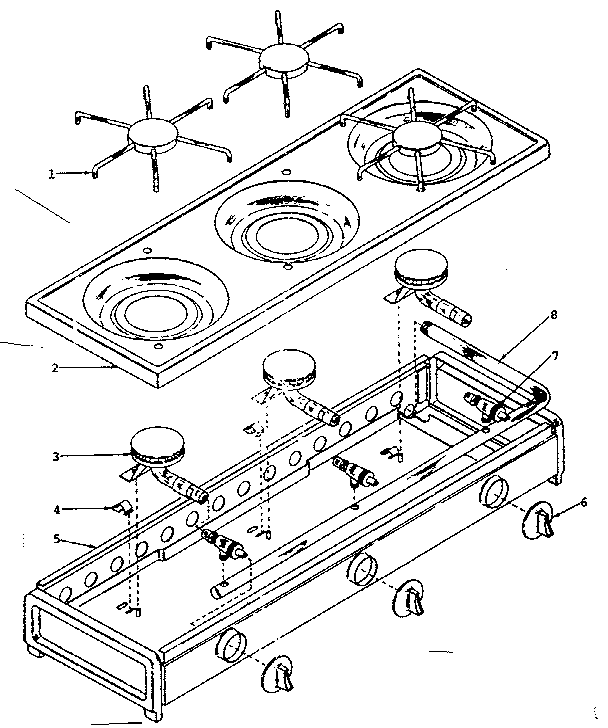

Hot plate diagram
Main
Part #6796
The manufacturer no longer makes this part, and there's no substitute part
#4
Hot plate diagram
Spring clip
Part #5298
The manufacturer no longer makes this part, and there's no substitute part
#5B
Hot plate diagram
Body
Part #6802
The manufacturer no longer makes this part, and there's no substitute part
#7
Hot plate diagram
Valve
Part #6798
The manufacturer no longer makes this part, and there's no substitute part
(10-11) body side panel right or left
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
#3
Hot plate diagram
Burner
Part #6797
The manufacturer no longer makes this part, and there's no substitute part
#8A
Hot plate diagram
Manif pipe
Part #6799
The manufacturer no longer makes this part, and there's no substitute part
#6
Hot plate diagram
Knob
Part #4958
The manufacturer no longer makes this part, and there's no substitute part
#1
Hot plate diagram
Grate
Part #6794
The manufacturer no longer makes this part, and there's no substitute part
#5A
Hot plate diagram
Body
Part #6801
The manufacturer no longer makes this part, and there's no substitute part
