Modern Maid
Gas Range

Model # PKI121 Official Modern Maid gas eye level range

Here are the diagrams and repair parts for Official Modern Maid PKI121 gas eye level range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

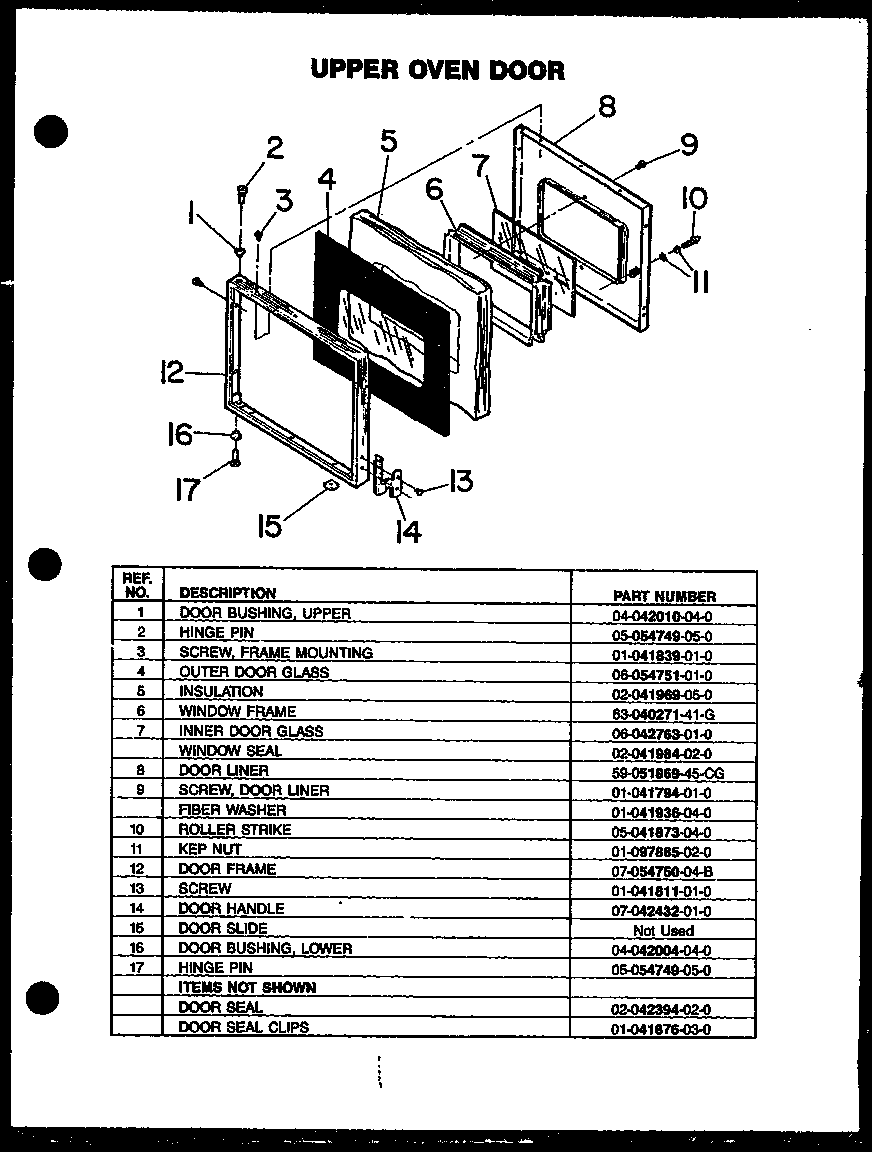

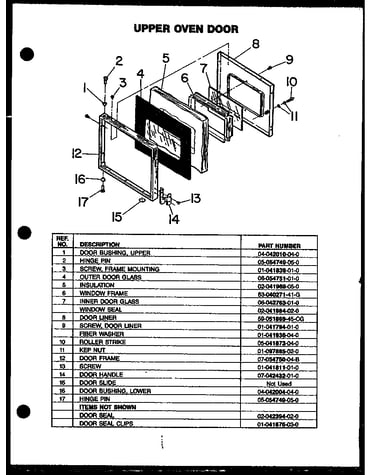

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Surface Burner - R.f. And L.r. 34-059715-05-0
#16

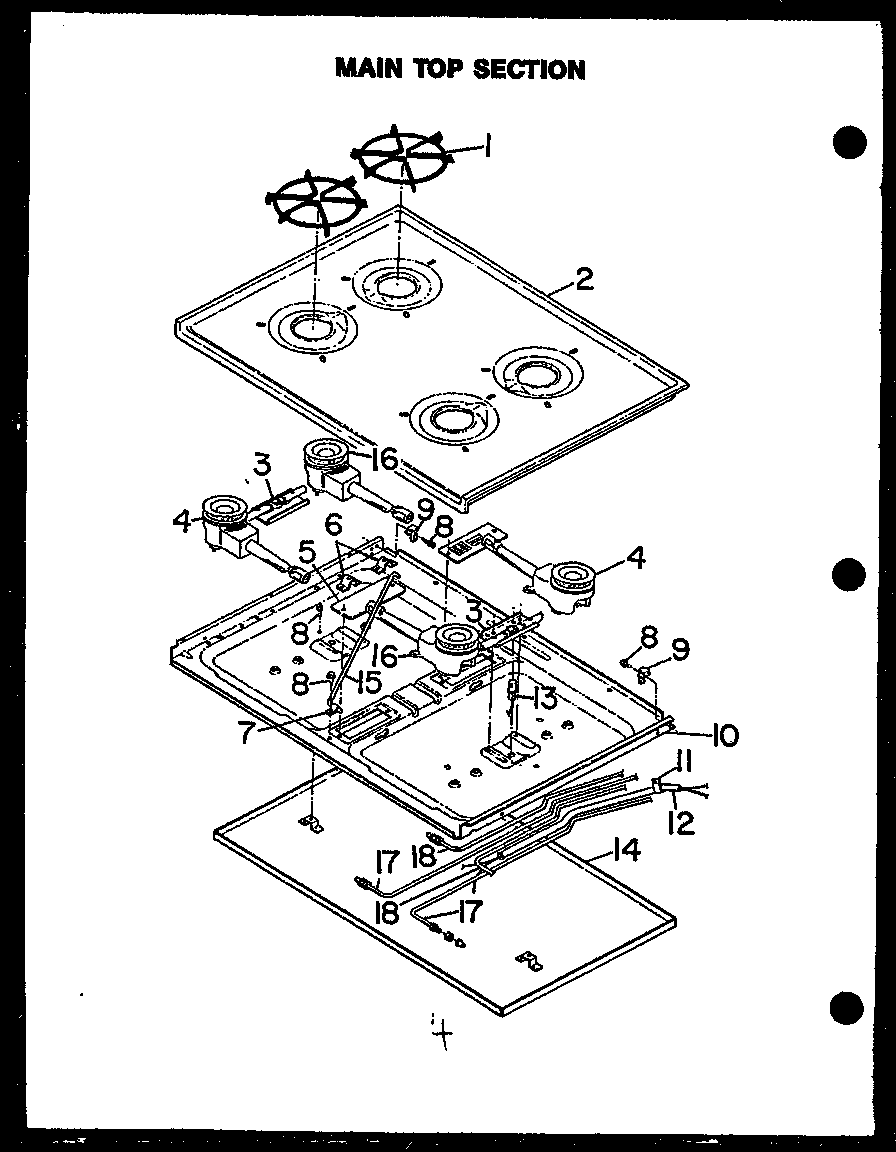

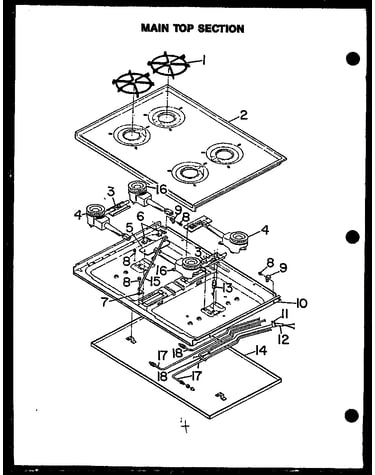

Main top section diagram

Surface burner - r.f. and l.r.

Part #34-059715-05-0

The manufacturer no longer makes this part, and there's no substitute part

Backsplash 64-040400-00-0
#17

Upper oven cabinet section diagram

Backsplash

Part #64-040400-00-0

The manufacturer no longer makes this part, and there's no substitute part

Oven Lamp Bulb 32-042175-10-0
#31

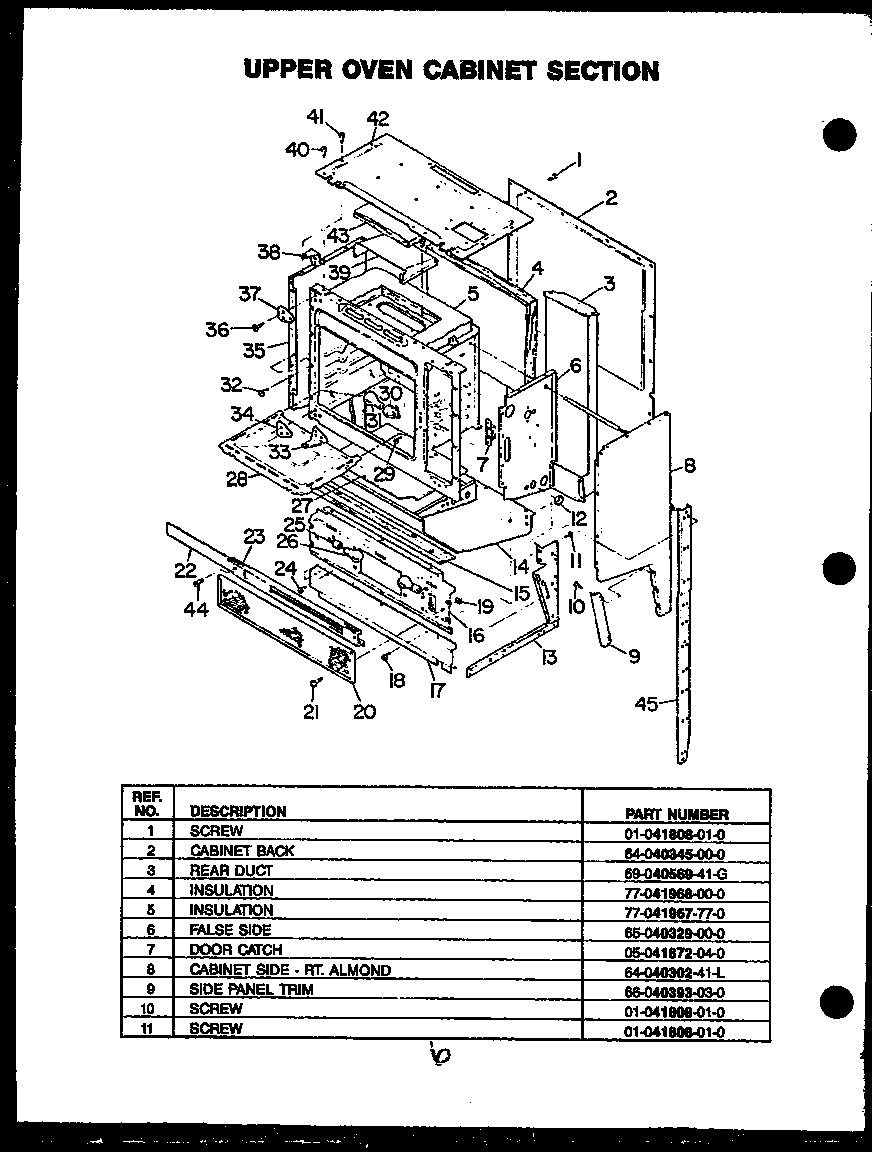

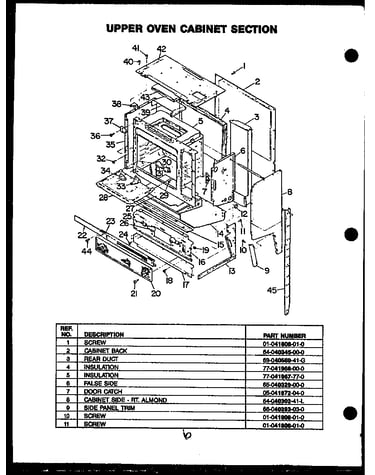

Upper oven cabinet section diagram

Oven lamp bulb

Part #32-042175-10-0

The manufacturer no longer makes this part, and there's no substitute part

Extention - Lt. 73-041077-41-G
#21B

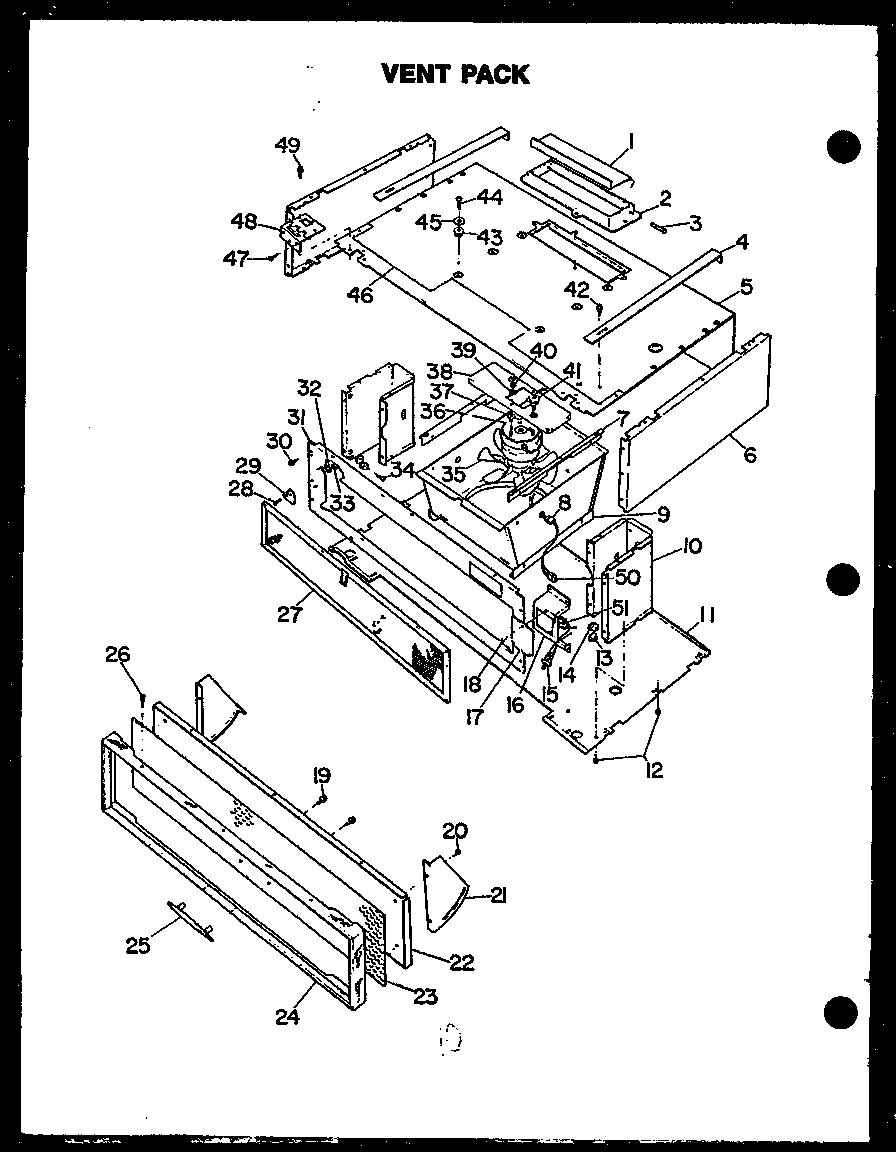

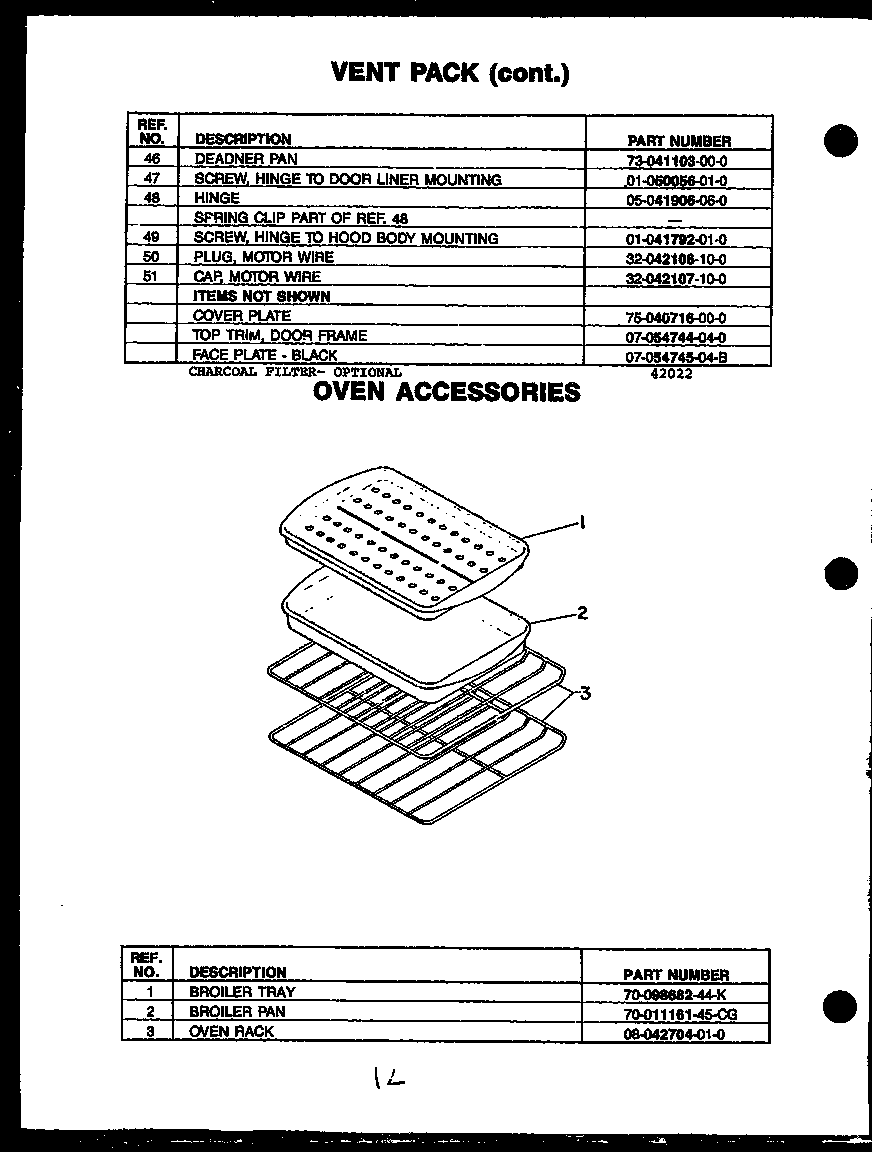

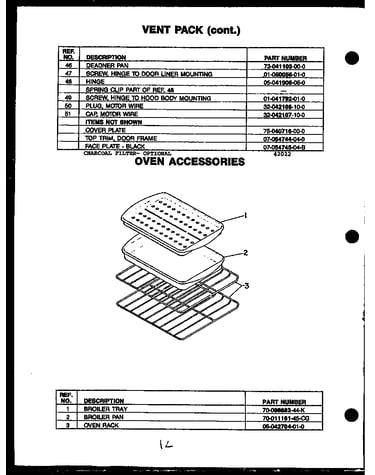

Vent pack diagram

Extention - lt.

Part #73-041077-41-G

The manufacturer no longer makes this part, and there's no substitute part

Shut-off Valve 34-062749-07-0
#14

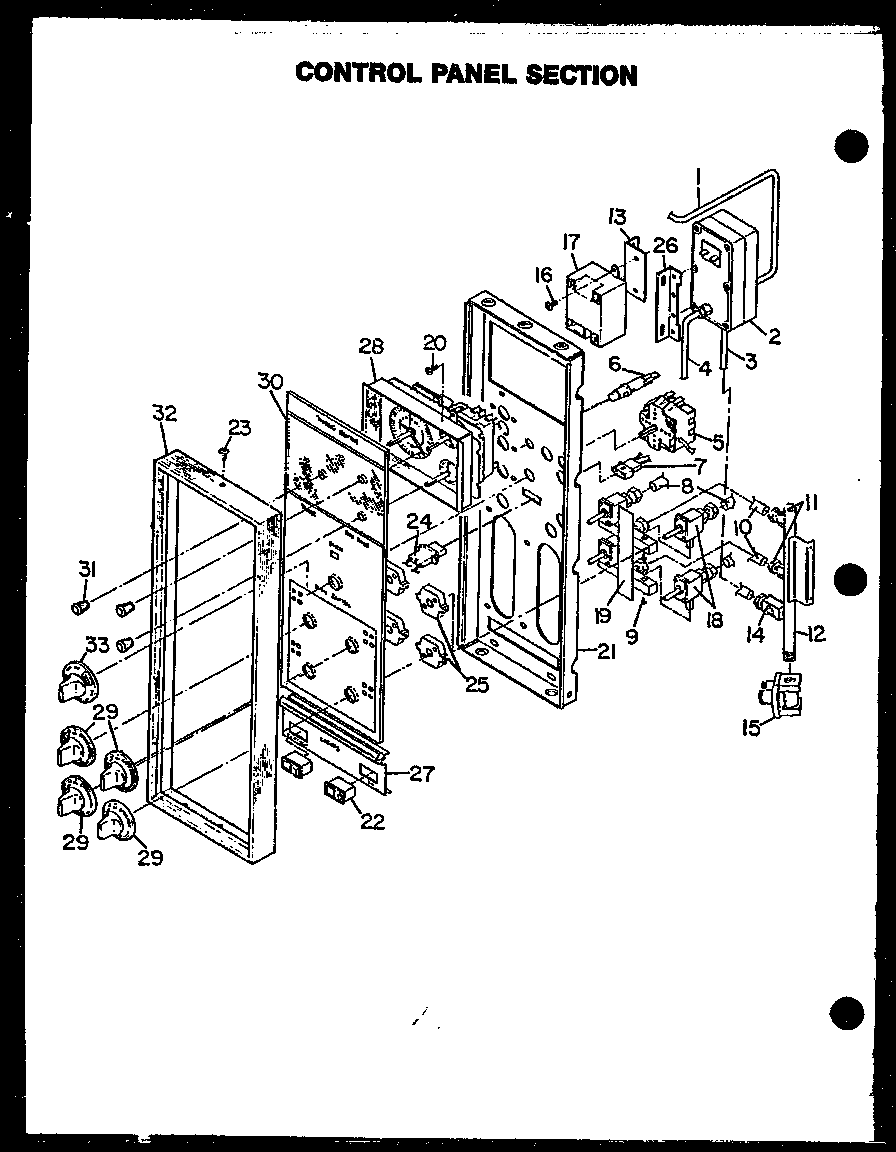

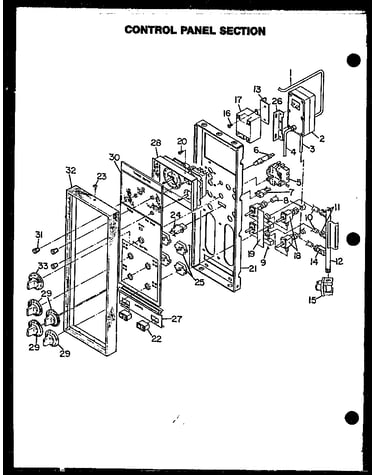

Control panel diagram

Shut-off valve

Part #34-062749-07-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 01-041785-01-0
#16

Control panel diagram

Screw

Part #01-041785-01-0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 08-042751-05-0
#35

Vent pack diagram

Fan blade

Part #08-042751-05-0

The manufacturer no longer makes this part, and there's no substitute part

Broil Burner Assembly 83-059704-04-0
#4

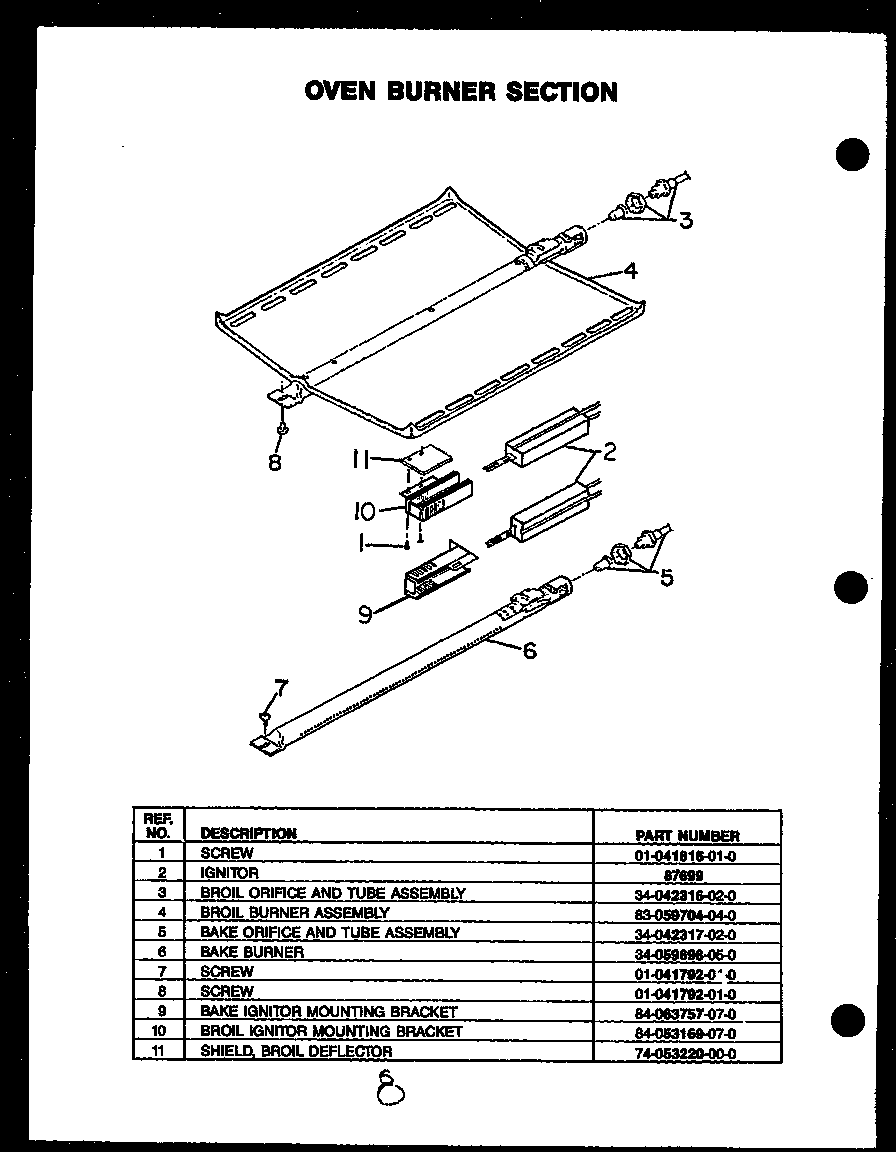

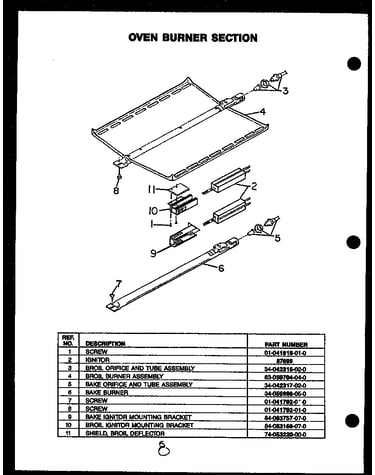

Oven burner section diagram

Broil burner assembly

Part #83-059704-04-0

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Side - Rt. Almond 64-040302-41-1
#8

Upper oven cabinet section diagram

Cabinet side - rt. almond

Part #64-040302-41-1

The manufacturer no longer makes this part, and there's no substitute part

Installation Bracket 73-040864-00-0
#4

Vent pack diagram

Installation bracket

Part #73-040864-00-0

The manufacturer no longer makes this part, and there's no substitute part
