Model # LC550LXW0 Official White-Westinghouse washer - lw31288070

Here are the diagrams and repair parts for Official White-Westinghouse LC550LXW0 washer - lw31288070, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

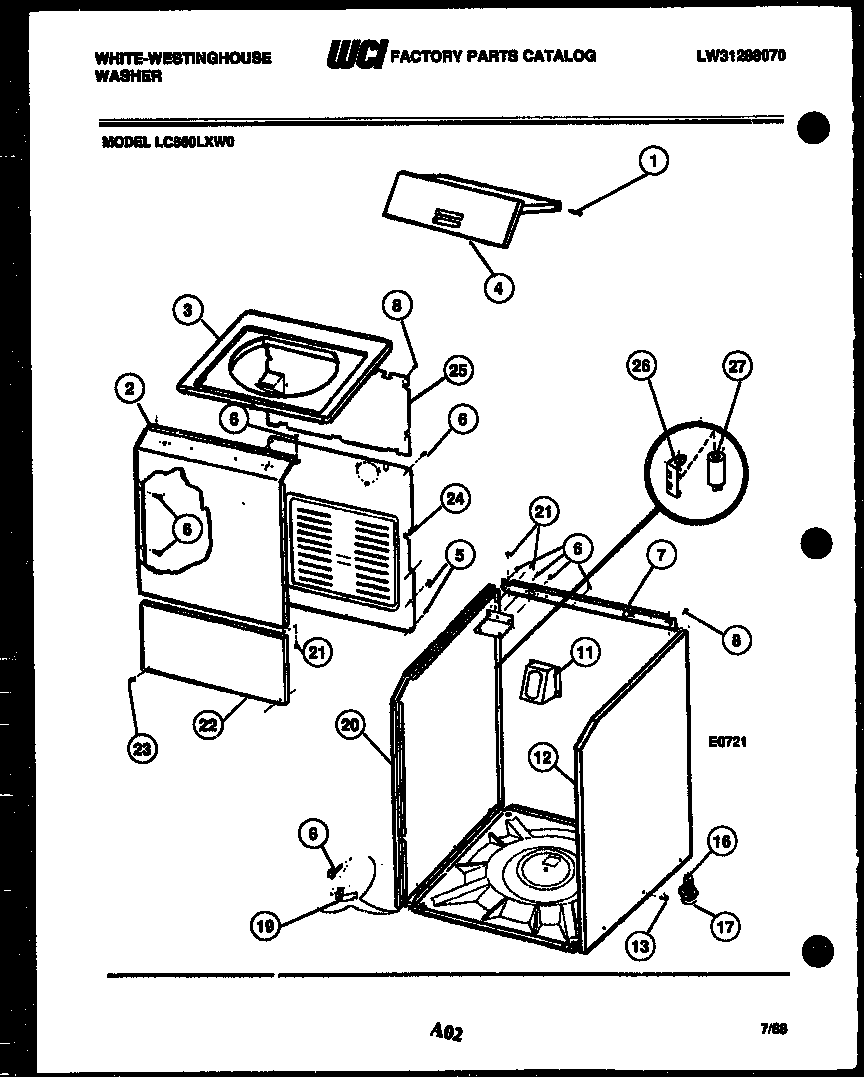

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |

Screw-lockpl F142056000
#8

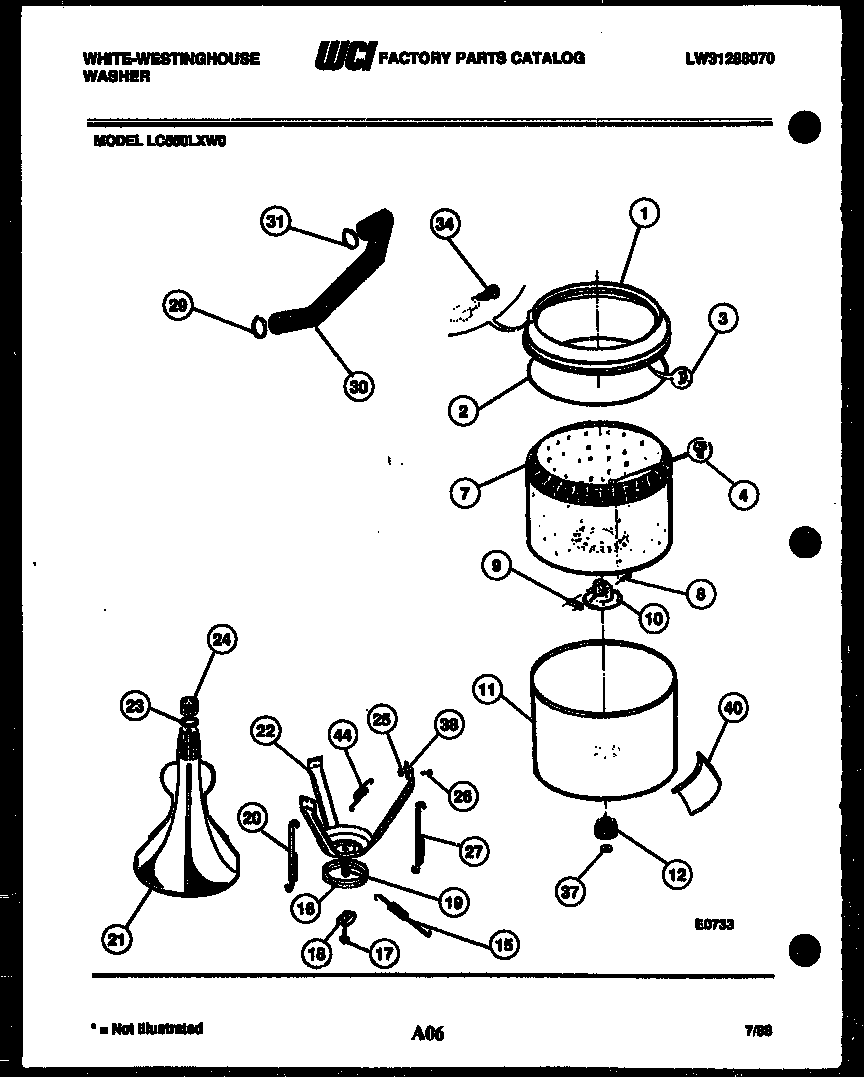

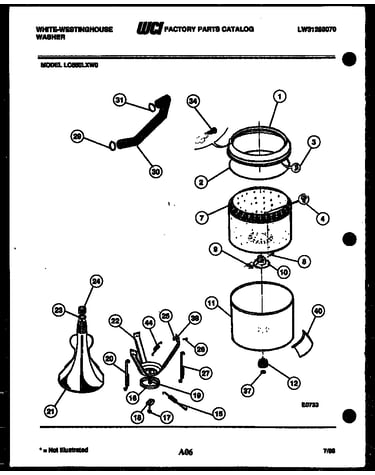

Tub and water inlet diagram

Screw-lockpl

Part #F142056000

Replaced by #137539500

?
Manufacturer substitution
This part replaces F142056000. Substitute parts can look different from the original.
BEST SELLER
$15.24
12% OFF Phone Price : $17.24
In Stock
Water Valve F141174000
#25

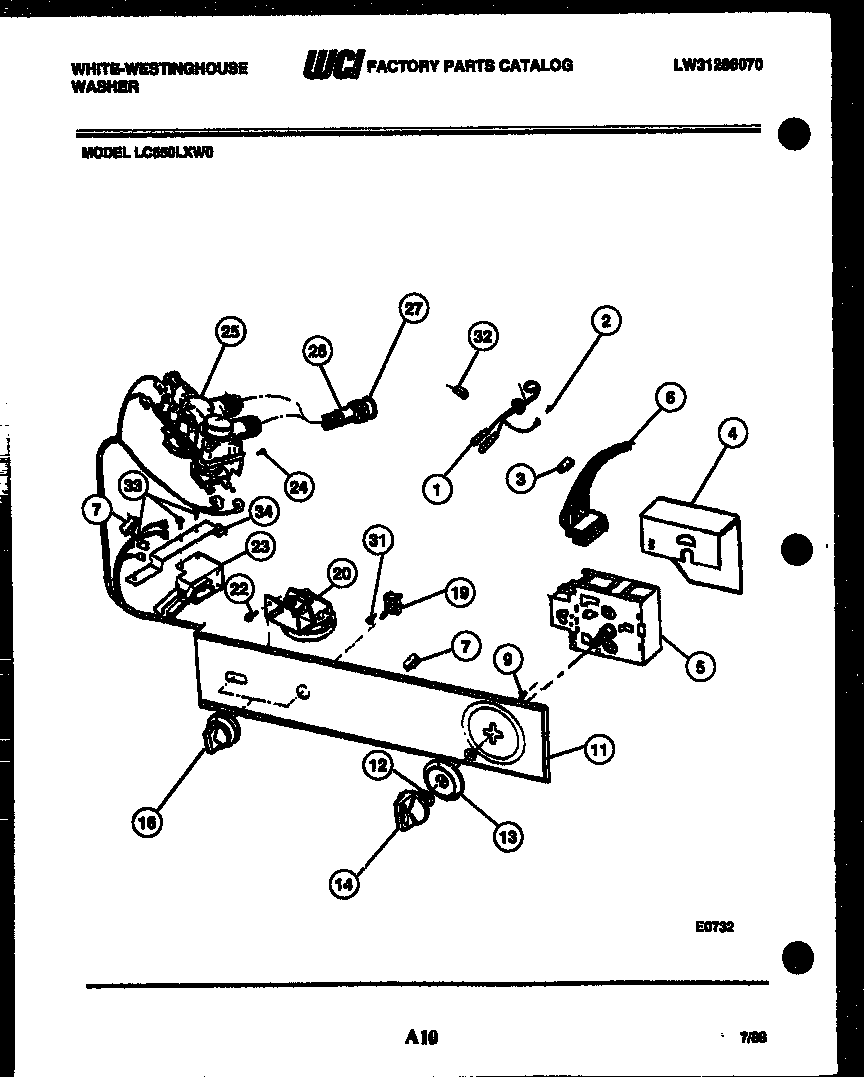

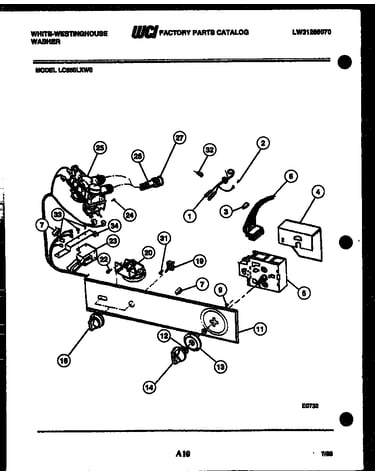

Console and control parts diagram

Water valve

Part #F141174000

Replaced by #134190200

?
Manufacturer substitution
This part replaces F141174000. Substitute parts can look different from the original.
$125.33
9% OFF Phone Price : $137.33
In Stock
Washer F132835000
#37

Tub and water inlet diagram

Washer

Part #F132835000

Replaced by #5308002401

?
Manufacturer substitution
This part replaces F132835000. Substitute parts can look different from the original.
$20.89
22% OFF Phone Price : $26.89
In Stock
Seal-upper L F130866000
#5

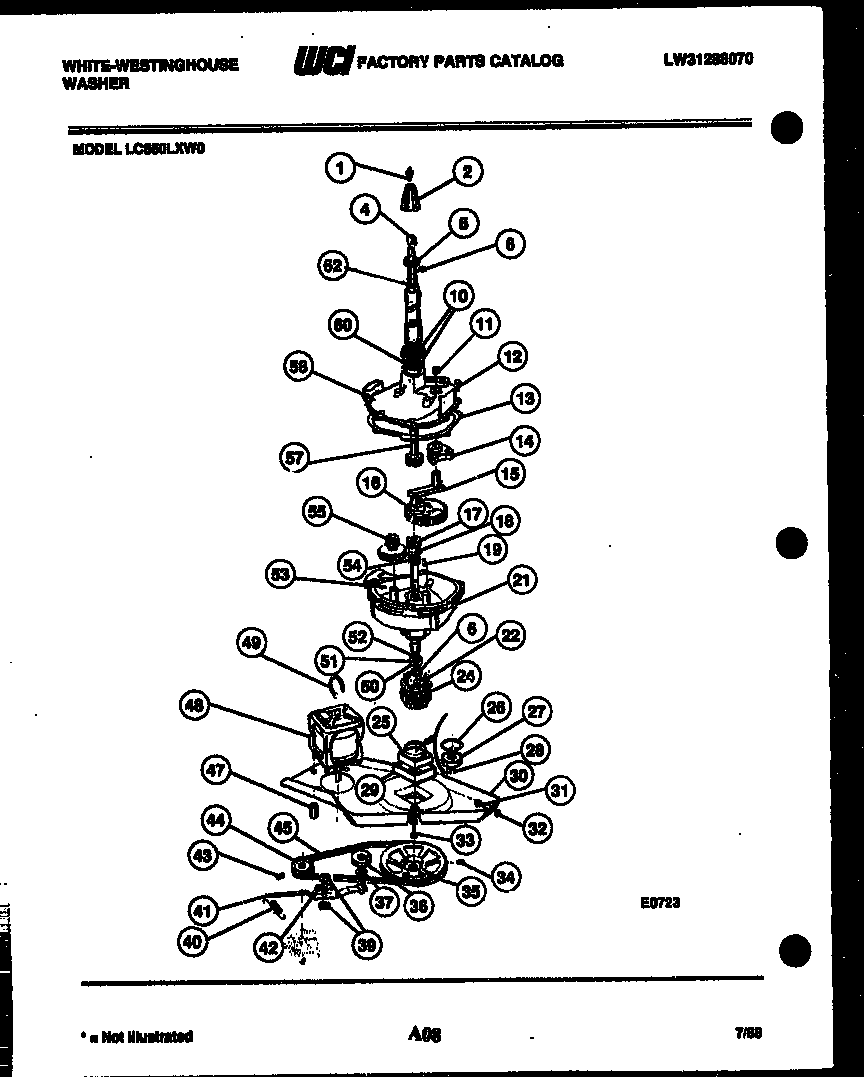

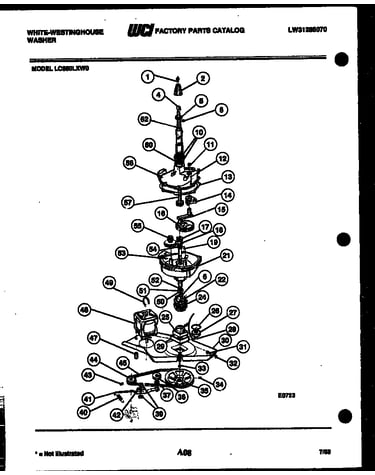

Transmission parts diagram

Seal-upper l

Part #F130866000

Replaced by #5303161307

?
Manufacturer substitution
This part replaces F130866000. Substitute parts can look different from the original.
$19.44
9% OFF Phone Price : $21.44
In Stock
Set Screw F141729000
#34

Transmission parts diagram

Set screw

Part #F141729000

Replaced by #5303270023

?
Manufacturer substitution
This part replaces F141729000. Substitute parts can look different from the original.
In Stock
Seal F077062000
#52

Transmission parts diagram

Seal

Part #F077062000

Replaced by #5303161173

?
Manufacturer substitution
This part replaces F077062000. Substitute parts can look different from the original.
In Stock
Clip 08008454
#20

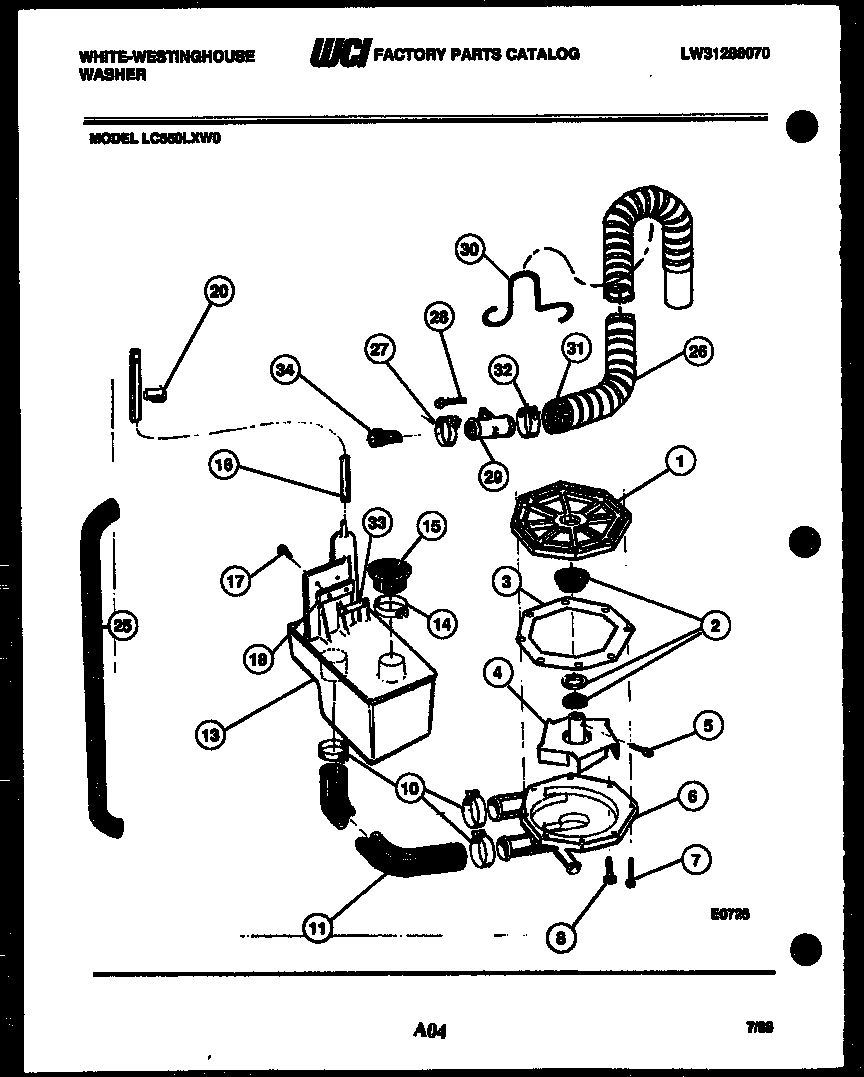

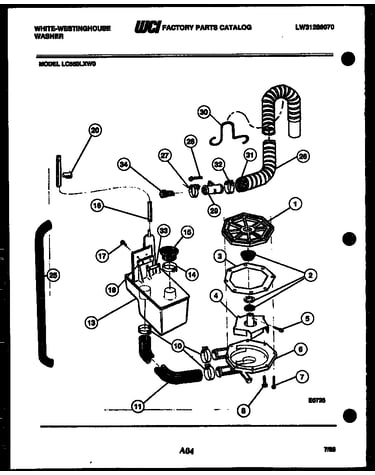

Drain and recirculate parts diagram

Clip

Part #08008454

This item is not returnable
In Stock
Shield Q000199015
#4

Console and control parts diagram

Shield

Part #Q000199015

Replaced by #5308027567

?
Manufacturer substitution
This part replaces Q000199015. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pulley F130879000
#36

Transmission parts diagram

Pulley

Part #F130879000

Replaced by #5303912533

?
Manufacturer substitution
This part replaces F130879000. Substitute parts can look different from the original.
In Stock
Ground Screw F131225000
#2

Console and control parts diagram

Ground screw

Part #F131225000

Replaced by #134154100

?
Manufacturer substitution
This part replaces F131225000. Substitute parts can look different from the original.
$14.91
12% OFF Phone Price : $16.91
In Stock
