Model # ARH667WW Official Amana electric range

Here are the diagrams and repair parts for Official Amana ARH667WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

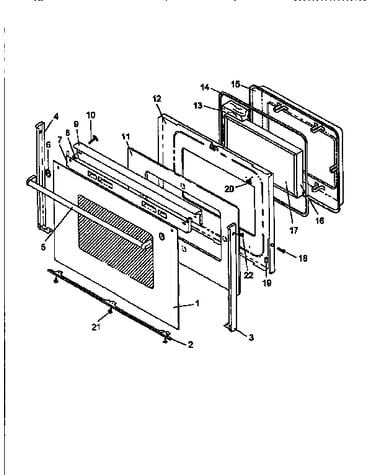

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Lamp 0042175
#5

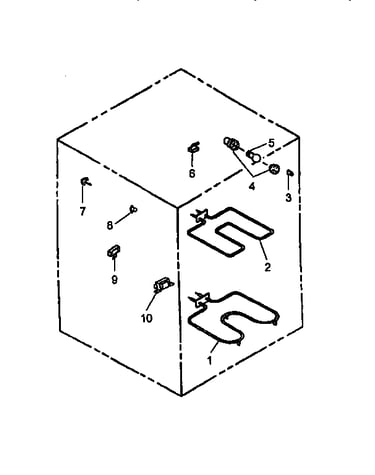

Electrical components diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Heater 0306218
#12

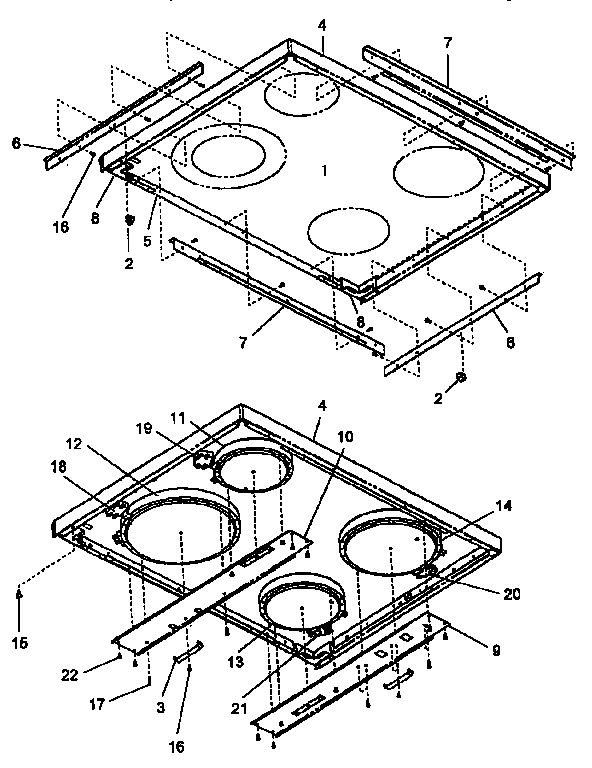

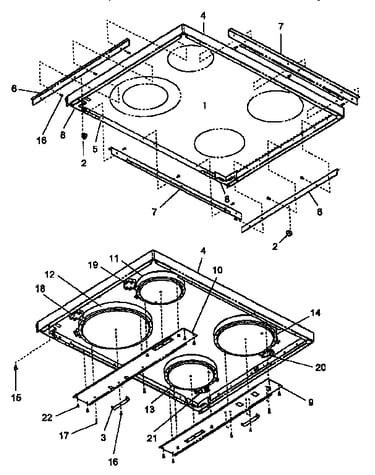

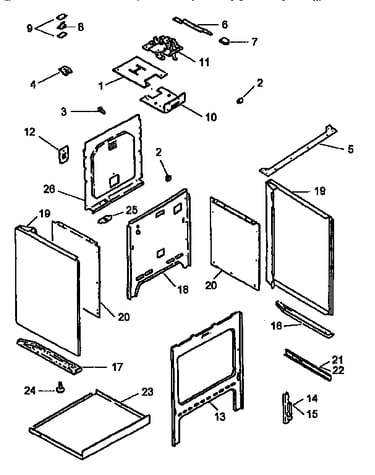

Maintop assembly diagram

Heater

Part #0306218

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0306218. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Broiler Pan 314175CG
#15

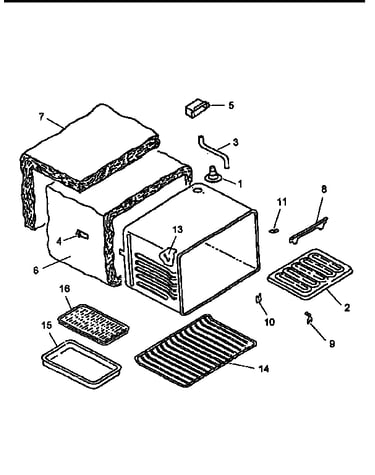

Cabinet assembly diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Sensor 0306529
#7

Electrical components diagram

Sensor

Part #0306529

Replaced by #WPY0314907

?
Manufacturer substitution
This part replaces 0306529. Substitute parts can look different from the original.
$77.28 |
7% OFF Phone Price : $83.28
In Stock
Broiler Grid 304451E
#16

Cabinet assembly diagram

Broiler grid

Part #304451E

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451E. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw 0059445
#7

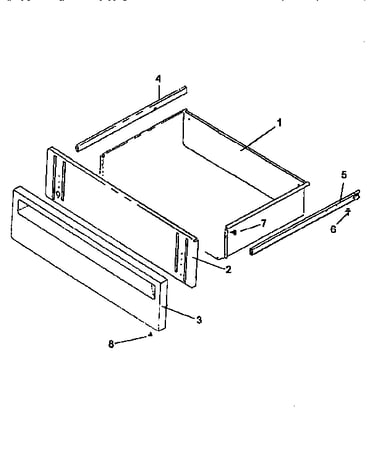

Storage drawer assembly diagram

Screw

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cleaner 0314274

#*47722

All parts diagram

Cleaner

Part #0314274

The manufacturer no longer makes this part, and there's no substitute part

Switch 0306235
#19B

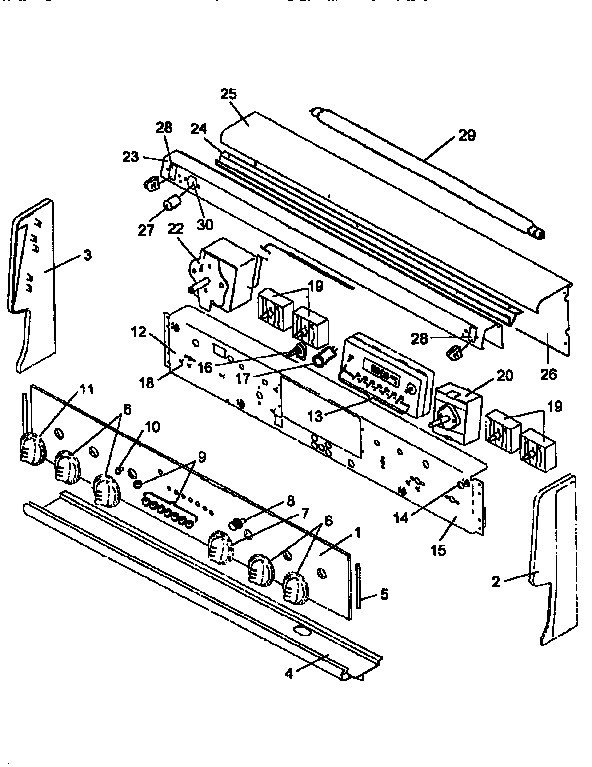

Backguard diagram

Switch

Part #0306235

Replaced by #WPR0702021

?
Manufacturer substitution
This part replaces 0306235. Substitute parts can look different from the original.
$90.69 |
6% OFF Phone Price : $96.69
In Stock
Oven Rack 067810K
#14

Cabinet assembly diagram

Oven rack

Part #067810K

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 067810K. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Lamp 0067945
#29

Backguard diagram

Lamp

Part #0067945

The manufacturer no longer makes this part, and there's no substitute part
