Model # NDGK125KK06 Official ICP condensing counterflow gas furnace
Here are the diagrams and repair parts for Official ICP NDGK125KK06 condensing counterflow gas furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
NDGK125KK06 Condensing Counterflow Gas Furnace
#3

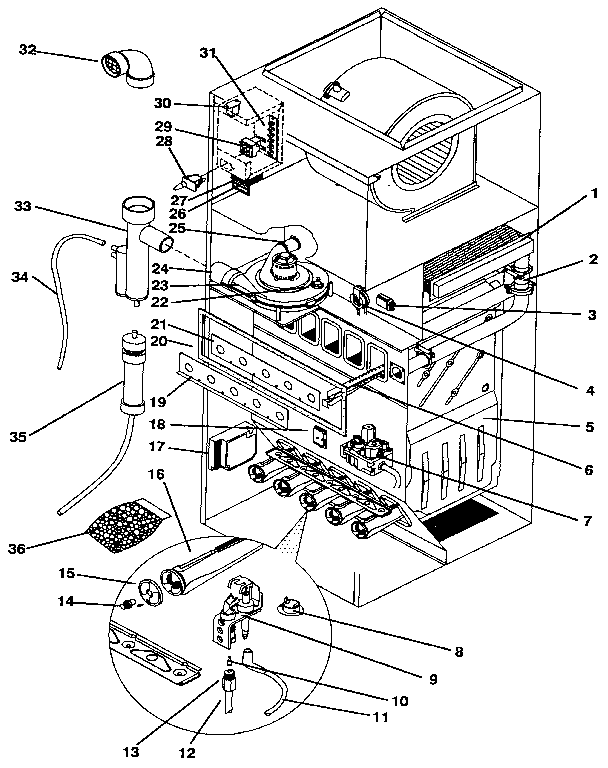

Functional diagram
Capacitor
Part #602974
Replaced by #12005
?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#30
Functional diagram
Furnace fan control relay
Part #1000742
$37.63 |
14% OFF Phone Price : $43.63
In Stock
#23
Functional diagram
Furnace blower
Part #1005150
Replaced by #1011350
?
Manufacturer substitution
This part replaces 1005150. Substitute parts can look different from the original.
$636.16 |
$12.00 OFF Phone Price : $648.16
In Stock
#5

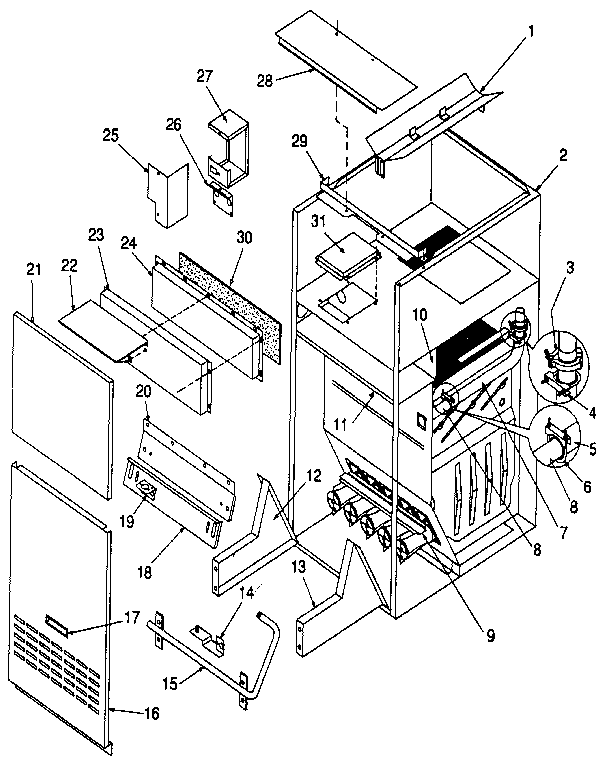

Non-functional diagram
Adapter tube
Part #1001553
$57.93
In Stock
#4
Functional diagram
Pressure swi
Part #1005261
$75.87
In Stock
#6

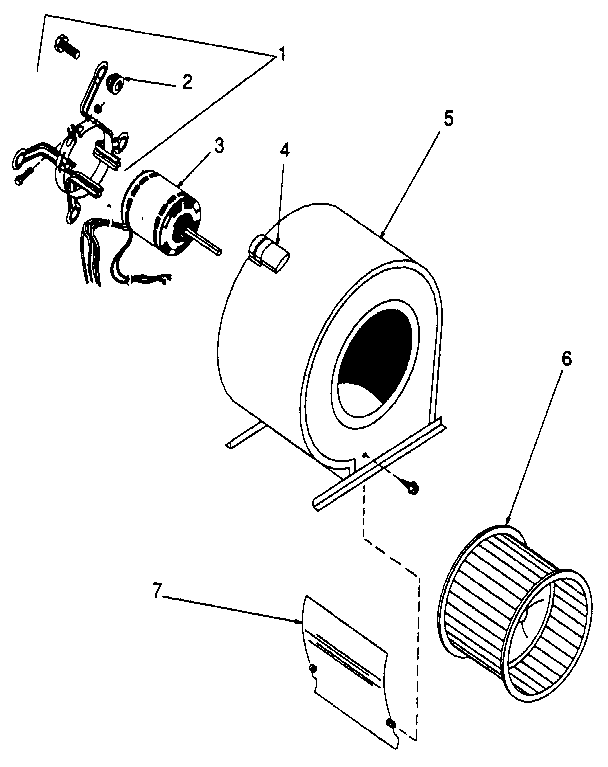

Blower diagram
Furnace blower wheel
Part #89726
$218.43 |
5% OFF Phone Price : $230.43
In Stock
#4
Non-functional diagram
Clamp
Part #1001327
$8.74
In Stock
#20
Functional diagram
Gasket
Part #1000467
$9.03
In Stock
#22A
Functional diagram
Control limi
Part #1007375
$23.46
In Stock
#2
Functional diagram
O-ring
Part #1000599
$70.56
In Stock
