Side-By-Side Refrigerator

Model # ZISS42DYASS Official GE refrigerator - y series

Here are the diagrams and repair parts for Official GE ZISS42DYASS refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

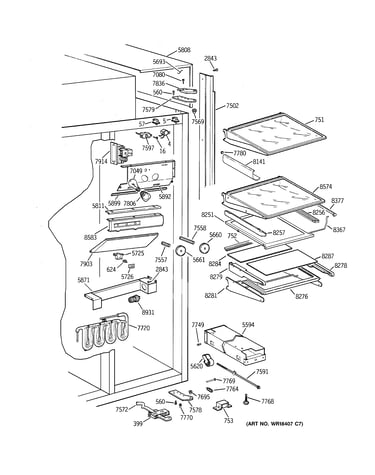

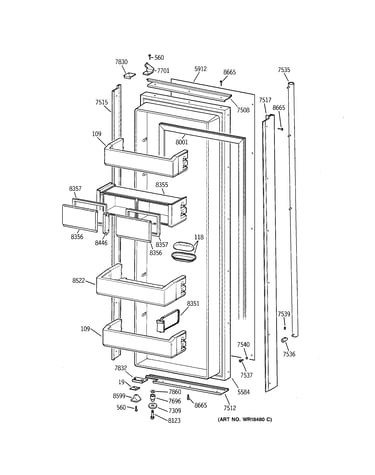

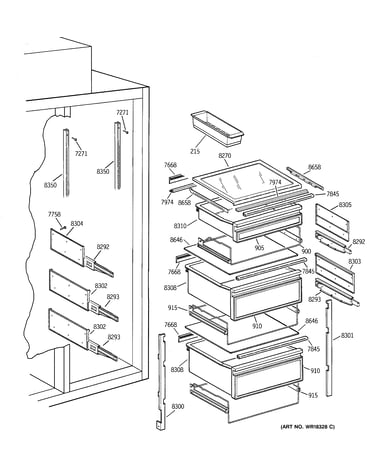

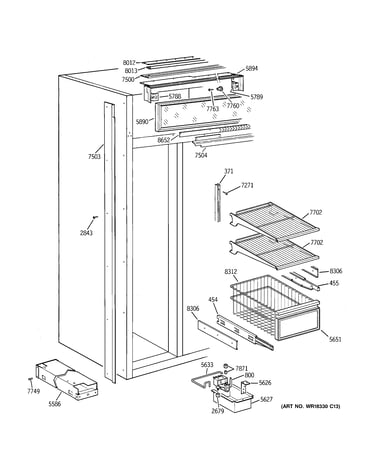

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 325 parts  |
Ice Maker WR30X0327
#1313

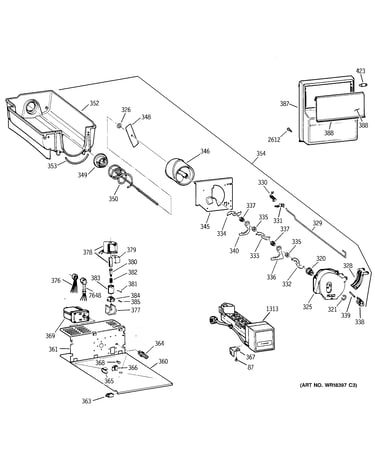

Ice maker & dispenser diagram

Ice maker

Part #WR30X0327

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0327. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

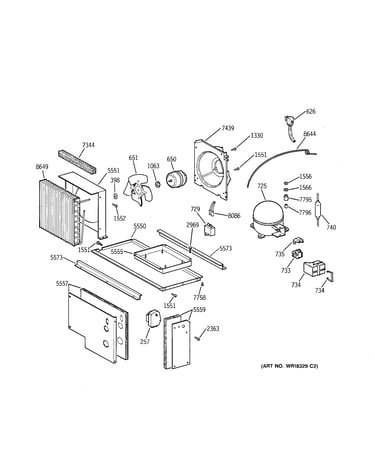

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Hi Side Asm WR87X0471
#725

Sealed system & mother board diagram

Hi side asm

Part #WR87X0471

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X0471. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Dr Reces Asm WR17X3093
#62

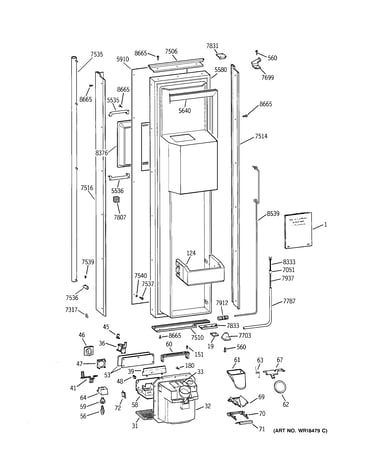

Freezer door diagram

Dr reces asm

Part #WR17X3093

Replaced by #WR17X11653

?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Defrost Timer WR09X0587
#257

Sealed system & mother board diagram

Refrigerator defrost timer

Part #WR09X0587

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0587. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Drain Pan WR17X3038
#5304

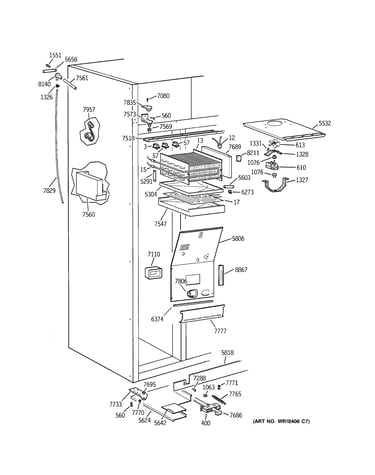

Freezer section diagram

Refrigerator drain pan

Part #WR17X3038

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR17X3038. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Heater Trough WR51X0321
#17

Freezer section diagram

Heater trough

Part #WR51X0321

Replaced by #WR49X10021

?
Manufacturer substitution
This part replaces WR51X0321. Substitute parts can look different from the original.
BEST SELLER
$356.77 |
$12.00 OFF Phone Price : $368.77
In Stock
Refrigerator Ice Container Assembly (replaces Wr17x2898) WR17X4312
#354

Ice maker & dispenser diagram

Refrigerator ice container assembly (replaces wr17x2898)

Part #WR17X4312

BEST SELLER
$173.75 |
6% OFF Phone Price : $185.75
In Stock
Grommet WR02X9466
#8140

Freezer section diagram

Grommet

Part #WR02X9466

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR02X9466. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Motor C-disp WR60X0202
#369

Ice maker & dispenser diagram

Motor c-disp

Part #WR60X0202

Replaced by #WR60X10262

?
Manufacturer substitution
This part replaces WR60X0202. Substitute parts can look different from the original.
$156.16 |
7% OFF Phone Price : $168.16
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

View all

Why won't my refrigerator run?

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Read more

Why won't my refrigerator ice maker make ice?

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Read more

Why is water dripping from my refrigerator onto the floor?

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Read more

Why is frost building up in my refrigerator's freezer?

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Read more

Why isn't my refrigerator cooling well?

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Read more

Why won't my refrigerator cool at all?

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Read more

Why is my freezer not cold enough?

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Read more

What routine maintenance does my refrigerator need?

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Read more
