Payne
Air Handler

Model # PF1MNC043000AAAA Official Payne air handler

Here are the diagrams and repair parts for Official Payne PF1MNC043000AAAA air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Latch 314875-201
#NI

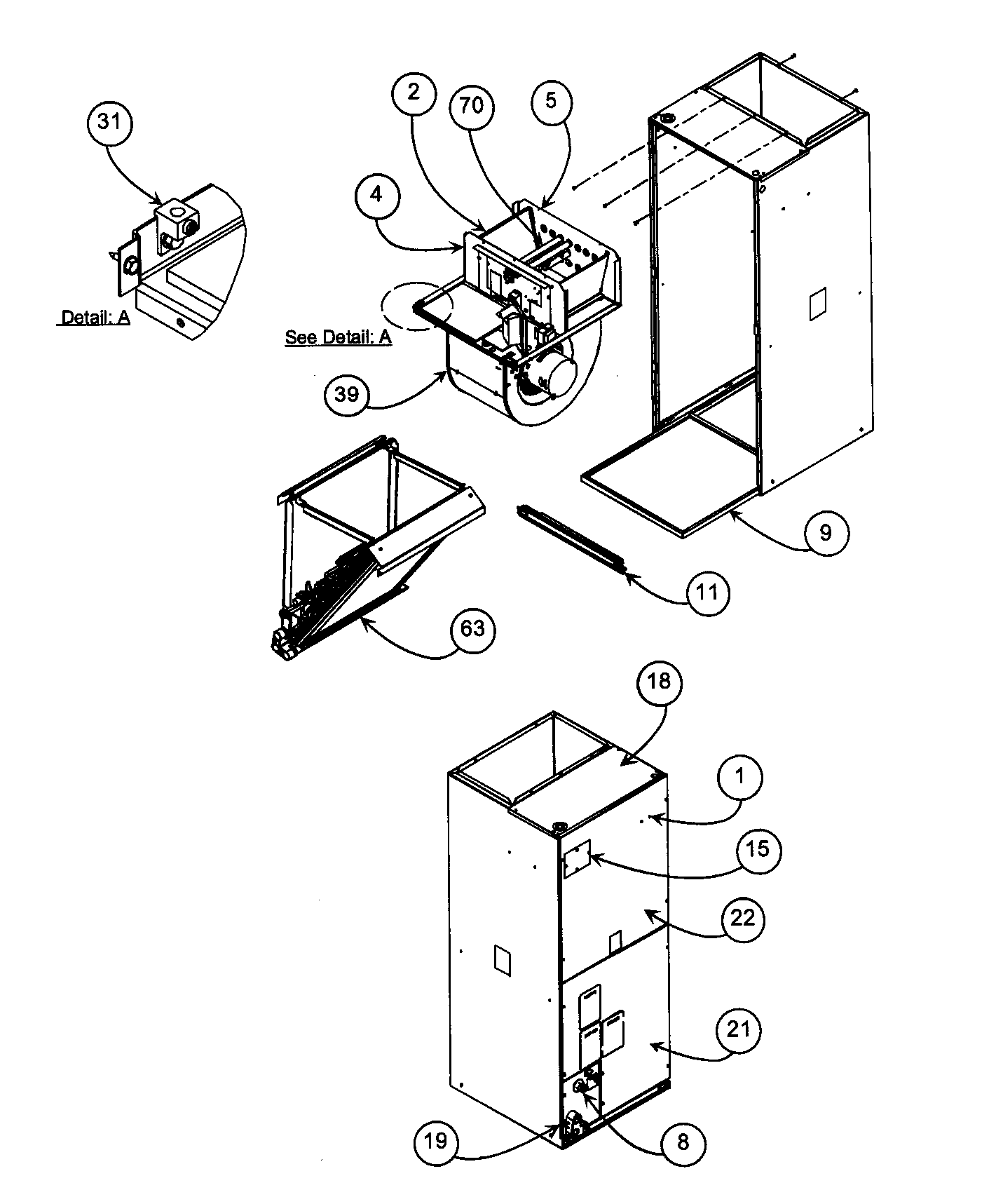

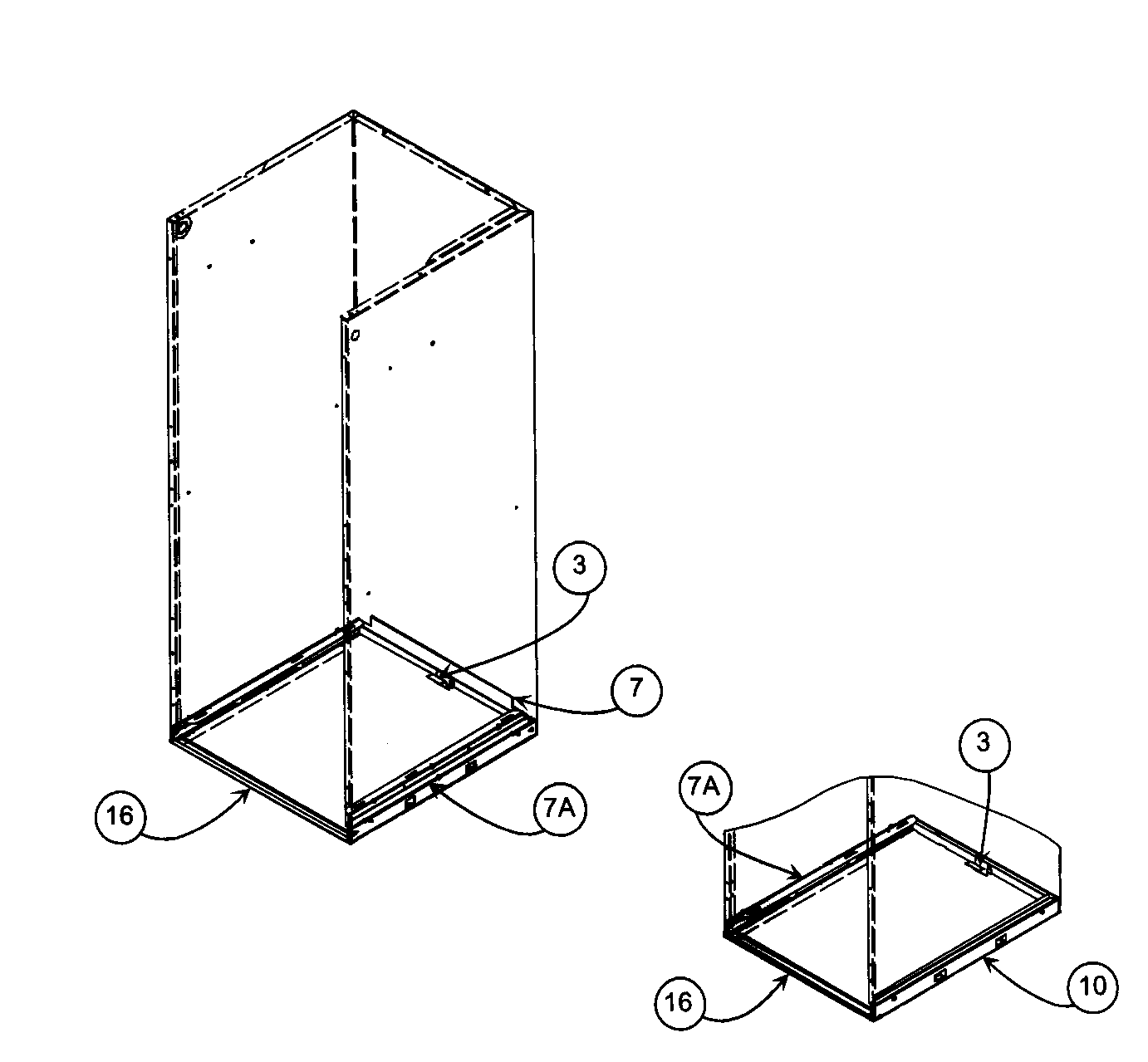

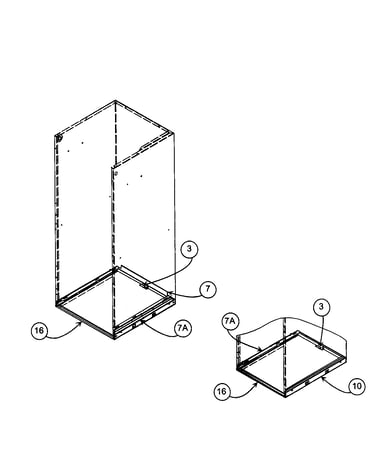

Cabinet parts diagram

Latch

Part #314875-201

This item is not returnable
$2.16
In Stock
Fuse Block HY11UM601
#NI

Cabinet parts diagram

Fuse block

Part #HY11UM601

$325.76
In Stock
134,elec Heat-8kw-ck Br KFCEH2501C08
#NI

Cabinet parts diagram

134,elec heat-8kw-ck br

Part #KFCEH2501C08

$618.80
In Stock
Furnace Temperature Limit Switch HH19ZA950
#NI

Cabinet parts diagram

Furnace temperature limit switch

Part #HH19ZA950

$63.98 |
9% OFF Phone Price : $69.98
In Stock
Central Air Conditioner Air Handler Heating Element KFCEH2901N09
#NI

Cabinet parts diagram

Central air conditioner air handler heating element

Part #KFCEH2901N09

$661.87
In Stock
Bracket 314900-203
#6

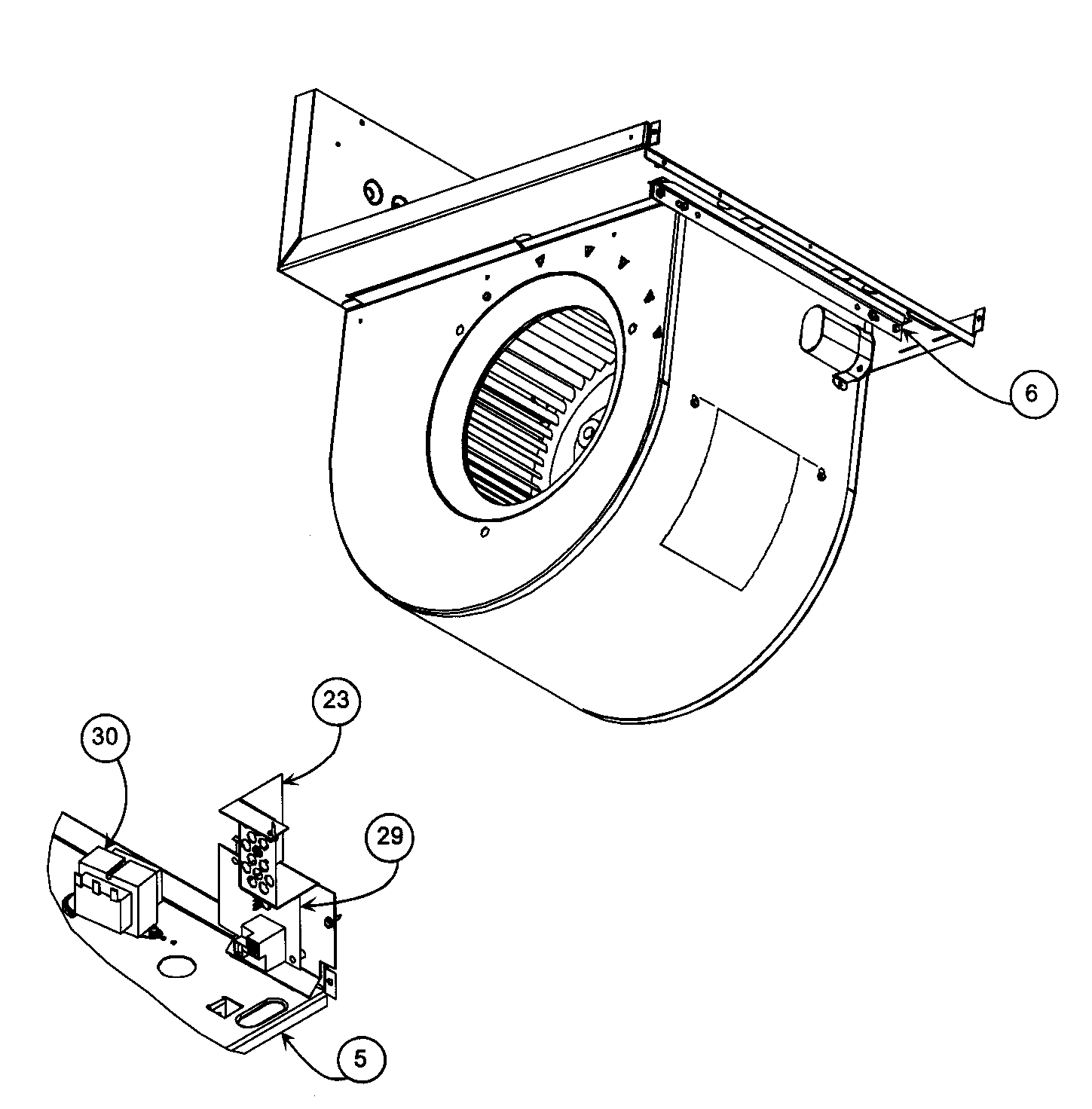

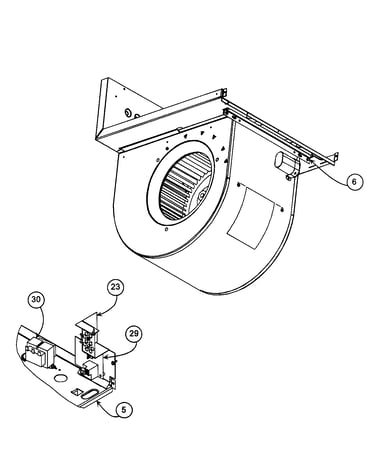

Blower assy diagram

Bracket

Part #314900-203

$17.49
In Stock
Element 320074-701
#NI

Cabinet parts diagram

Element

Part #320074-701

$144.37 |
8% OFF Phone Price : $156.37
In Stock
Arm & Grom 330426-405
#NI

Cabinet parts diagram

Arm & grom

Part #330426-405

$15.94
In Stock
Clip 314984-202
#7C

Cabinet parts diagram

Clip

Part #314984-202

This item is not returnable
$2.16
In Stock
Harness 322027-701
#NI

Cabinet parts diagram

Harness

Part #322027-701

$25.20
In Stock
