Kenmore Elite
Electric Range

Model # 79097723410 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79097723410 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

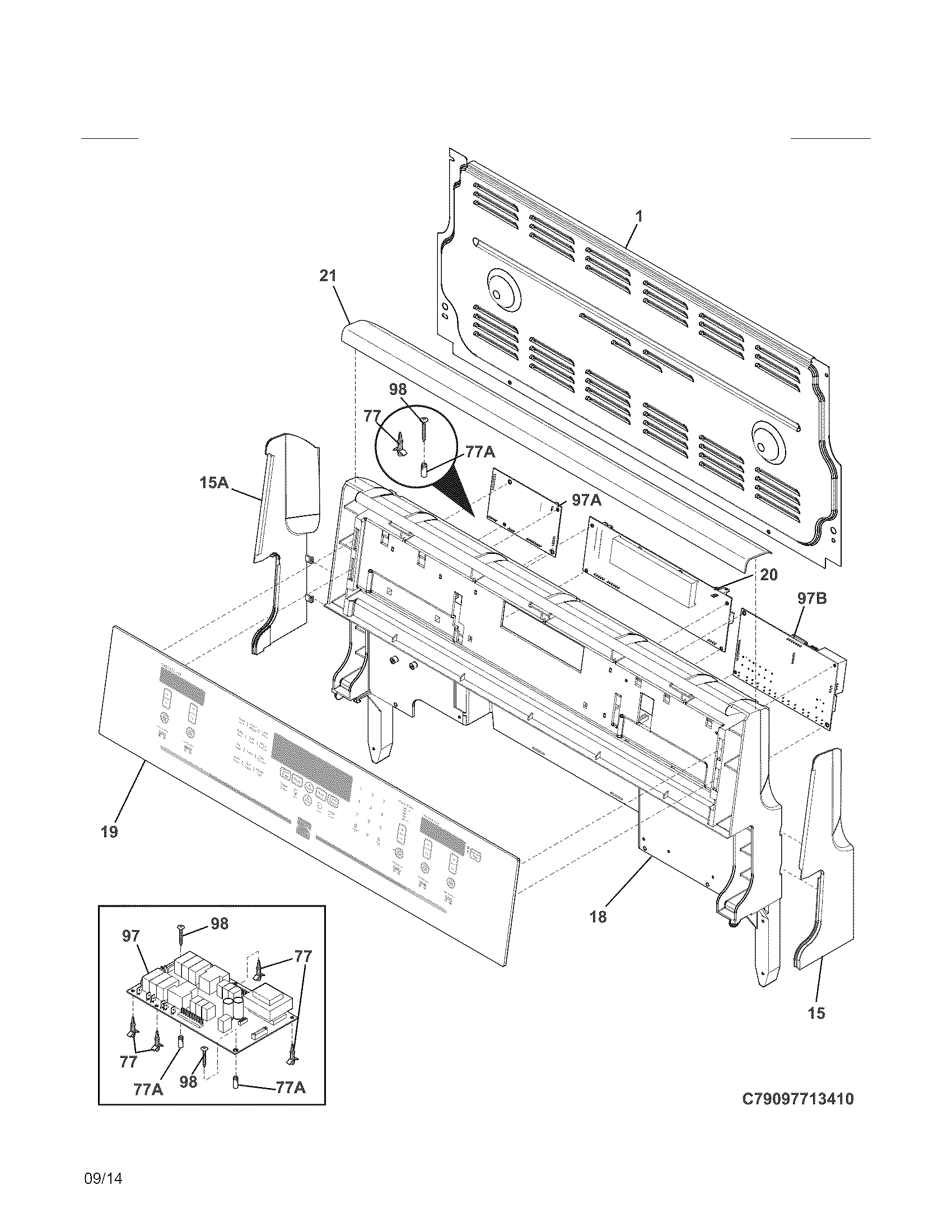

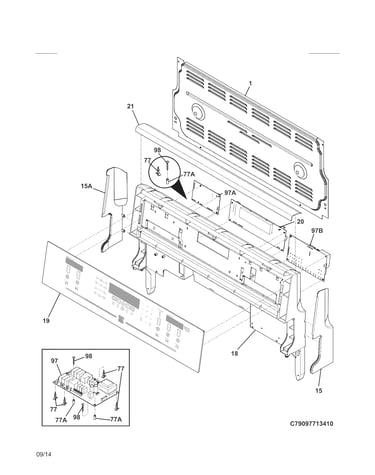

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

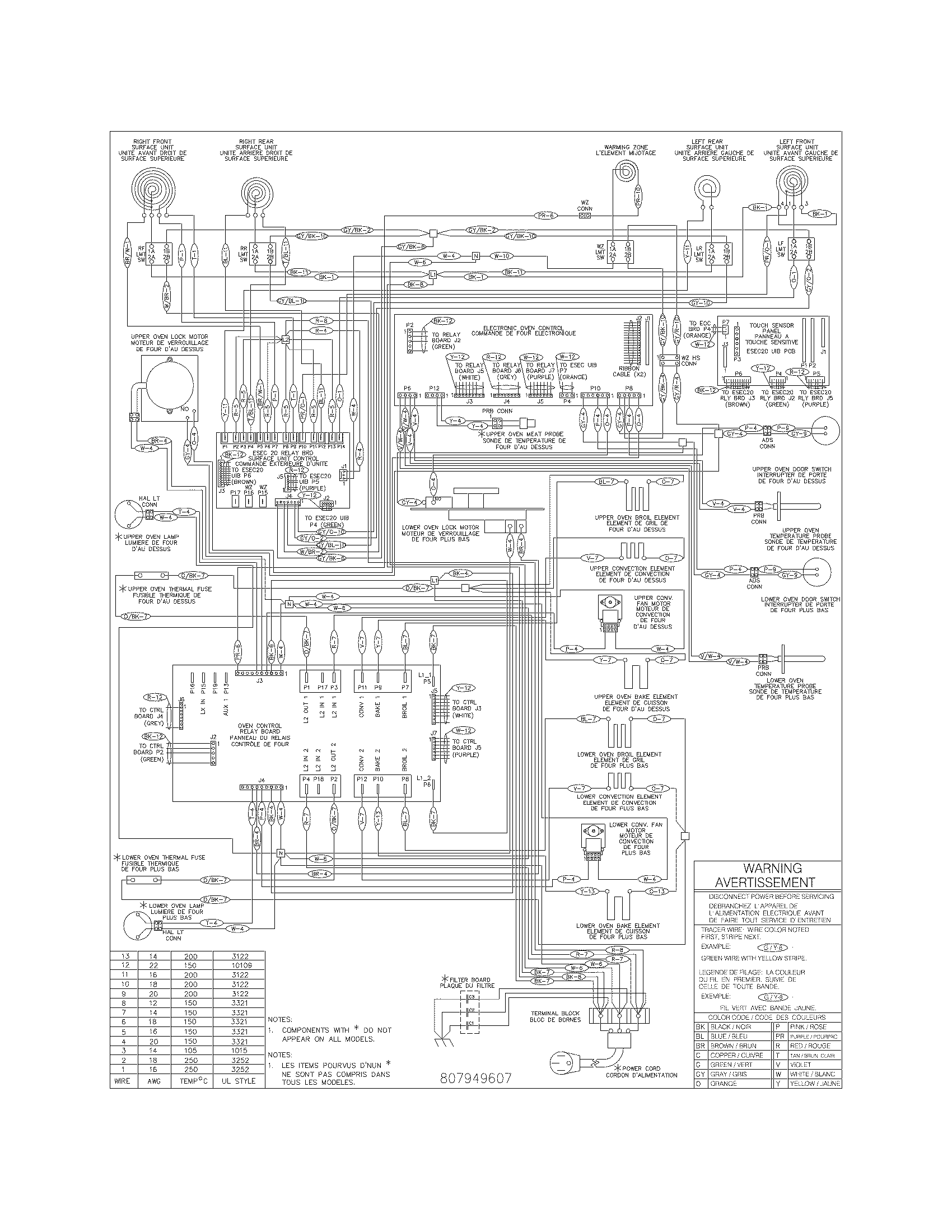

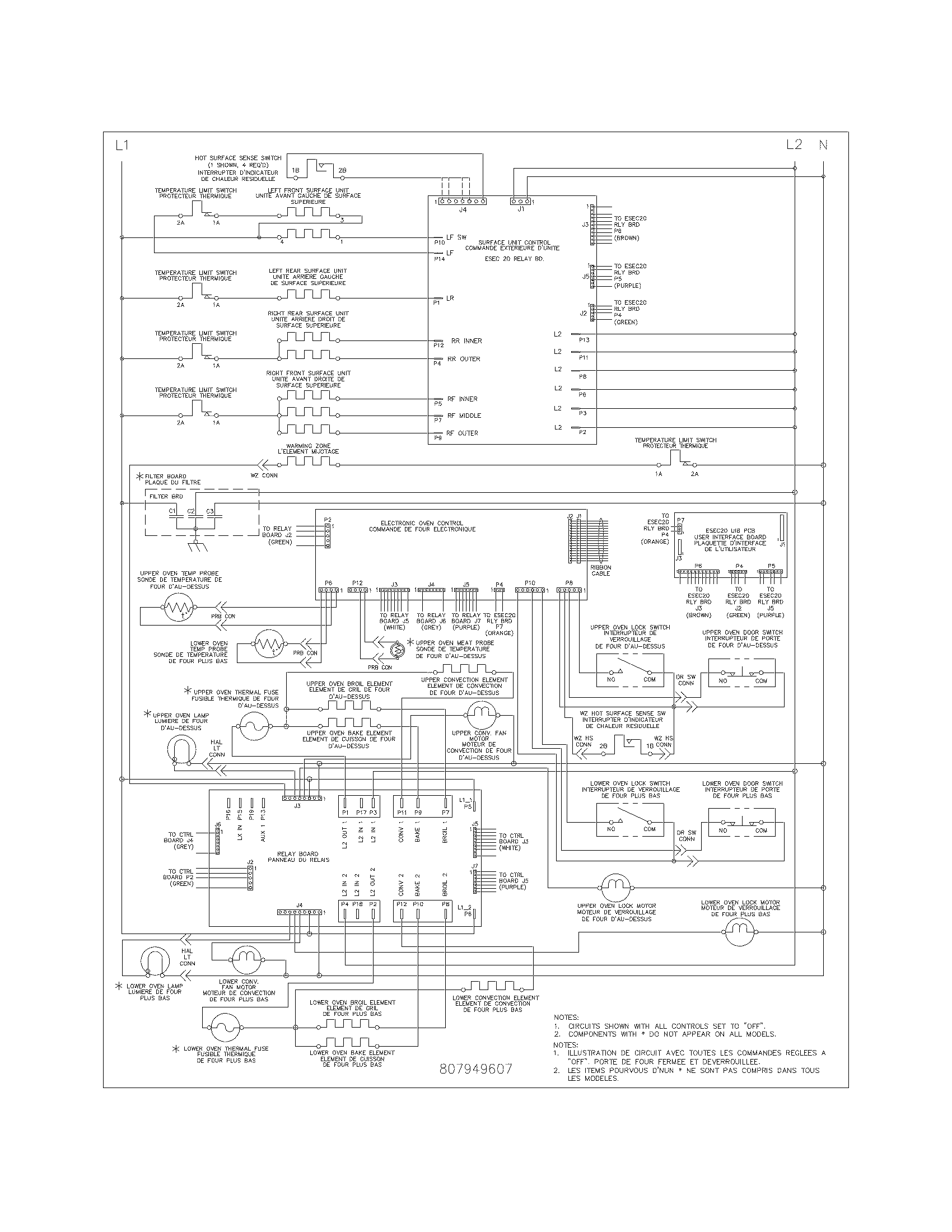

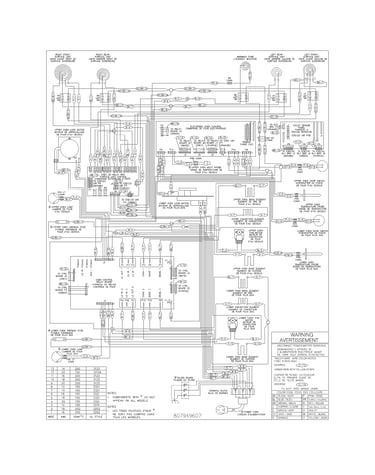

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Range Oven Temperature Sensor 318562500
#37

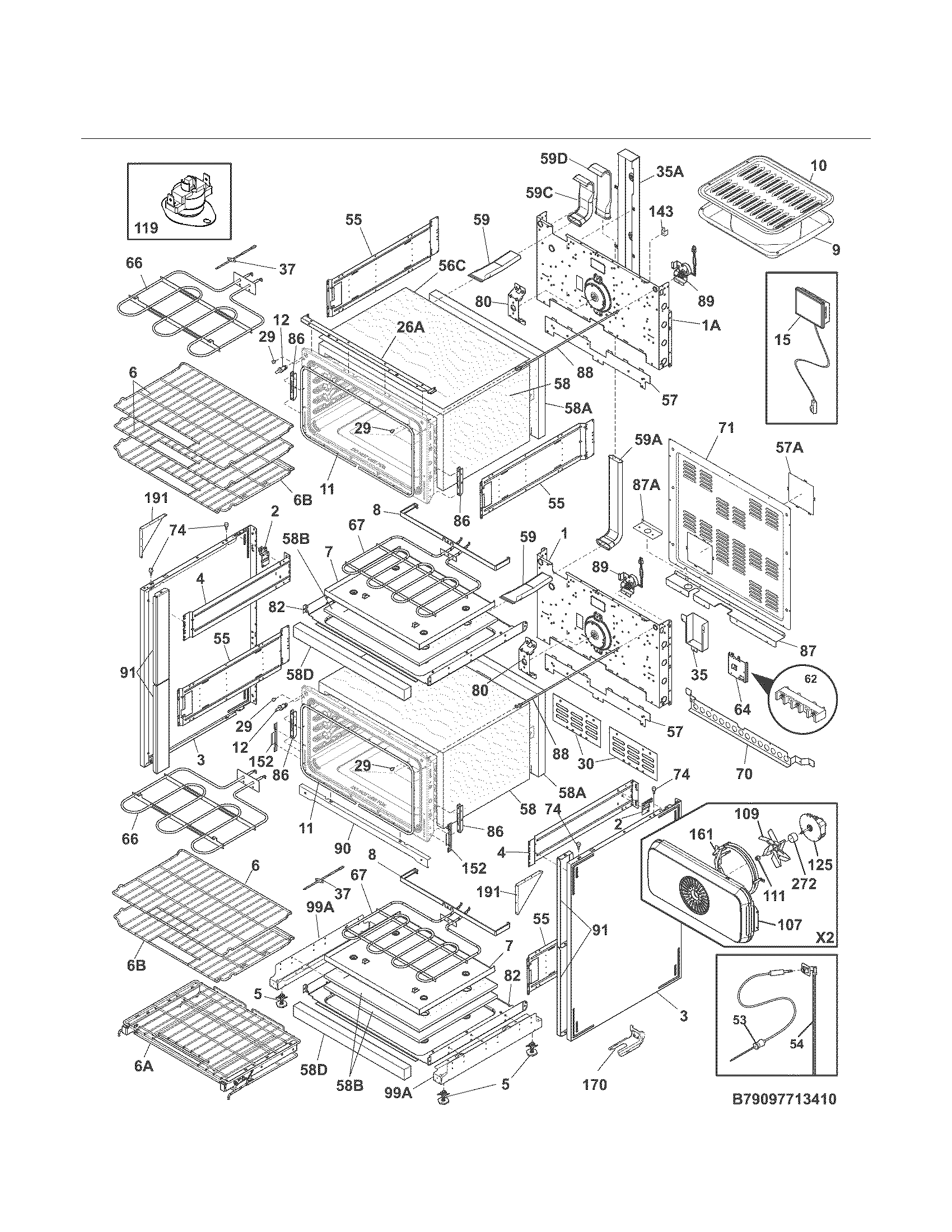

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15B

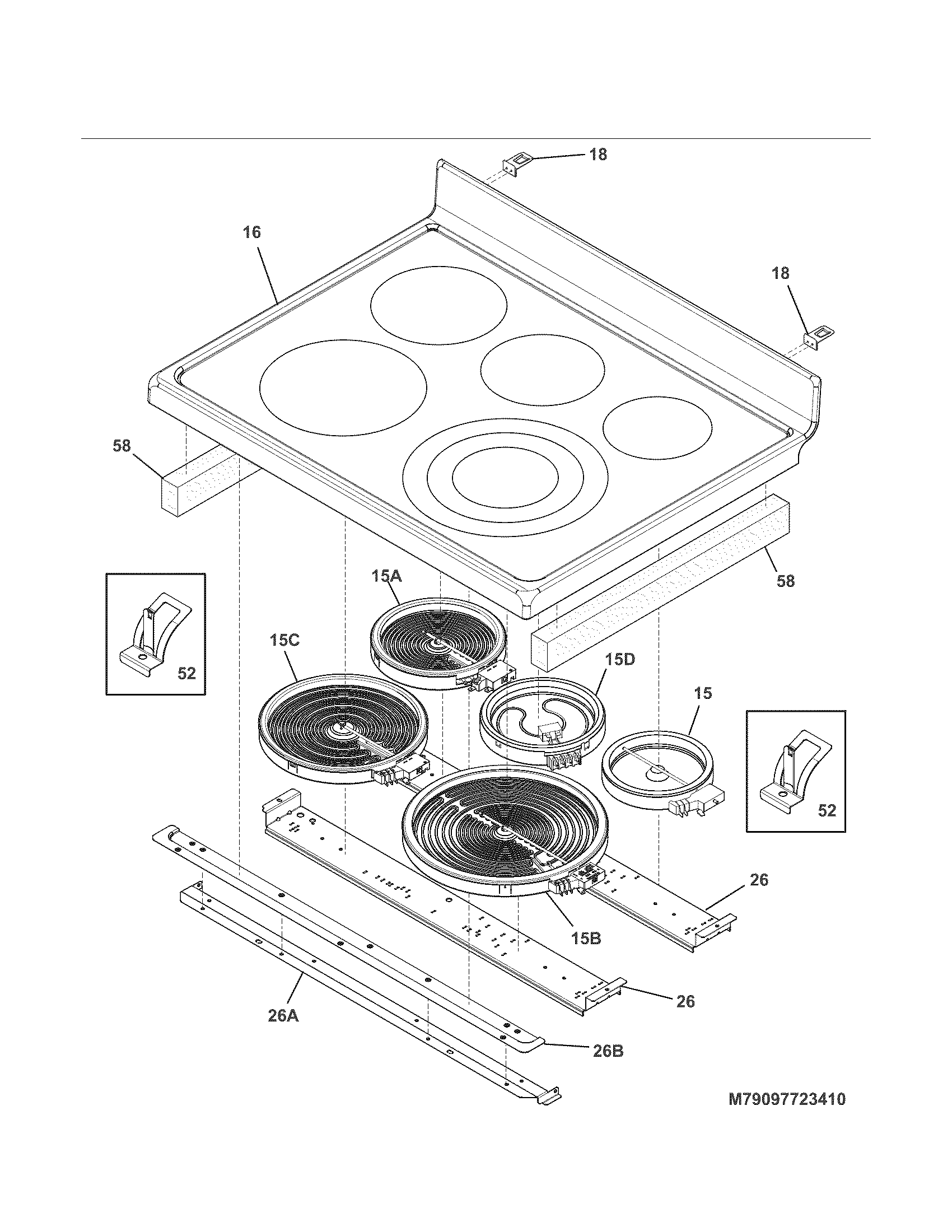

Main top diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
Range Broil Element 139008900
#66

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$56.03 |
10% OFF Phone Price : $62.03
In Stock
Range Oven Meat Probe Sensor 318601302
#53

Body diagram

Range oven meat probe sensor

Part #318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

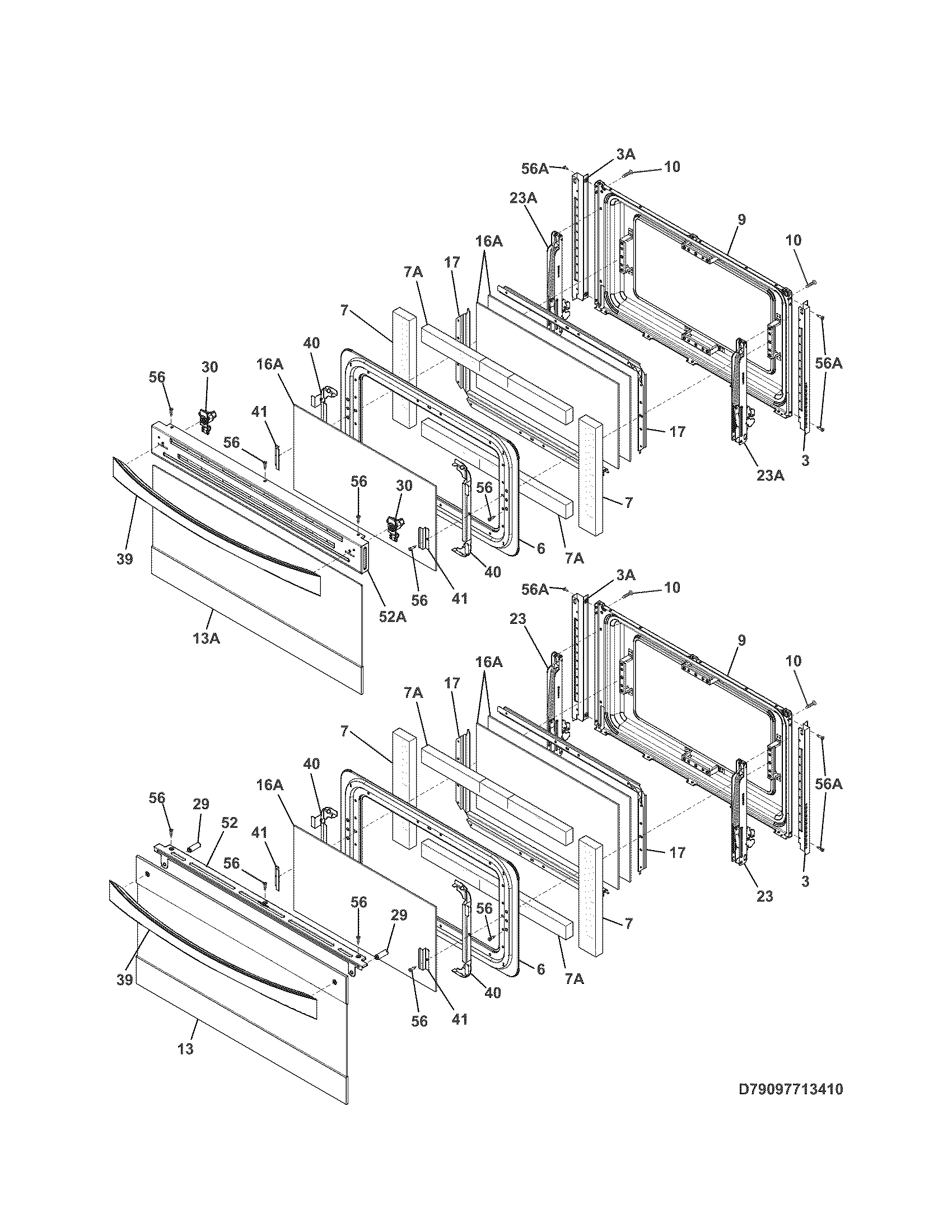

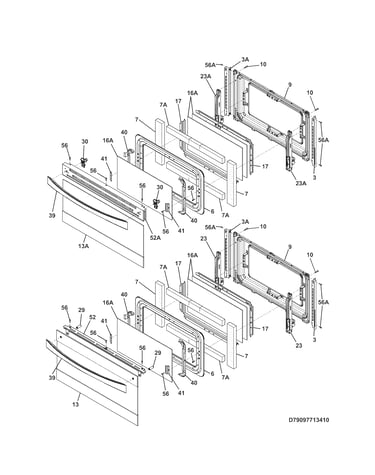

Doors diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Range Screw 316001003
#NI

Body diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Radiant Element Mounting Clip 316461700
#52

Main top diagram

Range radiant element mounting clip

Part #316461700

This item is not returnable
$11.79 |
15% OFF Phone Price : $13.79
In Stock
Range Convection Fan Motor 139008500
#125

Body diagram

Range convection fan motor

Part #139008500

$114.92 |
9% OFF Phone Price : $126.92
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Range Screw, #8 X 1-in 5303289910
Range screw, #8 x 1-in

Part #5303289910

This item is not returnable
$6.63
In Stock
