Digital Camcorder

Model # DCR-DVD650 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD650 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

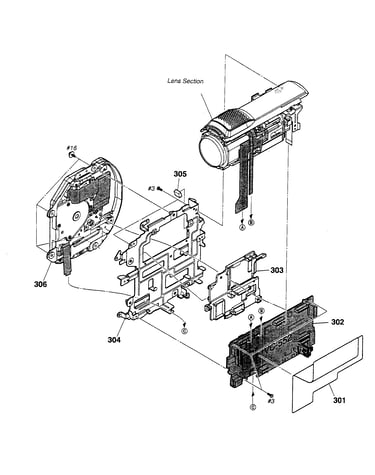

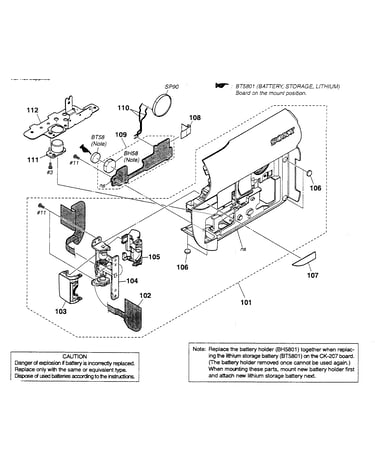

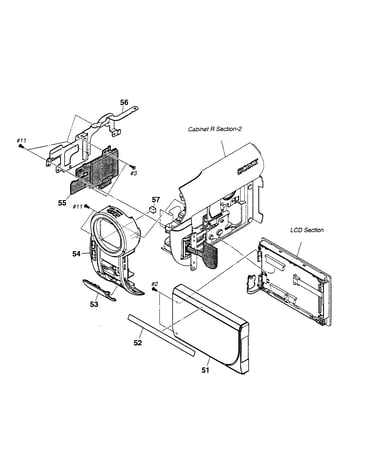

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Inner Capacitor 289965801
#208

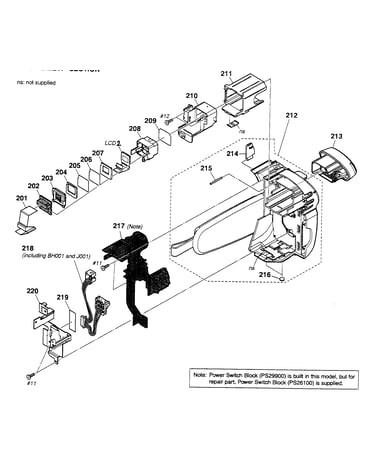

Evf assy diagram

Inner capacitor

Part #289965801

The manufacturer no longer makes this part, and there's no substitute part

Tp Block A1363617A
#LCD1

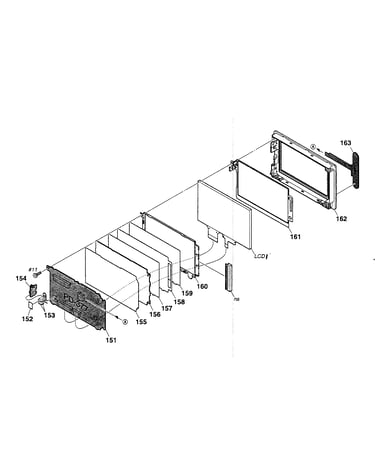

Lcd assy diagram

Tp block

Part #A1363617A

The manufacturer no longer makes this part, and there's no substitute part

Frame 269451601
#160

Lcd assy diagram

Frame

Part #269451601

The manufacturer no longer makes this part, and there's no substitute part

Key Block 148049511
#217

Evf assy diagram

Key block

Part #148049511

The manufacturer no longer makes this part, and there's no substitute part

Motor 178723711
#M903

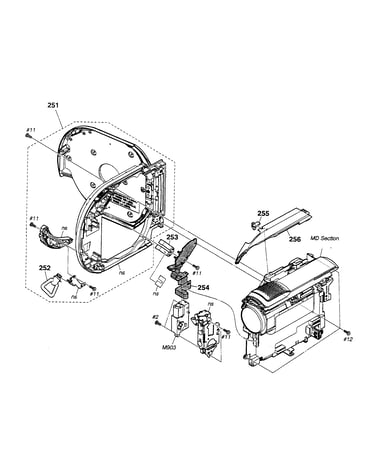

Left cabinet diagram

Motor

Part #178723711

The manufacturer no longer makes this part, and there's no substitute part

Battery NPFH70
#NI

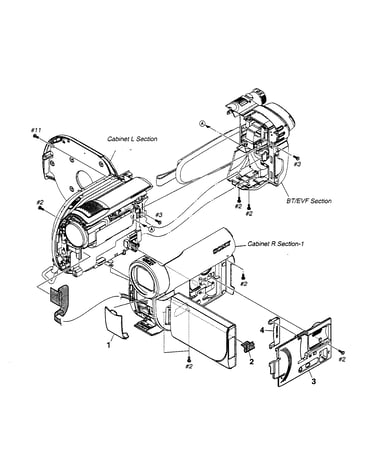

Overall assy diagram

Battery

Part #NPFH70

The manufacturer no longer makes this part, and there's no substitute part

Panel-cf 289966001
#209

Evf assy diagram

Panel-cf

Part #289966001

The manufacturer no longer makes this part, and there's no substitute part

Cushion 328181101
#362

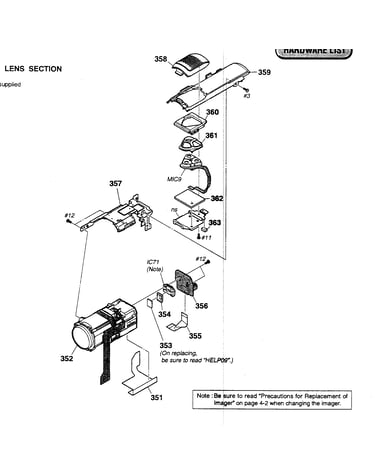

Lens assy diagram

Cushion

Part #328181101

The manufacturer no longer makes this part, and there's no substitute part

Tape 308339301
#152

Lcd assy diagram

Tape

Part #308339301

The manufacturer no longer makes this part, and there's no substitute part

Holder Microphone 328180801
#361

Lens assy diagram

Holder microphone

Part #328180801

The manufacturer no longer makes this part, and there's no substitute part
