Model # KHTU705RSS2 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KHTU705RSS2 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Slide Switch 8189622
#6

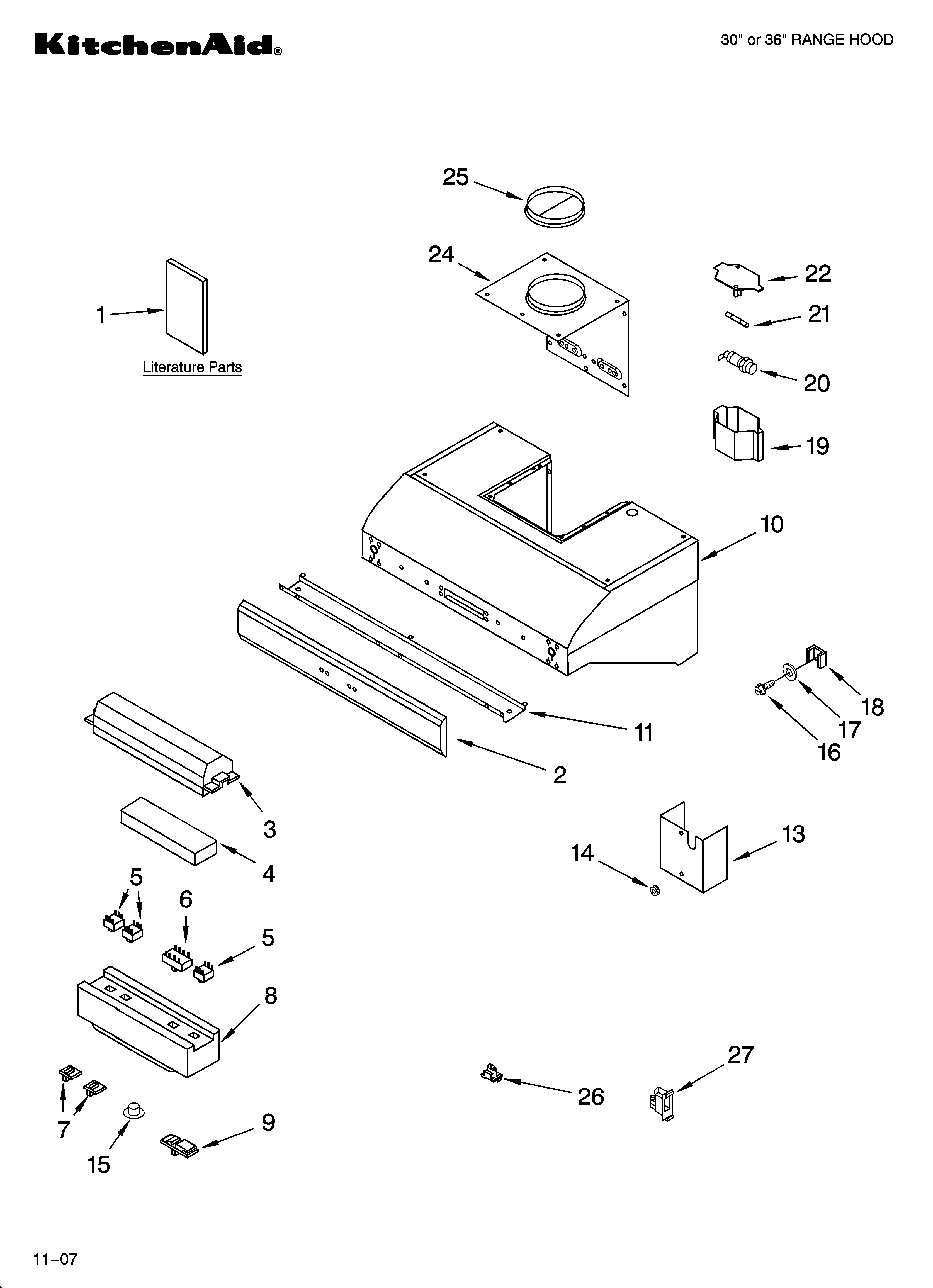

Hood parts diagram

Slide switch

Part #8189622

Replaced by #WPW10252122

?
Manufacturer substitution
This part replaces 8189622. Substitute parts can look different from the original.
$107.27 |
10% OFF Phone Price : $119.27
In Stock
Range Hood Transformer 8190410
#33

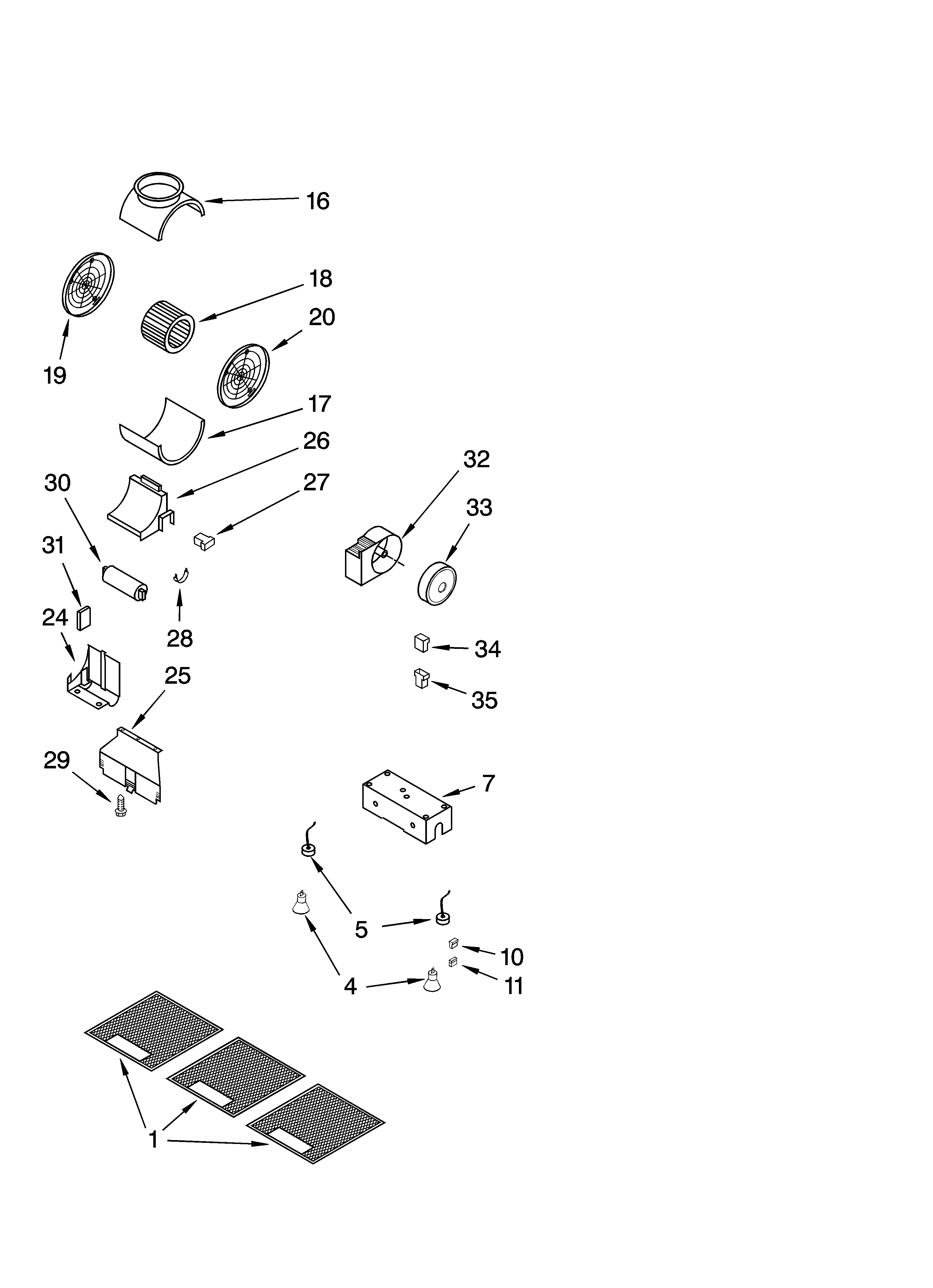

Ventilation parts diagram

Range hood transformer

Part #8190410

$358.49 |
$12.00 OFF Phone Price : $370.49
In Stock
Slide Switch 8189621
#5

Hood parts diagram

Slide switch

Part #8189621

Replaced by #W11731942

?
Manufacturer substitution
This part replaces 8189621. Substitute parts can look different from the original.
$38.56
In Stock
Decorative Trim 8212469
#NI

Ventilation parts diagram

Decorative trim

Part #8212469

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Male Wire Connector 4360161
#10

Ventilation parts diagram

Range hood male wire connector

Part #4360161

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 8189624
#3

Hood parts diagram

Switch cover

Part #8189624

The manufacturer no longer makes this part, and there's no substitute part

Support 8190388
#19

Ventilation parts diagram

Support

Part #8190388

The manufacturer no longer makes this part, and there's no substitute part

Decorative Trim 8212626
#2E

Hood parts diagram

Decorative trim

Part #8212626

The manufacturer no longer makes this part, and there's no substitute part

Decorative Trim 8212468
#NI

Ventilation parts diagram

Decorative trim

Part #8212468

The manufacturer no longer makes this part, and there's no substitute part

(left W/dual) N/P
#10

Hood parts diagram

(left w/dual)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
