Model # HVMB14S4W1WW Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE HVMB14S4W1WW microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

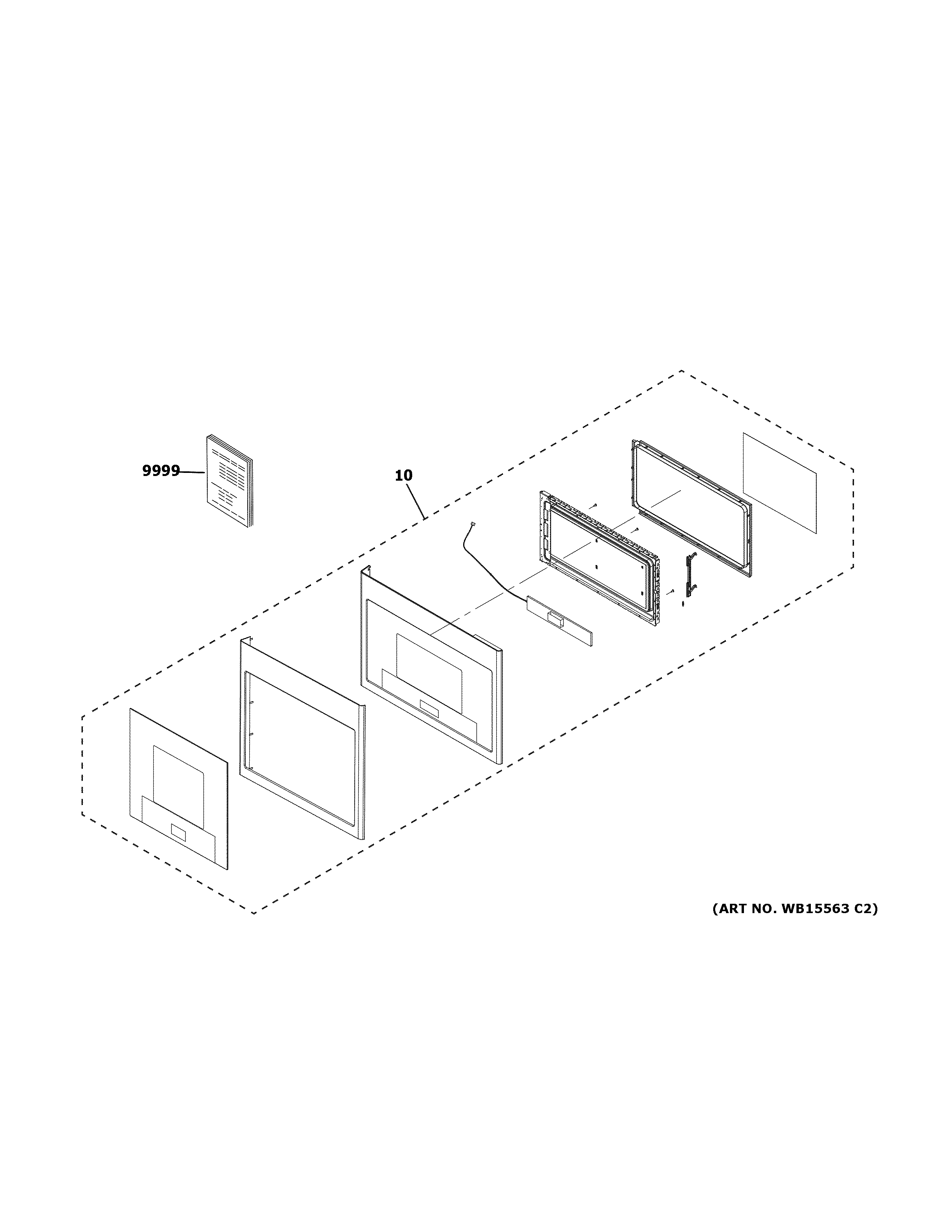

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#40

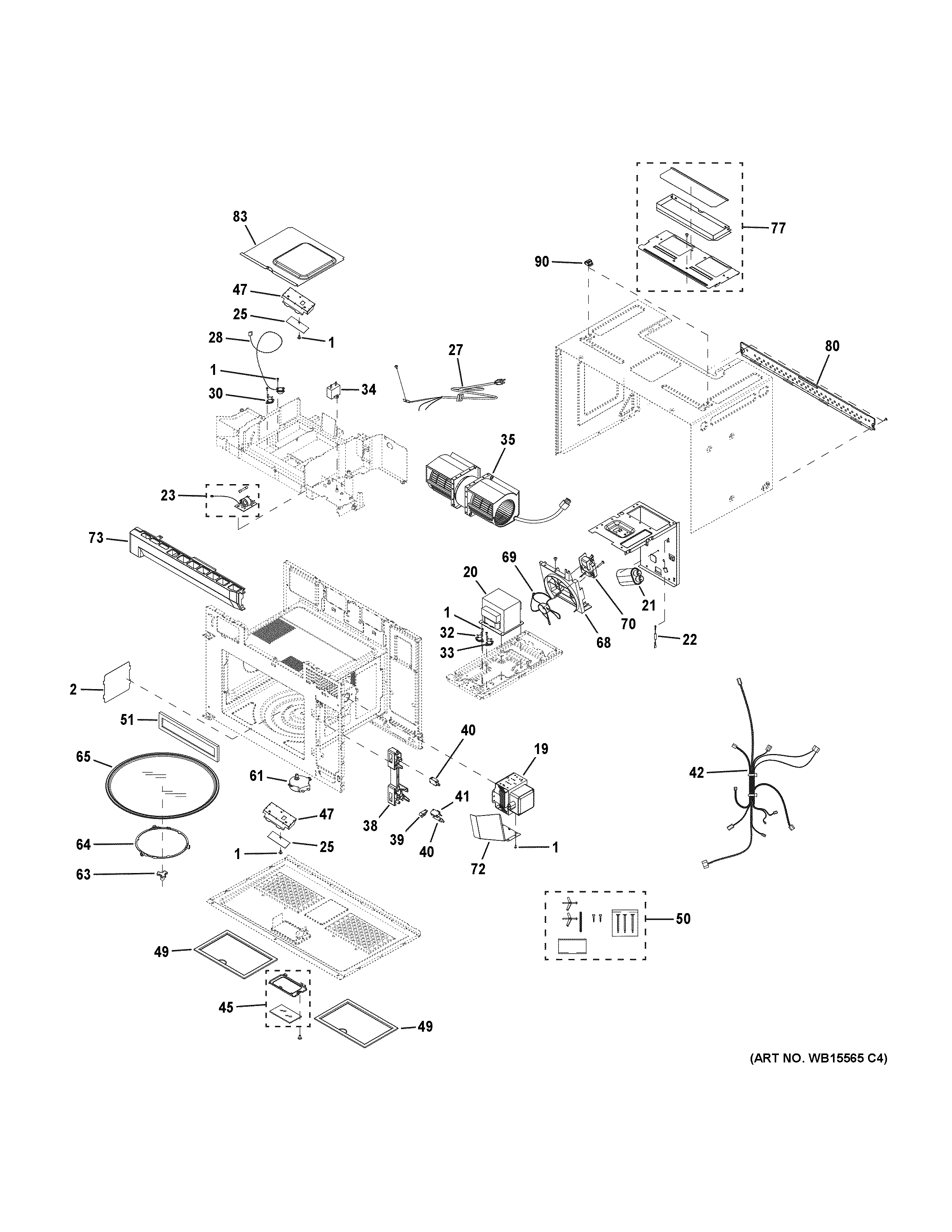

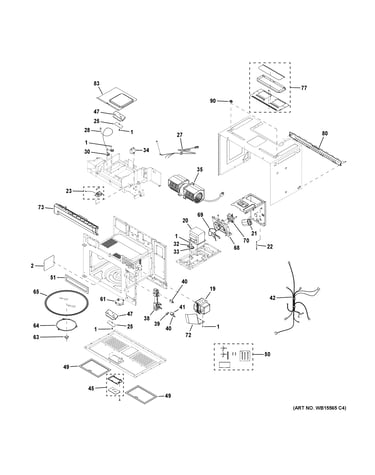

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Microwave Door Latch Housing WB10X25607
#38

Oven cavity parts diagram

Microwave door latch housing

Part #WB10X25607

BEST SELLER
$56.04 |
10% OFF Phone Price : $62.04
In Stock
Turn Table M WB26X30161
#61

Oven cavity parts diagram

Turn table m

Part #WB26X30161

Replaced by #WB26X32190

?
Manufacturer substitution
This part replaces WB26X30161. Substitute parts can look different from the original.
BEST SELLER
$51.05 |
11% OFF Phone Price : $57.05
In Stock
Thermostat 7 WB24X28950
#33

Oven cavity parts diagram

Thermostat 7

Part #WB24X28950

Replaced by #WB27X11213

?
Manufacturer substitution
This part replaces WB24X28950. Substitute parts can look different from the original.
This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Charcoal Filter WB02X28929
#51

Oven cavity parts diagram

Charcoal filter

Part #WB02X28929

Replaced by #WB02X11550

?
Manufacturer substitution
This part replaces WB02X28929. Substitute parts can look different from the original.
$41.21 |
13% OFF Phone Price : $47.21
In Stock
H.v.capacito WB26X28934
#21

Oven cavity parts diagram

H.v.capacito

Part #WB26X28934

$82.60
In Stock
Microwave Control Panel Assembly WB56X33745
#99

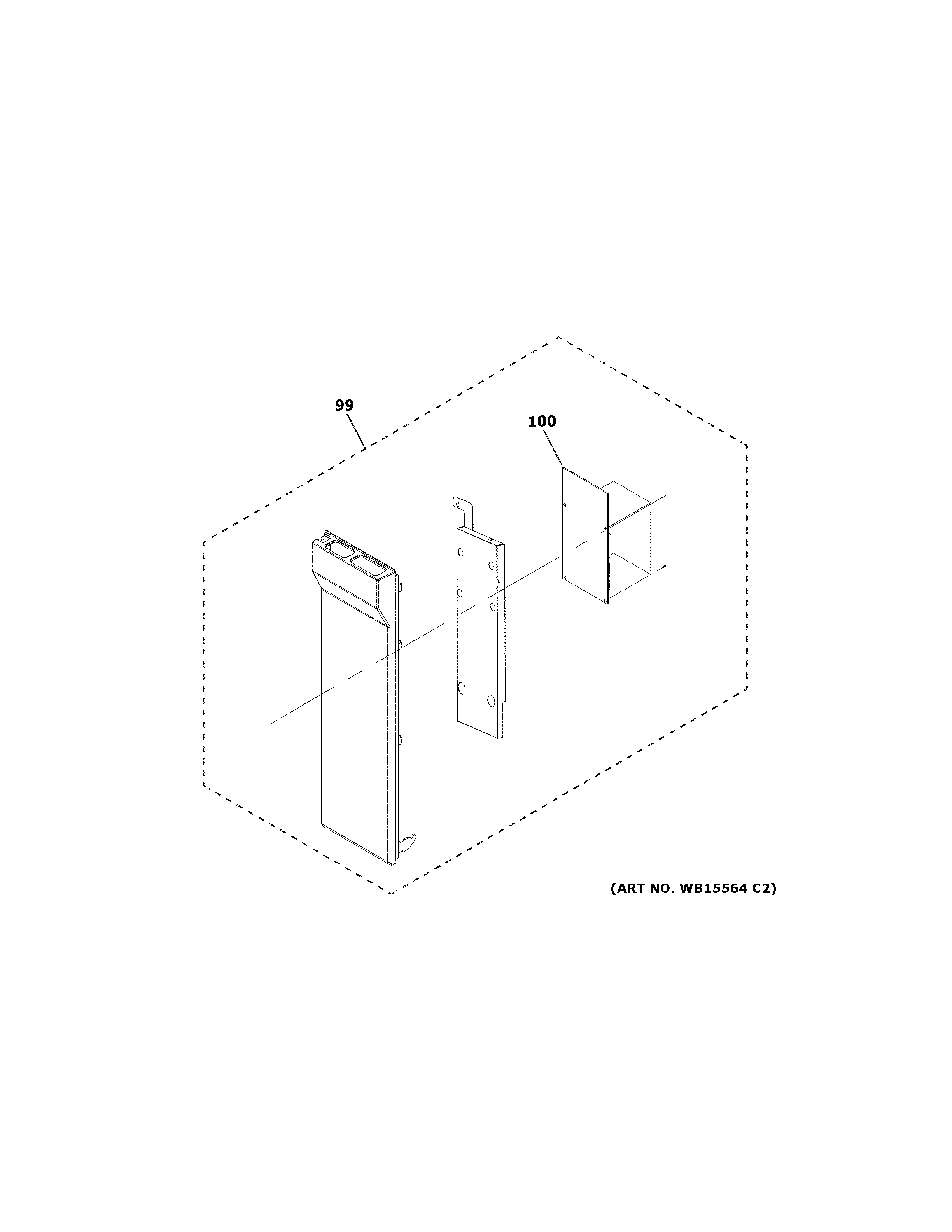

Control parts diagram

Microwave control panel assembly

Part #WB56X33745

$188.59 |
6% OFF Phone Price : $200.59
In Stock
Damper Brack WB02X28951
#77

Oven cavity parts diagram

Damper brack

Part #WB02X28951

Replaced by #WB06X10938

?
Manufacturer substitution
This part replaces WB02X28951. Substitute parts can look different from the original.
$117.99 |
9% OFF Phone Price : $129.99
In Stock
Switch Monit WB24X28942
#41

Oven cavity parts diagram

Switch monit

Part #WB24X28942

$35.71
In Stock
Mounting Kit WB02X28945
#50

Oven cavity parts diagram

Mounting kit

Part #WB02X28945

$33.60
In Stock
