Frigidaire
Microwave/Hood Combo

Model # FGBM205KFA Official Frigidaire microwave/hood combo

Here are the diagrams and repair parts for Official Frigidaire FGBM205KFA microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

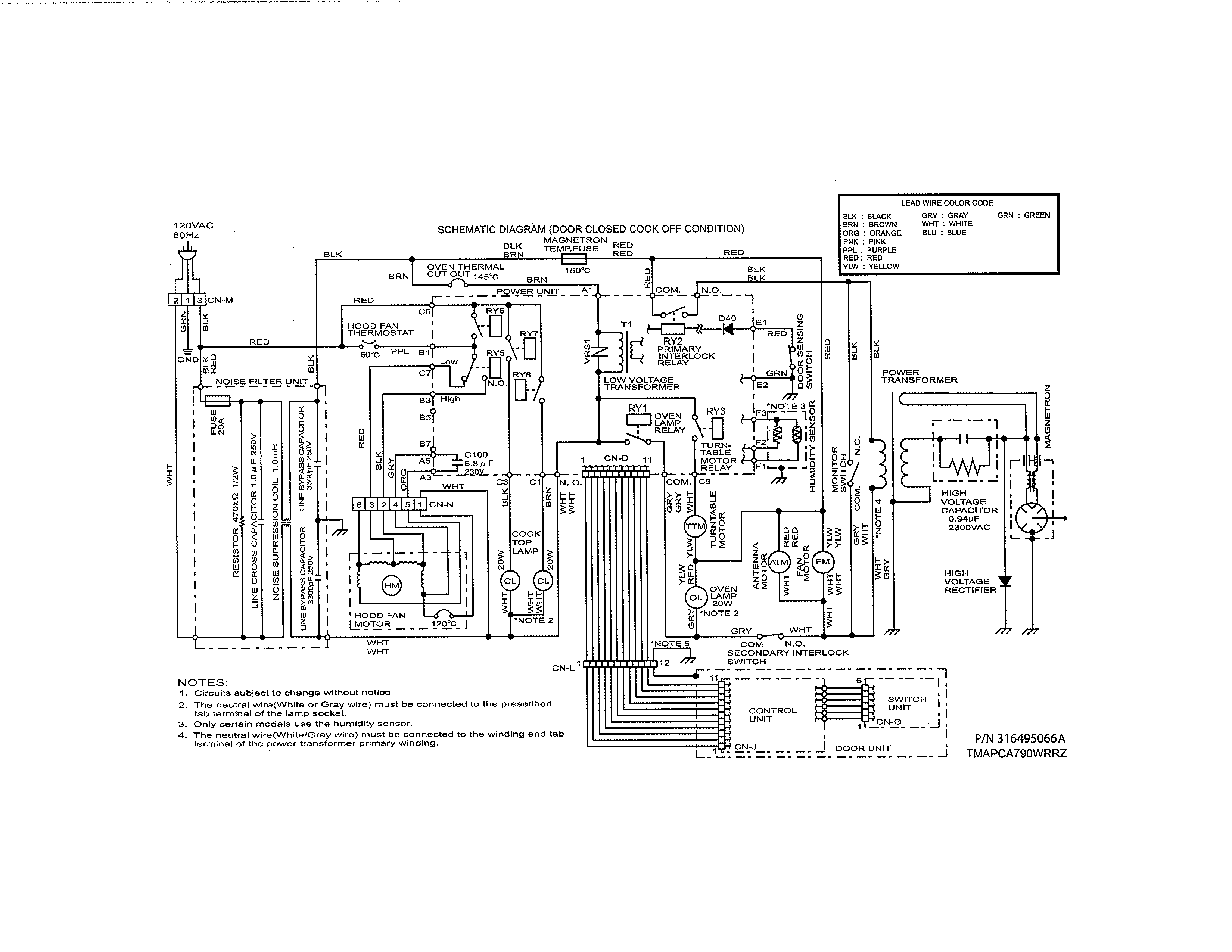

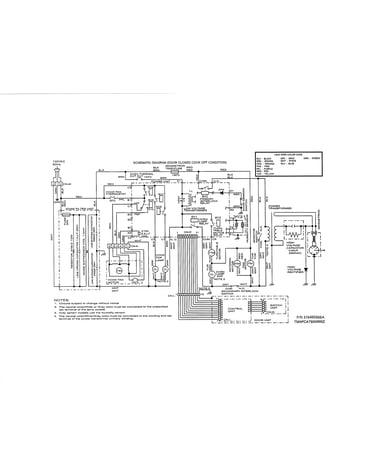

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Microwave Door Latch Spring (replaces 75304440316) 5304440316
#69

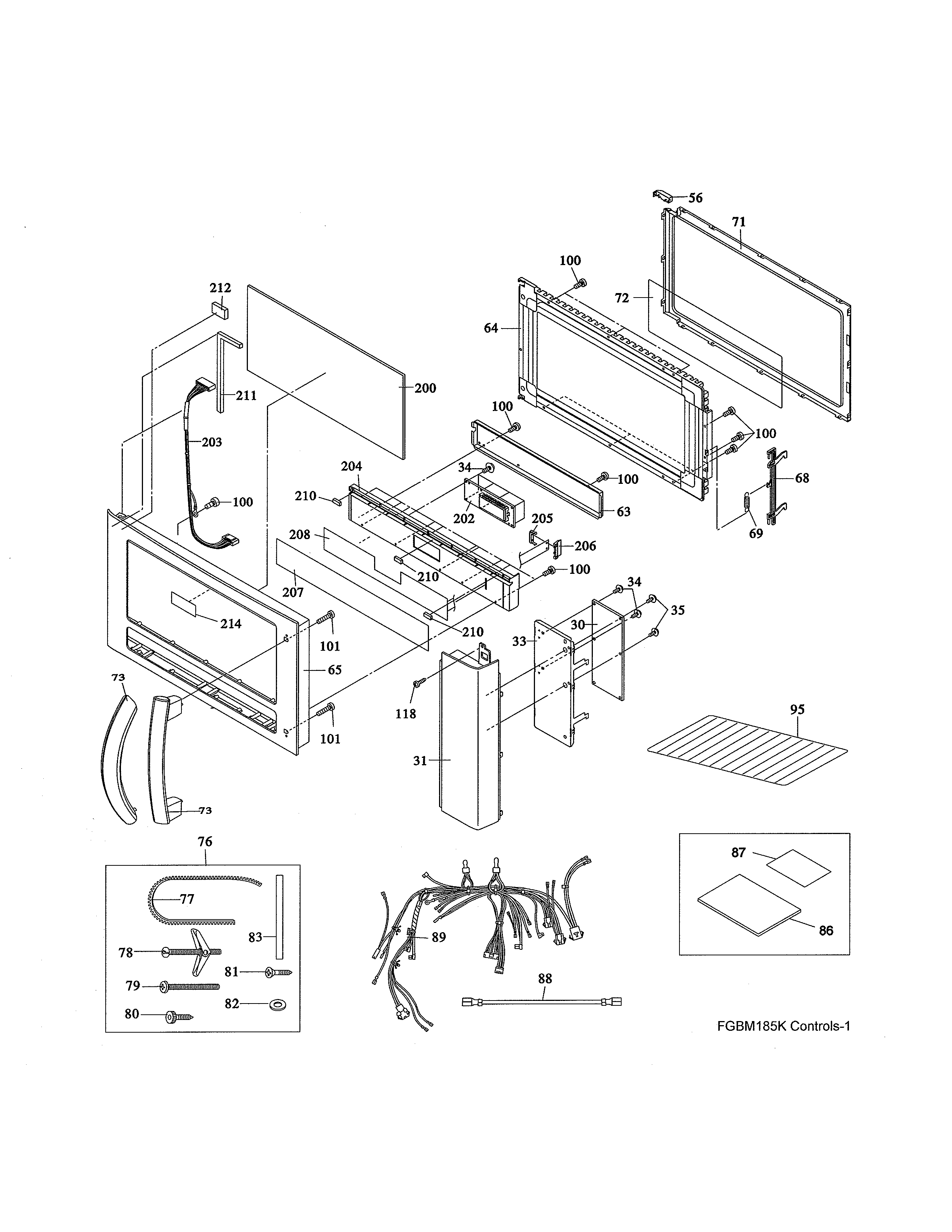

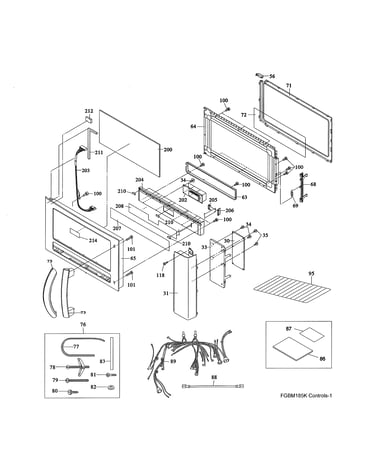

Control panel/door/miscellaneous diagram

Microwave door latch spring (replaces 75304440316)

Part #5304440316

$49.59 |
11% OFF Phone Price : $55.59
In Stock
Microwave Light Bulb (replaces 5303319562, 75304440031) 5304440031
#19

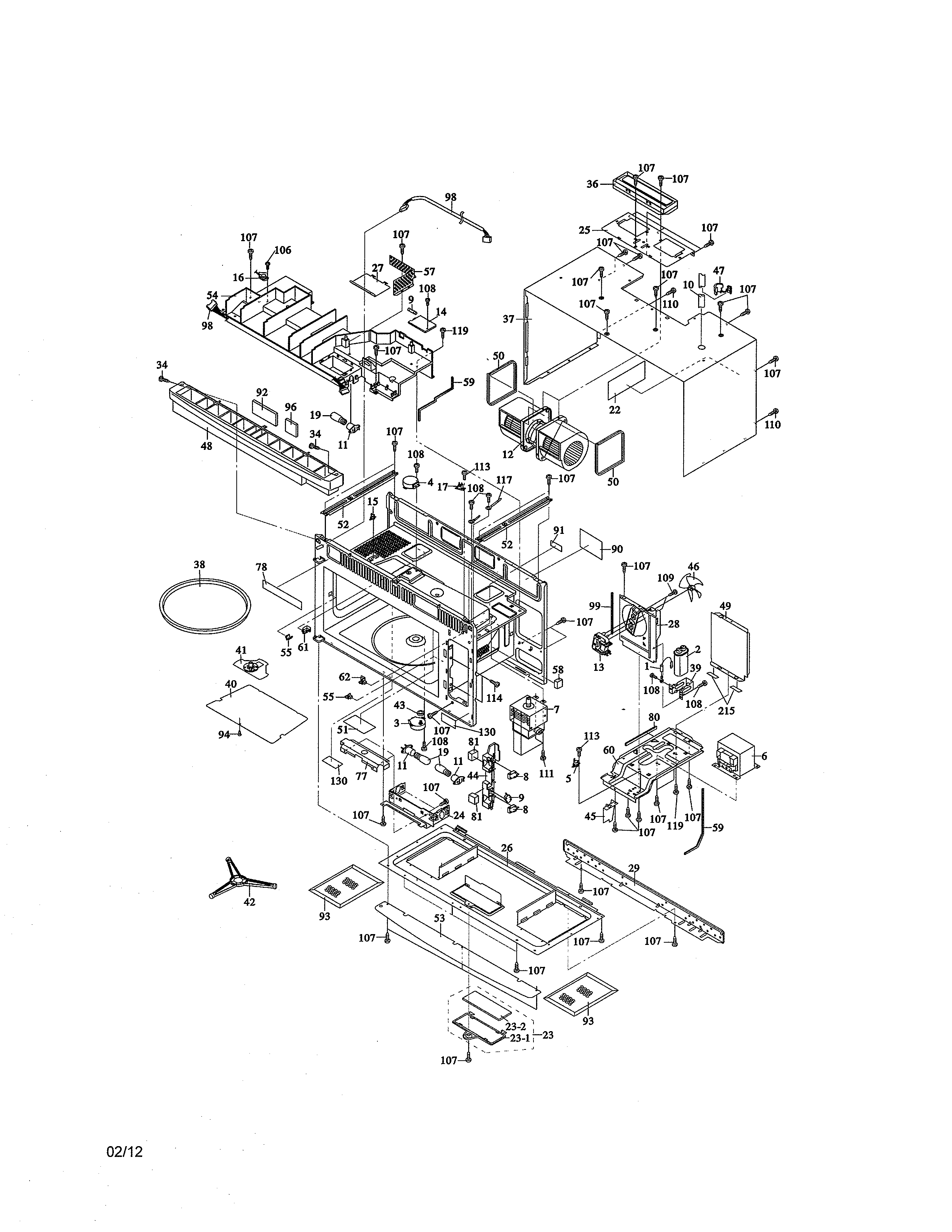

Oven, cabinet diagram

Microwave light bulb (replaces 5303319562, 75304440031)

Part #5304440031

This item is not returnable
$14.59 |
12% OFF Phone Price : $16.59
In Stock
Microwave Glass Turntable Tray 5304441872
#38

Oven, cabinet diagram

Microwave glass turntable tray

Part #5304441872

$60.13 |
9% OFF Phone Price : $66.13
In Stock
Microwave Light Socket 5304463785
#11

Oven, cabinet diagram

Microwave light socket

Part #5304463785

$33.22
In Stock
Microwave Screw, 3 X 8-mm 5304467710
Microwave screw, 3 x 8-mm

Part #5304467710

This item is not returnable
$13.97
In Stock
Microwave Door Film (replaces 75304467803) 5304467803
#72

Control panel/door/miscellaneous diagram

Microwave door film (replaces 75304467803)

Part #5304467803

This item is not returnable
$19.19 |
9% OFF Phone Price : $21.19
In Stock
Bushing 5304467721
#47

Oven, cabinet diagram

Bushing

Part #5304467721

This item is not returnable
$7.41
In Stock
Microwave Door Outer Frame (black) 5304471826
#65

Control panel/door/miscellaneous diagram

Microwave door outer frame (black)

Part #5304471826

$135.79 |
8% OFF Phone Price : $147.79
In Stock
Wall Oven Screw, M4 X 12 5304451553
#118

Control panel/door/miscellaneous diagram

Wall oven screw, m4 x 12

Part #5304451553

$14.69
In Stock
Label 5304467771
#91

Oven, cabinet diagram

Label

Part #5304467771

This item is not returnable
$3.49
In Stock
