Model # 4YED22PWDN00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 4YED22PWDN00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

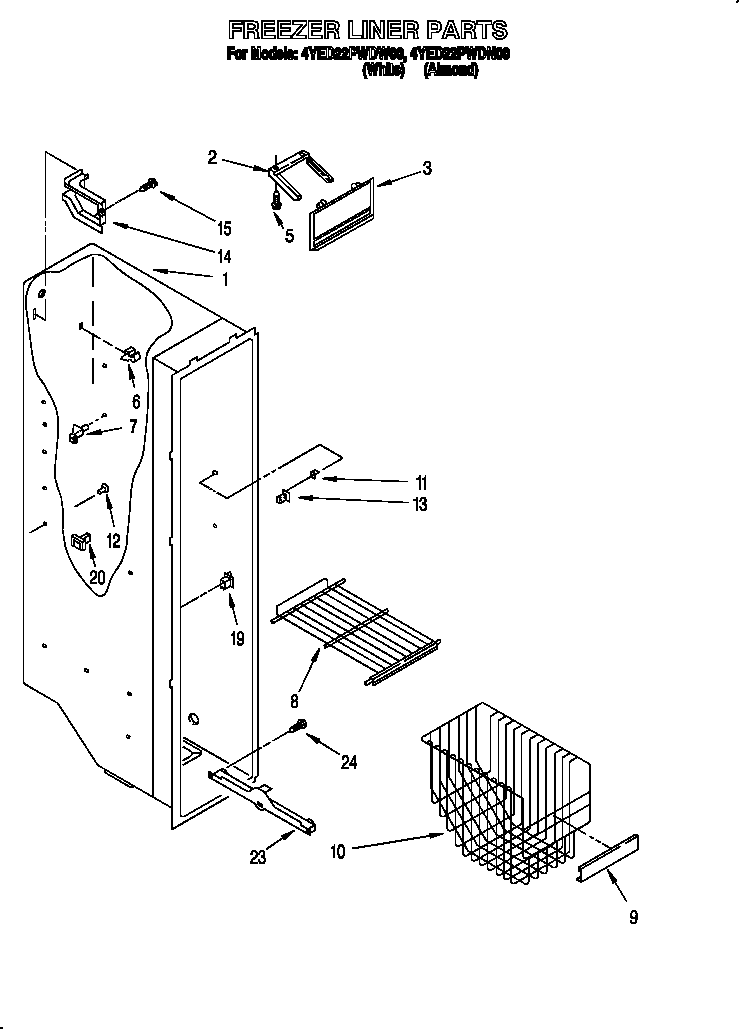

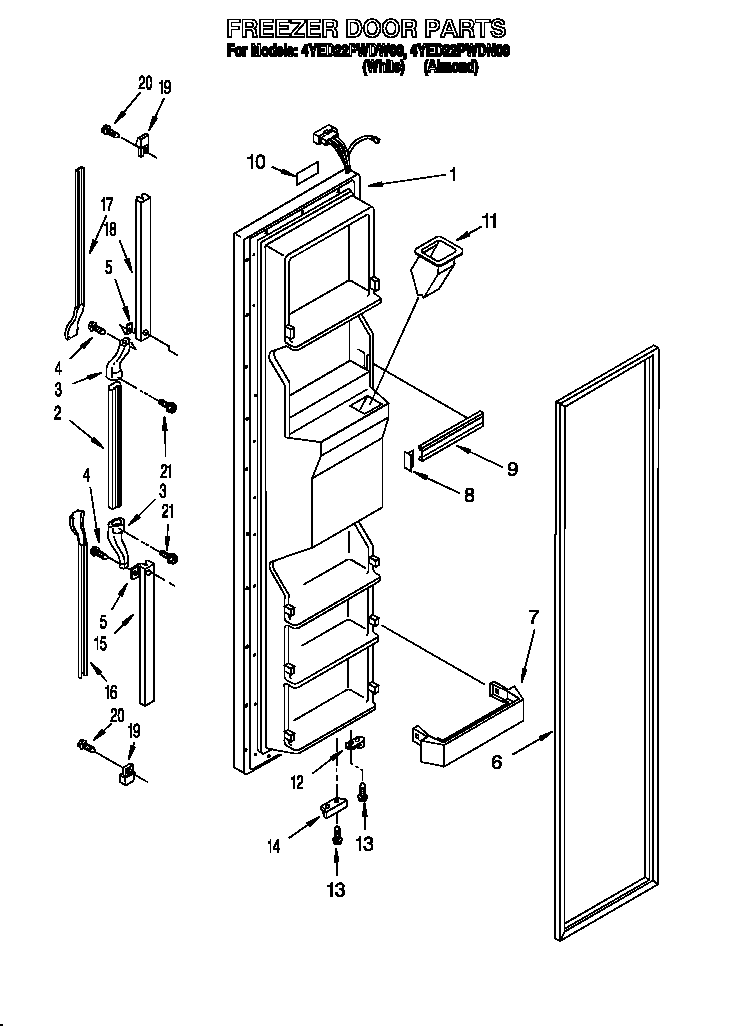

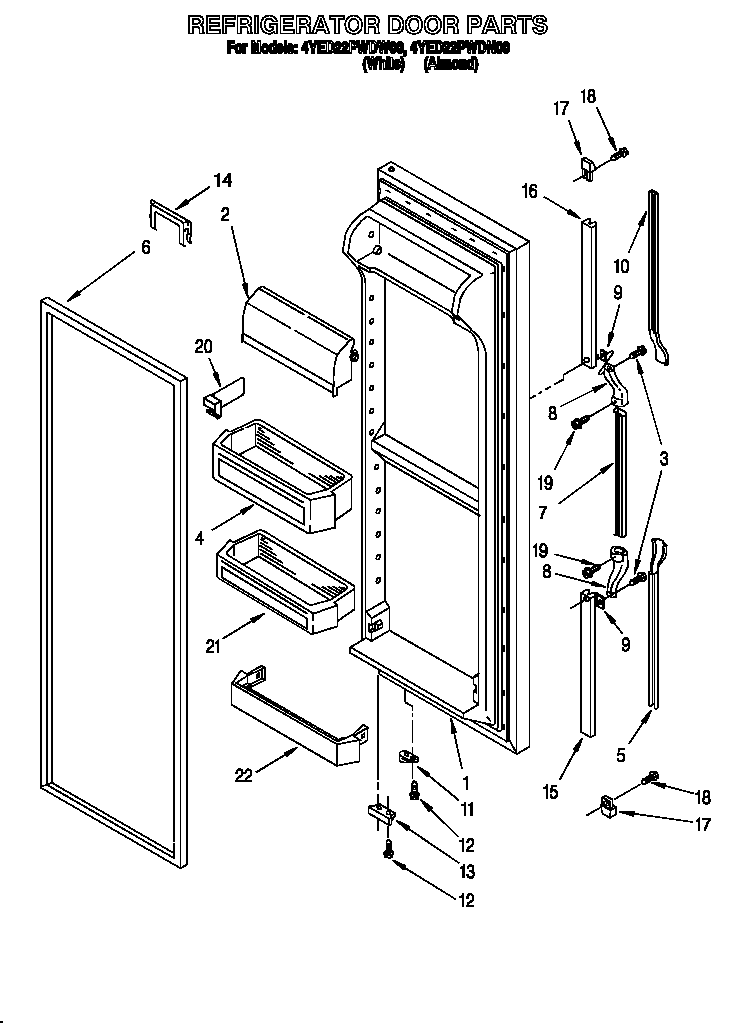

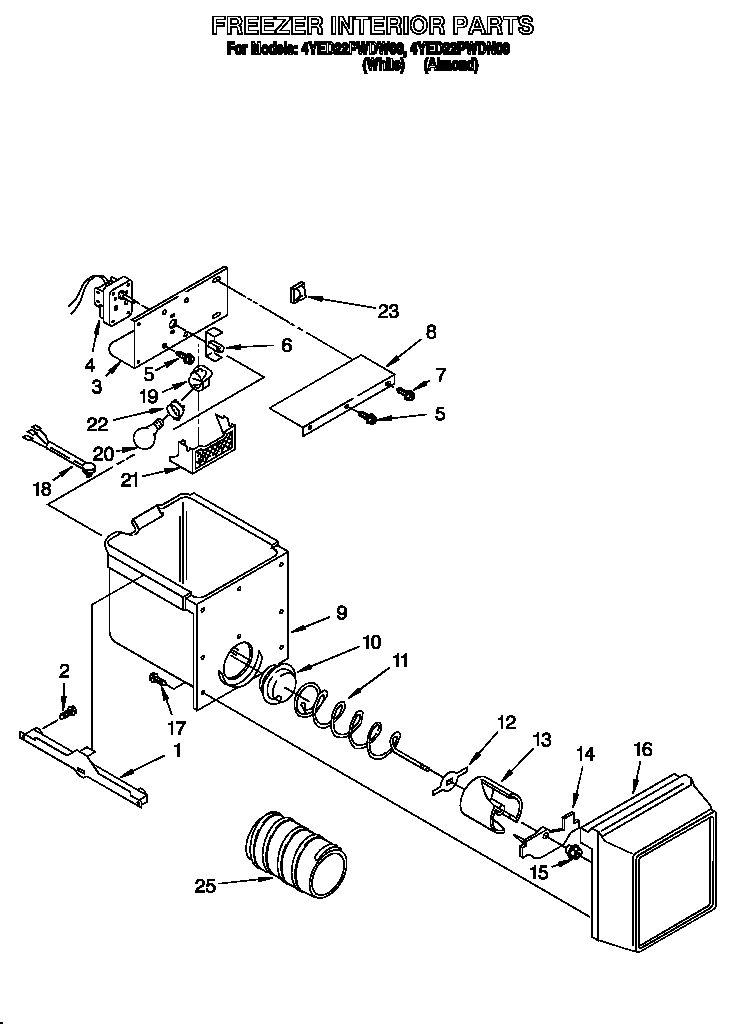

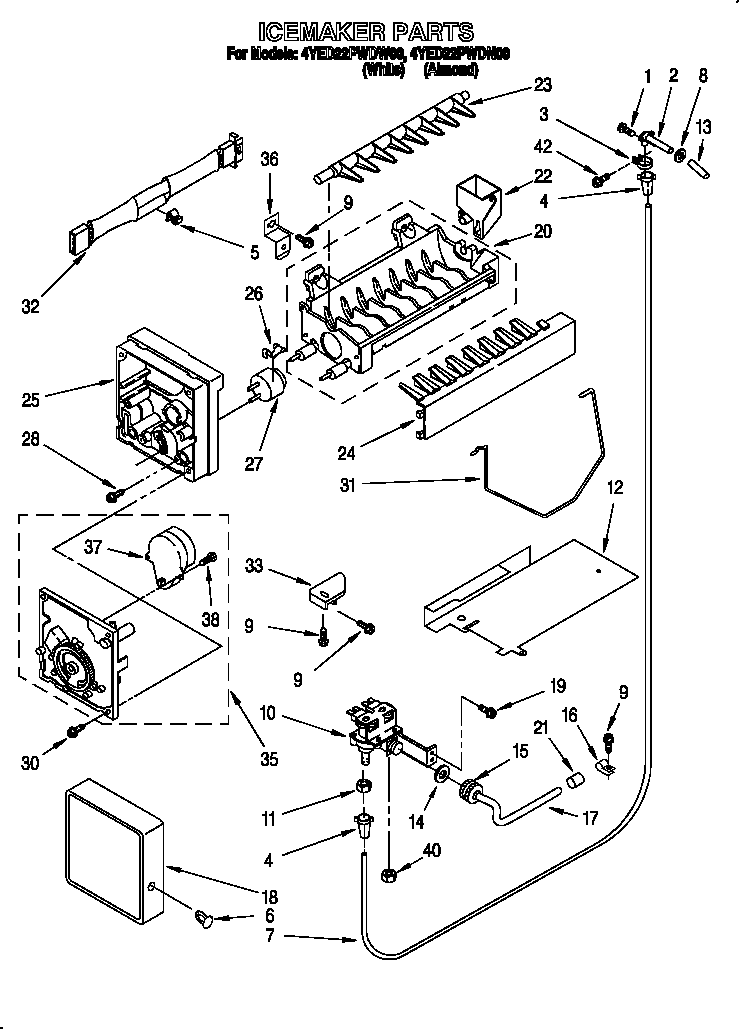

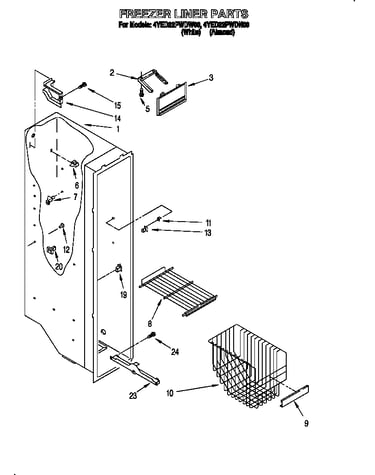

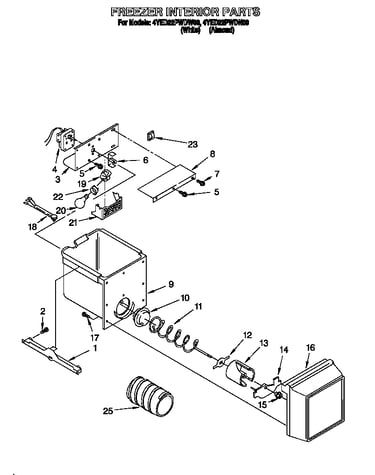

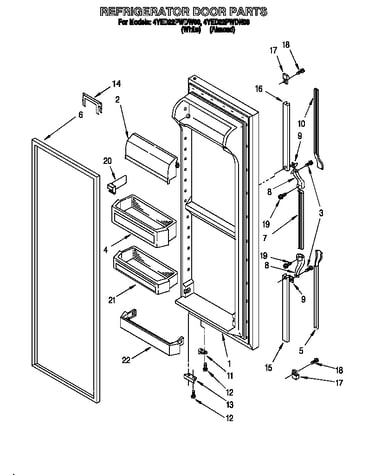

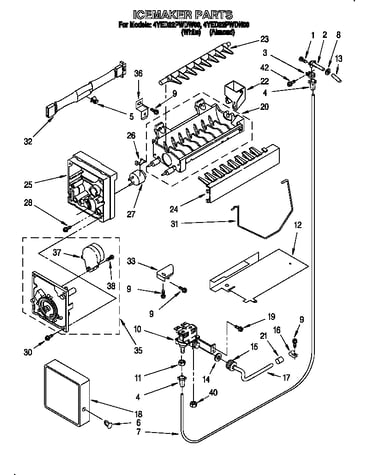

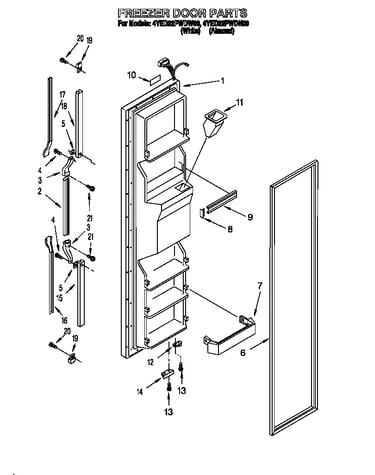

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for4YED22PWDN00 Refrigerators

  • Refrigerator Thermostat 2161284
    #9

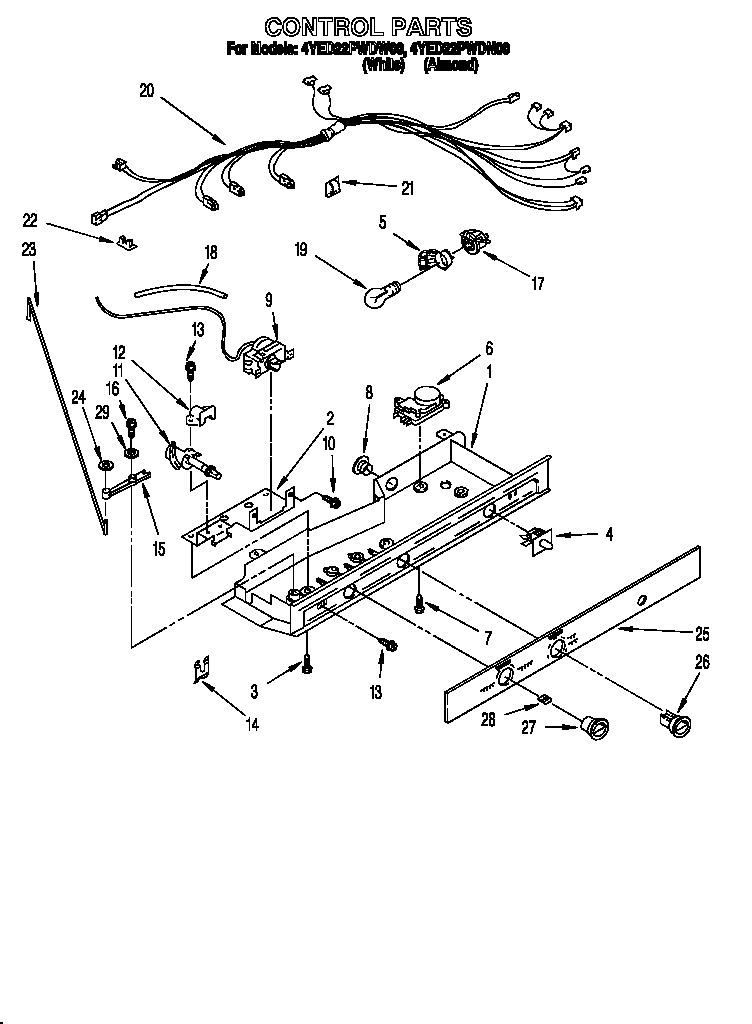

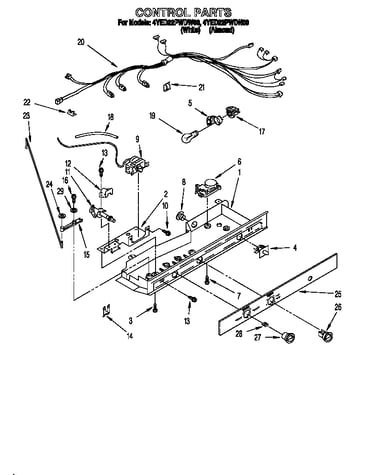

    Control diagram

    Refrigerator thermostat

    Part #2161284

    Replaced by #WP2198202

    ?
    Manufacturer substitution
    This part replaces 2161284. Substitute parts can look different from the original.
    BEST SELLER
    $65.20
    8% OFF Phone Price : $71.20
    In Stock
  • Refrigerator Defrost Bi-metal 2176066
    #35

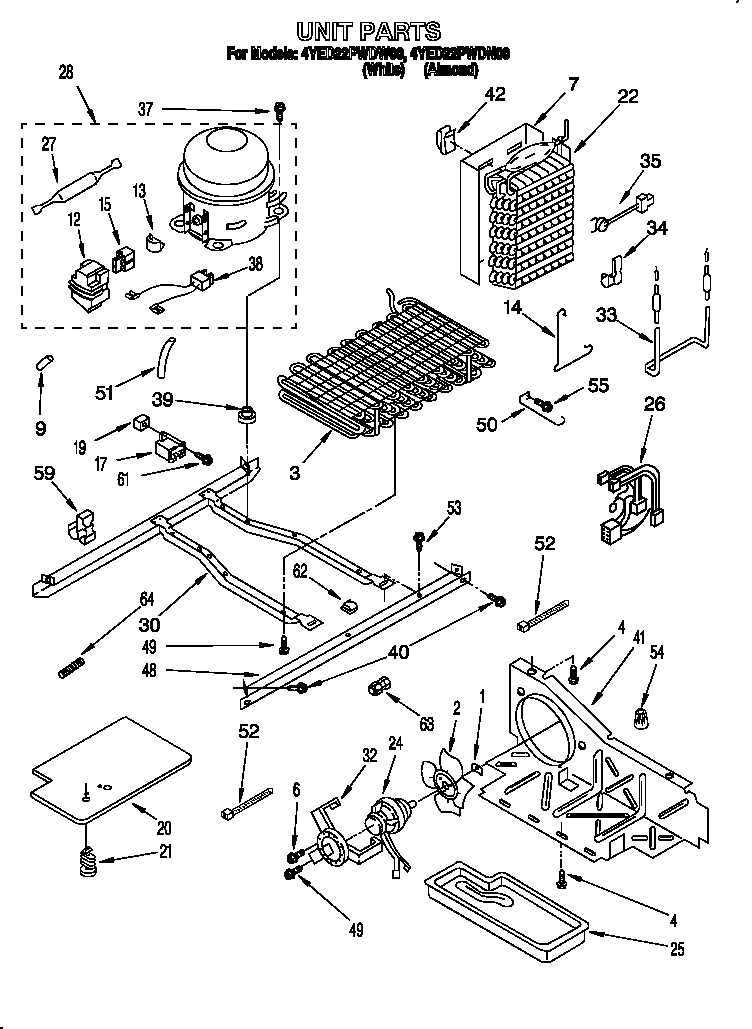

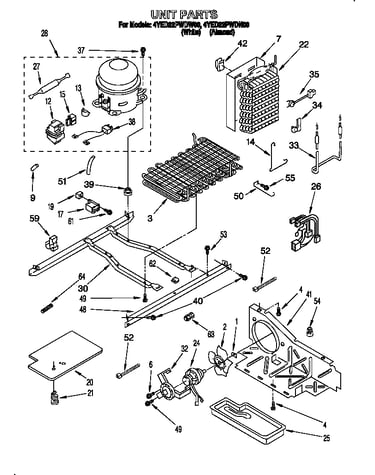

    Unit diagram

    Refrigerator defrost bi-metal

    Part #2176066

    Replaced by #WPW10225581

    ?
    Manufacturer substitution
    This part replaces 2176066. Substitute parts can look different from the original.
    BEST SELLER
    $27.80
    18% OFF Phone Price : $33.80
    In Stock
  • Refrigerator Meat Pan 2175073
    #11

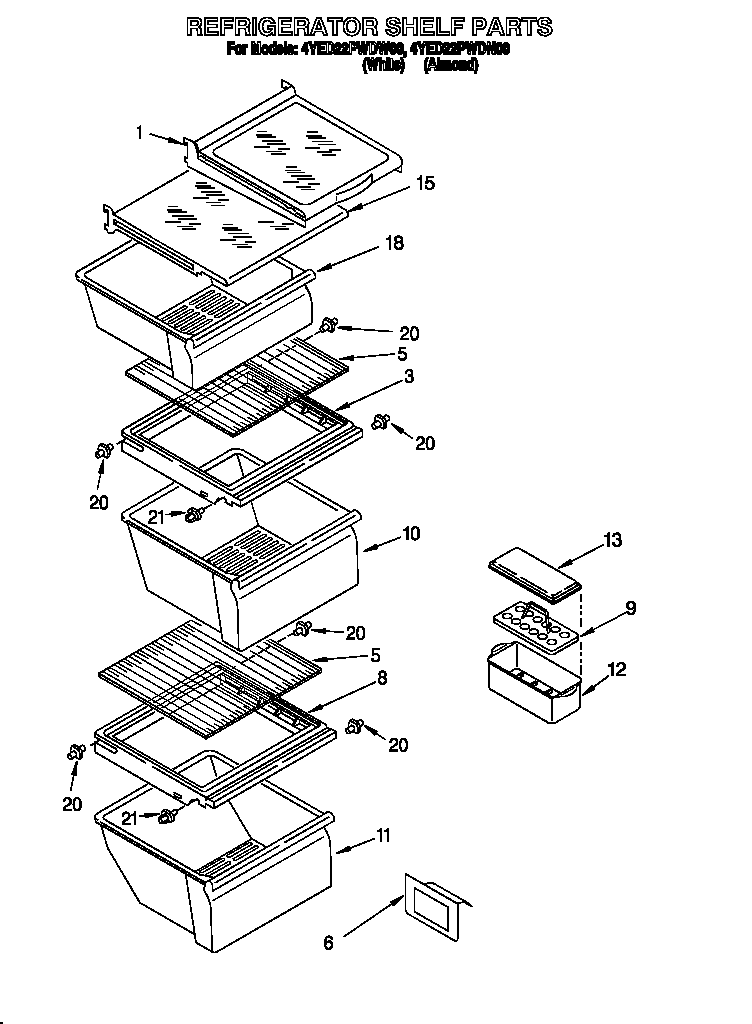

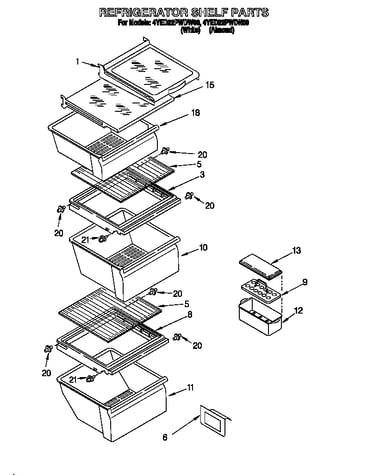

    Refrigerator shelf diagram

    Refrigerator meat pan

    Part #2175073

    Replaced by #WP2188664

    ?
    Manufacturer substitution
    This part replaces 2175073. Substitute parts can look different from the original.
    BEST SELLER
    $48.90
    11% OFF Phone Price : $54.90
    In Stock
  • Refrigerator Door Closer Cam 2155311
    #54

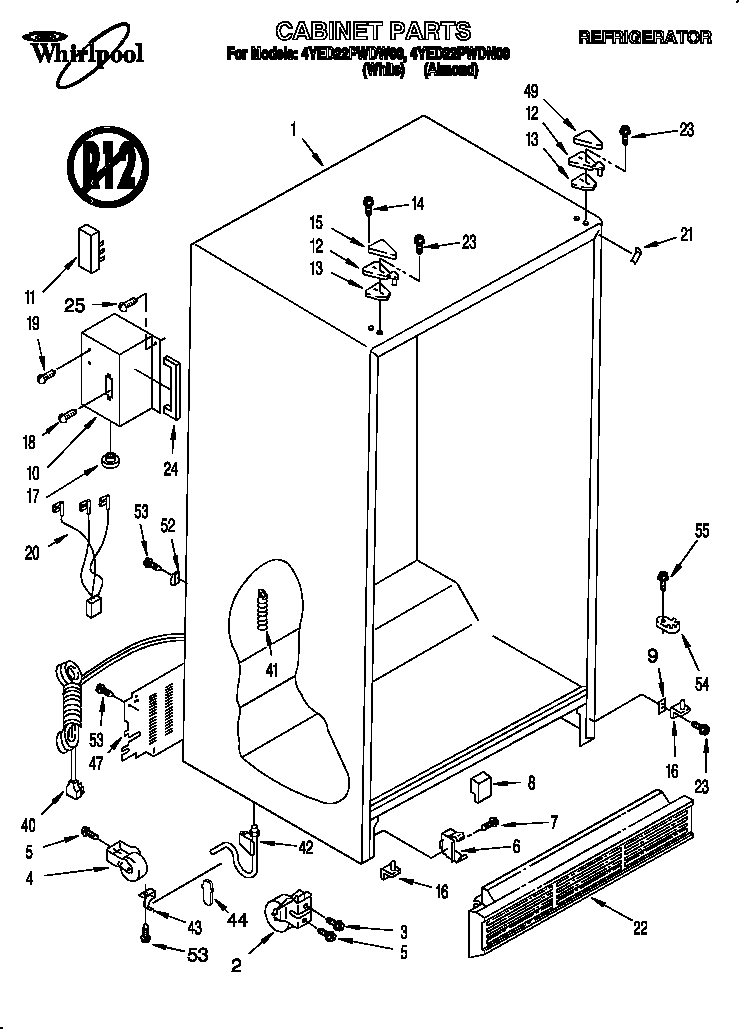

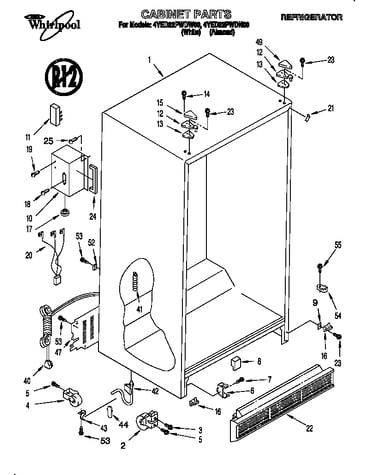

    Cabinet diagram

    Refrigerator door closer cam

    Part #2155311

    Replaced by #WPW10329686

    ?
    Manufacturer substitution
    This part replaces 2155311. Substitute parts can look different from the original.
    BEST SELLER
    $8.78
    10% OFF Phone Price : $9.78
    In Stock
  • Refrigerator Evaporator Fan Blade 2169142
    #8

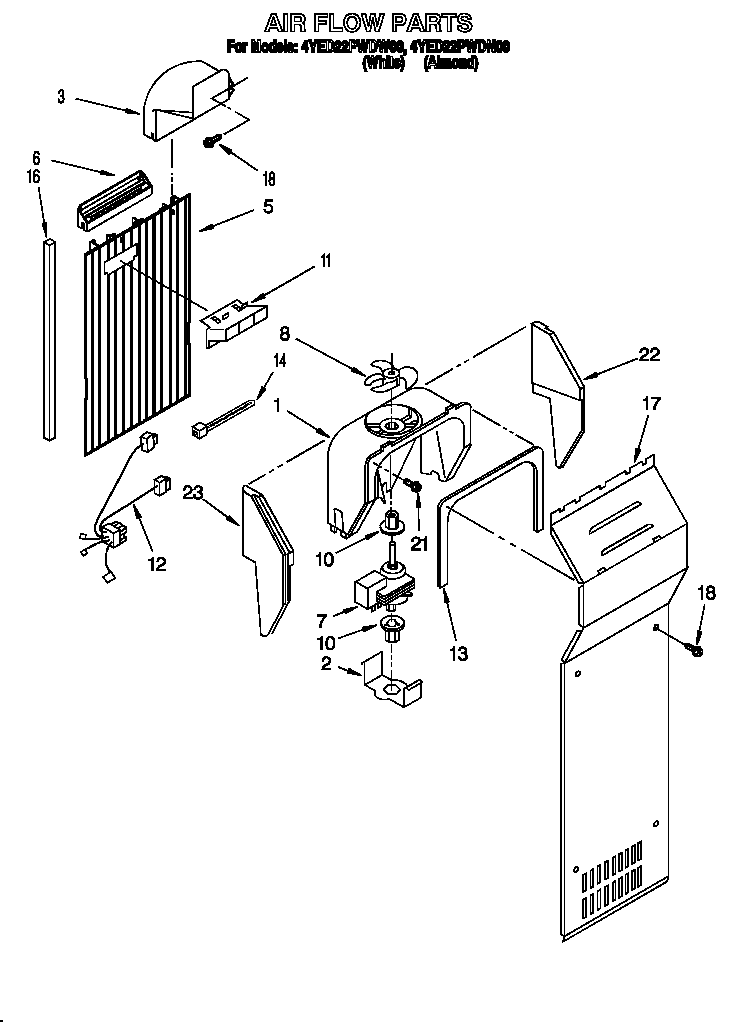

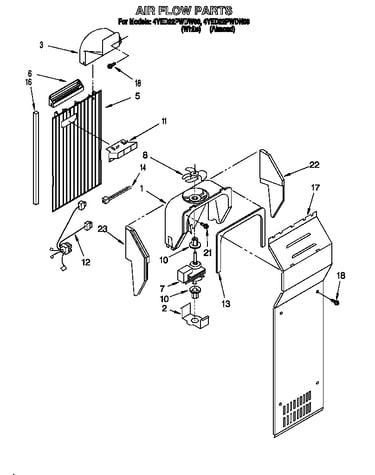

    Air flow diagram

    Refrigerator evaporator fan blade

    Part #2169142

    Replaced by #WP2169142

    ?
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    BEST SELLER
    $25.73
    19% OFF Phone Price : $31.73
    In Stock
  • Refrigerator Dispenser Switch 2162361
    #31

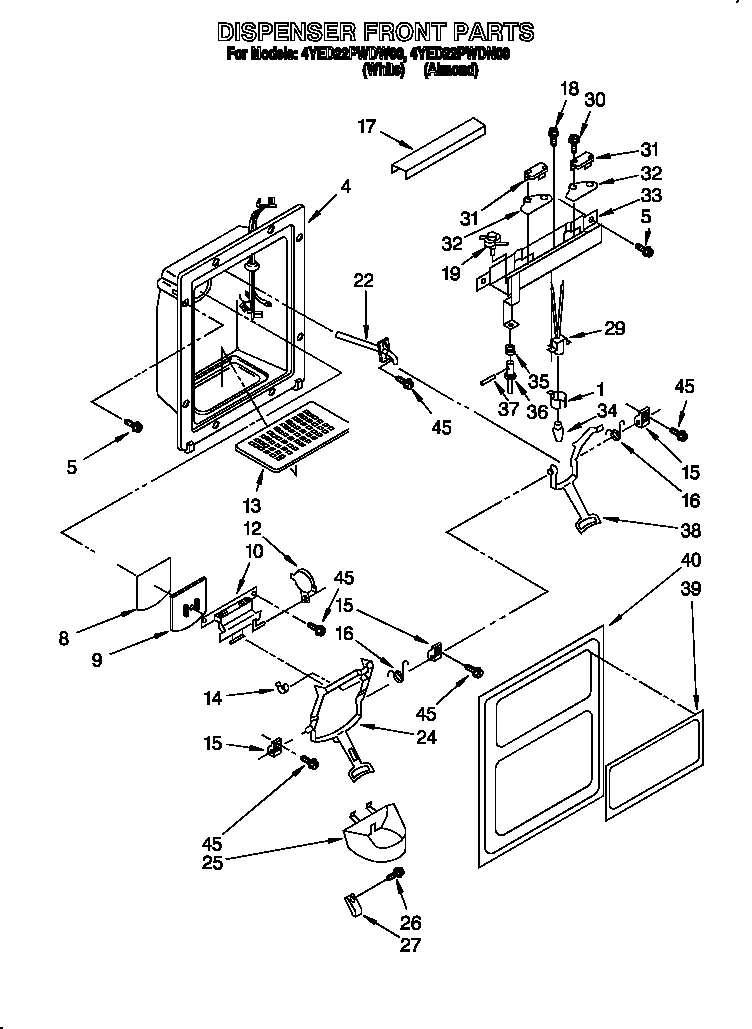

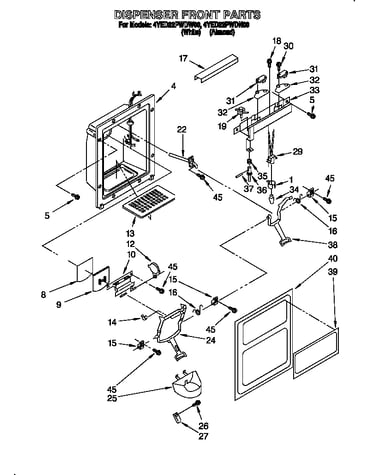

    Dispenser front diagram

    Refrigerator dispenser switch

    Part #2162361

    Replaced by #WP2162361

    ?
    Manufacturer substitution
    This part replaces 2162361. Substitute parts can look different from the original.
    BEST SELLER
    $15.34
    15% OFF Was : $18.08
    In Stock
  • Refrigerator Diffuser 2176173
    #24

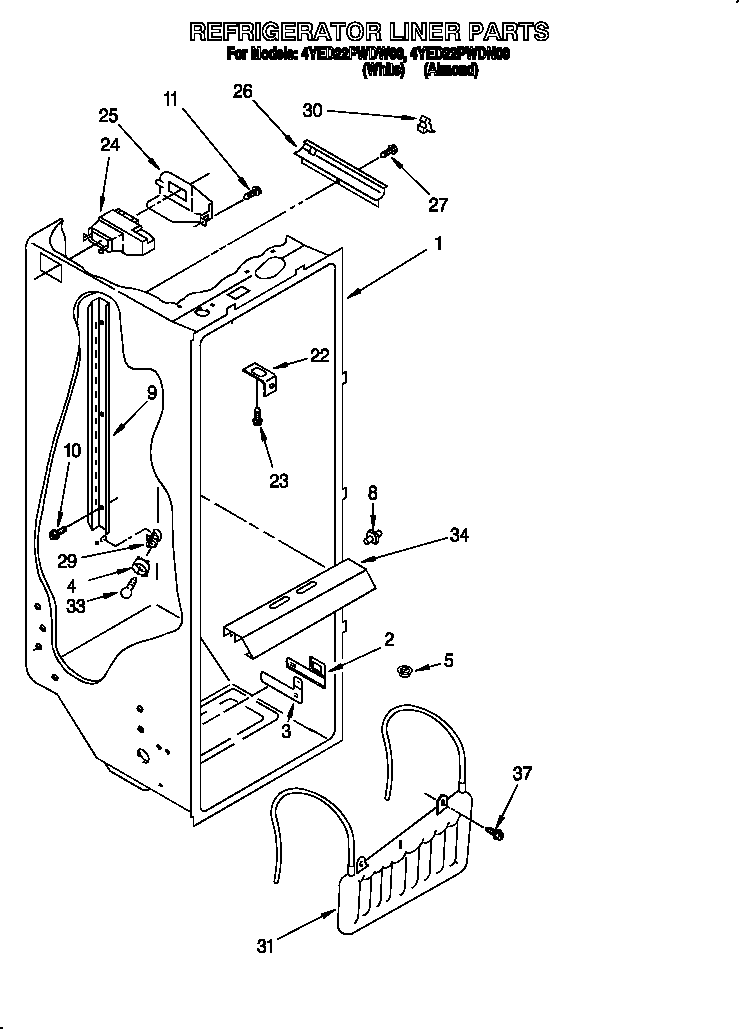

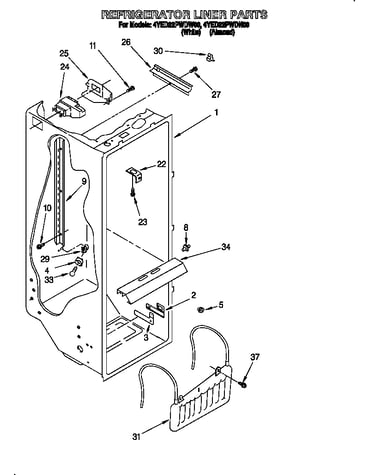

    Refrigerator liner diagram

    Refrigerator diffuser

    Part #2176173

    Replaced by #WPW10151374

    ?
    Manufacturer substitution
    This part replaces 2176173. Substitute parts can look different from the original.
    BEST SELLER
    $40.65
    13% OFF Phone Price : $46.65
    In Stock
  • Refrigerator Door Switch 2149705
    #4

    Control diagram

    Refrigerator door switch

    Part #2149705

    Replaced by #WP2149705

    ?
    Manufacturer substitution
    This part replaces 2149705. Substitute parts can look different from the original.
    BEST SELLER
    $31.82
    16% OFF Phone Price : $37.82
    In Stock
  • Refrigerator Pan Cover 2189609
    #3

    Refrigerator shelf diagram

    Refrigerator pan cover

    Part #2189609

    Replaced by #W10508993

    ?
    Manufacturer substitution
    This part replaces 2189609. Substitute parts can look different from the original.
    BEST SELLER
    $104.17
    10% OFF Phone Price : $116.17
    In Stock
  • Refrigerator Pan Cover 2189601
    #8

    Refrigerator shelf diagram

    Refrigerator pan cover

    Part #2189601

    Replaced by #W10508993

    ?
    Manufacturer substitution
    This part replaces 2189601. Substitute parts can look different from the original.
    BEST SELLER
    $104.17
    10% OFF Phone Price : $116.17
    In Stock
