Model # JV387*01 Official GE range hood
Here are the diagrams and repair parts for Official GE JV387*01 range hood, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JV387*01 Range Hood
#860

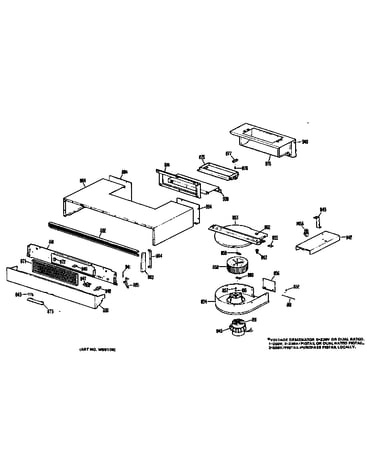

Vent assembly diagram
Clamp
Part #WB2X3458
This item is not returnable
$2.49
In Stock
#874
Vent assembly diagram
Inner cover
Part #WB49X218
$10.99
In Stock
#1458B
Vent assembly diagram
Housing pin
Part #WB17X160
The manufacturer no longer makes this part, and there's no substitute part
#877
Vent assembly diagram
Recovery stud
Part #WB2X2016
The manufacturer no longer makes this part, and there's no substitute part
#883B
Vent assembly diagram
End cap
Part #WB7X6792
The manufacturer no longer makes this part, and there's no substitute part
#938
Vent assembly diagram
Slide support
Part #WB49X5190
The manufacturer no longer makes this part, and there's no substitute part
#851
Vent assembly diagram
Motor
Part #WB26X27
The manufacturer no longer makes this part, and there's no substitute part
#858
Vent assembly diagram
Blwr wheel p
Part #WB2X3456
The manufacturer no longer makes this part, and there's no substitute part
#852
Vent assembly diagram
Damper spring
Part #WB9X72
The manufacturer no longer makes this part, and there's no substitute part
#945A
Vent assembly diagram
Fins-motor
Part #WB2X3145
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your range hoods
Choose a symptom to see related range hood repairs.
Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…
Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…
Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…
Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…
Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…
Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…
Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
Most common repair guides to help fix your range hoods
These step-by-step repair guides will help you safely fix what’s broken on your range hood.
How to replace a range hood fan motor
If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…
Repair difficulty
Time required
30 minutes or less
How to replace a range hood fan switch
The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …
Repair difficulty
Time required
15 minutes or less
How to replace a range hood light socket
When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your range hoods
Use the advice and tips in these articles and videos to get the most out of your range hood.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
