Model # XFEF3005LQD Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire XFEF3005LQD electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
XFEF3005LQD Ranges
#54A

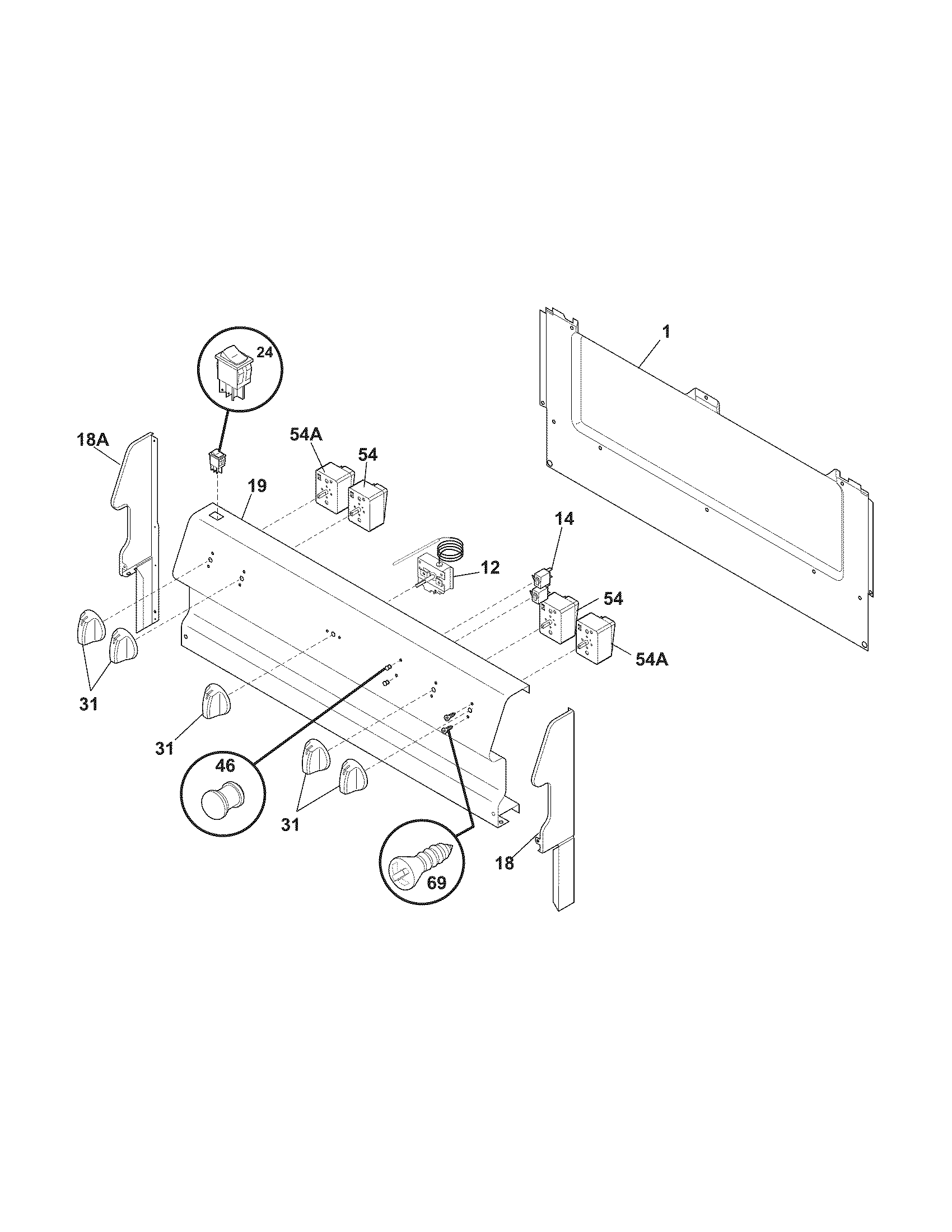

Backguard diagram
Frigidaire range surface element control switch (replaces 316021501, 5304506425)
Part #316436001
$34.18 |
15% OFF Phone Price : $40.18
In Stock
#67

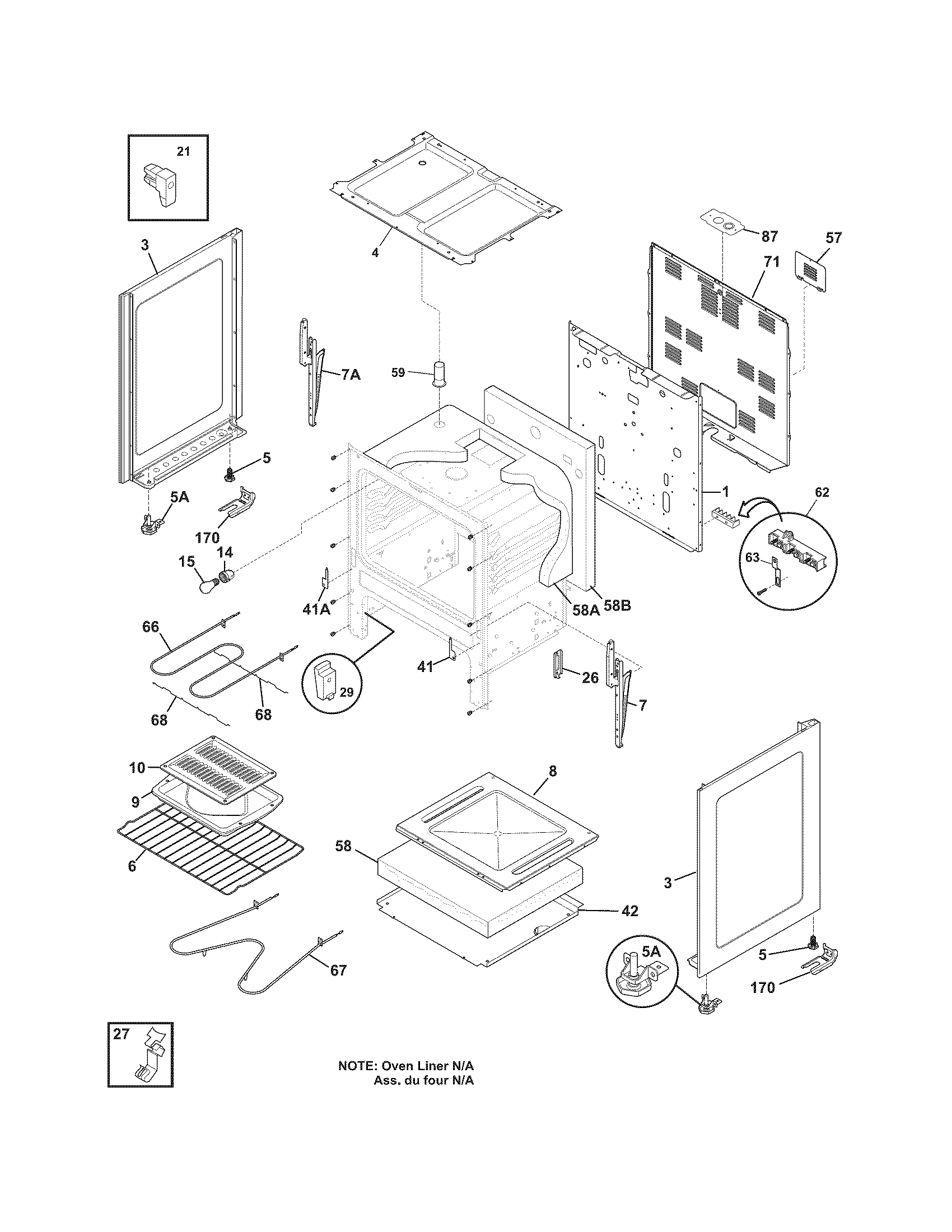

Body diagram
Range bake element
Part #316075104
Replaced by #316075103
?
Manufacturer substitution
This part replaces 316075104. Substitute parts can look different from the original.
$22.85 |
21% OFF Phone Price : $28.85
In Stock
#54
Backguard diagram
Frigidaire range small surface element control switch (replaces 316021500, 5304506424)
Part #316436000
$48.48 |
15% OFF Phone Price : $57.03
In Stock
#15
Body diagram
Appliance light bulb, 40-watt
Part #316538901
Replaced by #316538904
?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
$16.96 |
11% OFF Phone Price : $18.96
In Stock
#27

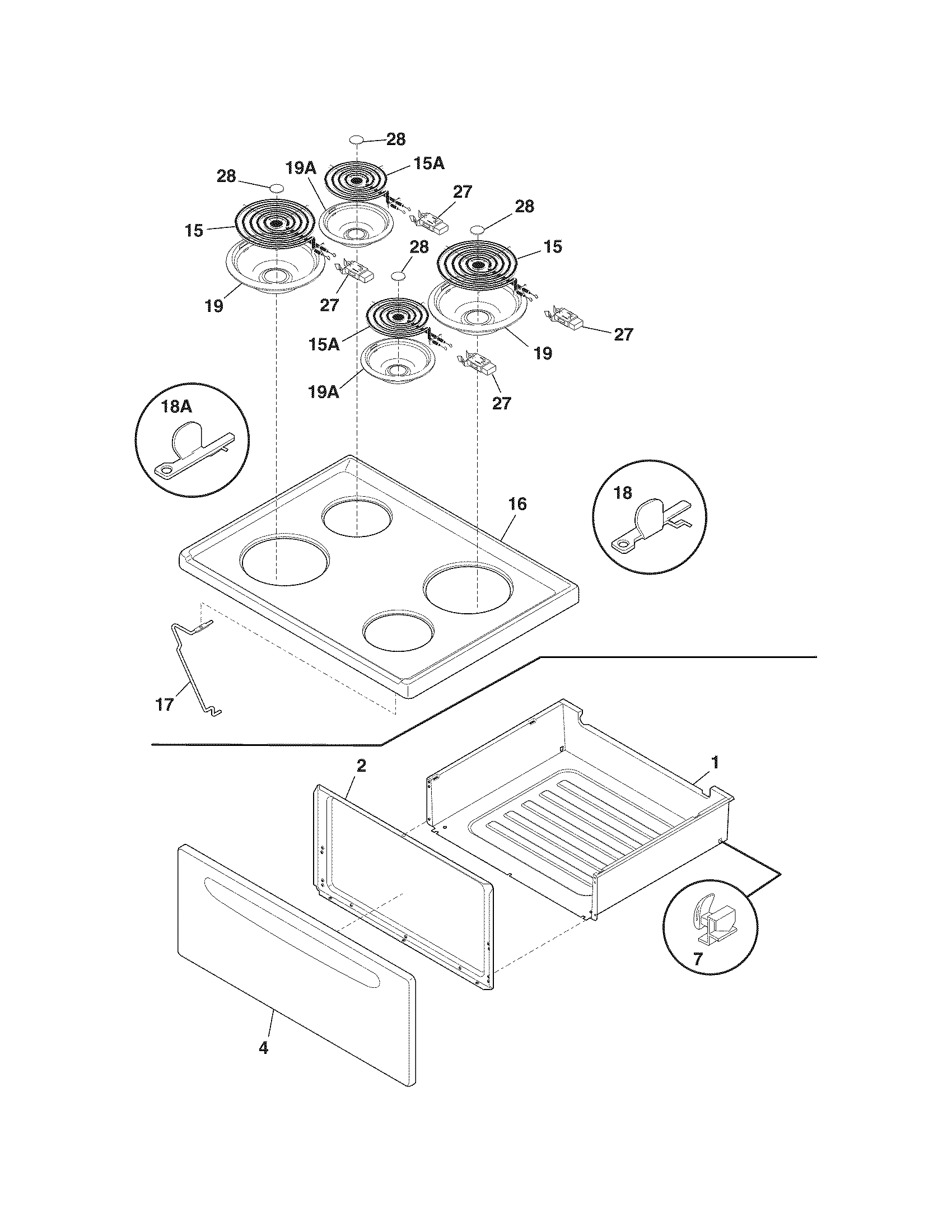

Top/drawer diagram
Block
Part #5303912666
Replaced by #5303935058
?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
$8.24 |
11% OFF Phone Price : $9.24
In Stock
#19
Top/drawer diagram
Frigidaire range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)
Part #316048413
This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
#19A
Top/drawer diagram
Range drip pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, a316221301)
Part #316048414
$6.30 |
17% OFF Phone Price : $7.63
In Stock
#46
Backguard diagram
Range indicator light lens (replaces 316437800)
Part #316557300
$13.63 |
13% OFF Phone Price : $15.63
In Stock
#15A
Top/drawer diagram
Sm top elem
Part #3051449
Replaced by #318372210
?
Manufacturer substitution
This part replaces 3051449. Substitute parts can look different from the original.
$22.46 |
24% OFF Phone Price : $29.64
In Stock
#10B

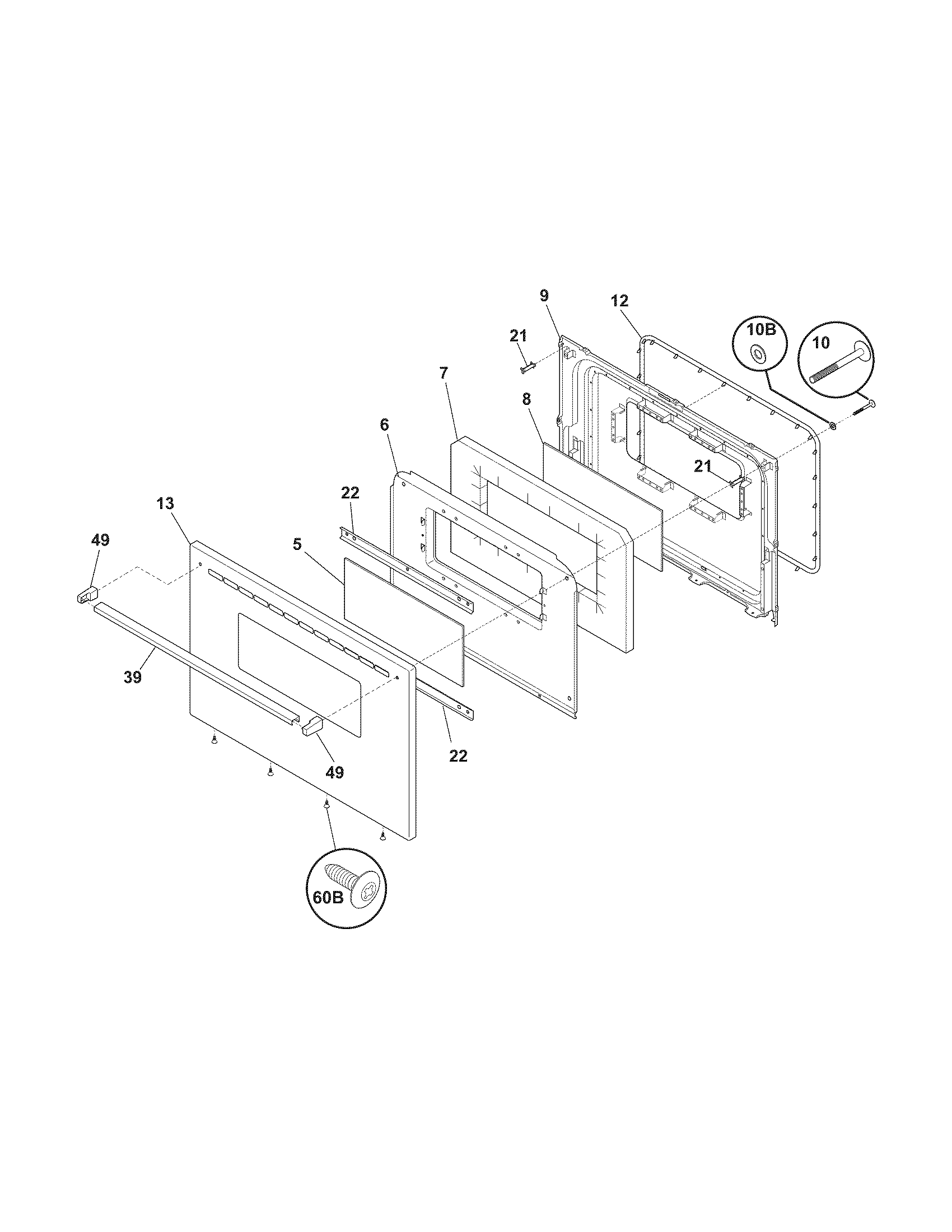

Door diagram
Range washer (replaces 316136500, 7316008401)
Part #316008401
$14.43 |
12% OFF Phone Price : $16.43
In Stock
