Model # MU15EN Official Mitsubishi split-type air conditioner
Here are the diagrams and repair parts for Official Mitsubishi MU15EN split-type air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
MU15EN Split-Type Air Conditioner
#7

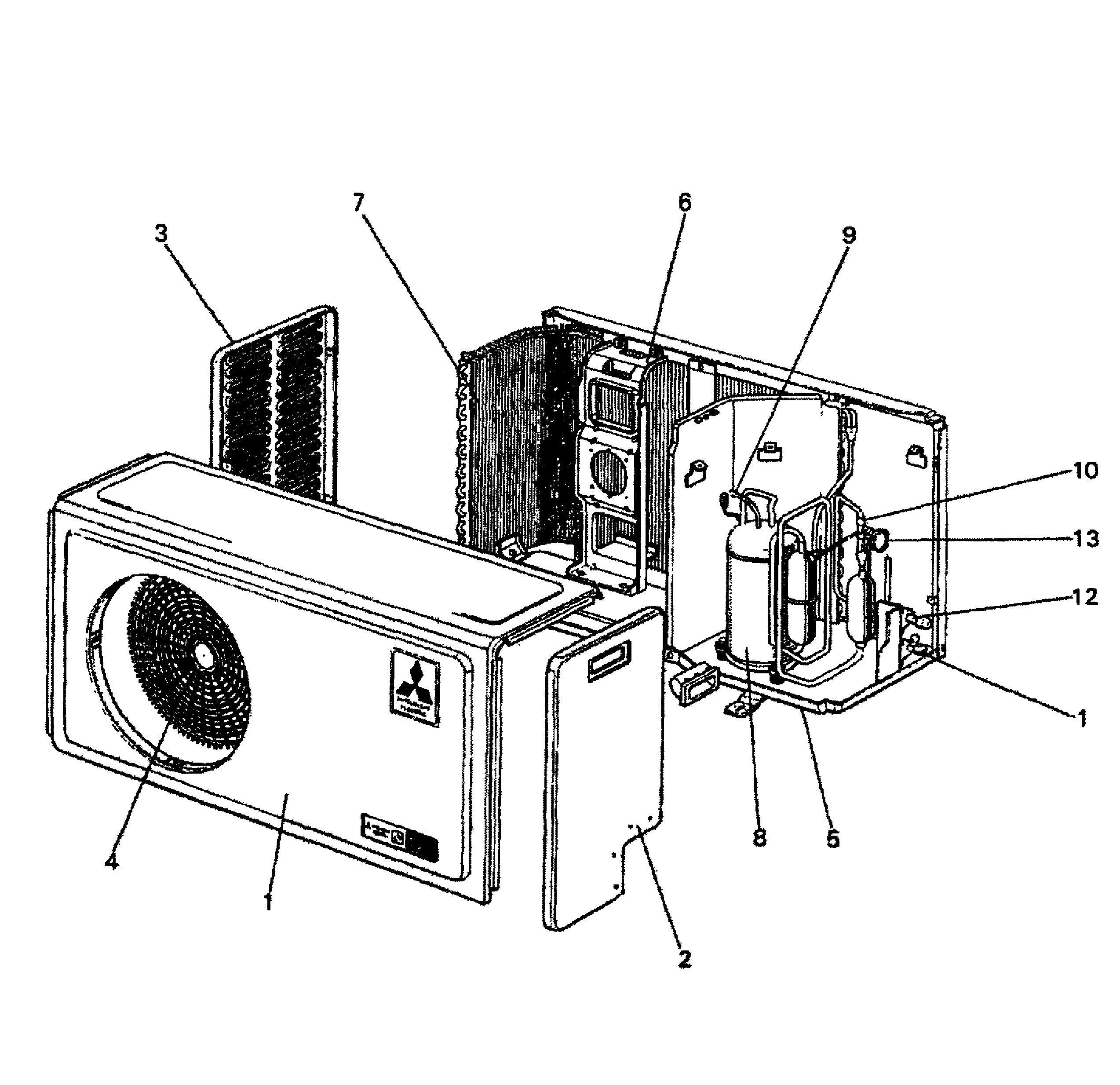

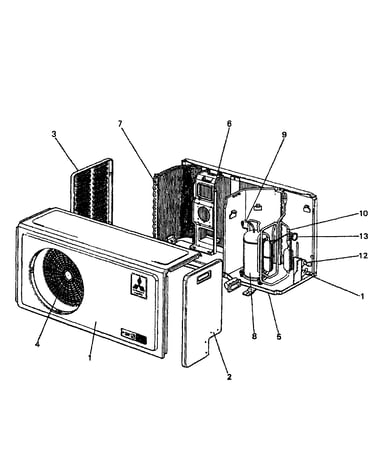

Unit 2 diagram
Motor support
Part #T2W774630
The manufacturer no longer makes this part, and there's no substitute part
#8

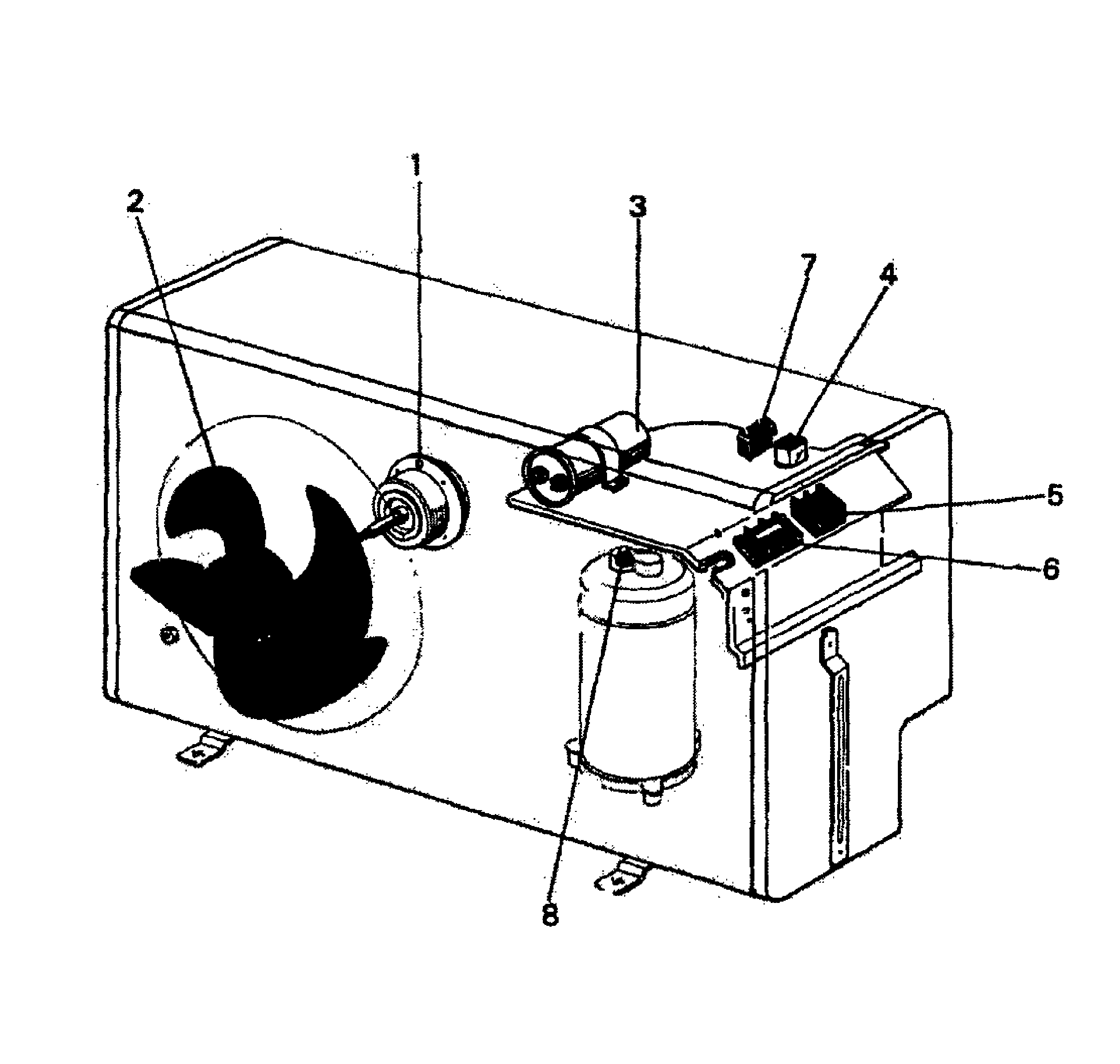

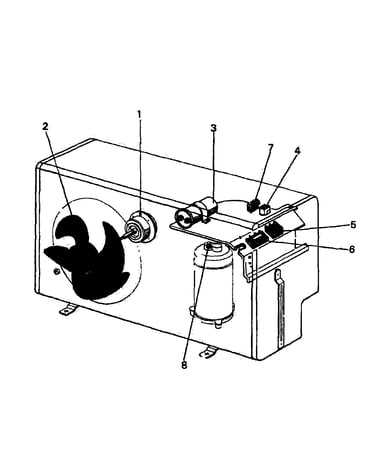

Unit 1 diagram
Motor prtctr
Part #T2W394330
The manufacturer no longer makes this part, and there's no substitute part
#3
Unit 1 diagram
Mitsubishi compressor
Part #T2W913353
The manufacturer no longer makes this part, and there's no substitute part
#5
Unit 2 diagram
Base assembly
Part #T2W708290
The manufacturer no longer makes this part, and there's no substitute part
#12
Unit 2 diagram
Valve ball
Part #R01951411
The manufacturer no longer makes this part, and there's no substitute part
#5
Unit 1 diagram
Outdoor te
Part #M21534375
The manufacturer no longer makes this part, and there's no substitute part
#10
Unit 2 diagram
Fusble plug
Part #T2W416642
The manufacturer no longer makes this part, and there's no substitute part
#6
Unit 2 diagram
Mitsubishi motor support
Part #T2W911515
The manufacturer no longer makes this part, and there's no substitute part
#9
Unit 2 diagram
Chrge plug
Part #T2W457641
The manufacturer no longer makes this part, and there's no substitute part
#11
Unit 2 diagram
Liqud vlv
Part #T2W460662
The manufacturer no longer makes this part, and there's no substitute part
