Model # AJCQ12ACDM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ12ACDM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Central Air Conditioner Run Capacitor WJ20X10111
#1045

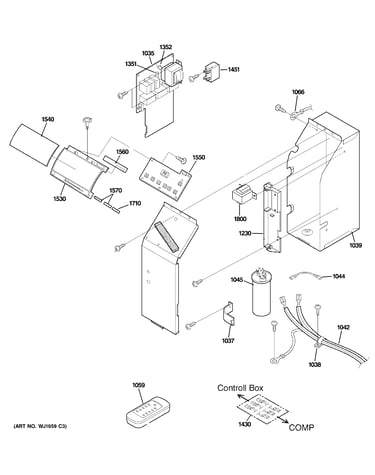

Control parts diagram

Central air conditioner run capacitor

Part #WJ20X10111

$39.14 |
13% OFF Phone Price : $45.14
In Stock
Louver Holder WJ01X10142
#1169

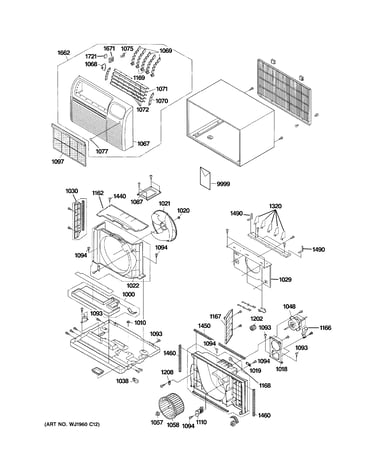

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
U&c/iis Air 49-7597-2
#9999

Cabinet & components diagram

U&c/iis air

Part #49-7597-2

$17.99
In Stock
Special Screw WJ01X10392
#1093

Cabinet & components diagram

Special screw

Part #WJ01X10392

This item is not returnable
$5.00
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Room Air Conditioner Power Cord WJ35X10143
#1042

Control parts diagram

Room air conditioner power cord

Part #WJ35X10143

$123.24 |
9% OFF Phone Price : $135.24
In Stock
Special Nut WP01X10015
#1079

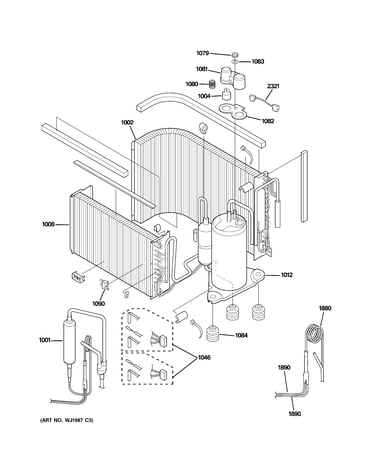

Sealed system & components diagram

Special nut

Part #WP01X10015

This item is not returnable
$4.35
In Stock
Complete Cushion WJ01X10002
#1084

Sealed system & components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Power Cord WJ35X10147
#1042

Control parts diagram

Power cord

Part #WJ35X10147

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10147. Substitute parts can look different from the original.
$123.24 |
9% OFF Phone Price : $135.24
In Stock
