Model # TA18R2W-P1158306WW Official Amana top-mount free-o-frost refrigerator/freezer - r model

Here are the diagrams and repair parts for Official Amana TA18R2W-P1158306WW top-mount free-o-frost refrigerator/freezer - r model, as well as links to manuals and error code tables, if available.

By Schematic
By Part

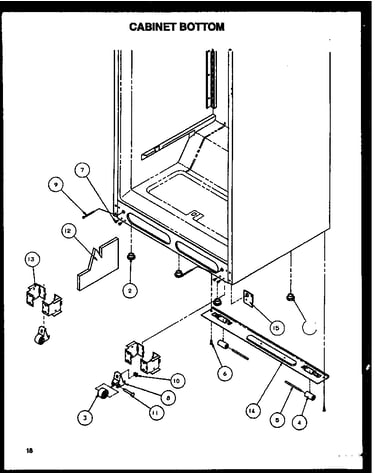

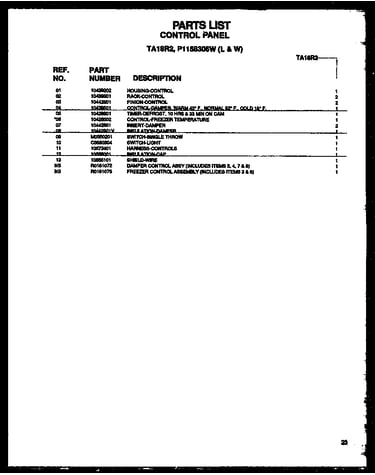

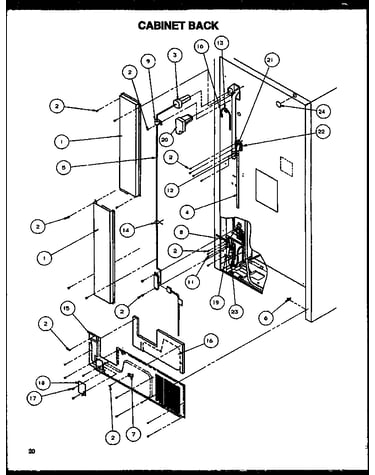

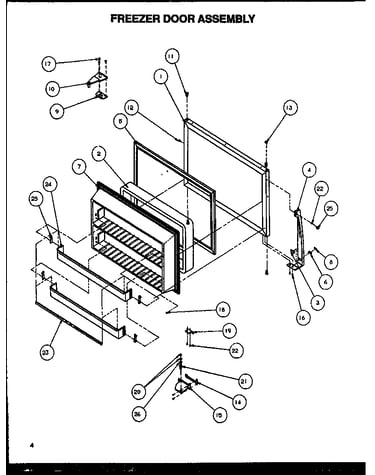

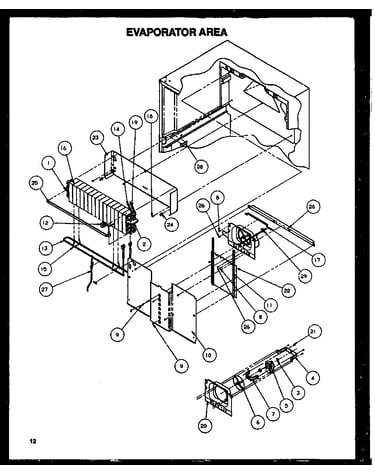

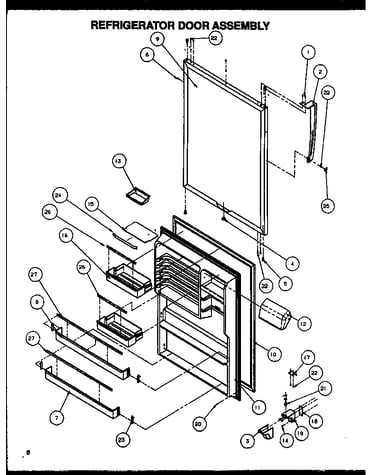

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TA18R2W-P1158306WW Refrigerators
Refrigerator Ice Maker (red) D7824702

#NI

All parts diagram

Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
4.12 (52)
BEST SELLER
$88.34 |
6% OFF Phone Price : $94.34
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#1

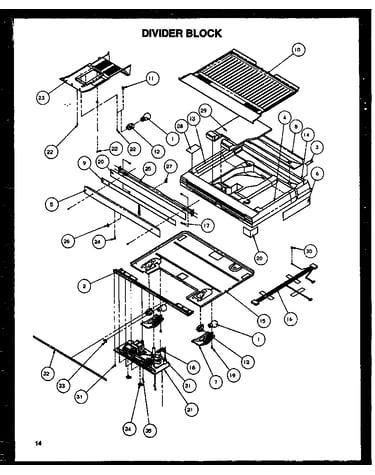

Divider block diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor C8931602
#21

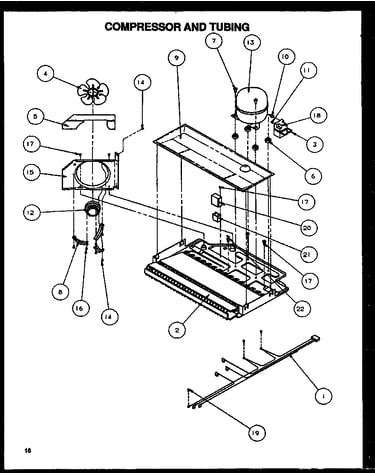

Compressor and tubing diagram

Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
5 (9)
BEST SELLER
$48.85 |
11% OFF Phone Price : $54.85
In Stock
Refrigerator Motor 10522102
#12

Compressor and tubing diagram

Refrigerator motor

Part #10522102

Replaced by #833697

?
Manufacturer substitution
This part replaces 10522102. Substitute parts can look different from the original.
4.8 (10)
BEST SELLER
$54.25 |
10% OFF Phone Price : $60.25
In Stock
Refrigerator Screw M0238019
#21

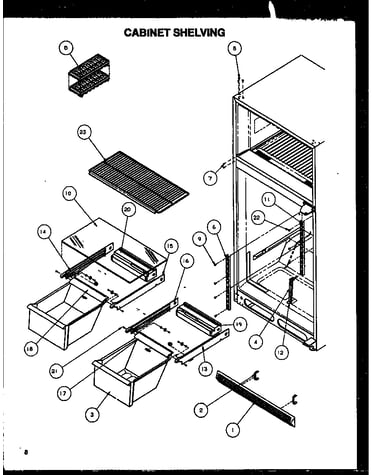

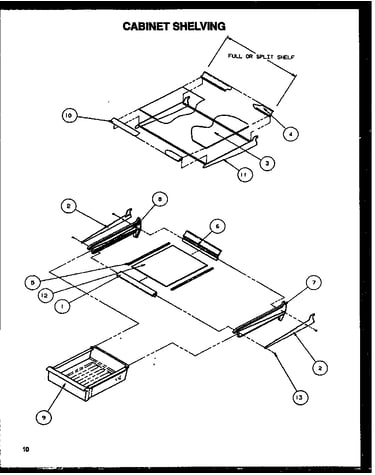

Cabinet shelving diagram

Refrigerator screw

Part #M0238019

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0238019. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0203944
Refrigerator screw

Part #M0203944

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0203944. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0222429
Refrigerator screw

Part #M0222429

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222429. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0237921
#13

Cabinet shelving diagram

Refrigerator screw

Part #M0237921

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0237921. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Harness D7813004

#NI

All parts diagram

Refrigerator harness

Part #D7813004

Replaced by #WPD7813010

?
Manufacturer substitution
This part replaces D7813004. Substitute parts can look different from the original.
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Refrigerator Screw M0220617
#19

Divider block diagram

Refrigerator screw

Part #M0220617

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0220617. Substitute parts can look different from the original.
This item is not returnable
$4.17 |
19% OFF Phone Price : $5.17
In Stock
