Model # 328915103 Official Craftsman 17" power reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 328915103 17" power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Bolt 1044
#18

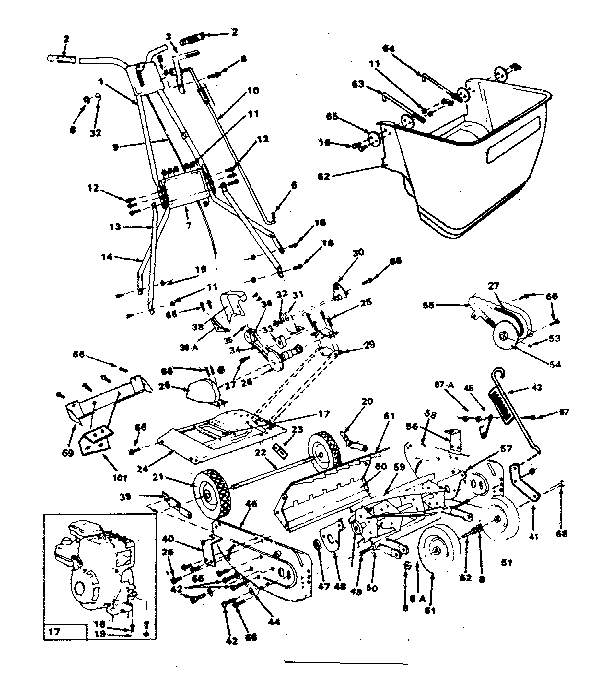

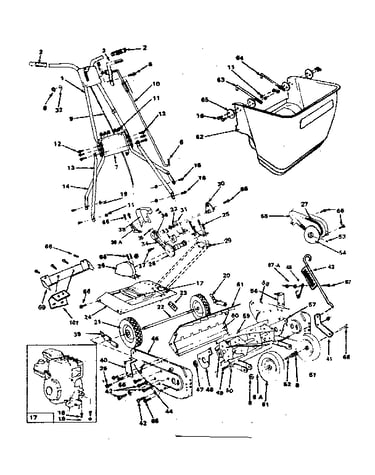

Replacement parts diagram

Bolt

Part #1044

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1028
#25

Replacement parts diagram

Bolt

Part #1028

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1033
Bolt

Part #1033

The manufacturer no longer makes this part, and there's no substitute part

Key 1064
#37

Replacement parts diagram

Key

Part #1064

The manufacturer no longer makes this part, and there's no substitute part

Wheel Adjustment 3039
#39

Replacement parts diagram

Wheel adjustment

Part #3039

The manufacturer no longer makes this part, and there's no substitute part

Reel Lawn Mower Clutch Drive Chain 1056
#98

Replacement parts diagram

Reel lawn mower clutch drive chain

Part #1056

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Washer 3065
#65

Replacement parts diagram

Lawn mower washer

Part #3065

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Wheel 2016-6
#51

Replacement parts diagram

Lawn & garden equipment wheel

Part #2016-6

The manufacturer no longer makes this part, and there's no substitute part

Nut 1075
Nut

Part #1075

The manufacturer no longer makes this part, and there's no substitute part

Washer 3032
#32

Replacement parts diagram

Washer

Part #3032

The manufacturer no longer makes this part, and there's no substitute part
