Model # AWN43RSN115TW01 Official Alliance washer

Here are the diagrams and repair parts for Official Alliance AWN43RSN115TW01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

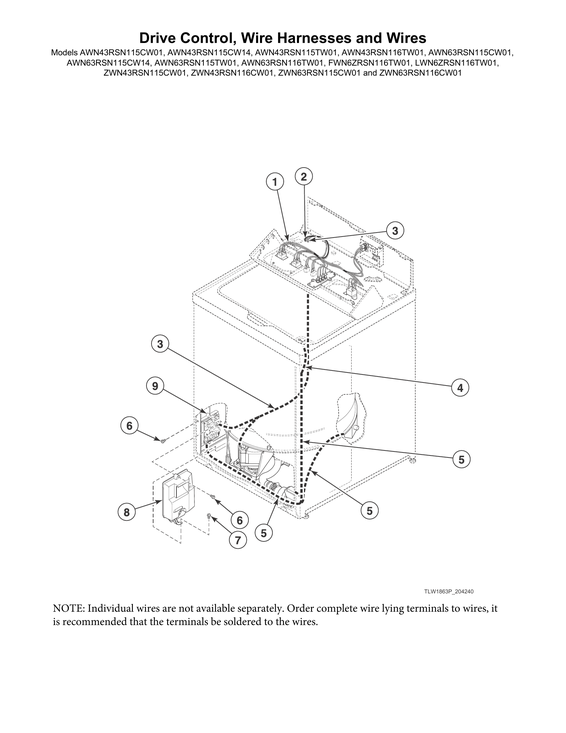

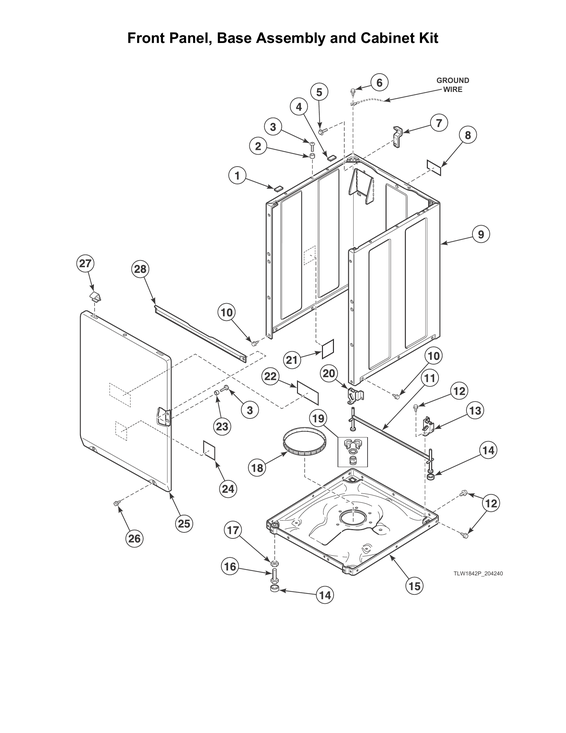

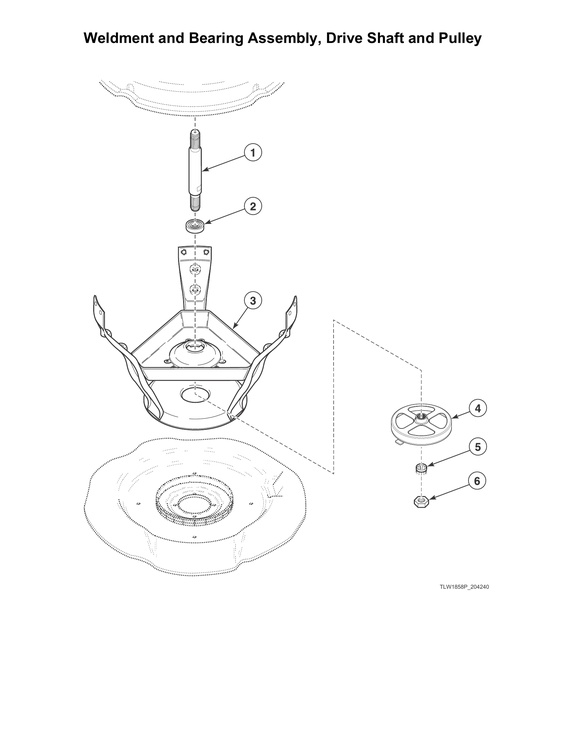

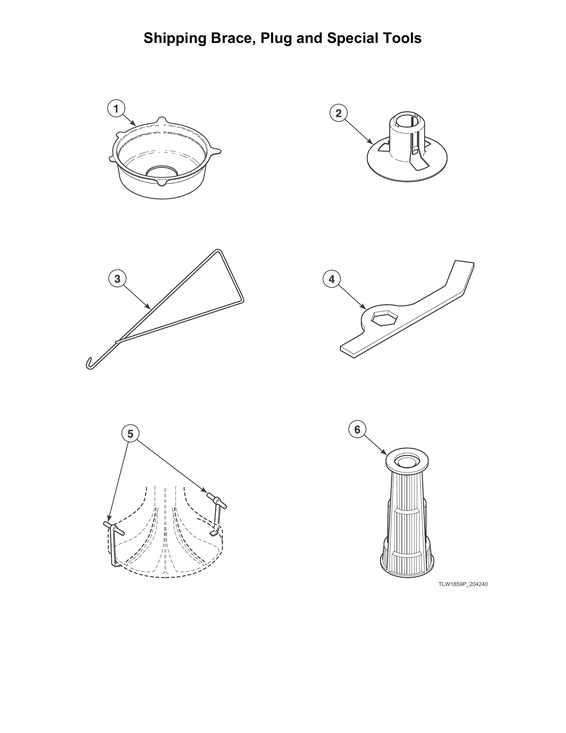

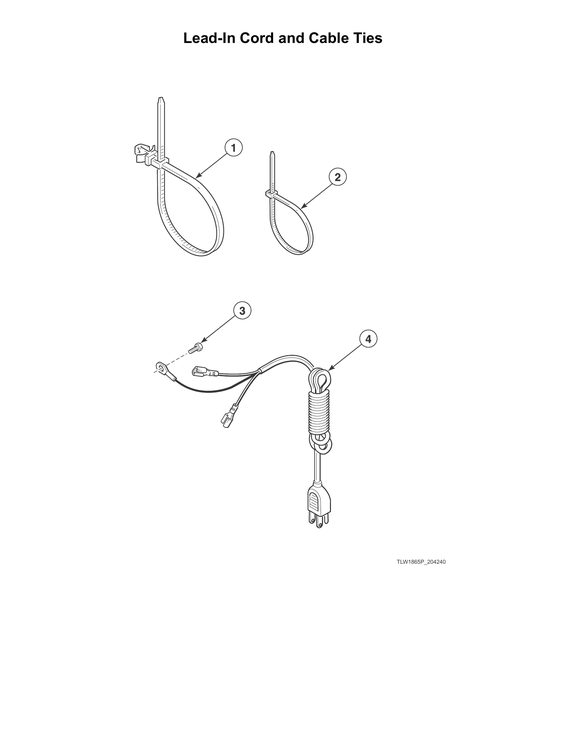

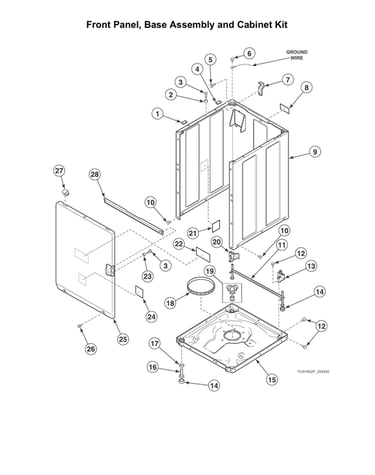

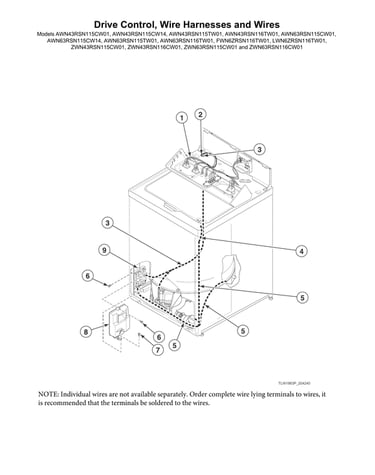

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Alliance Lid Lock (through Serial No. 1905999999) 203504
#15

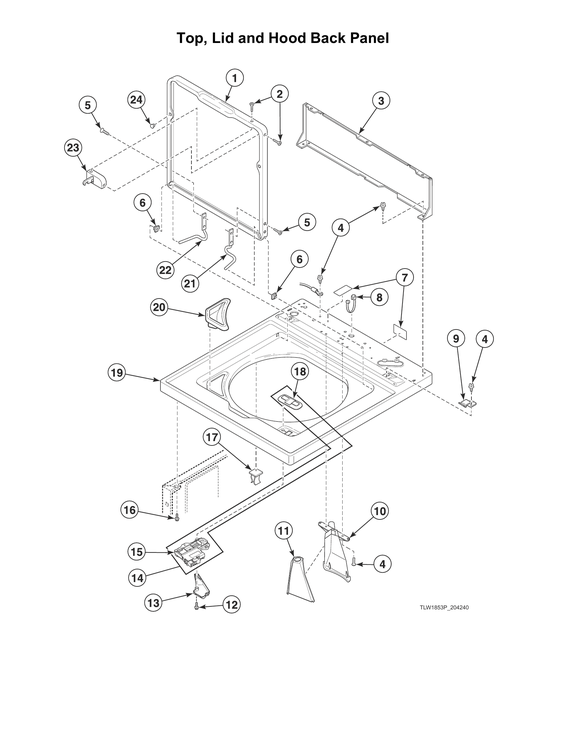

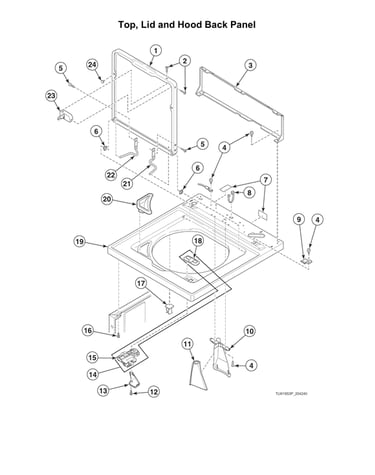

Top/lid/hood back panel diagram

Alliance lid lock (through serial no. 1905999999)

Part #203504

BEST SELLER
$111.11
In Stock
Alliance Pump And Bracket 203885
#8

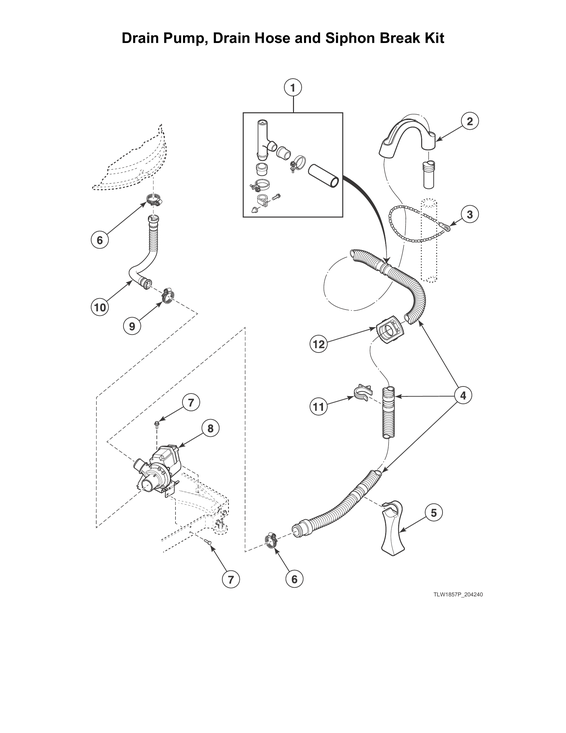

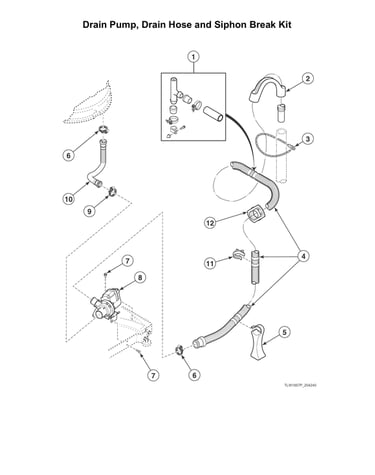

Drain pump/drain hose/siphon break kit diagram

Alliance pump and bracket

Part #203885

$135.56
In Stock

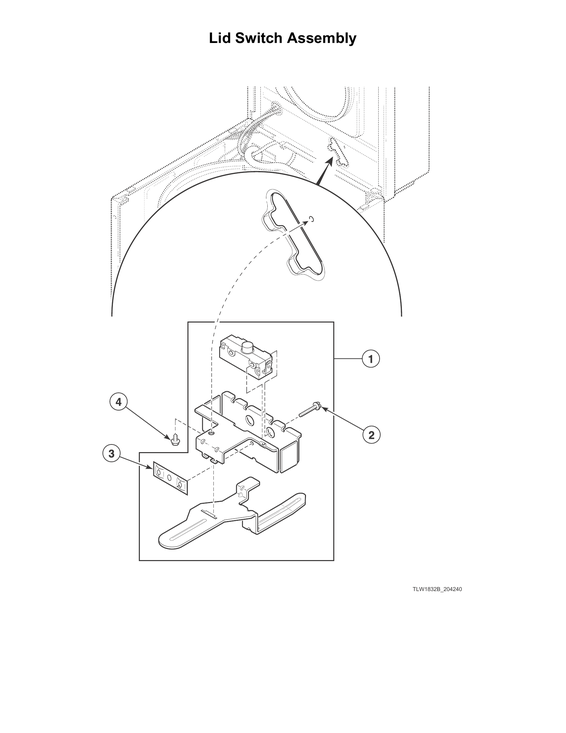

Lid Switch Kit 204696
#1

Lid switch assy diagram

Lid switch kit

Part #204696

The manufacturer no longer makes this part, and there's no substitute part

Pressure Sensor 203843
#12

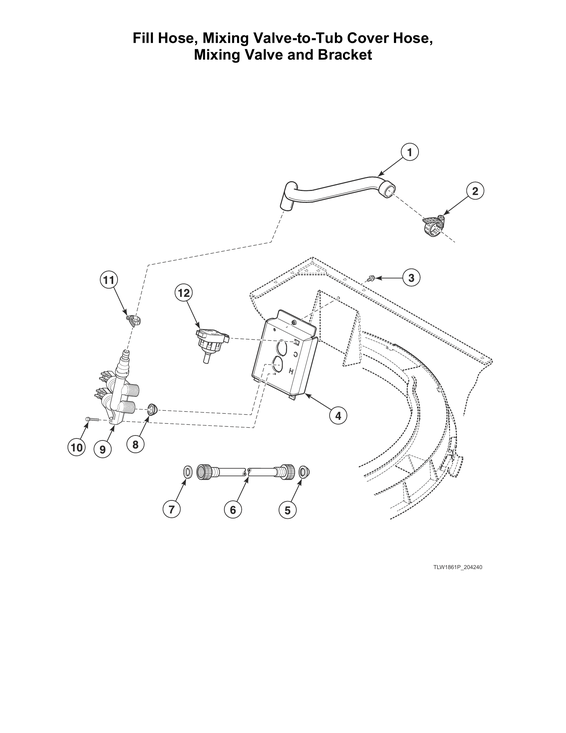

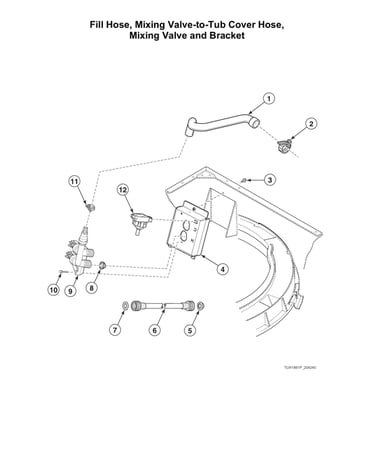

Fill hose/mixing valve-to-tub cover hose/bracket diagram

Pressure sensor

Part #203843

$20.71
In Stock

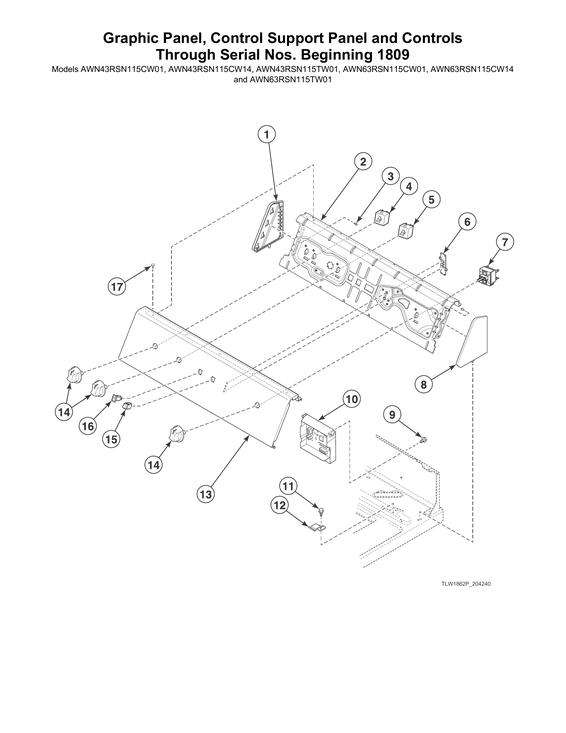

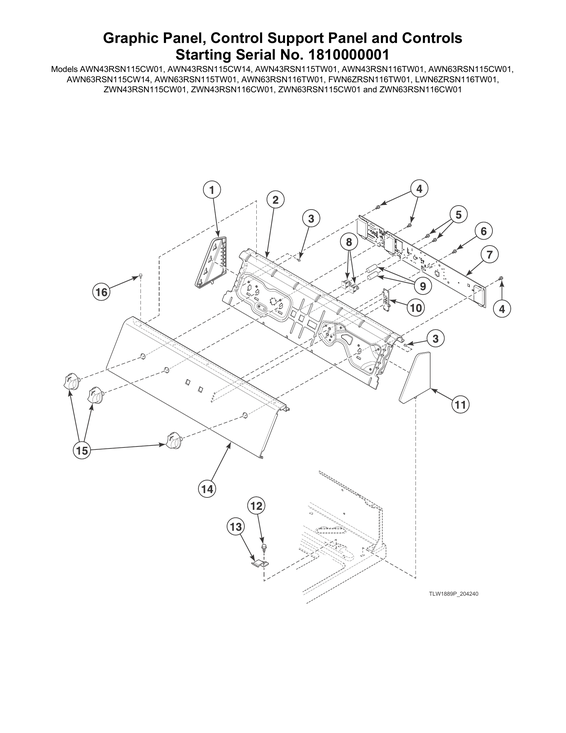

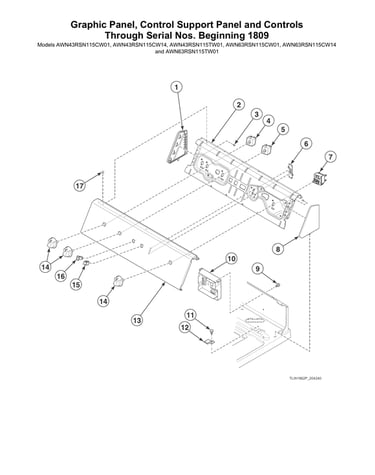

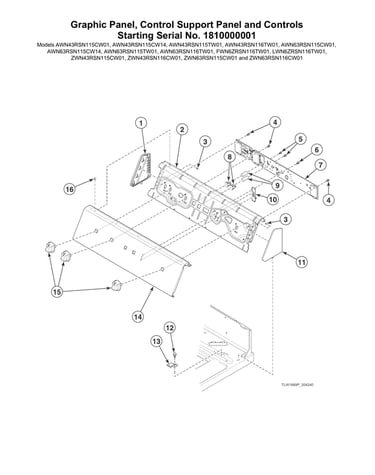

Knob Assembly 806597
Knob assembly

Part #806597

$17.69
In Stock
Washer Counterweight Spring 37575
Washer counterweight spring

Part #37575

The manufacturer no longer makes this part, and there's no substitute part

Alliance Lid Lock Catch 203573
#23

Top/lid/hood back panel diagram

Alliance lid lock catch

Part #203573

$29.56
In Stock
Ring Assembly 39837
#2

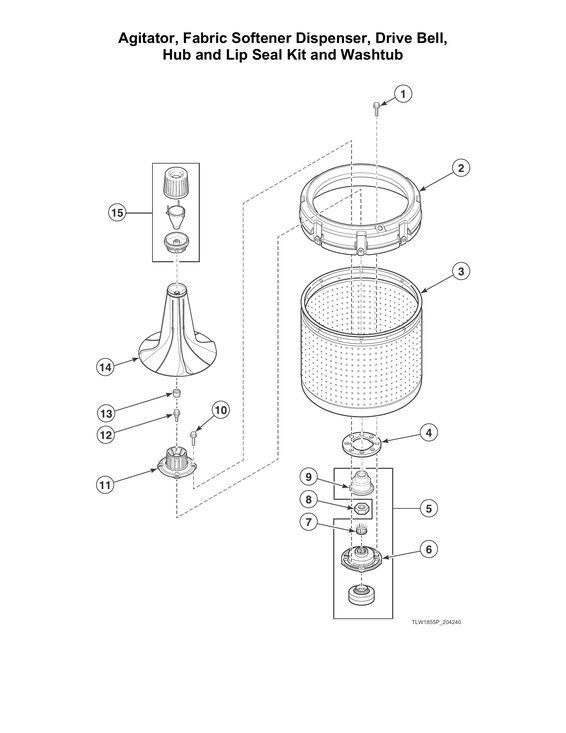

Agitator/fabric softener dispenser/drive bell/hub/washtub diagram

Ring assembly

Part #39837

The manufacturer no longer makes this part, and there's no substitute part

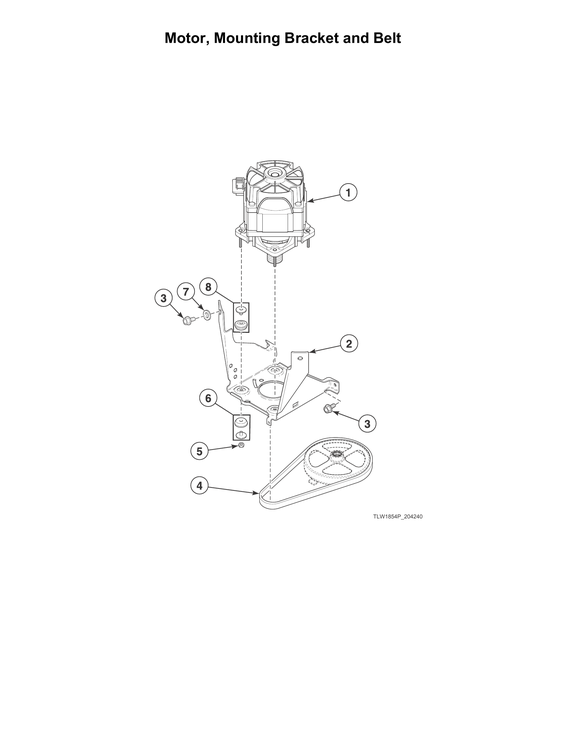

Alliance Belt 204690
#4

Motor/mounting bracket/belt diagram

Alliance belt

Part #204690

$27.66
In Stock

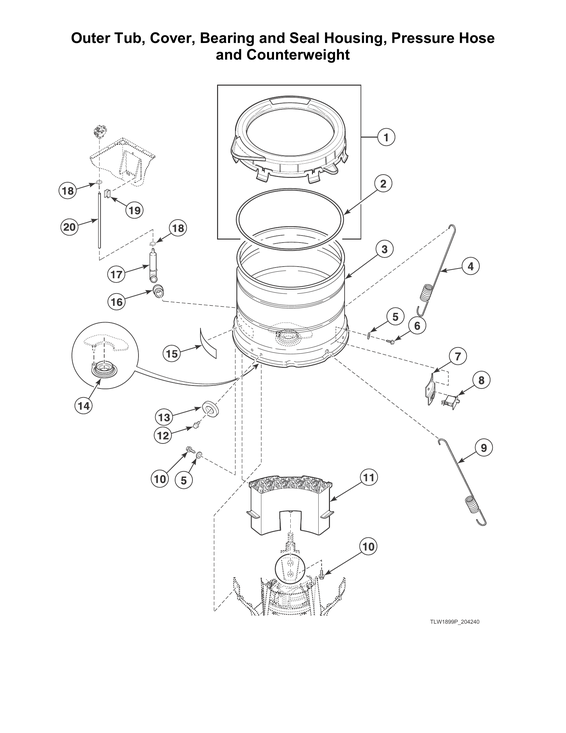

Alliance Tub Cover Assembly (includes Item 2) 203968
#1

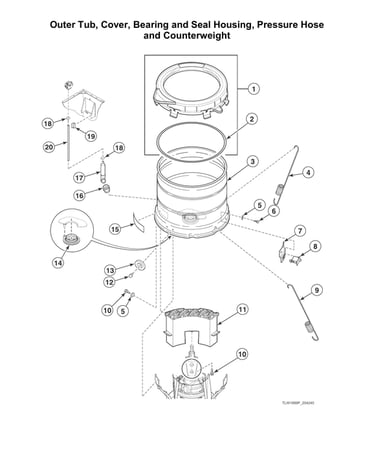

Outer tub/cover/bearing/seal housing/pressure hose diagram

Alliance tub cover assembly (includes item 2)

Part #203968

$19.83
In Stock
