Fisher & Paykel
Dishwasher

Model # DS603IH Official Fisher & Paykel dishwasher dish drawer

Here are the diagrams and repair parts for Official Fisher & Paykel DS603IH dishwasher dish drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

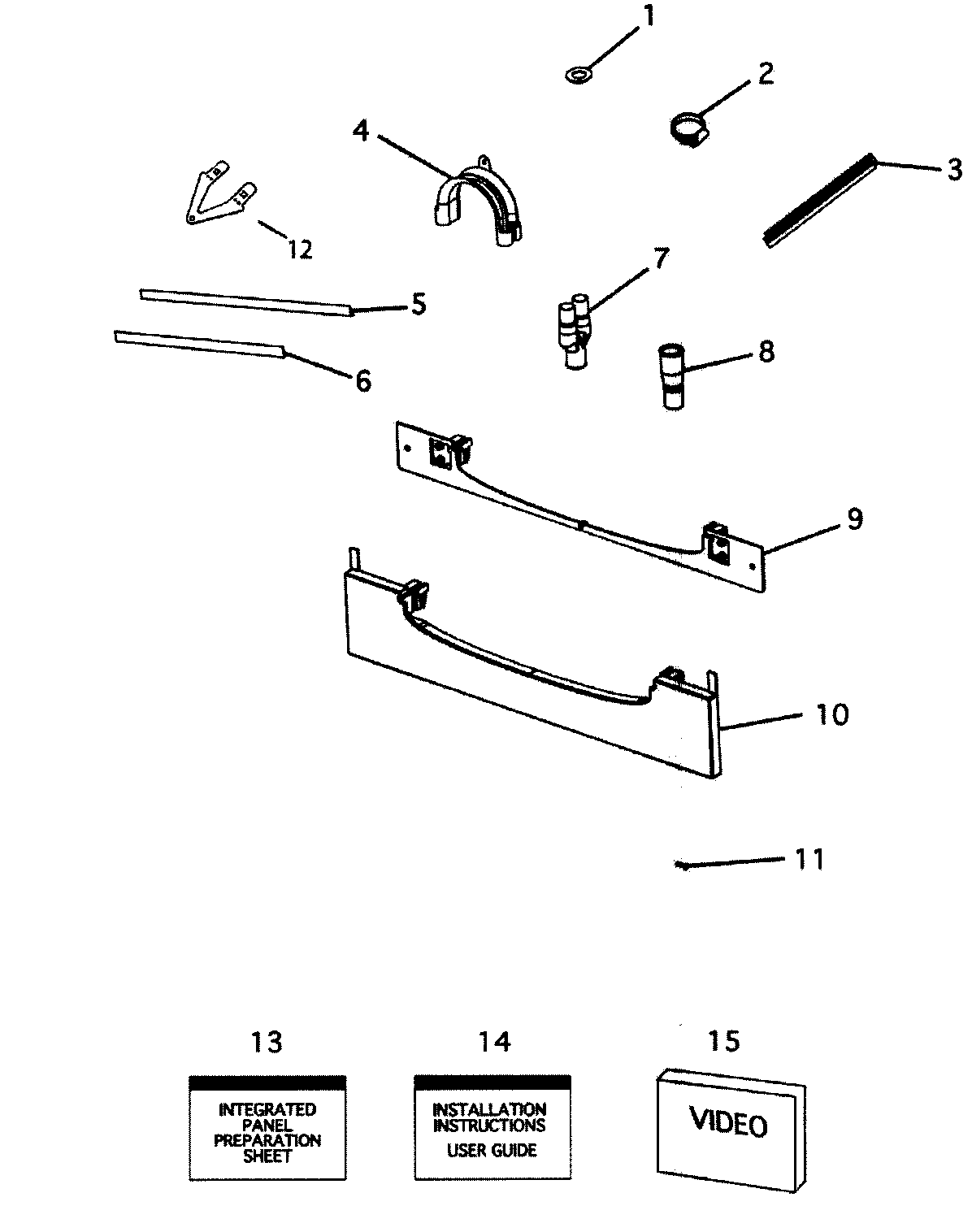

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Fisher & Paykel Dishwasher Drain Filter Seal 527547
#2

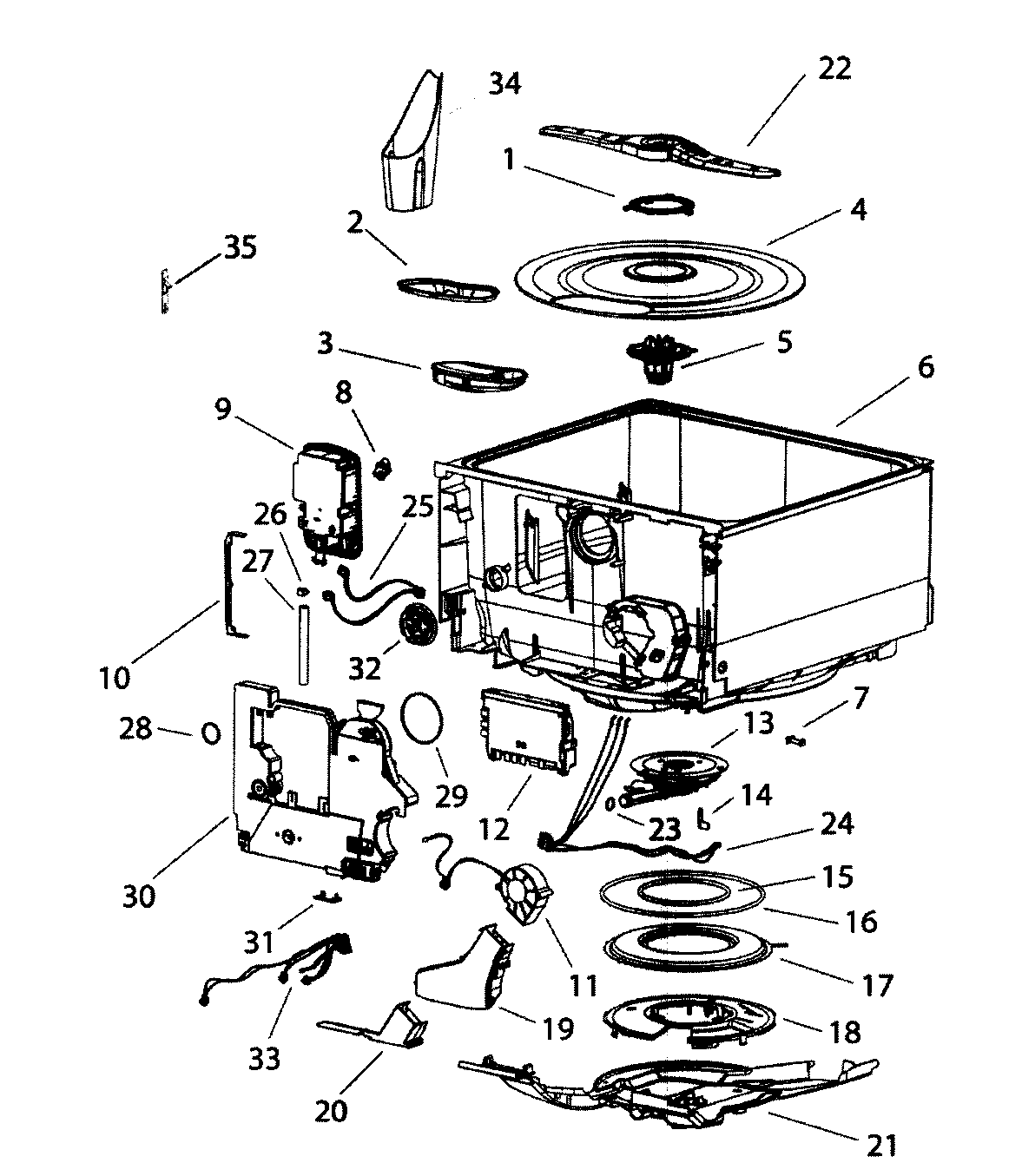

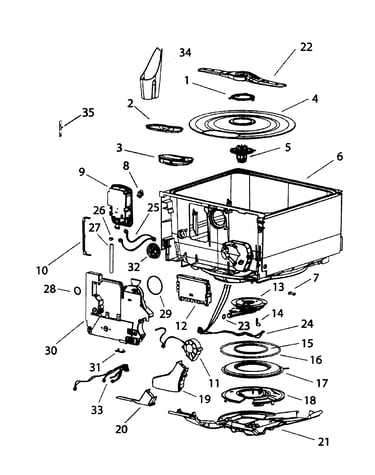

Tubs/components diagram

Fisher & paykel dishwasher drain filter seal

Part #527547

$29.82 |
17% OFF Phone Price : $35.82
Back Order
Dishwasher Motor And Rotor Assembly 525884P
#5

Tubs/components diagram

Dishwasher motor and rotor assembly

Part #525884P

Replaced by #524185P

?
Manufacturer substitution
This part replaces 525884P. Substitute parts can look different from the original.
$177.01 |
6% OFF Phone Price : $189.01
In Stock
Fisher & Paykel Dishwasher Drawer Drain Filter Access Door 526345
#9

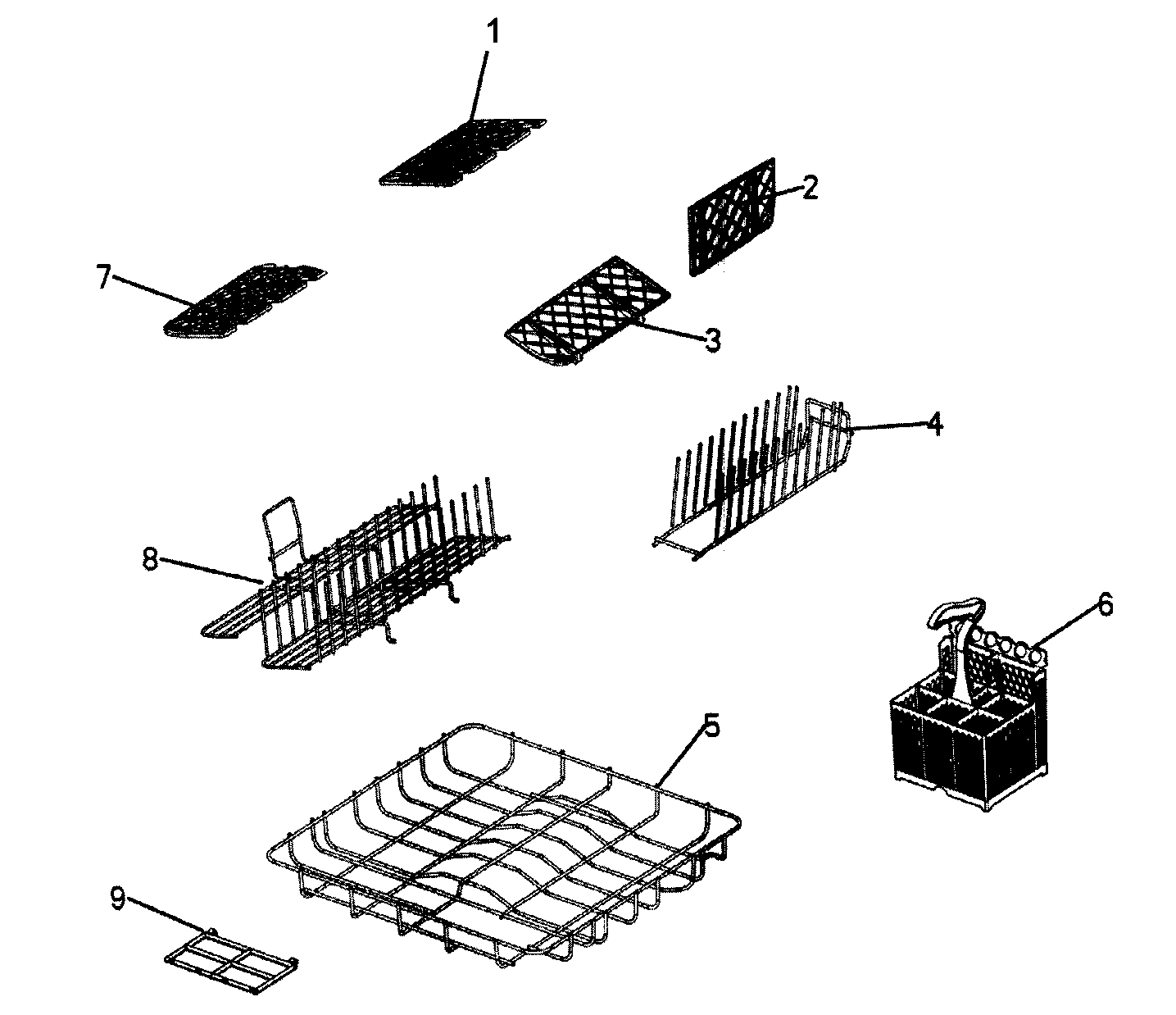

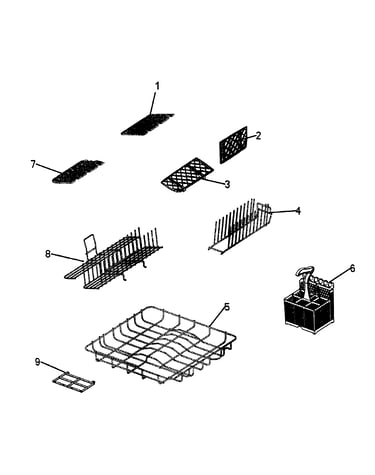

Baskets/racks diagram

Fisher & paykel dishwasher drawer drain filter access door

Part #526345

$41.17 |
13% OFF Phone Price : $47.17
In Stock
Fisher & Paykel Dishwasher Pump Motor (replaces 526530) 528042
#13

Tubs/components diagram

Fisher & paykel dishwasher pump motor (replaces 526530)

Part #528042

$155.29 |
7% OFF Phone Price : $167.29
In Stock
Fisher & Paykel Dishwasher Drain Hose (replaces 525435, 525492, 525966, 525967) 527137
#5

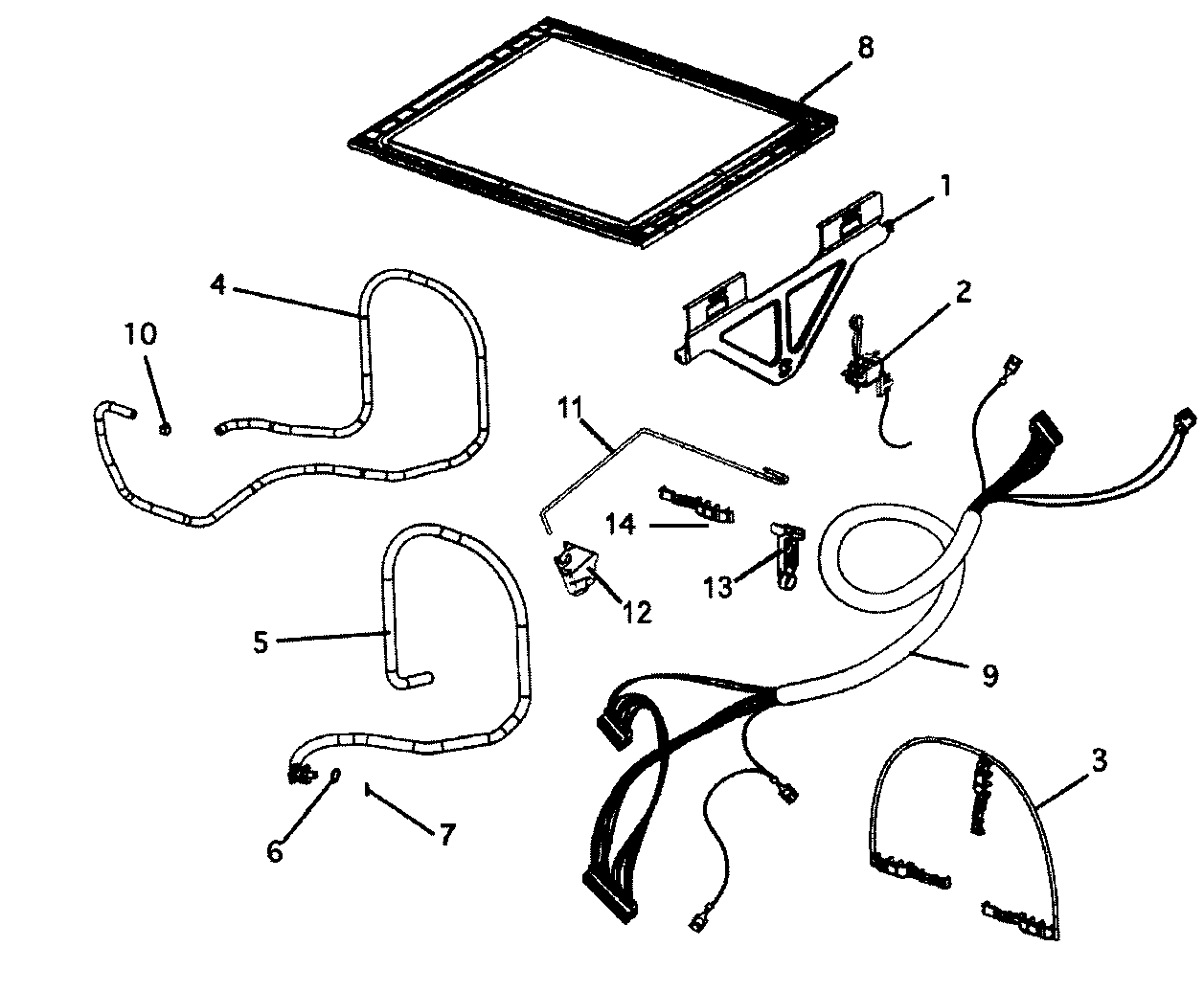

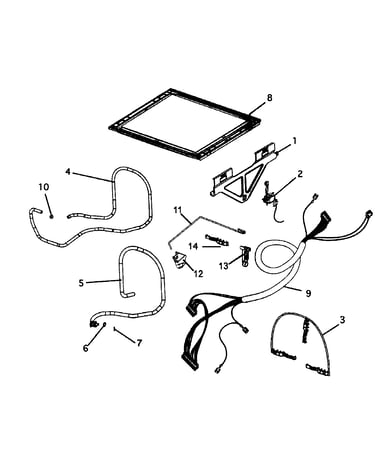

Lid/links diagram

Fisher & paykel dishwasher drain hose (replaces 525435, 525492, 525966, 525967)

Part #527137

$85.38 |
7% OFF Phone Price : $91.38
In Stock
Fisher & Paykel Dishwasher Display Board Housing, Rear 526211
#5

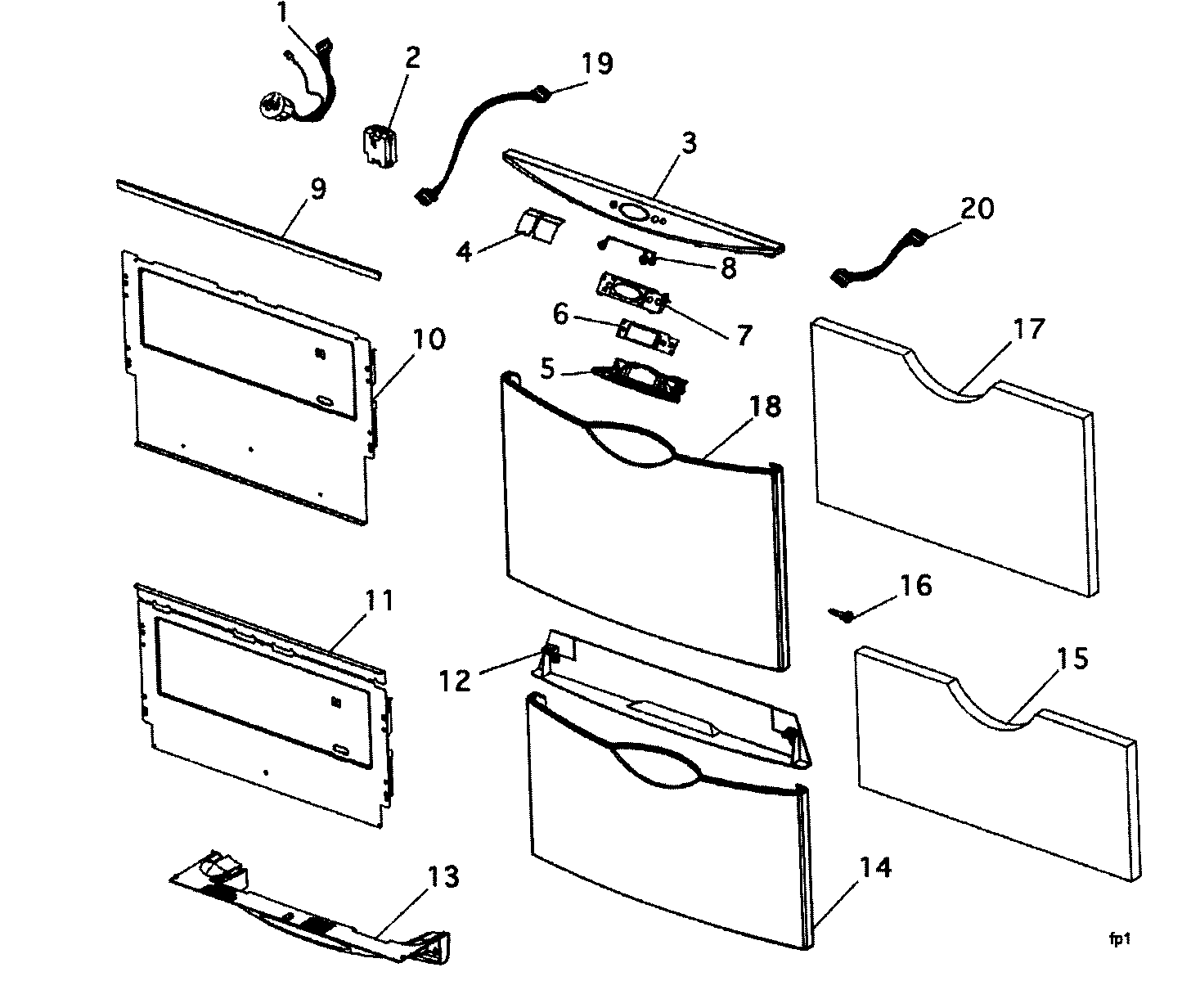

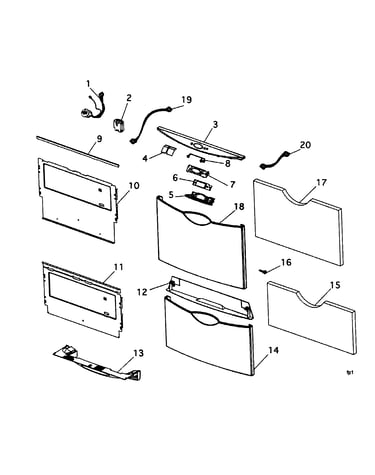

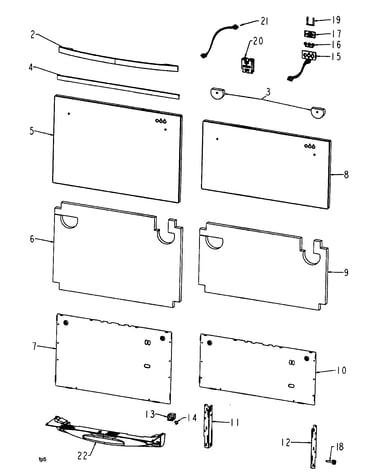

Front panel 1 diagram

Fisher & paykel dishwasher display board housing, rear

Part #526211

$29.43 |
17% OFF Phone Price : $35.43
In Stock
Dishwasher Lid Actuator, Lower, 2-pack (replaces 526371p, 526470p) 528113
#2

Lid/links diagram

Dishwasher lid actuator, lower, 2-pack (replaces 526371p, 526470p)

Part #528113

$144.44 |
8% OFF Phone Price : $156.44
In Stock
Dishwasher Dish Drawer Latch Assembly, Right 526128
#2

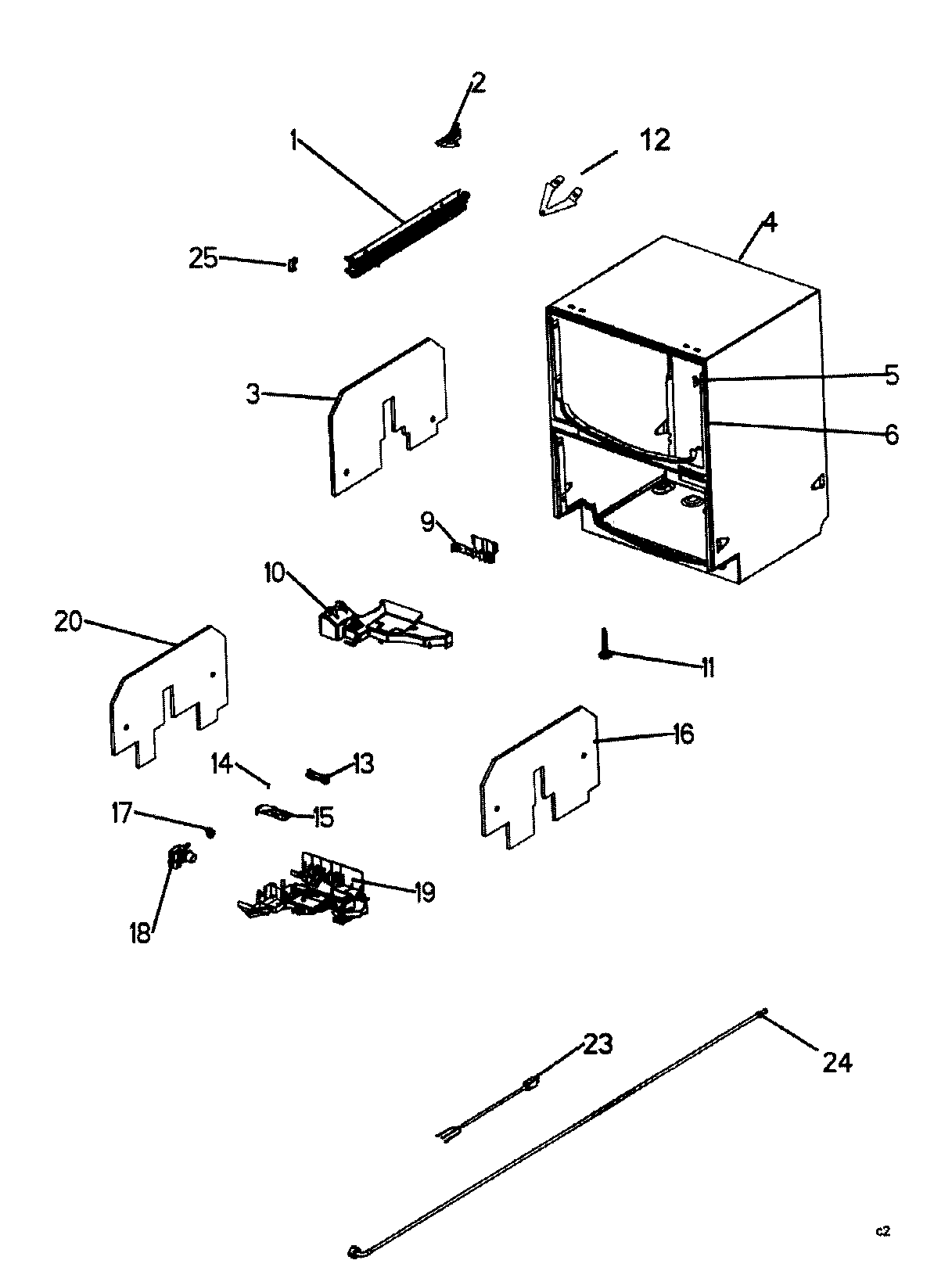

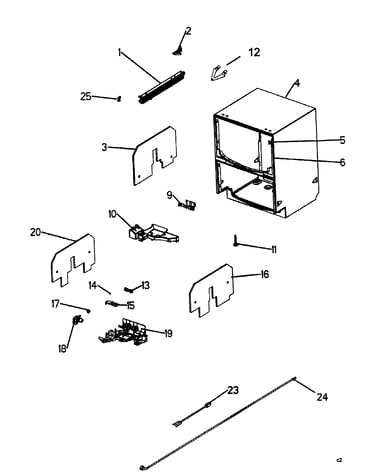

Cabinet parts diagram

Dishwasher dish drawer latch assembly, right

Part #526128

Replaced by #522584

?
Manufacturer substitution
This part replaces 526128. Substitute parts can look different from the original.
This item is not returnable
$15.64 |
11% OFF Phone Price : $17.64
In Stock
Latch Assembly 526130
#2A

Cabinet parts diagram

Latch assembly

Part #526130

Replaced by #522585

?
Manufacturer substitution
This part replaces 526130. Substitute parts can look different from the original.
This item is not returnable
$15.64 |
11% OFF Phone Price : $17.64
In Stock
Fisher & Paykel Dishwasher Fill Hose 525970
#24

Cabinet parts diagram

Fisher & paykel dishwasher fill hose

Part #525970

$54.09 |
10% OFF Phone Price : $60.09
In Stock
