Craftsman
Wet/Dry Vacuum

Model # 113179860 Official Craftsman 12-gallon double insulated wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179860 12-gallon double insulated wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#1

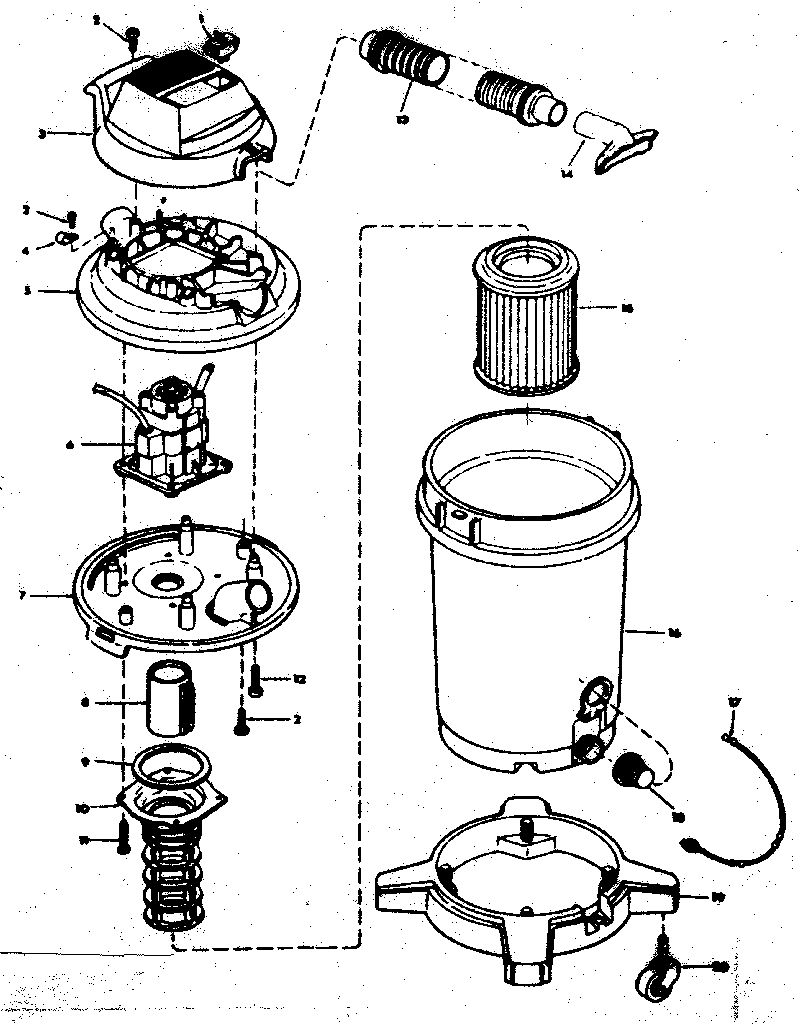

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Screw 323723
#11

Unit diagram

Shop vacuum screw

Part #323723

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster (replaces 29776, 73137) 73102
#20

Unit diagram

Shop vacuum caster (replaces 29776, 73137)

Part #73102

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap Retainer Strap 73166
#17

Unit diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 20557-01
#14

Unit diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Lid 73178
#7

Unit diagram

Lid

Part #73178

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611010
#12

Unit diagram

Screw

Part #STD611010

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 73214

#NI

All parts diagram

Owner's manual

Part #73214

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 73150
#13

Unit diagram

Hose assembly

Part #73150

The manufacturer no longer makes this part, and there's no substitute part

Clamp 73151
#4

Unit diagram

Clamp

Part #73151

The manufacturer no longer makes this part, and there's no substitute part
