Model # HRE2940T Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HRE2940T electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Nipple (w/he 66001705
#22

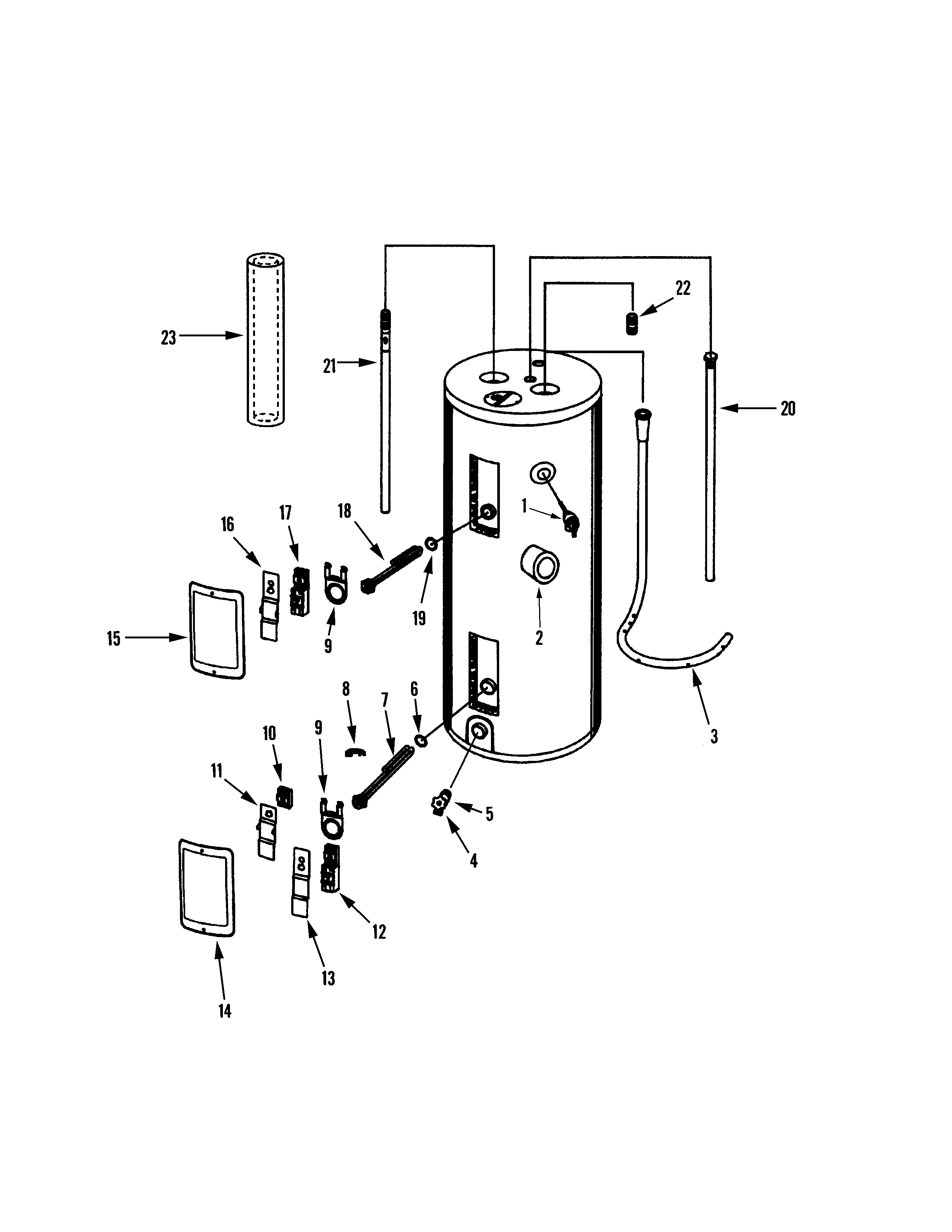

Body diagram

Nipple (w/he

Part #66001705

Replaced by #66001705

?
Manufacturer substitution
This part replaces 66001705. Substitute parts can look different from the original.
$21.67
In Stock
Buss Bar Kit 66001055
#8

Body diagram

Buss bar kit

Part #66001055

The manufacturer no longer makes this part, and there's no substitute part

Insulation, T & P 66001709
#2

Body diagram

Insulation, t & p

Part #66001709

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 66001272
#13

Body diagram

Terminal cover

Part #66001272

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Pipe 66001708
#23

Body diagram

Insulation, pipe

Part #66001708

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 66001703
Access panel

Part #66001703

The manufacturer no longer makes this part, and there's no substitute part

Sec. Anode/nipple W/heat Trap 66001717
#21

Body diagram

Sec. anode/nipple w/heat trap

Part #66001717

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 66001725
#20A

Body diagram

Anode rod

Part #66001725

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 66001008
#12

Body diagram

Thermostat

Part #66001008

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 66001007
#10

Body diagram

Thermostat

Part #66001007

The manufacturer no longer makes this part, and there's no substitute part
