Electric Range

Model # PES3759BCS Official Maytag electric slide-in range

Here are the diagrams and repair parts for Official Maytag PES3759BCS electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

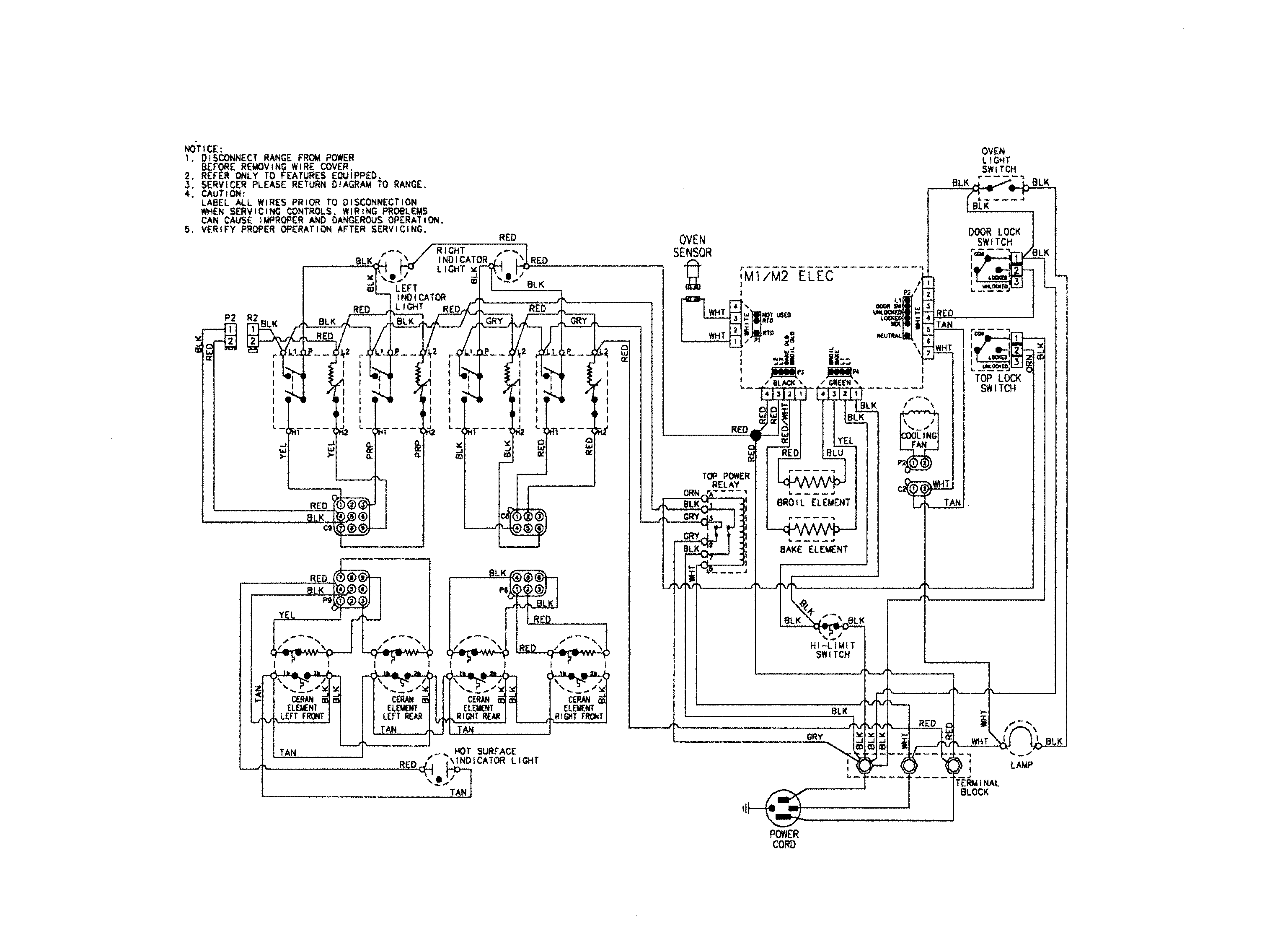

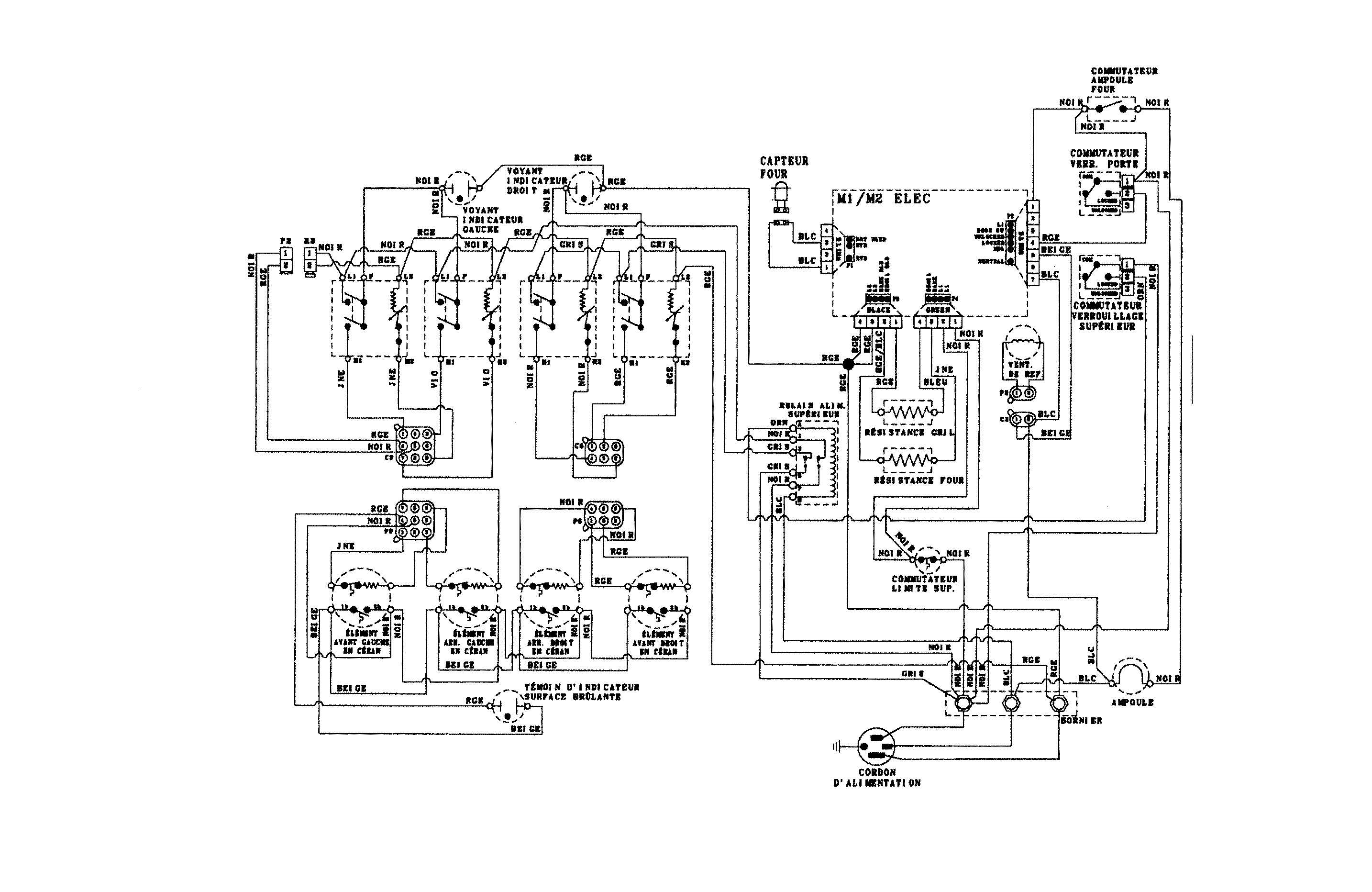

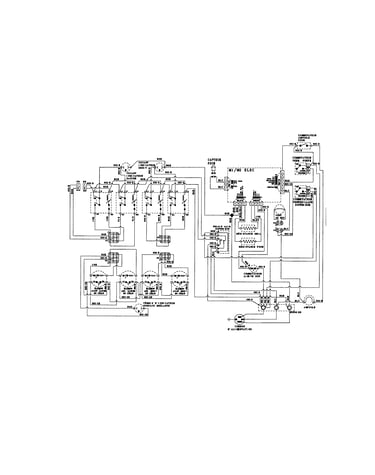

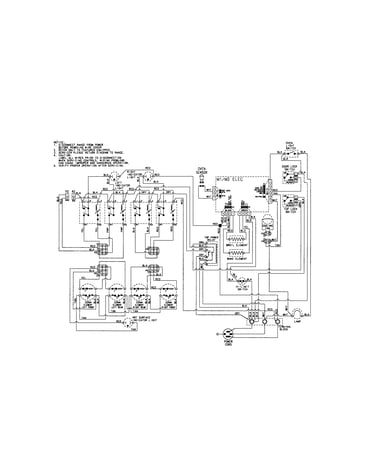

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Oven Bulb 7407P103-60
#17A

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P039-60
#13

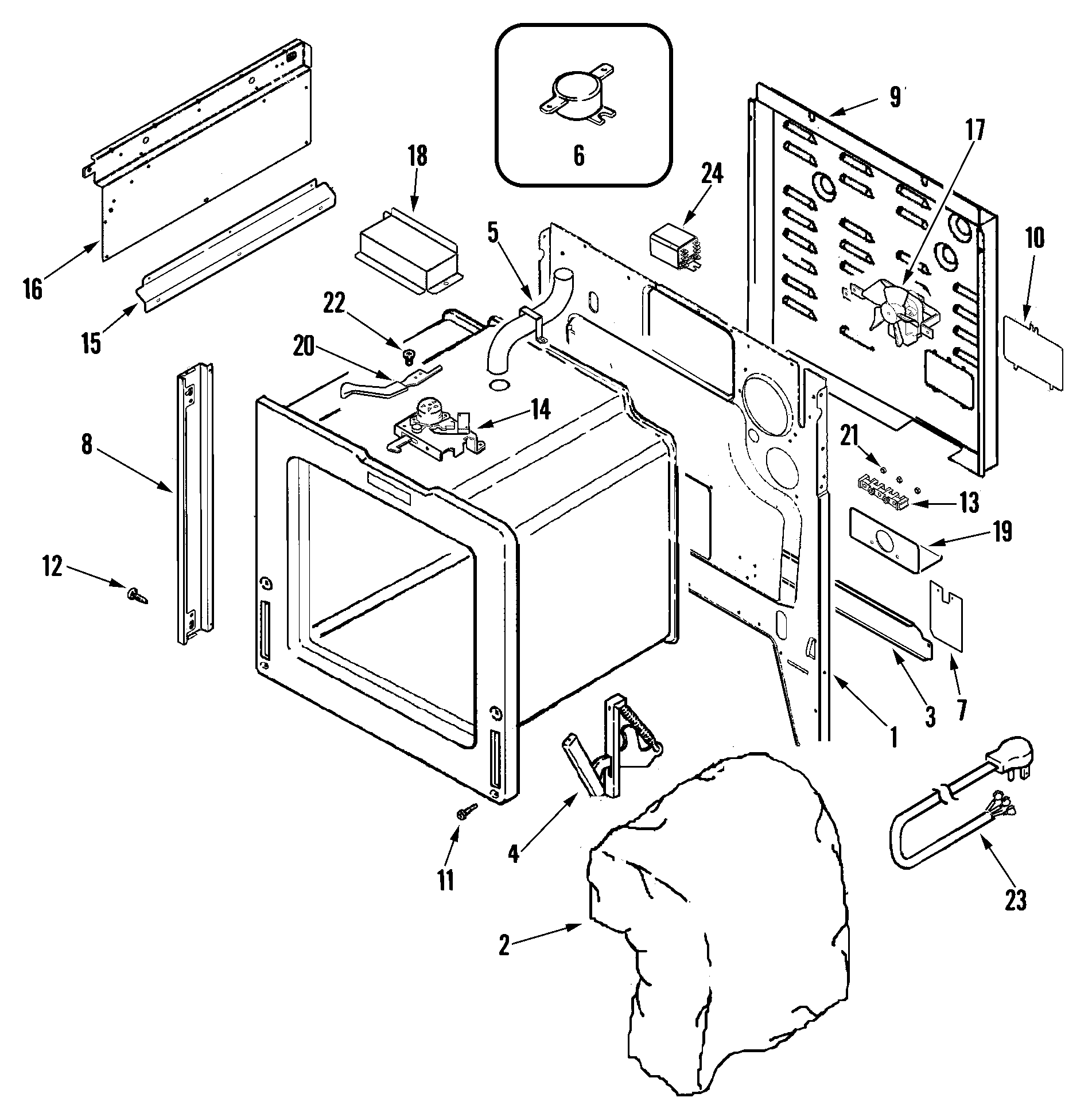

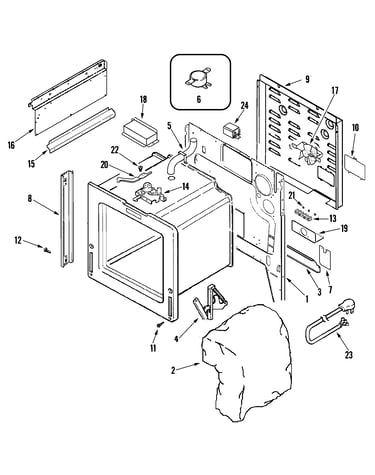

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#16

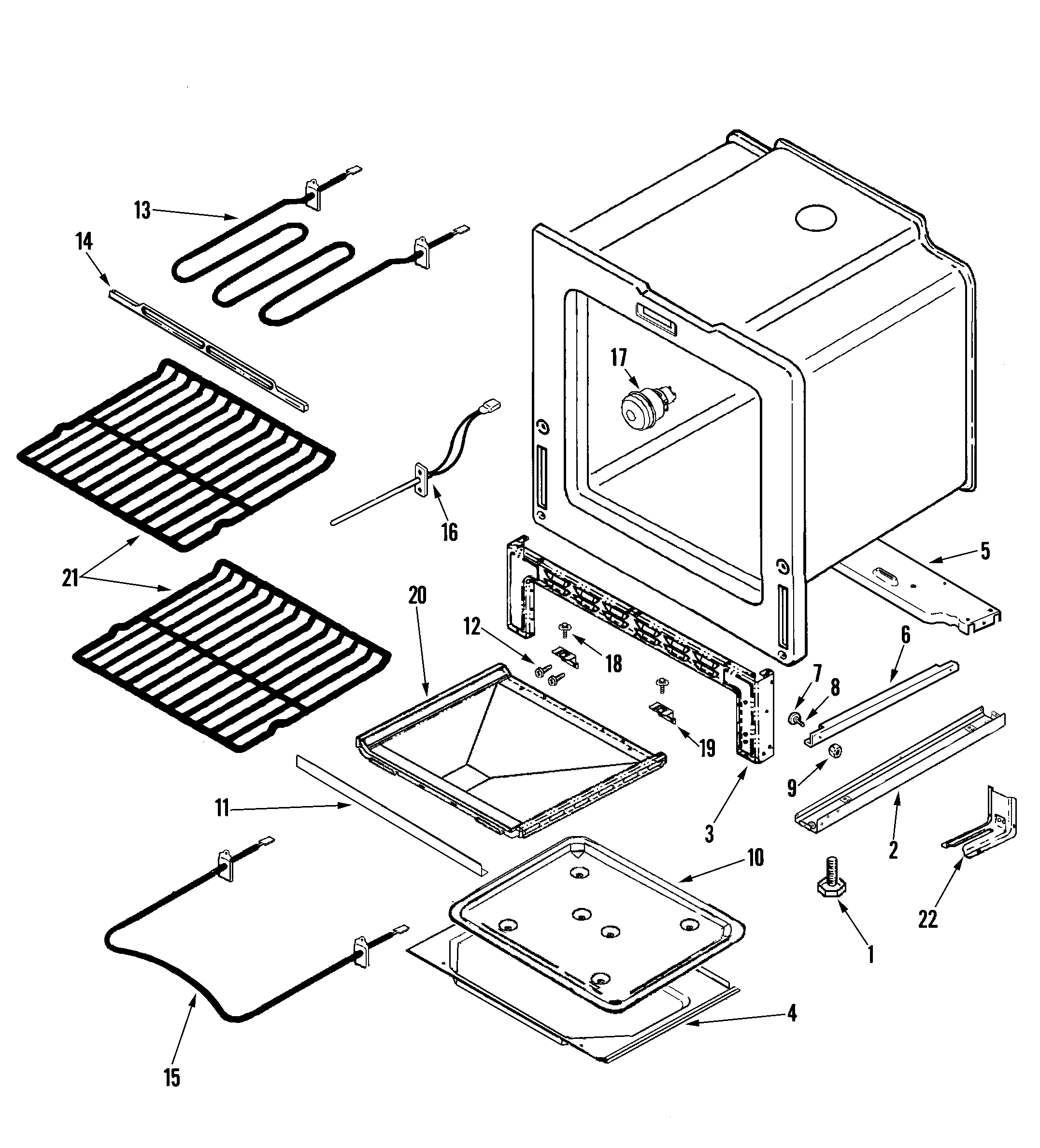

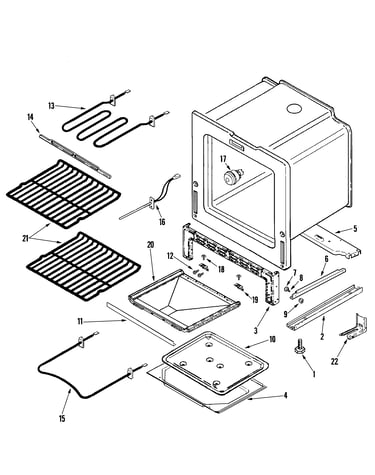

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Element (120 74008568
#13

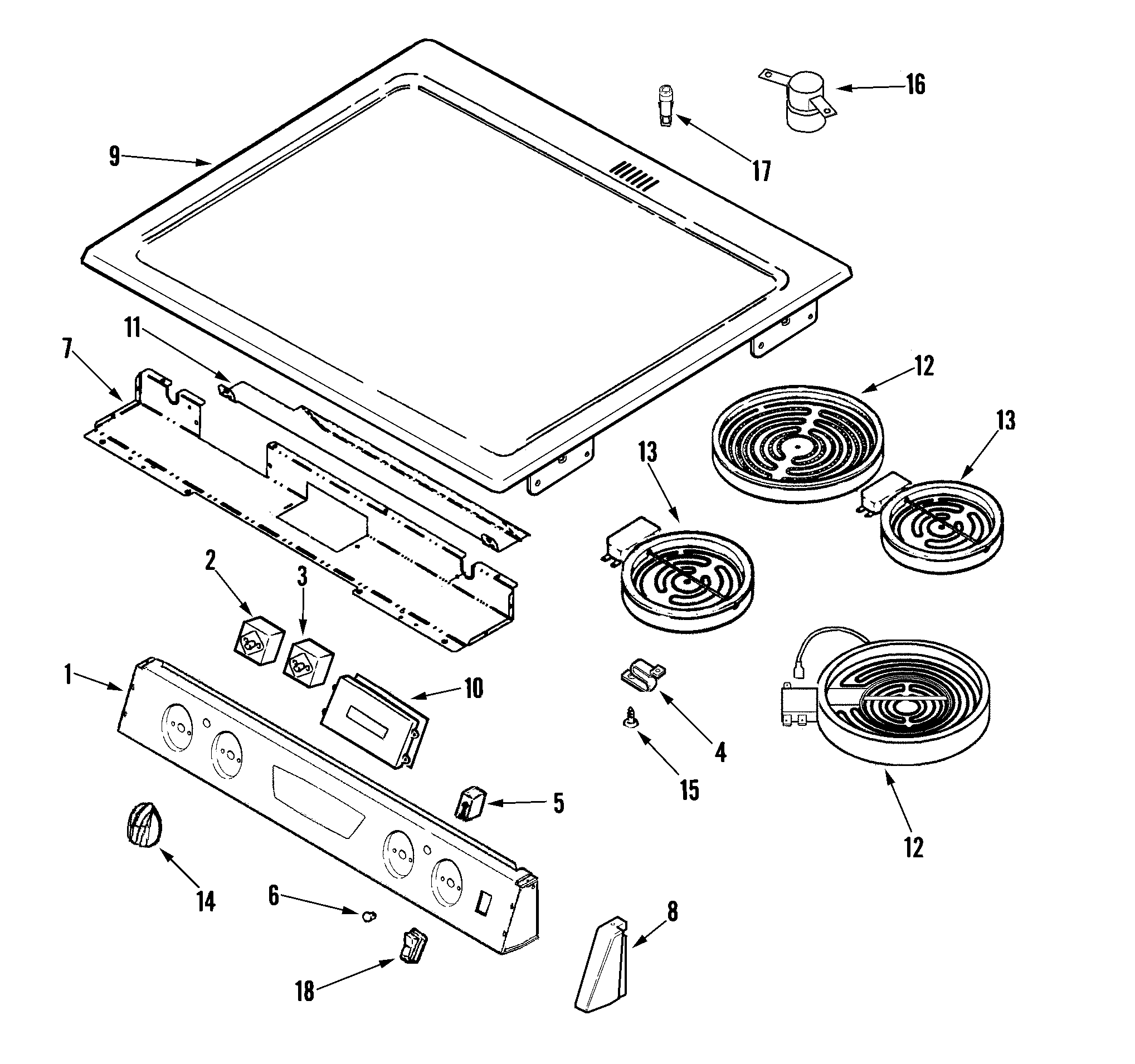

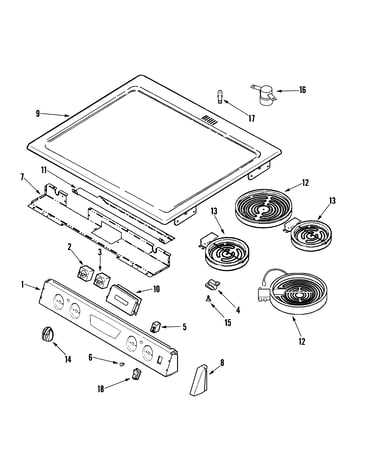

Control panel/top asy diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
BEST SELLER
$153.09 |
7% OFF Phone Price : $165.09
In Stock
Door Gasket 7201P046-60
#4

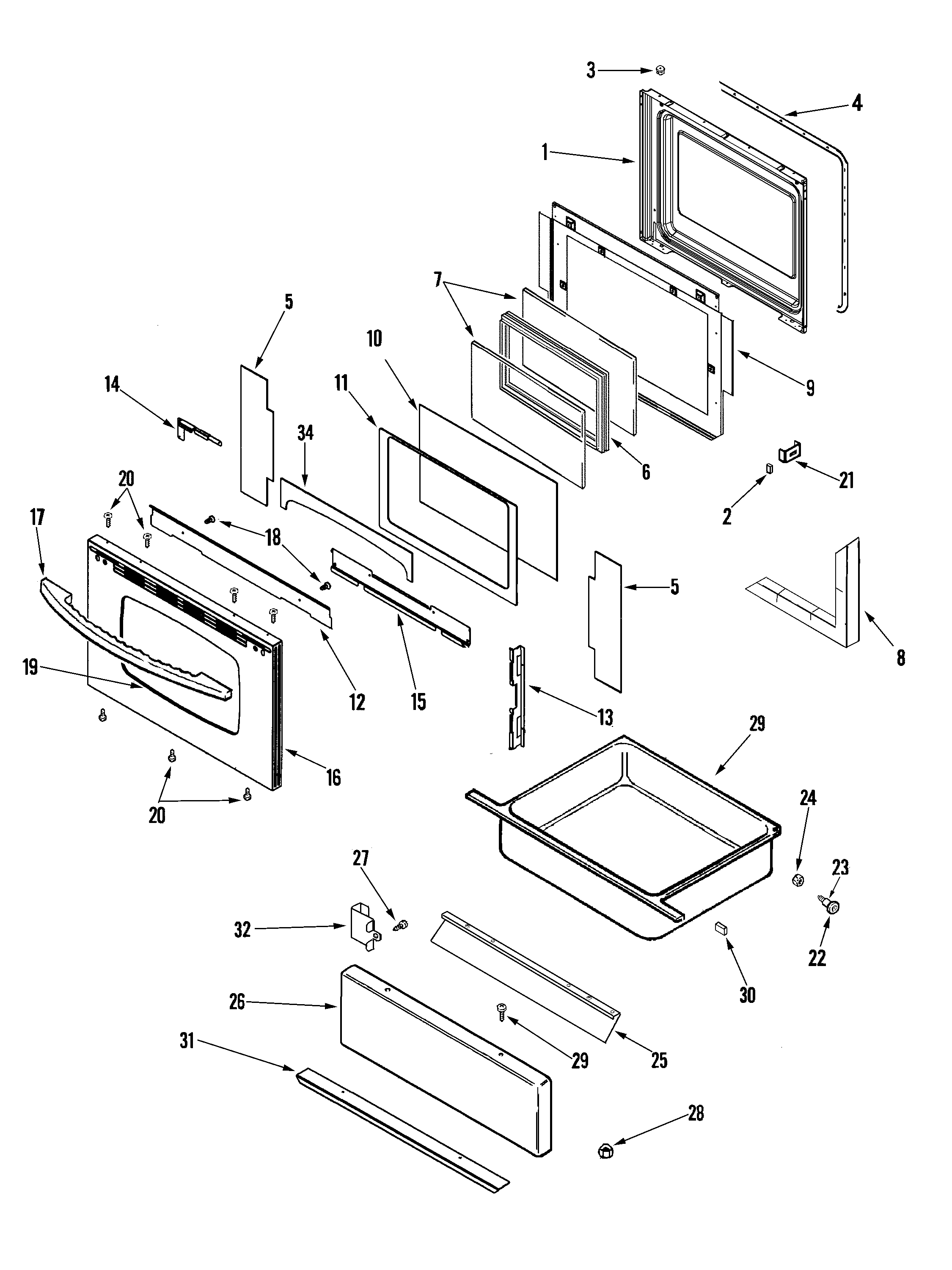

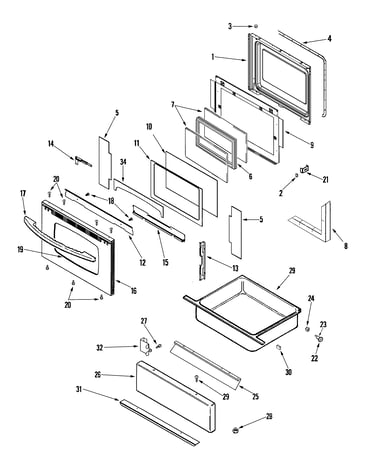

Door/drawer (stl) diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#7

Door/drawer (stl) diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Oven Rack 74001757
#21

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Terminal Nut 7103P027-60
#21

Body diagram

Terminal nut

Part #7103P027-60

Replaced by #WP7103P027-60

?
Manufacturer substitution
This part replaces 7103P027-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Screw 74006635
#18

Door/drawer (stl) diagram

Range screw

Part #74006635

Replaced by #WP74006515

?
Manufacturer substitution
This part replaces 74006635. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Bracket, Ant 74005564
#22

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
