Dacor
Electric Wall Oven

Model # EORS230SCH Official Dacor wall oven

Here are the diagrams and repair parts for Official Dacor EORS230SCH wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

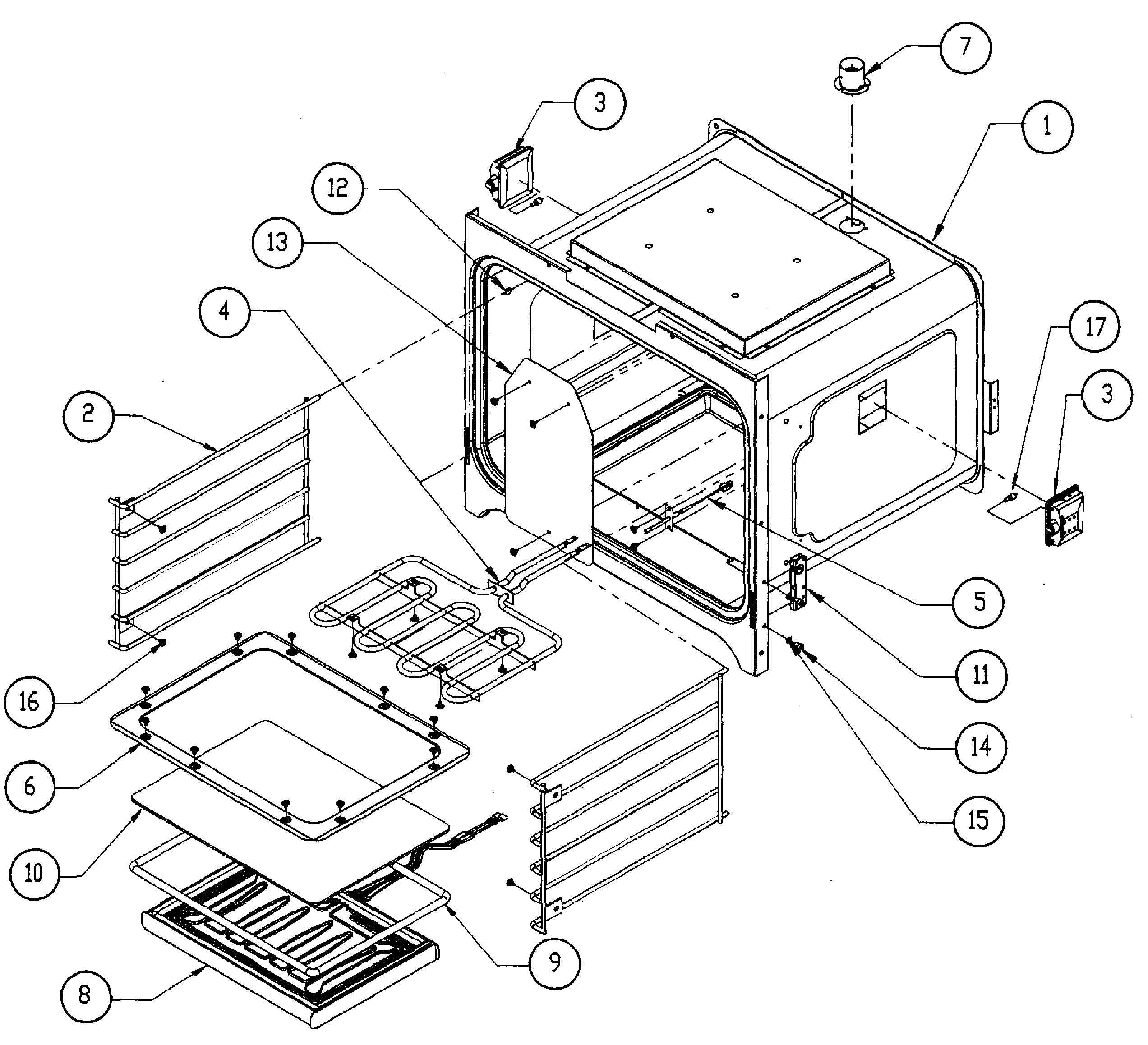

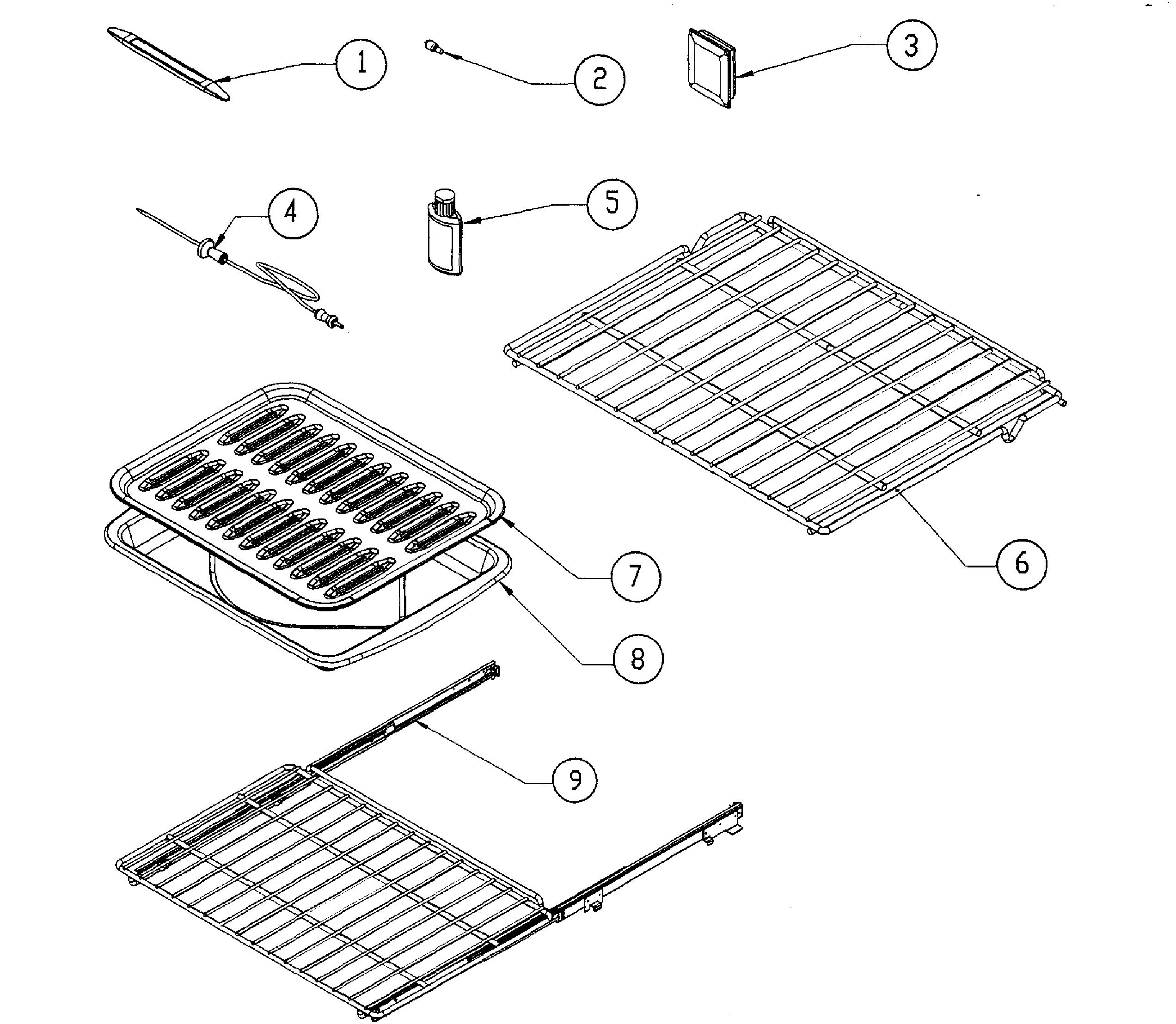

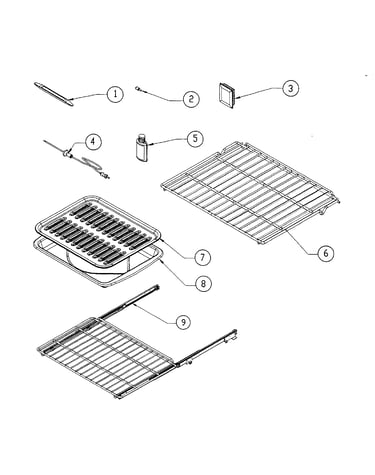

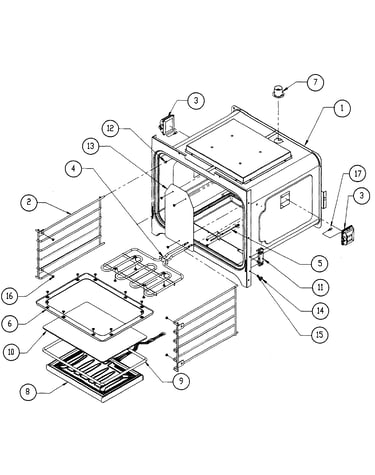

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Nut 83308
#5

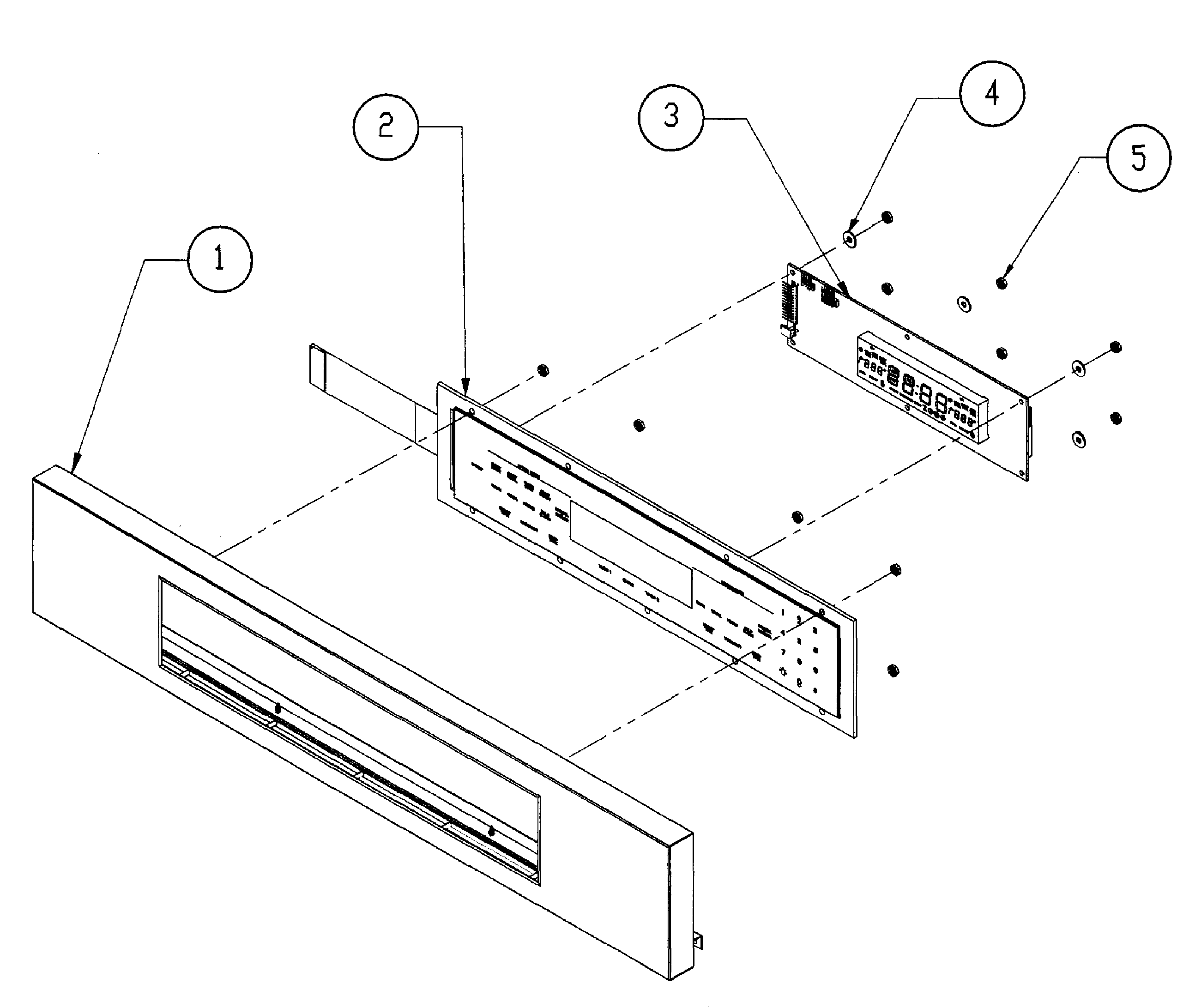

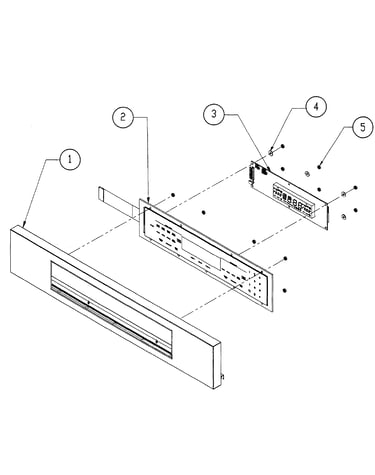

Bezel assy diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Oven Panel 701044-03
#2

Bezel assy diagram

Oven panel

Part #701044-03

$193.49
In Stock
Cool Fan 102334
#111

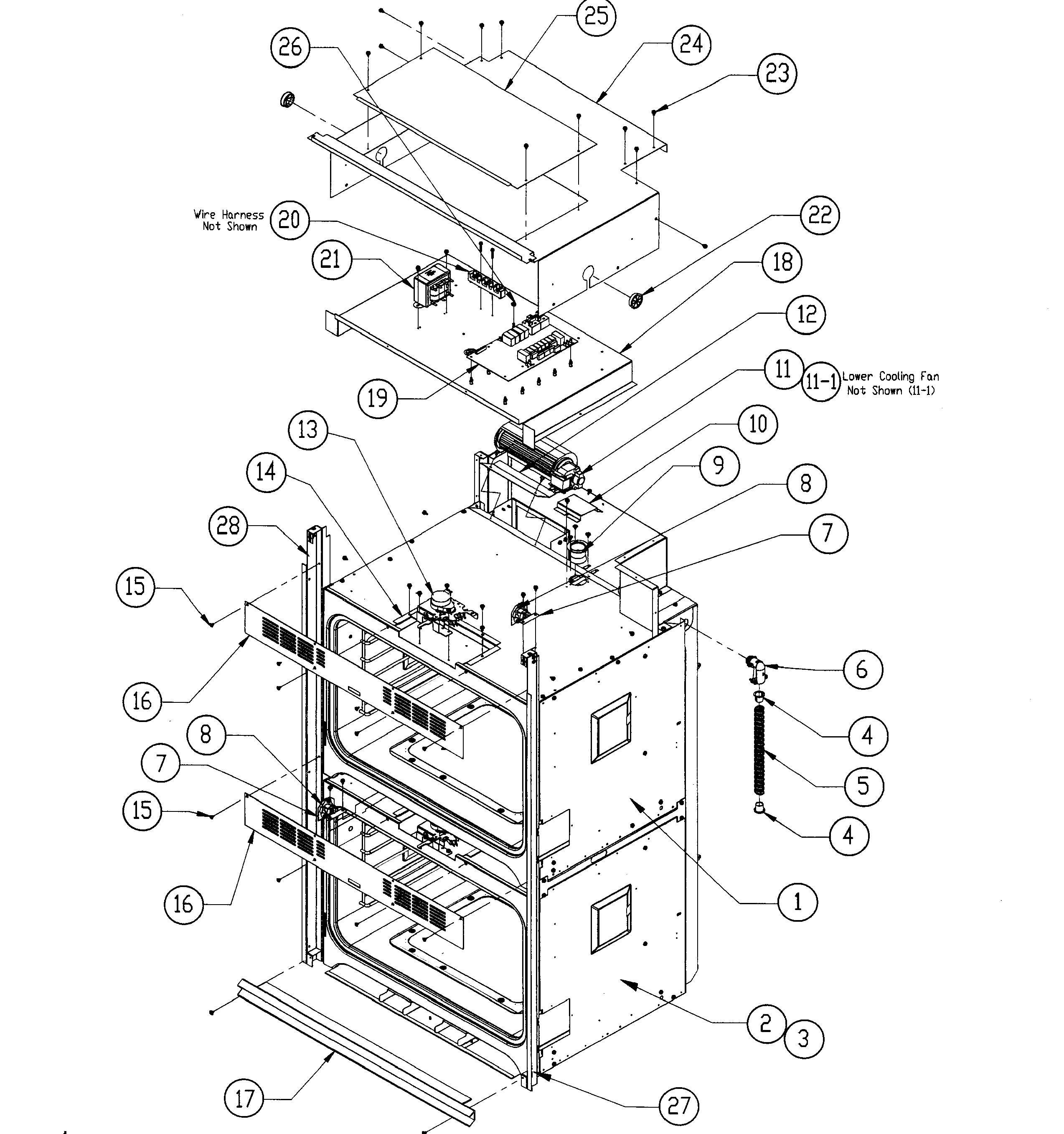

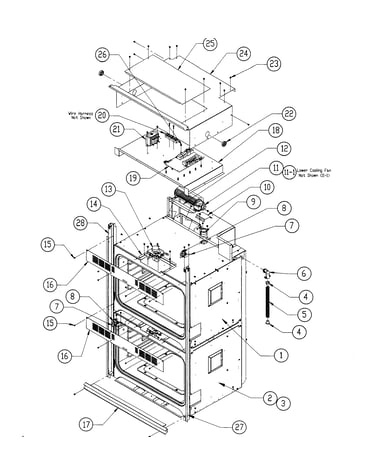

Oven assy diagram

Cool fan

Part #102334

$137.49
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Pack Window 100073
#13

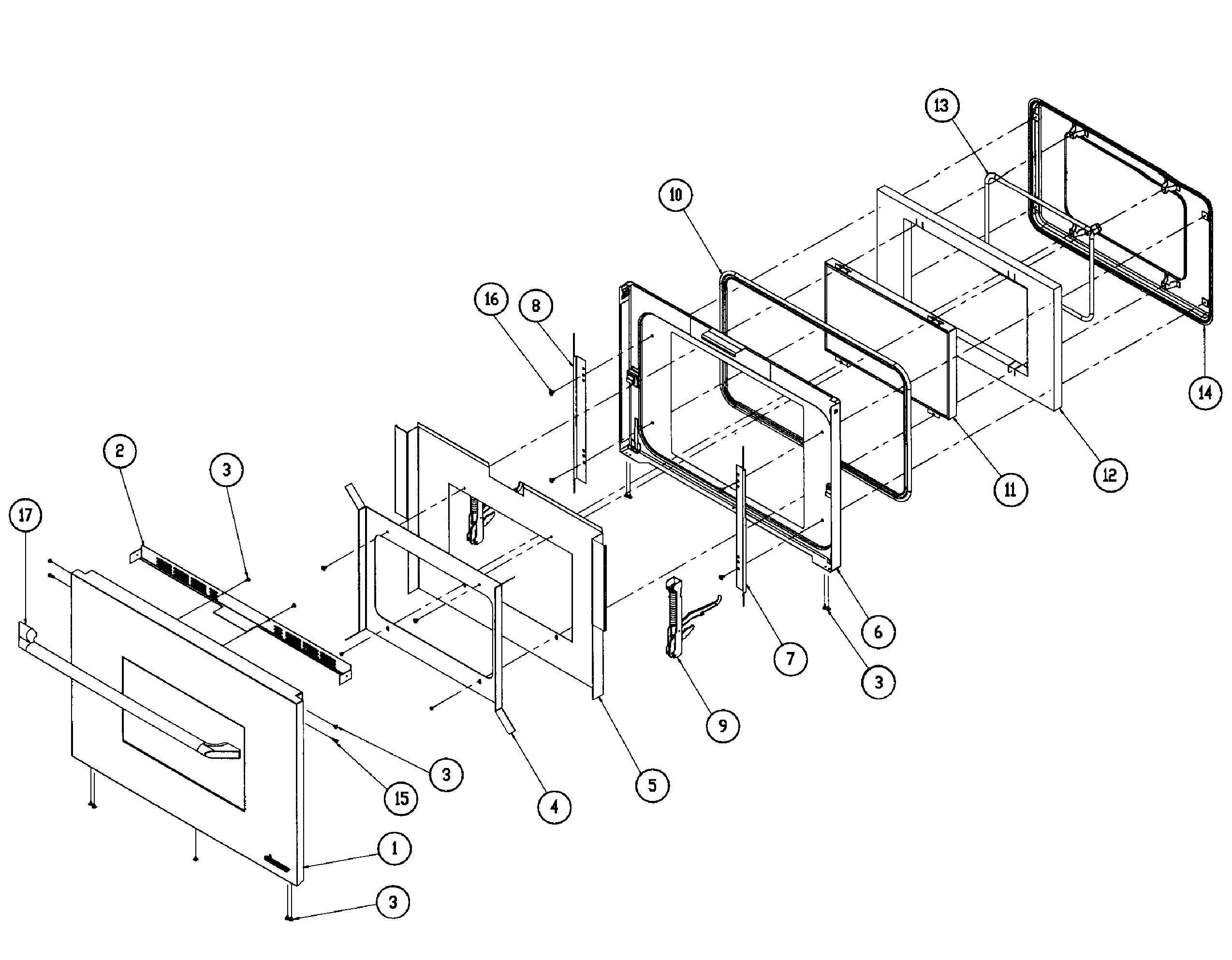

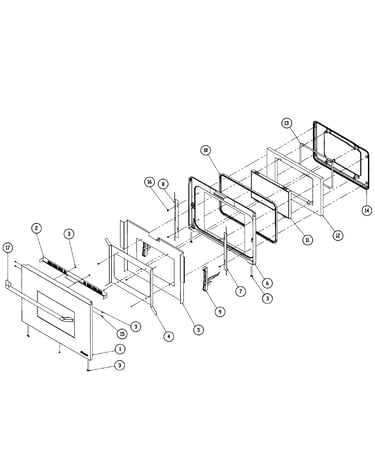

Door assy diagram

Pack window

Part #100073

$22.99
Back Order
Oven Motor 82647
#20

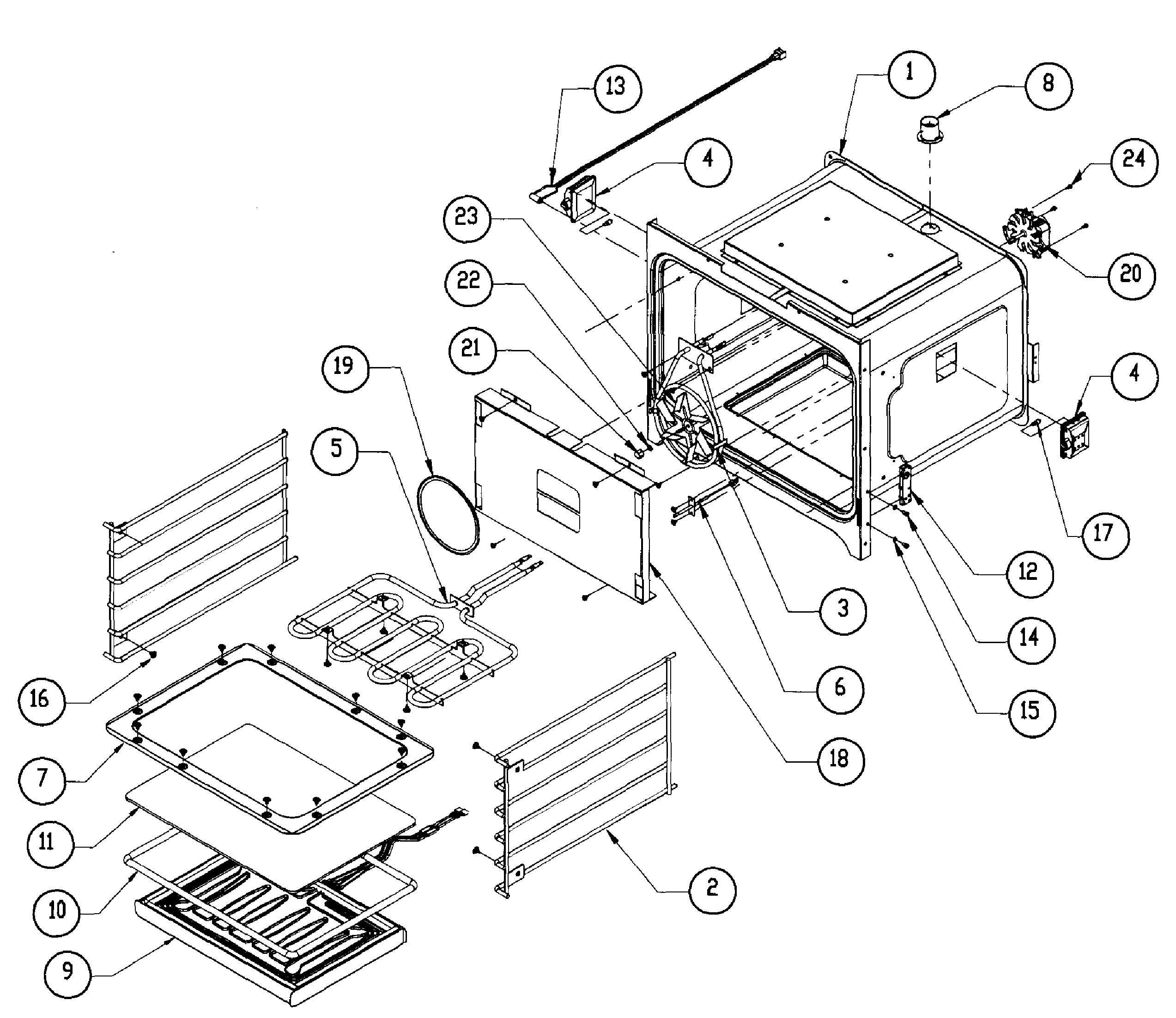

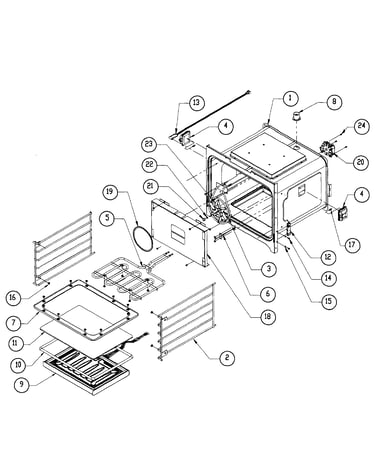

Upper oven diagram

Oven motor

Part #82647

$174.49
In Stock
Fan Blade 101511
#23

Upper oven diagram

Fan blade

Part #101511

This item is not returnable
$3.99
In Stock
Oven Door Handle 13659-001
#17

Door assy diagram

Oven door handle

Part #13659-001

$250.99
In Stock
Door Assembly 700951
#1

Door assy diagram

Door assembly

Part #700951

$395.99
In Stock
