Model # 3074.A00 Official Amana microwave/range generation ii

Here are the diagrams and repair parts for Official Amana 3074A00 microwave/range generation ii, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

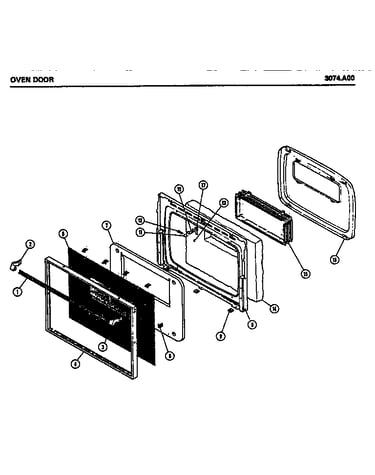

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 302 parts  |
Clip, Trim Retainer M1D508
#19

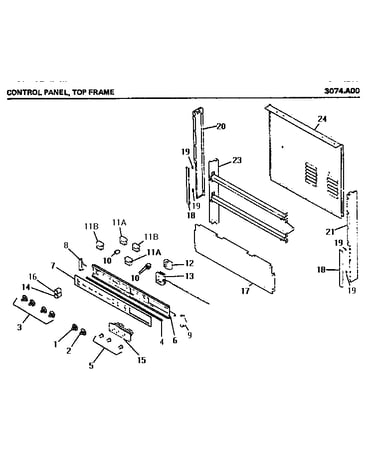

Control panel diagram

Clip, trim retainer

Part #M1D508

The manufacturer no longer makes this part, and there's no substitute part

Clip, Holder Mounting M2D658
#32B

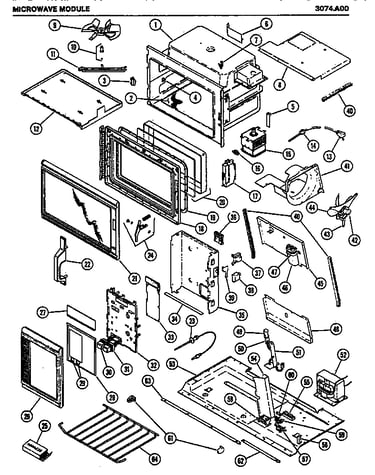

Microwave module diagram

Clip, holder mounting

Part #M2D658

The manufacturer no longer makes this part, and there's no substitute part

1/4 Turn Receptacle M2D650
#5A

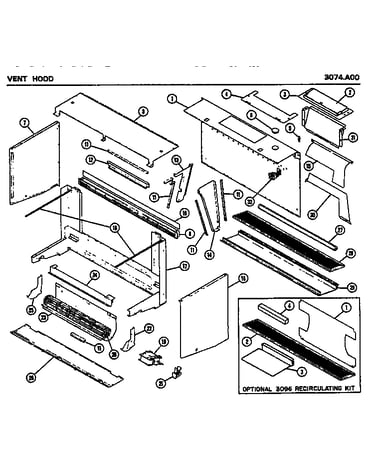

Vent hood diagram

1/4 turn receptacle

Part #M2D650

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Mounting M5D155
#20A

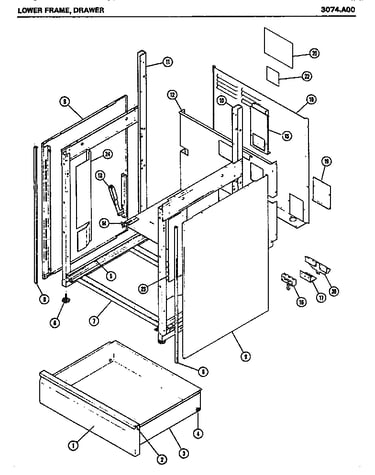

Lower frame diagram

Power cord mounting

Part #M5D155

The manufacturer no longer makes this part, and there's no substitute part

Filler Panel - Left Side (white) M53D59
#20A

Control panel diagram

Filler panel - left side (white)

Part #M53D59

The manufacturer no longer makes this part, and there's no substitute part

Screw, Reservoir Mounting M1D792
#10B

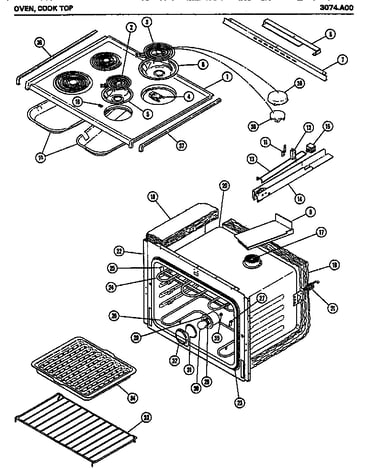

Over diagram

Screw, reservoir mounting

Part #M1D792

The manufacturer no longer makes this part, and there's no substitute part

Main Top (h. Gold) M82D132
#1B

Over diagram

Main top (h. gold)

Part #M82D132

The manufacturer no longer makes this part, and there's no substitute part

Back Support Assembly ( Includes Ref. Nos. 2, 3, 4, 5, 6, & 31) M80D118
#1A

Vent hood diagram

Back support assembly ( includes ref. nos. 2, 3, 4, 5, 6, & 31)

Part #M80D118

The manufacturer no longer makes this part, and there's no substitute part

Cover Rear Top M52D214
#45A

Microwave module diagram

Cover rear top

Part #M52D214

The manufacturer no longer makes this part, and there's no substitute part

Insulation Broil Element M5D220
#21A

Lower frame diagram

Insulation broil element

Part #M5D220

The manufacturer no longer makes this part, and there's no substitute part
