Craftsman
Rear-Engine Riding Mower

Model # 842265111 Official Craftsman 54" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 842265111 54" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

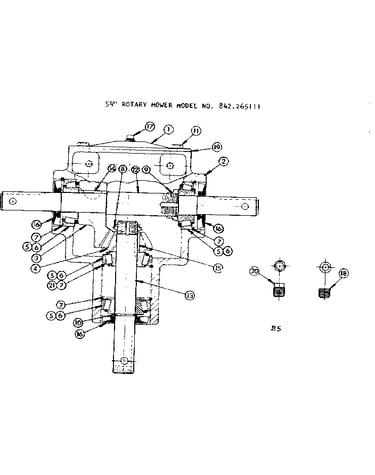

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Blade 12156
#17

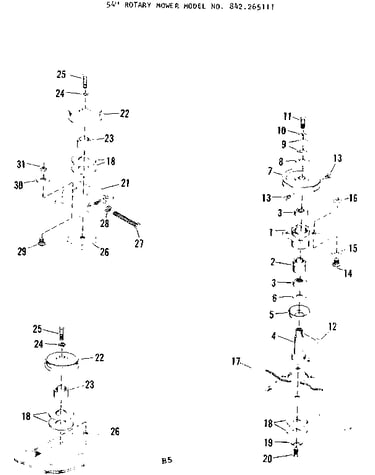

Pulley assembly diagram

Blade

Part #12156

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
#40

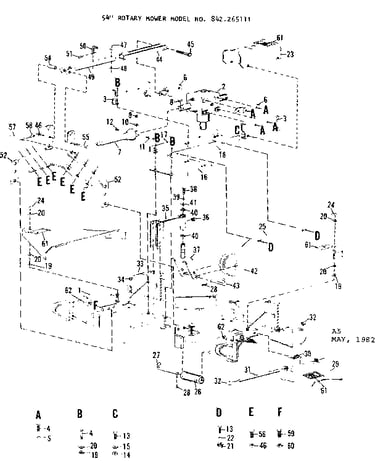

Main frame diagram

Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Ring Pin 5714
#34

Main frame diagram

Ring pin

Part #5714

The manufacturer no longer makes this part, and there's no substitute part

Key 3073
Key

Part #3073

The manufacturer no longer makes this part, and there's no substitute part

Fitting 5074
#36

Main frame diagram

Fitting

Part #5074

The manufacturer no longer makes this part, and there's no substitute part

Plate Washer 6979
#18

Pulley assembly diagram

Plate washer

Part #6979

The manufacturer no longer makes this part, and there's no substitute part

Mower 12138
#26

Main frame diagram

Mower

Part #12138

The manufacturer no longer makes this part, and there's no substitute part

Spacer 7974
#54

Main frame diagram

Spacer

Part #7974

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM271190
Nut washer

Part #GM271190

The manufacturer no longer makes this part, and there's no substitute part

End Yoke 13701
#2

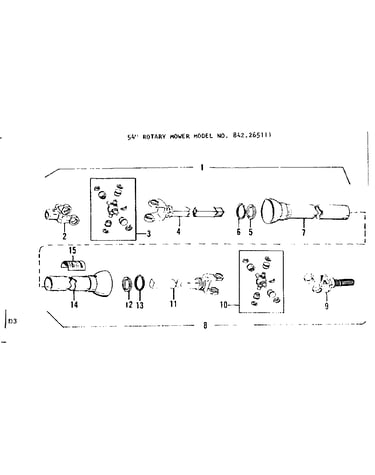

Half drive shaft diagram

End yoke

Part #13701

The manufacturer no longer makes this part, and there's no substitute part
