Model # MAH5500BWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAH5500BWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

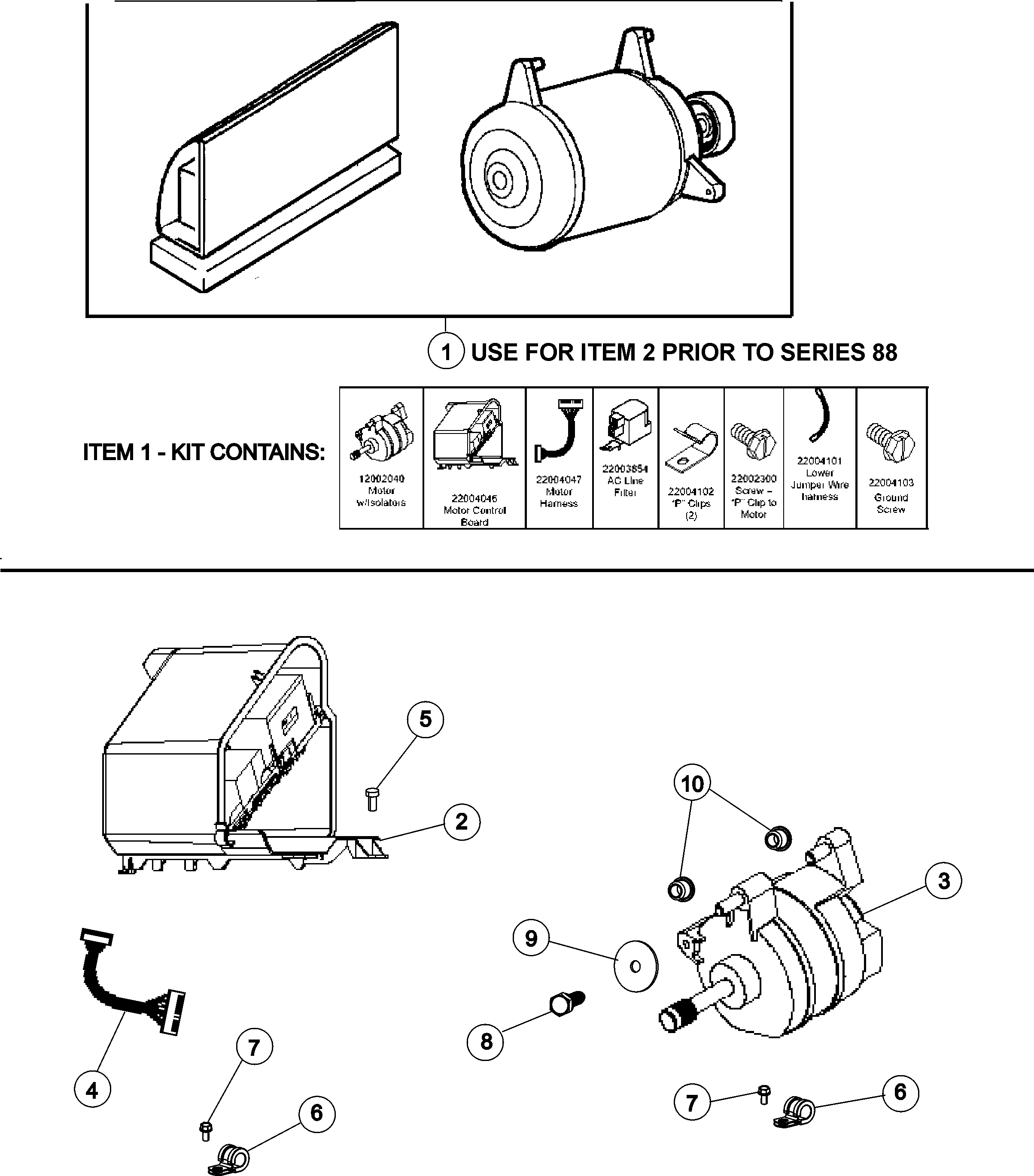

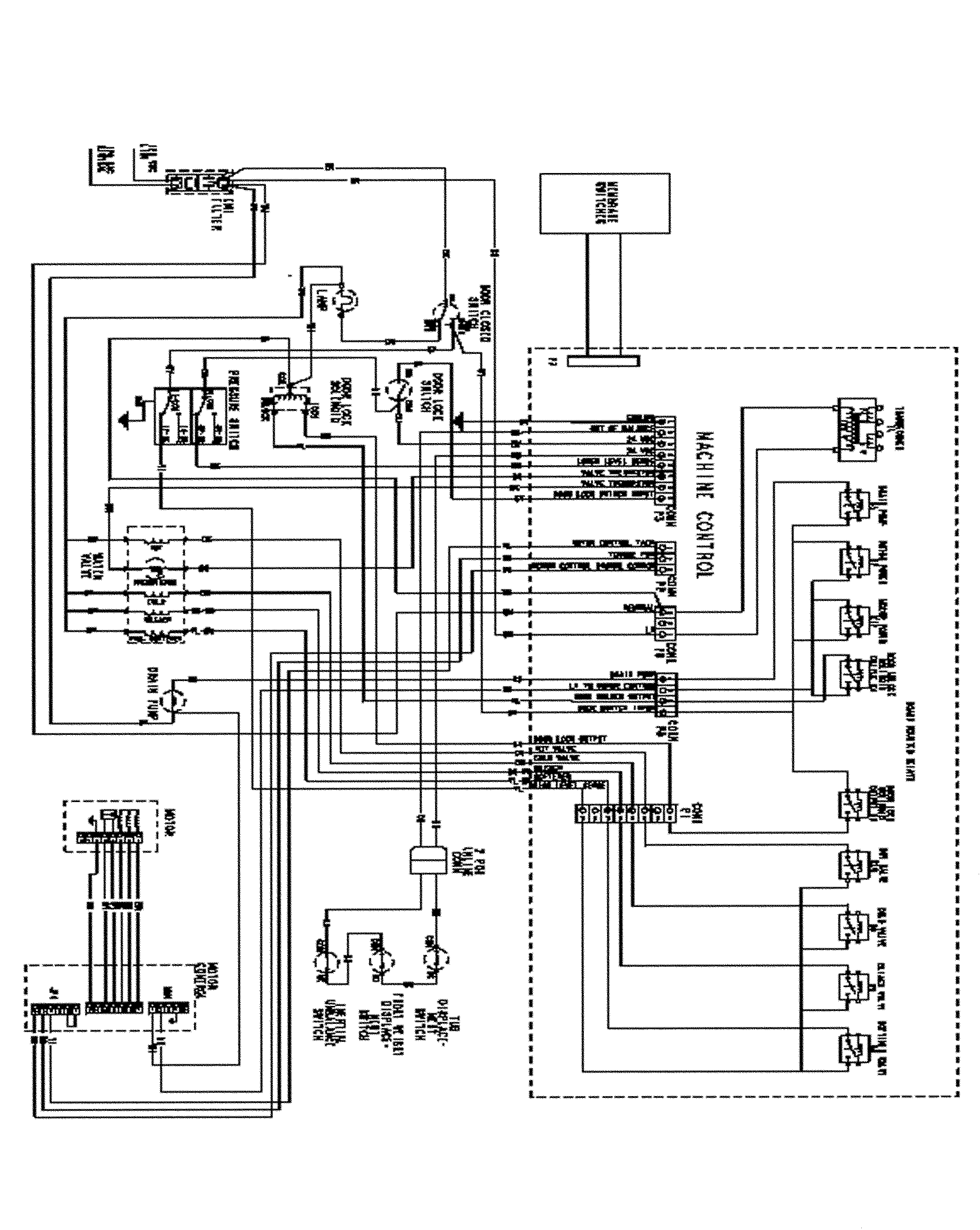

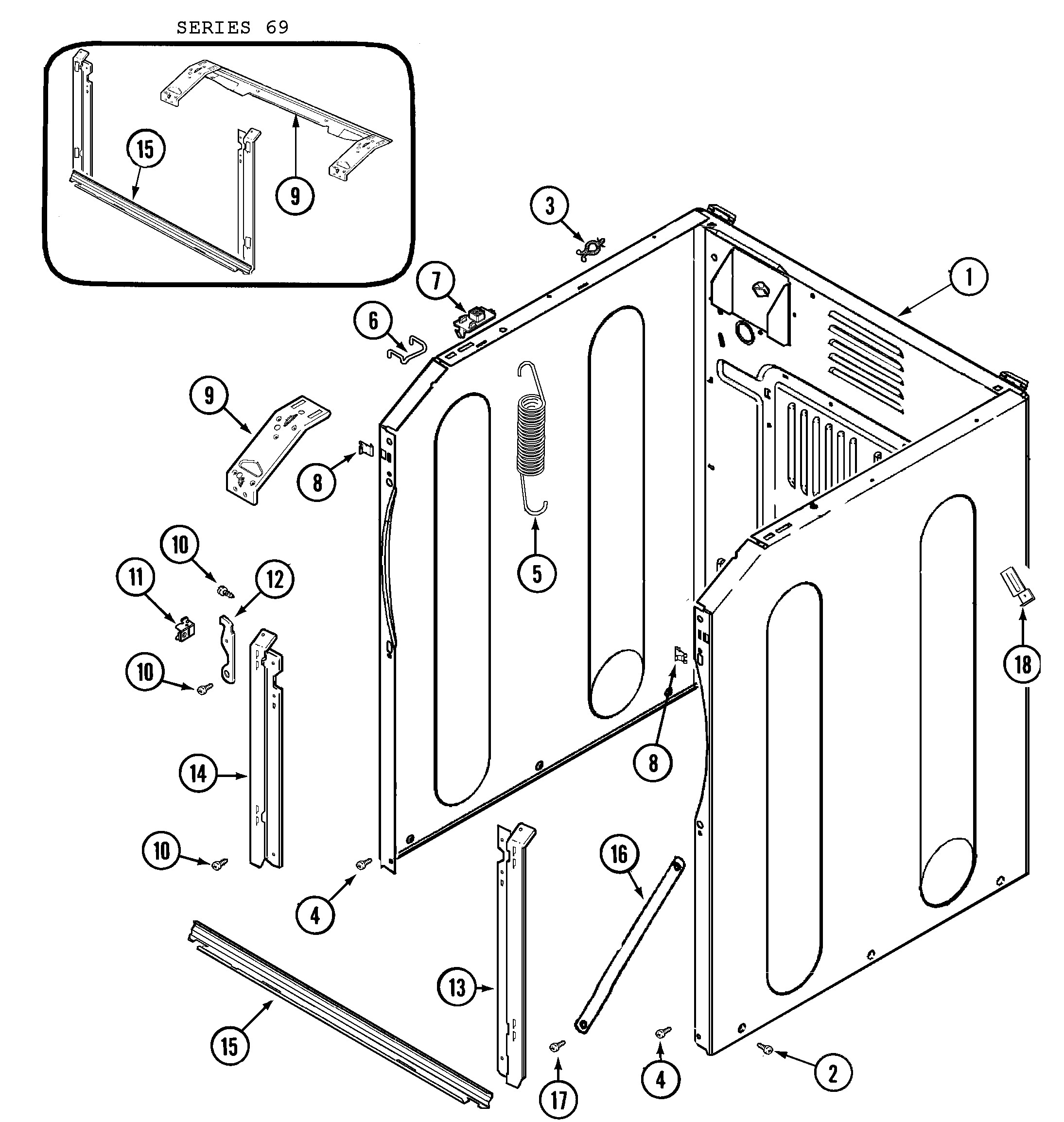

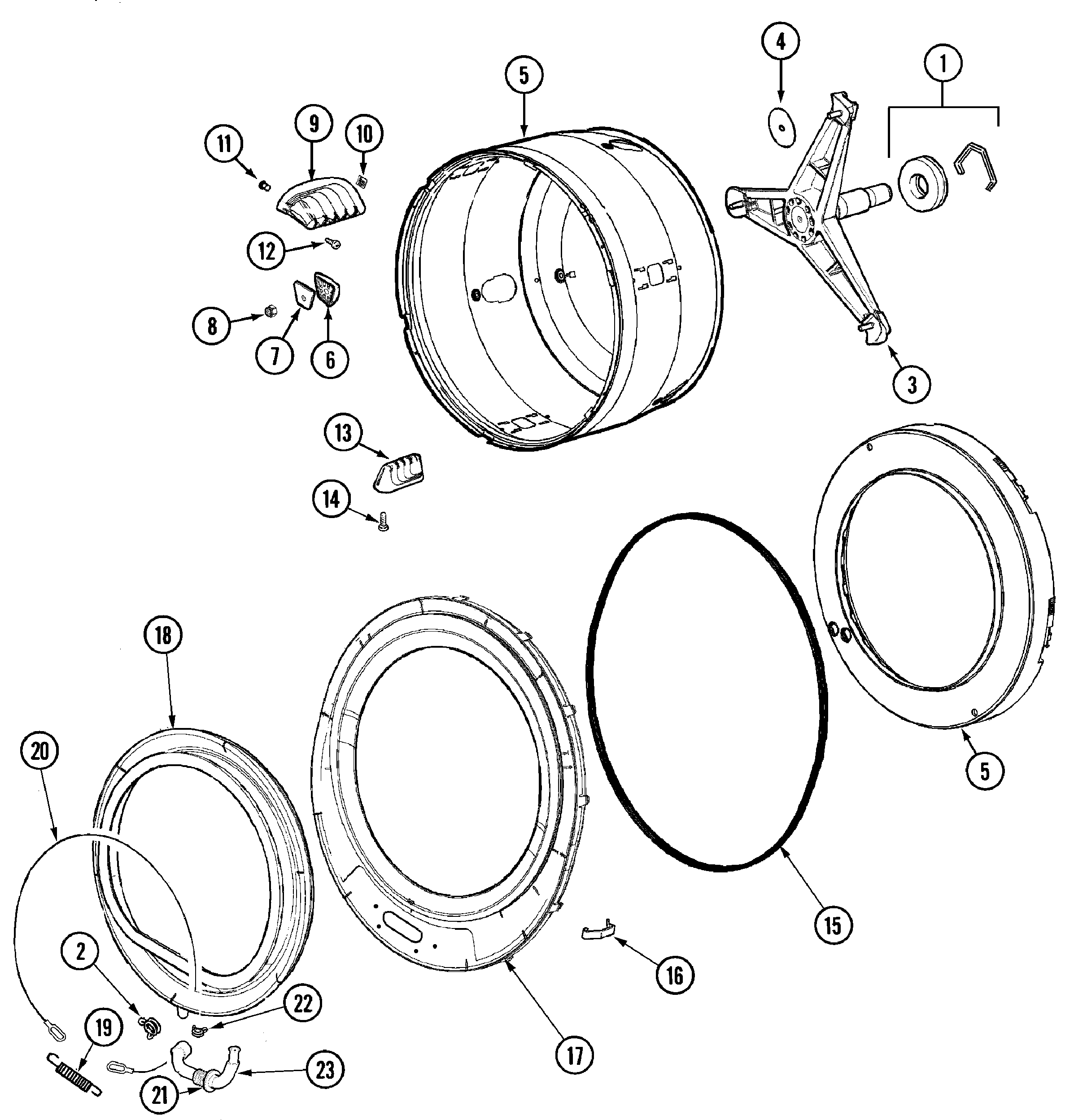

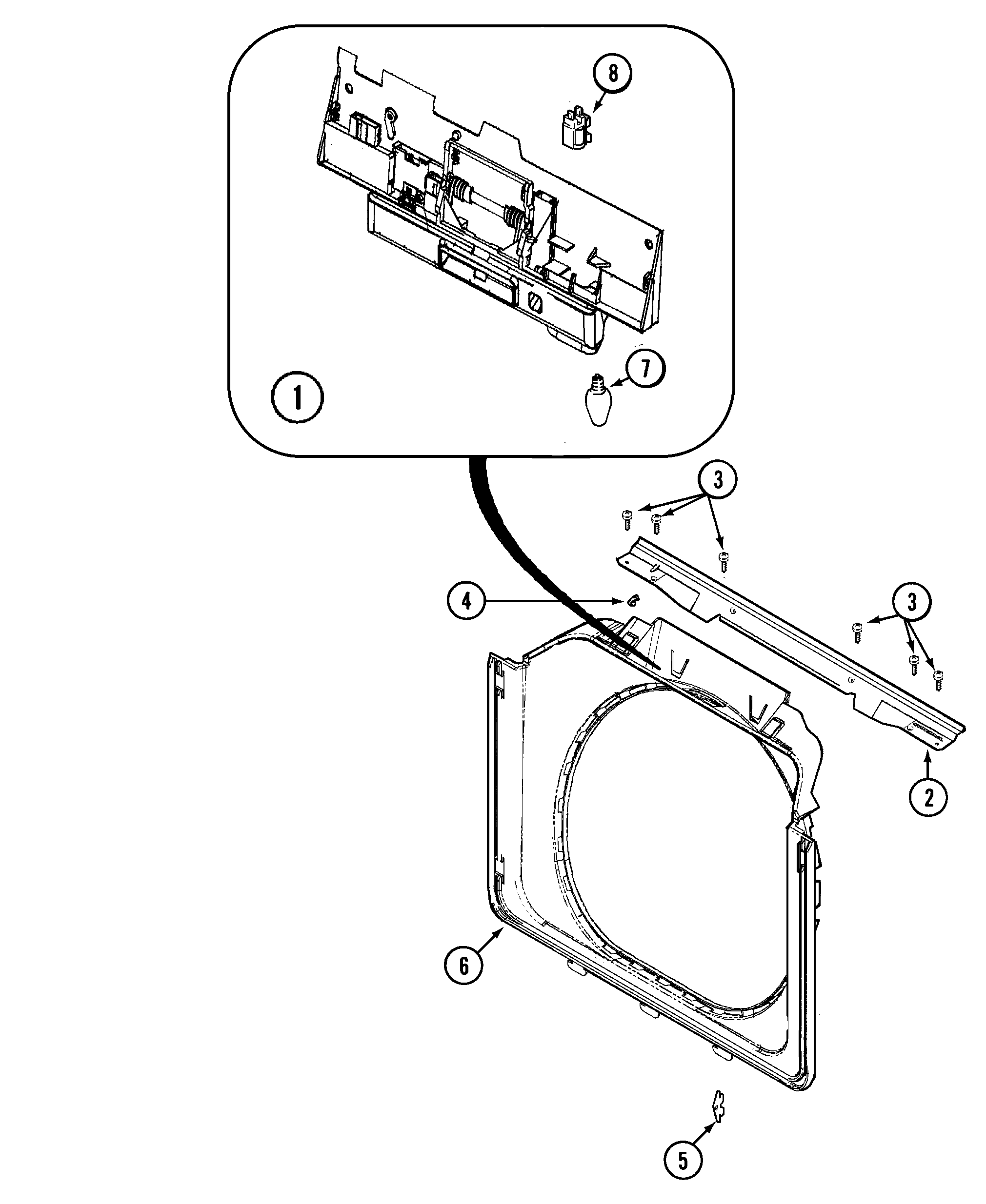

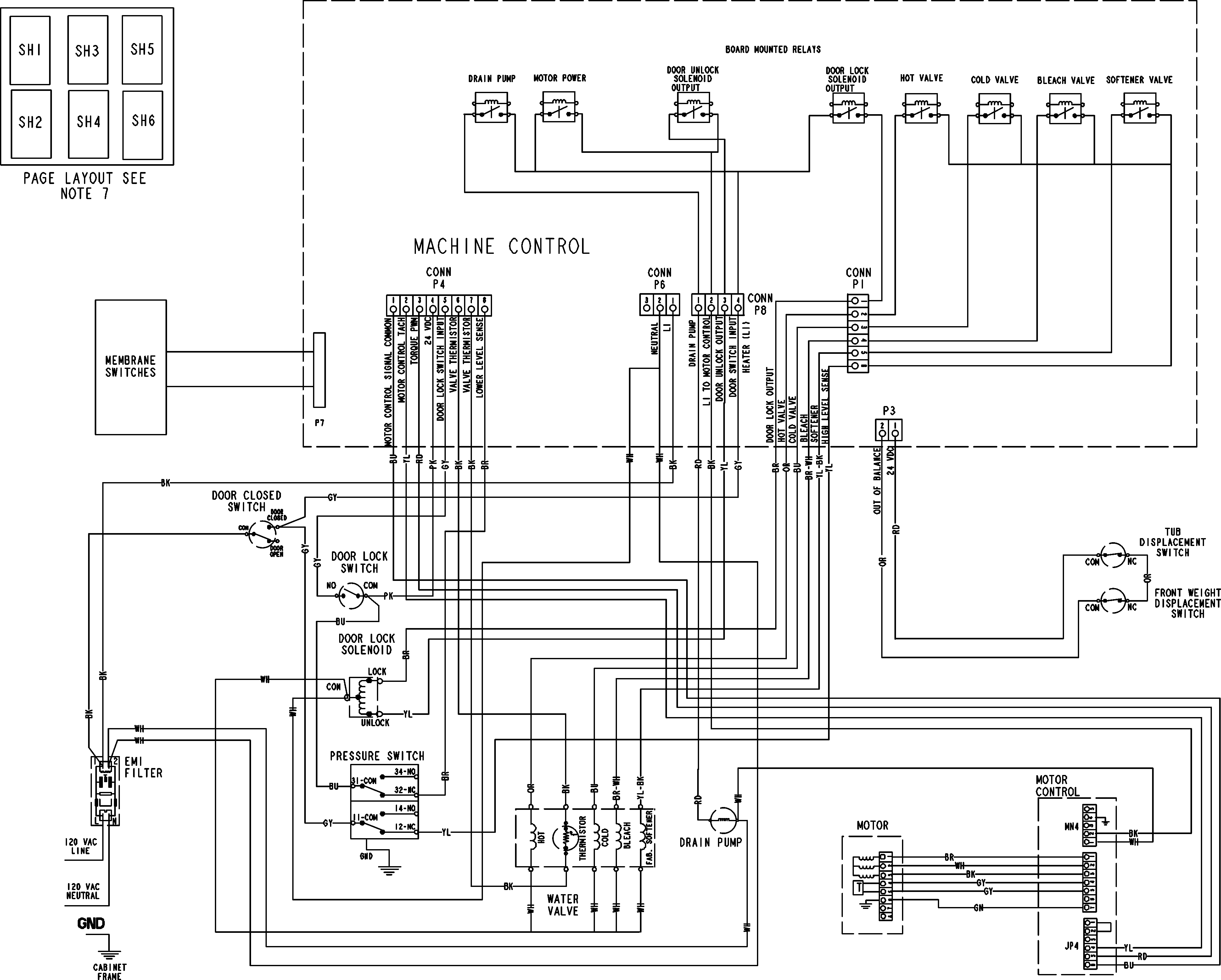

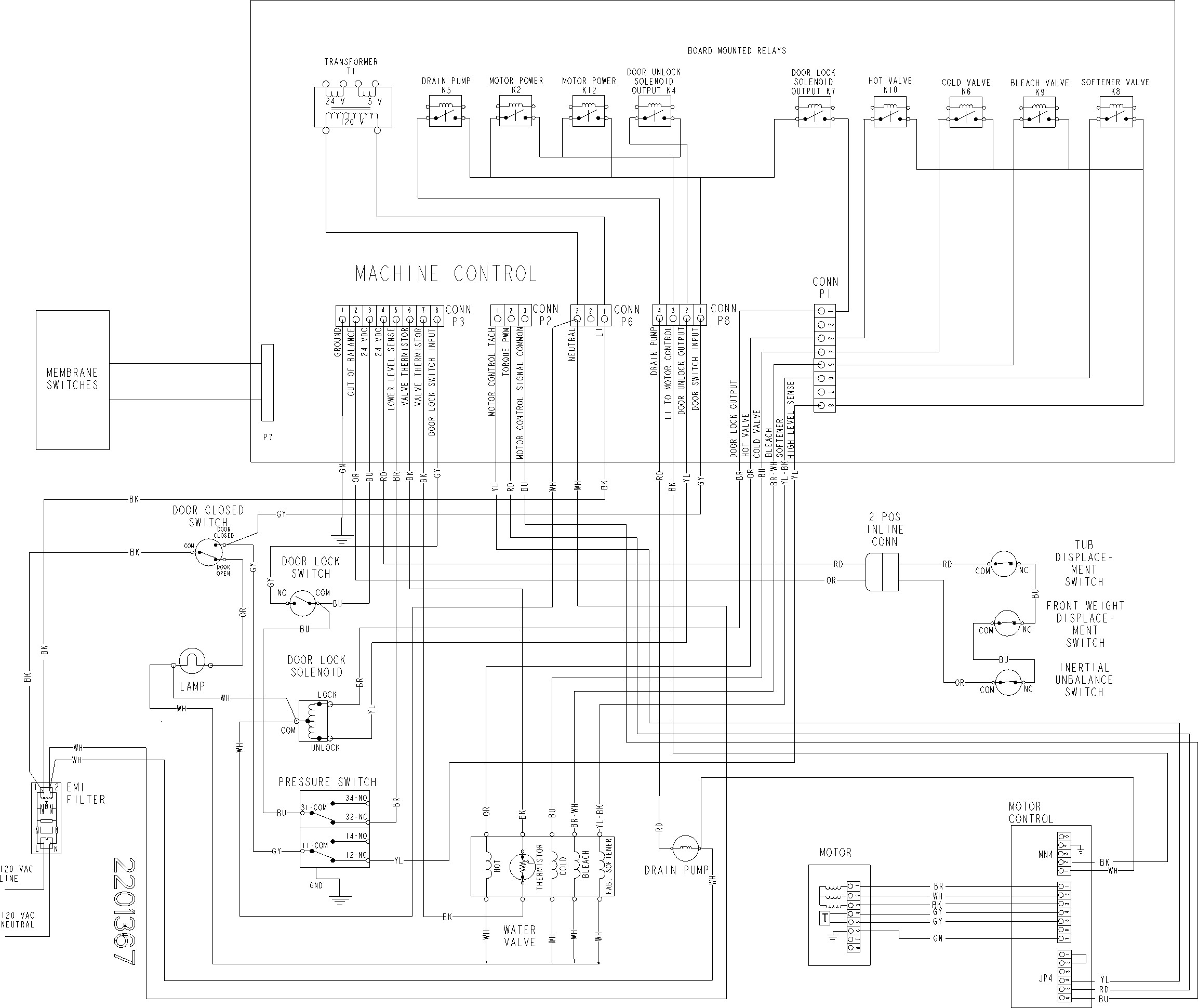

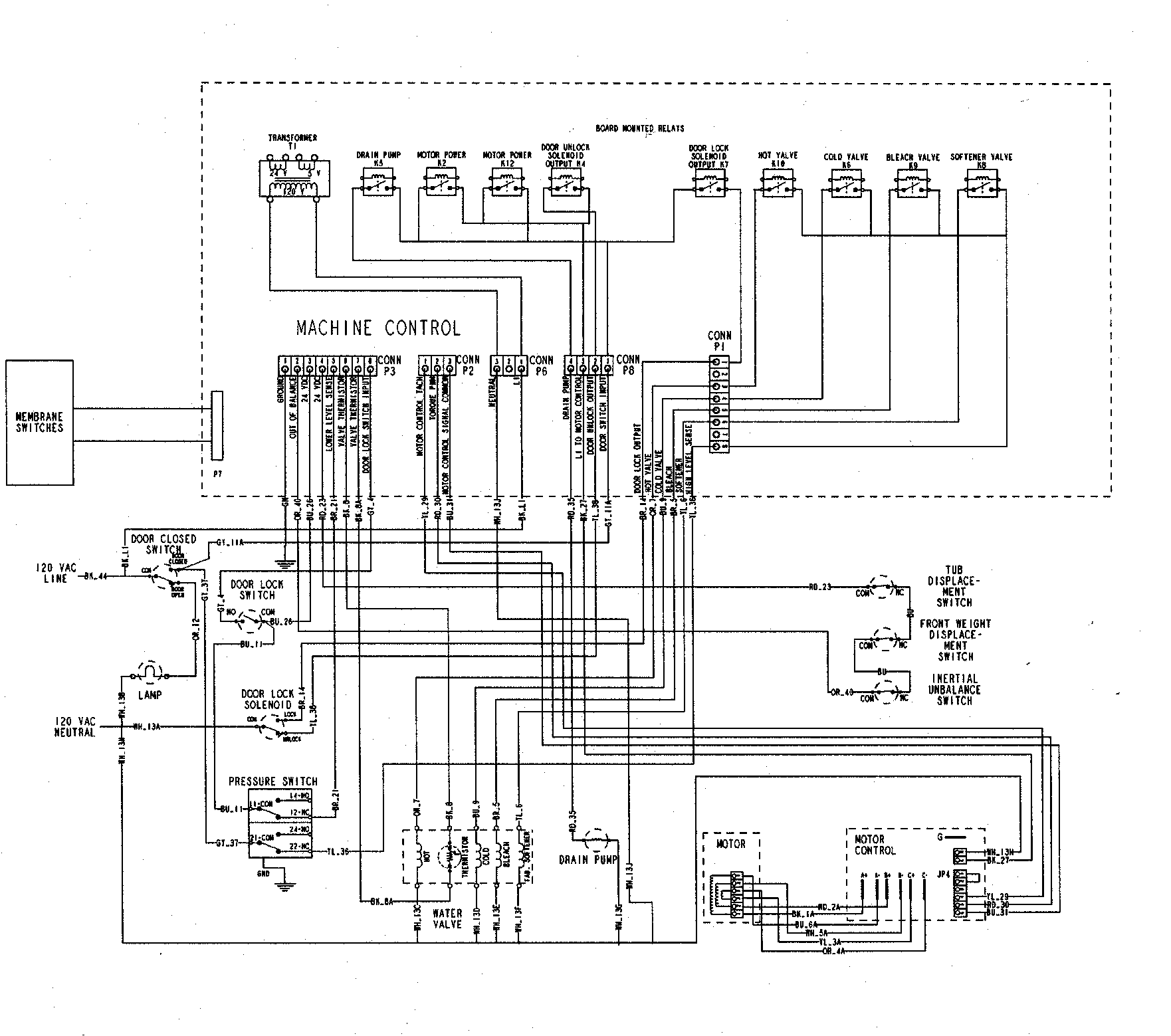

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Washer Screw 22001995
Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
$11.78
In Stock
Pump 22003244
#11

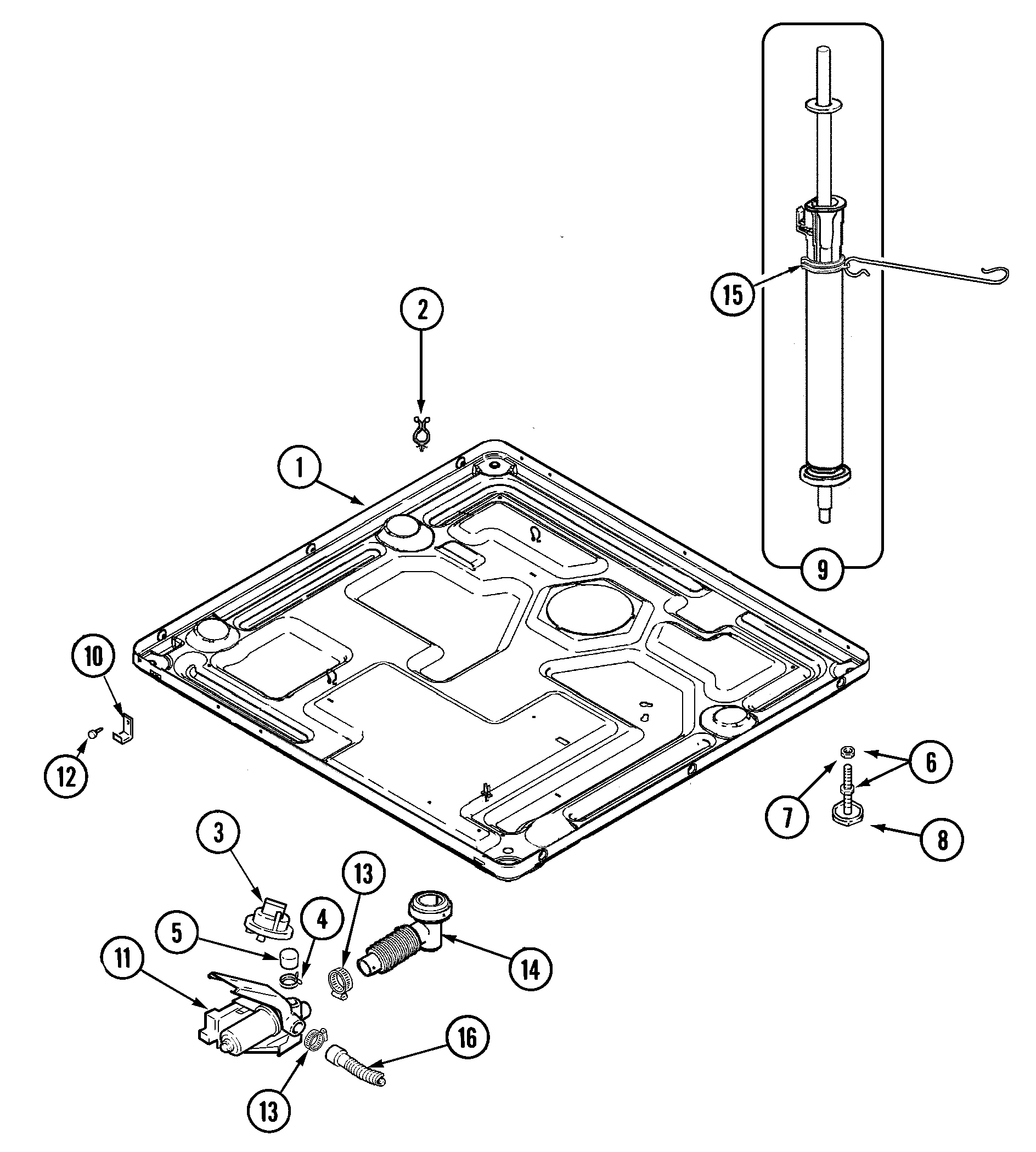

Base diagram

Pump

Part #22003244

Replaced by #WP25001052

?
Manufacturer substitution
This part replaces 22003244. Substitute parts can look different from the original.
BEST SELLER
$136.63 |
8% OFF Phone Price : $148.63
In Stock
Outer Screw 22002063
#14

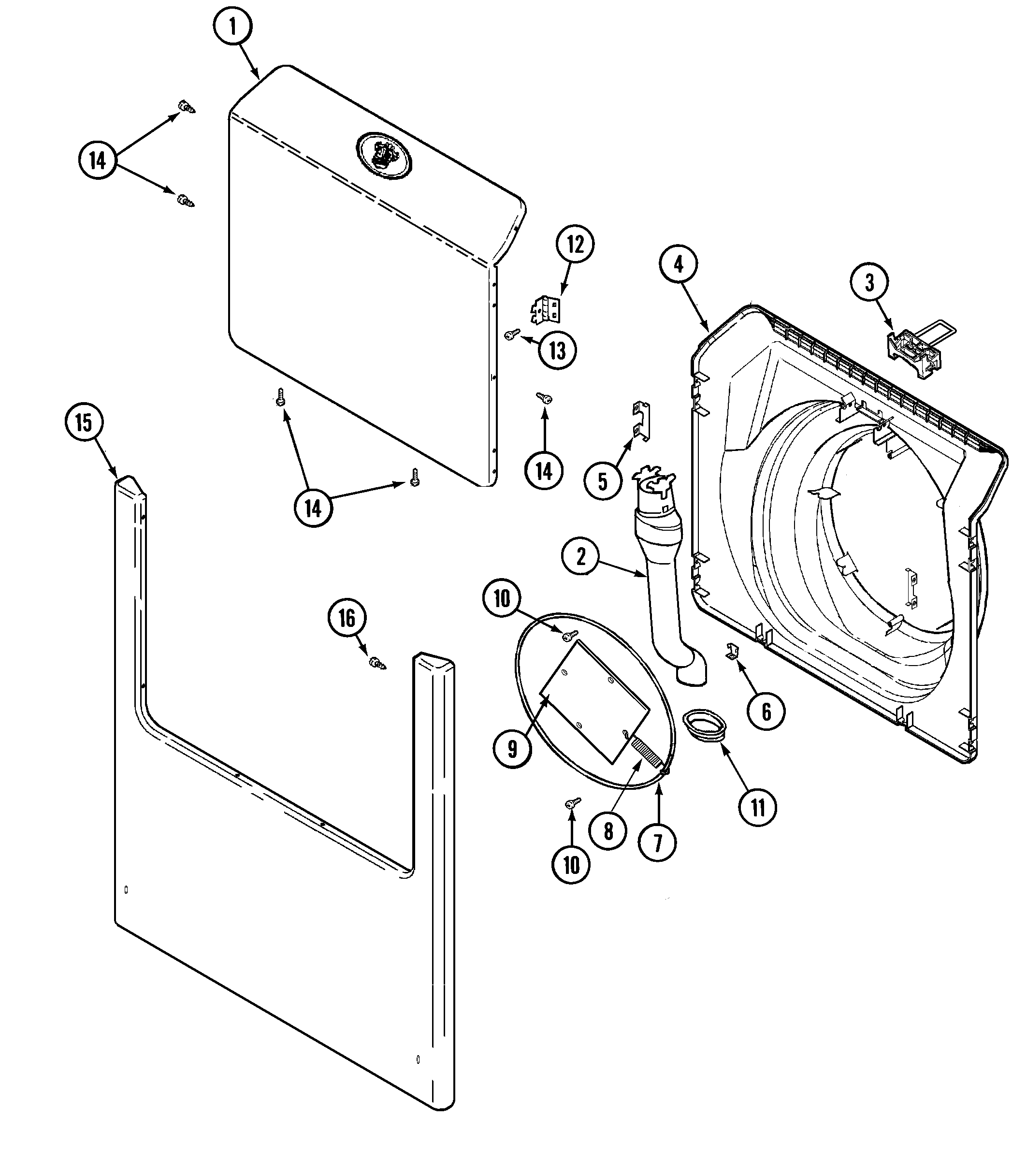

Door & front panel diagram

Outer screw

Part #22002063

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 22002063. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw (#8-18 33002351
#14A

Door & front panel diagram

Screw (#8-18

Part #33002351

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 33002351. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Insert Screw 22002300
#3

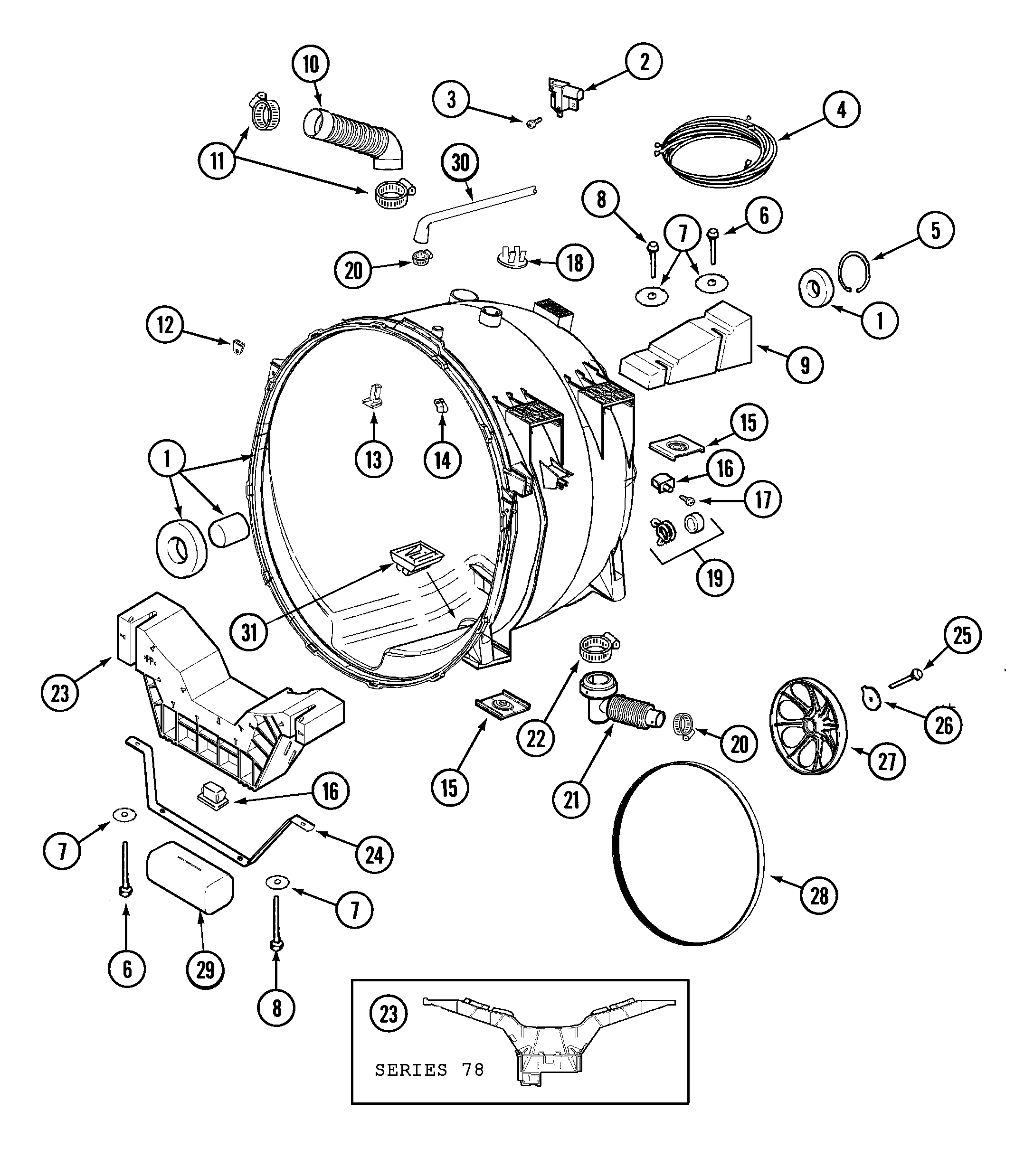

Outer tub diagram

Insert screw

Part #22002300

Replaced by #WP9740848

?
Manufacturer substitution
This part replaces 22002300. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 22002925
#14A

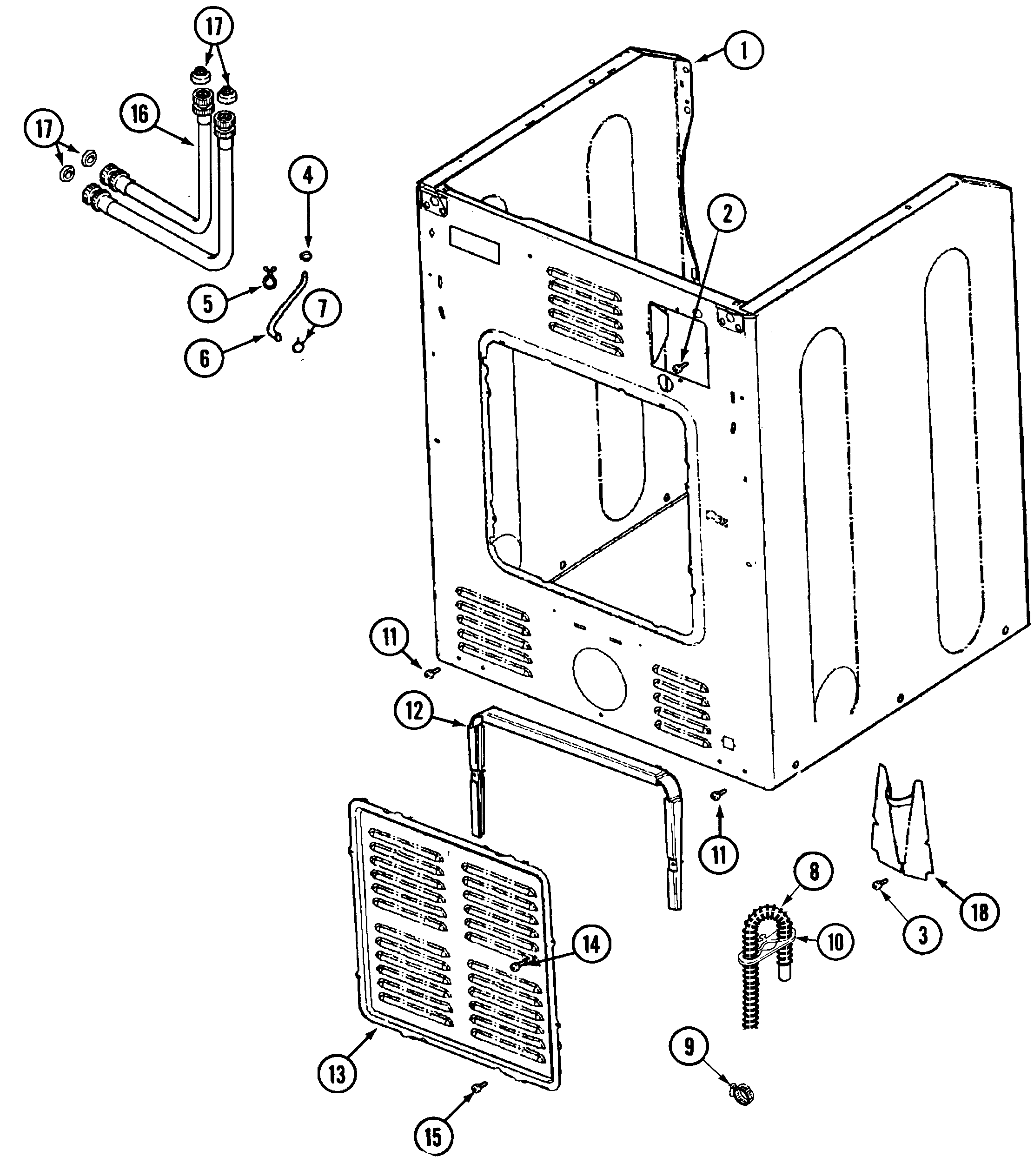

Cabinet-rear diagram

Screw

Part #22002925

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22002925. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw, Serra 22003817
#12D

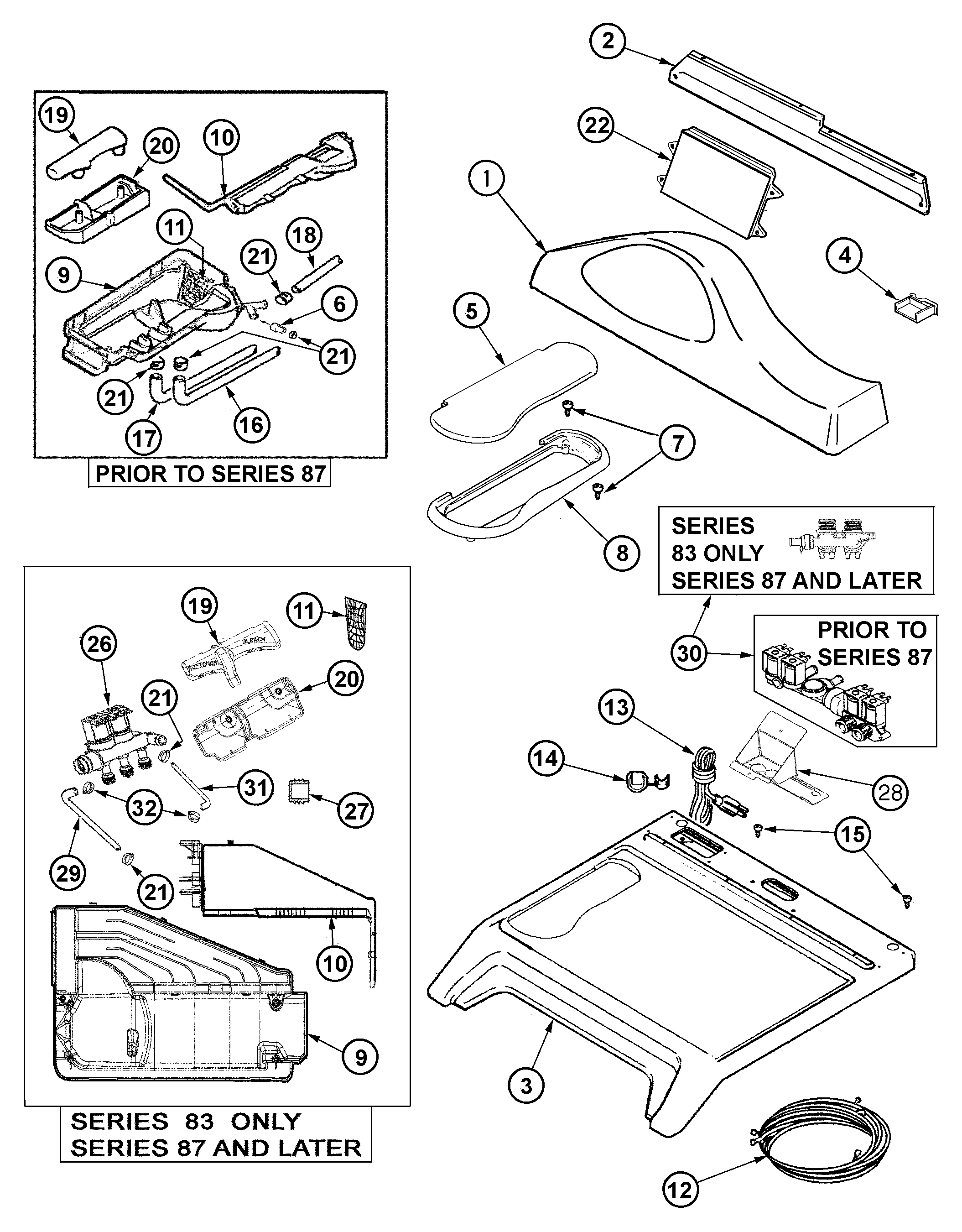

Control panel & top diagram

Screw, serra

Part #22003817

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 22003817. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Drive Belt K 12001435
#28

Outer tub diagram

Drive belt k

Part #12001435

Replaced by #12001788

?
Manufacturer substitution
This part replaces 12001435. Substitute parts can look different from the original.
$27.39 |
18% OFF Phone Price : $33.39
In Stock
Valve Seal (replaces 22003847) 12001929
#27

Control panel & top diagram

Valve seal (replaces 22003847)

Part #12001929

This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 33001245
#2

Cabinet-rear diagram

Screw

Part #33001245

Replaced by #W10850756

?
Manufacturer substitution
This part replaces 33001245. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
