Model # NNT199J/9G46B Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag NNT199J/9G46B refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

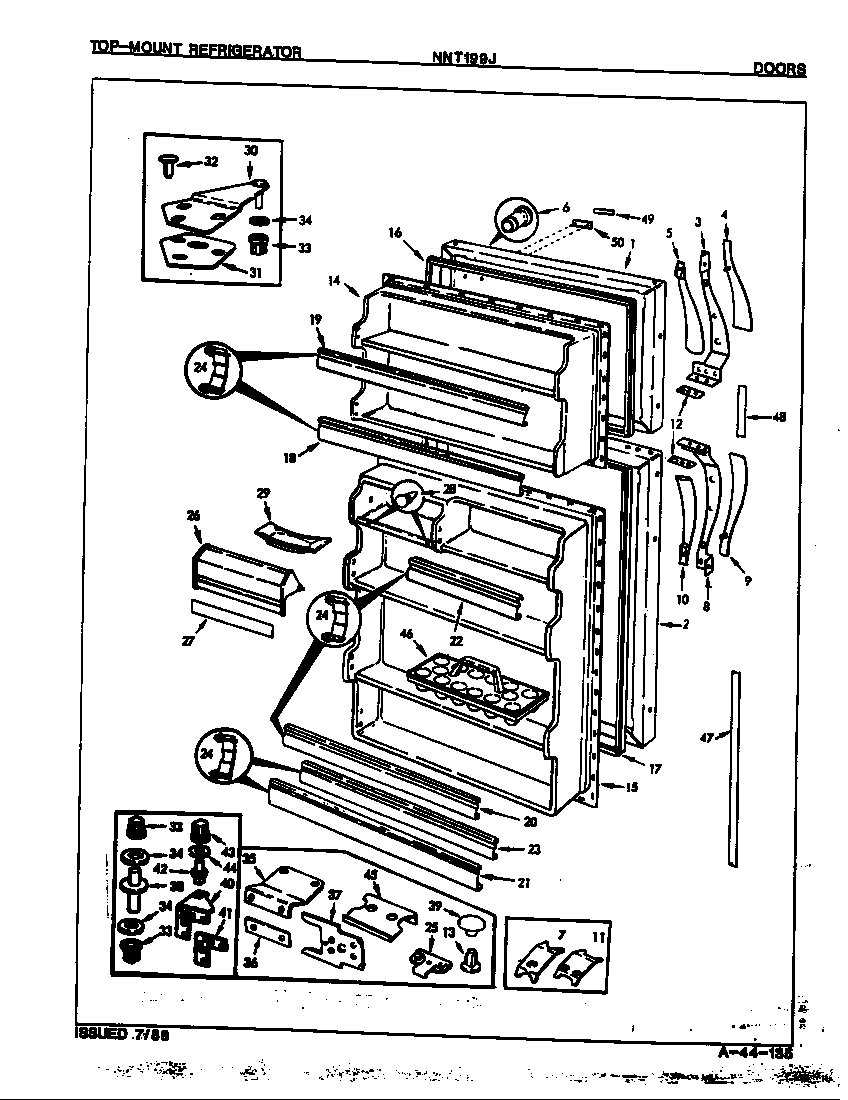

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forNNT199J/9G46B Refrigerator

  • Drier 13900
    #13

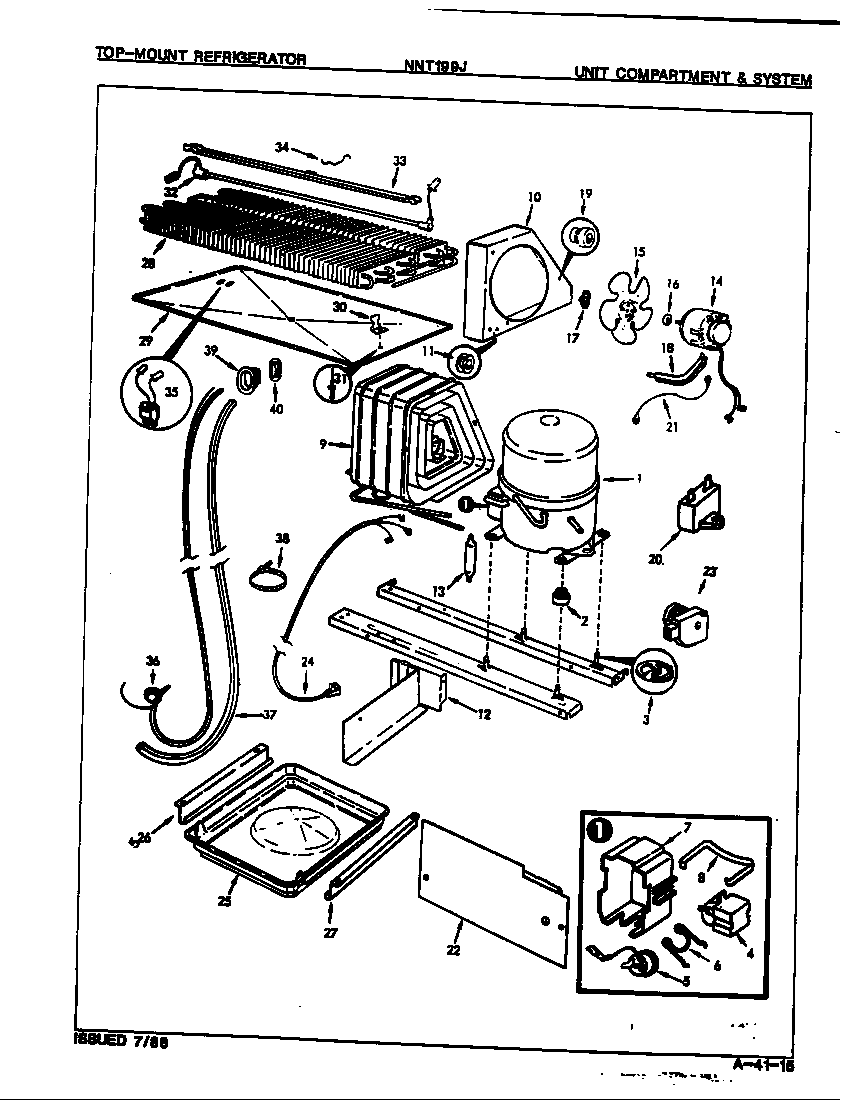

    Unit compartment & system diagram

    Drier

    Part #13900

    Replaced by #WPW10143759

    ?
    Manufacturer substitution
    This part replaces 13900. Substitute parts can look different from the original.
    BEST SELLER
    $20.04 |
    23% OFF Phone Price : $26.04
    In Stock
  • Light Switch 55732-1
    #23

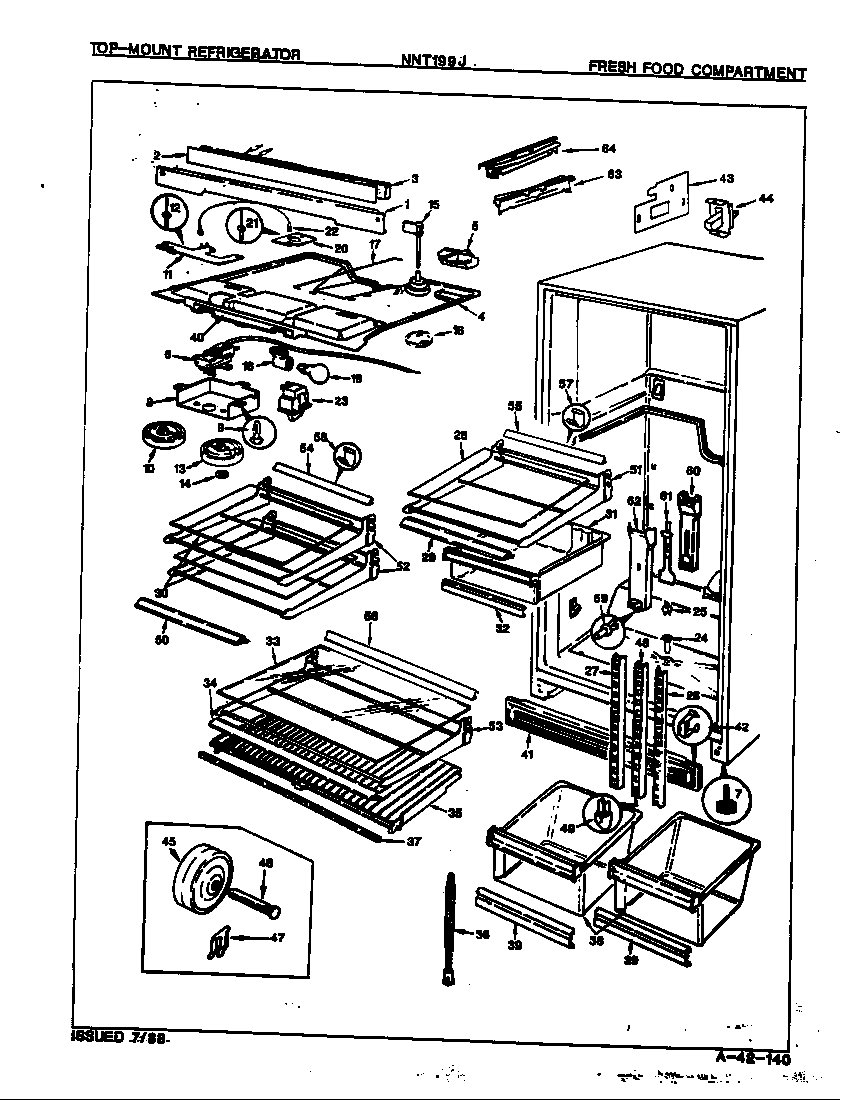

    Fresh food compartment diagram

    Light switch

    Part #55732-1

    Replaced by #W11384469

    ?
    Manufacturer substitution
    This part replaces 55732-1. Substitute parts can look different from the original.
    BEST SELLER
    $19.89 |
    9% OFF Phone Price : $21.89
    In Stock
  • Fan Motor 28056-13
    #14

    Unit compartment & system diagram

    Fan motor

    Part #28056-13

    Replaced by #833697

    ?
    Manufacturer substitution
    This part replaces 28056-13. Substitute parts can look different from the original.
    BEST SELLER
    $54.25 |
    10% OFF Phone Price : $60.25
    In Stock
  • Screw 400017-1
    Screw

    Part #400017-1

    Replaced by #WP489478

    ?
    Manufacturer substitution
    This part replaces 400017-1. Substitute parts can look different from the original.
    This item is not returnable
    $4.17 |
    19% OFF Phone Price : $5.17
    In Stock
  • Screw 400015-12
    #4B

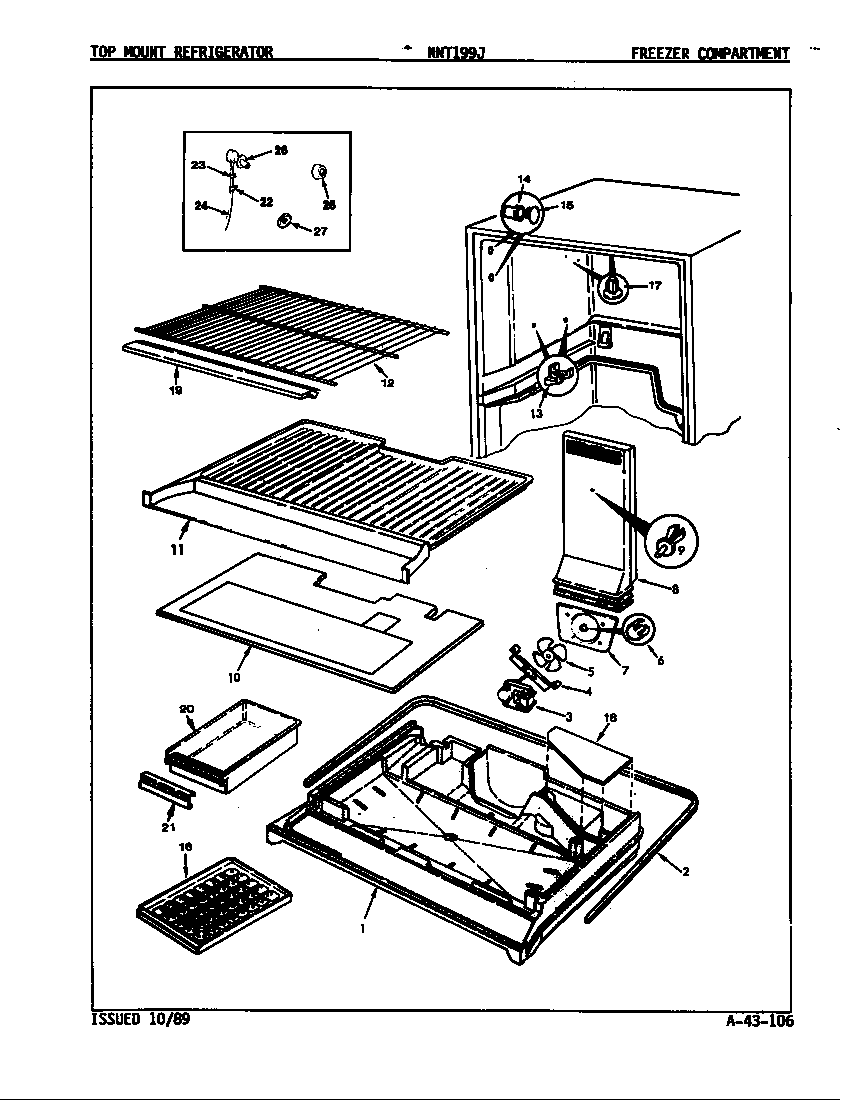

    Freezer compartment diagram

    Screw

    Part #400015-12

    Replaced by #W11233072

    ?
    Manufacturer substitution
    This part replaces 400015-12. Substitute parts can look different from the original.
    $15.95 |
    11% OFF Phone Price : $17.95
    In Stock
  • Tubing Valve 67579-7
    #24

    Freezer compartment diagram

    Tubing valve

    Part #67579-7

    Replaced by #WPB5705307

    ?
    Manufacturer substitution
    This part replaces 67579-7. Substitute parts can look different from the original.
    This item is not returnable
    $10.02 |
    17% OFF Phone Price : $12.02
    In Stock
  • Thermostat 52085-24
    #35

    Unit compartment & system diagram

    Thermostat

    Part #52085-24

    Replaced by #WP52085-28

    ?
    Manufacturer substitution
    This part replaces 52085-24. Substitute parts can look different from the original.
    $57.28 |
    9% OFF Phone Price : $63.28
    In Stock
  • Refrigerator Temperature Control 66545-1
    #6

    Fresh food compartment diagram

    Refrigerator temperature control

    Part #66545-1

    Replaced by #WP68601-6

    ?
    Manufacturer substitution
    This part replaces 66545-1. Substitute parts can look different from the original.
    $121.25 |
    9% OFF Phone Price : $133.25
    In Stock
  • Refrigerator Defrost Heater 60106-35
    #32

    Unit compartment & system diagram

    Refrigerator defrost heater

    Part #60106-35

    Replaced by #WP60106-35

    ?
    Manufacturer substitution
    This part replaces 60106-35. Substitute parts can look different from the original.
    $52.43 |
    10% OFF Phone Price : $58.43
    In Stock
  • Evaporator Motor 54482-10
    #3

    Freezer compartment diagram

    Evaporator motor

    Part #54482-10

    Replaced by #WP61004888

    ?
    Manufacturer substitution
    This part replaces 54482-10. Substitute parts can look different from the original.
    $84.54 |
    7% OFF Phone Price : $90.54
    In Stock
