Poulan
Gas Line Trimmer

Model # P3500 TYPE 1 Official Poulan trimmer

Here are the diagrams and repair parts for Official Poulan P3500-TYPE-1 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

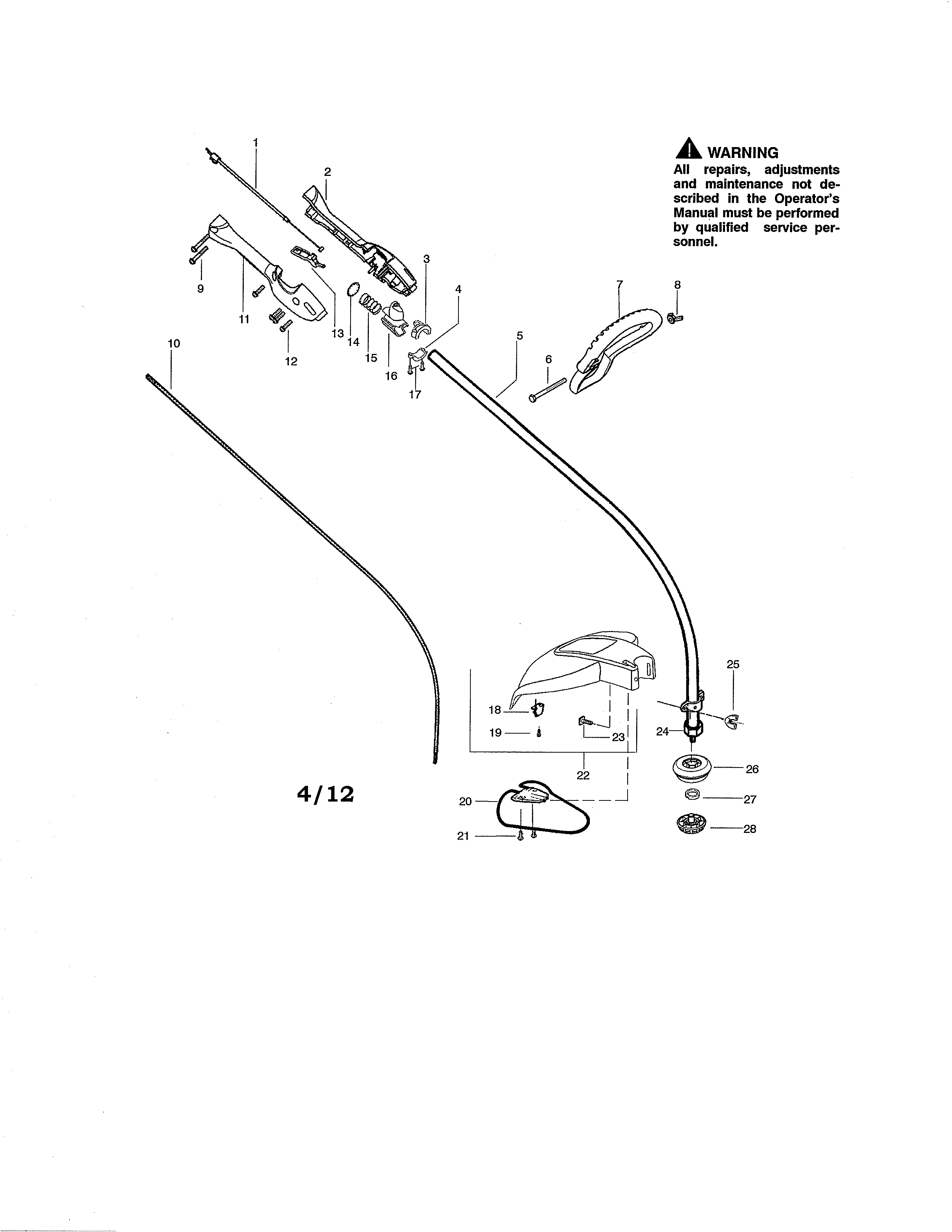

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#55

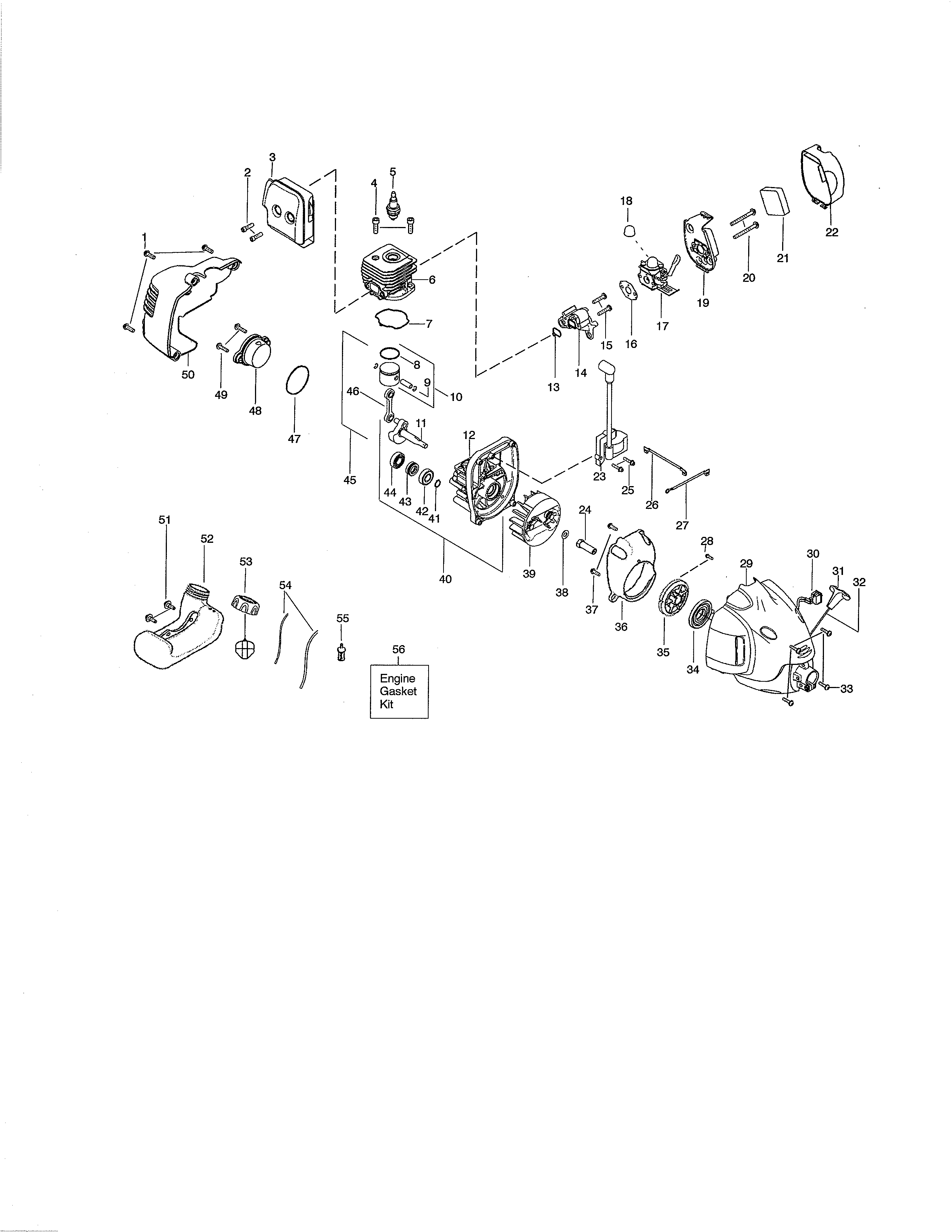

Cylinder/fuel tank/crankcase diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Lawn & Garden Equipment Engine Fuel Return Line (replaces 5300695-99, 530-069599, 530069751) 530069599
#54

Cylinder/fuel tank/crankcase diagram

Lawn & garden equipment engine fuel return line (replaces 5300695-99, 530-069599, 530069751)

Part #530069599

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Line Trimmer Primer Bulb 530058709
#18

Cylinder/fuel tank/crankcase diagram

Line trimmer primer bulb

Part #530058709

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Leaf Blower Primer Bulb 530035497
#18A

Cylinder/fuel tank/crankcase diagram

Leaf blower primer bulb

Part #530035497

Get free shipping with Automatic Reorder

$11.55 |
15% OFF Phone Price : $13.55
In Stock
Line Trimmer Engine Piston Ring (replaces 530055120) 545154001
#8

Cylinder/fuel tank/crankcase diagram

Line trimmer engine piston ring (replaces 530055120)

Part #545154001

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lawn & Garden Equipment Flywheel 530054115
#39

Cylinder/fuel tank/crankcase diagram

Lawn & garden equipment flywheel

Part #530054115

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530054115. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Lawn & Garden Equipment Screw 530015814
Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Start Spring 545213601
#34

Cylinder/fuel tank/crankcase diagram

Start spring

Part #545213601

Replaced by #545008011

?
Manufacturer substitution
This part replaces 545213601. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Line Trimmer Engine Gasket Set 530071750
#56

Cylinder/fuel tank/crankcase diagram

Line trimmer engine gasket set

Part #530071750

This item is not returnable
$17.33 |
10% OFF Phone Price : $19.33
In Stock
Line Trimmer Carburetor Adapter 530057547
#14

Cylinder/fuel tank/crankcase diagram

Line trimmer carburetor adapter

Part #530057547

This item is not returnable
$16.71
In Stock
