Model # WWSE5200B3WW Official GE washer

Here are the diagrams and repair parts for Official GE WWSE5200B3WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WWSE5200B3WW Washer
Hub Nut WH02X1193
#325

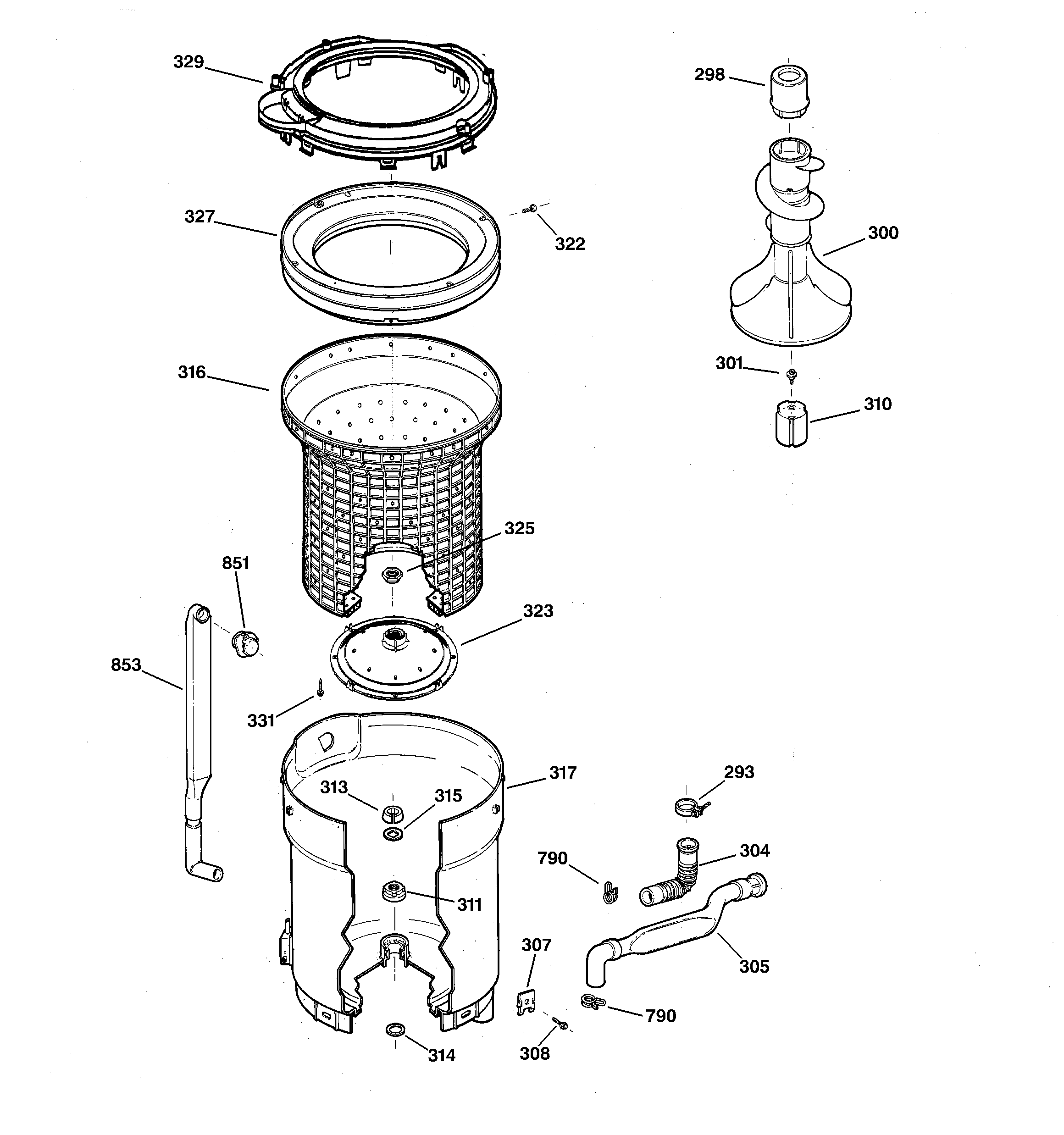

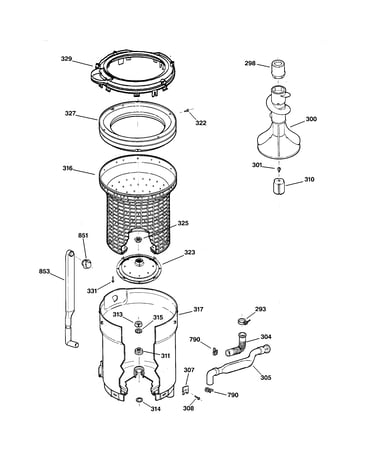

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Washer Tub Seal WH02X10032
#311

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$11.72 |
15% OFF Phone Price : $13.72
In Stock
Washer Drain Pump Assembly WH23X10013
#655

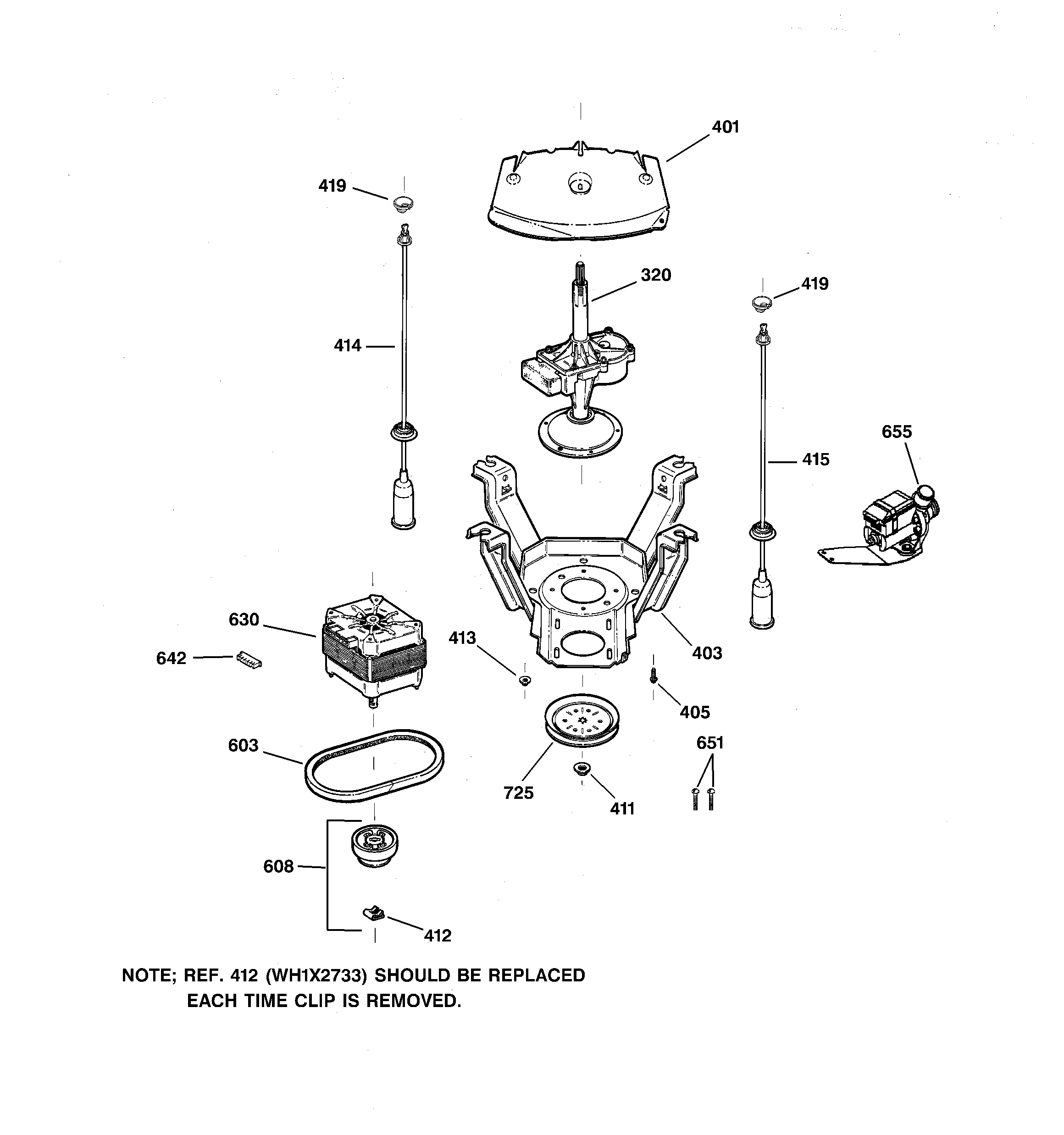

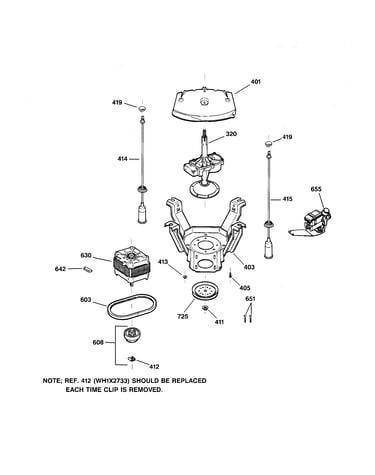

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$56.20 |
12% OFF Phone Price : $63.94
In Stock
Strap Dampng WH01X10046
#370

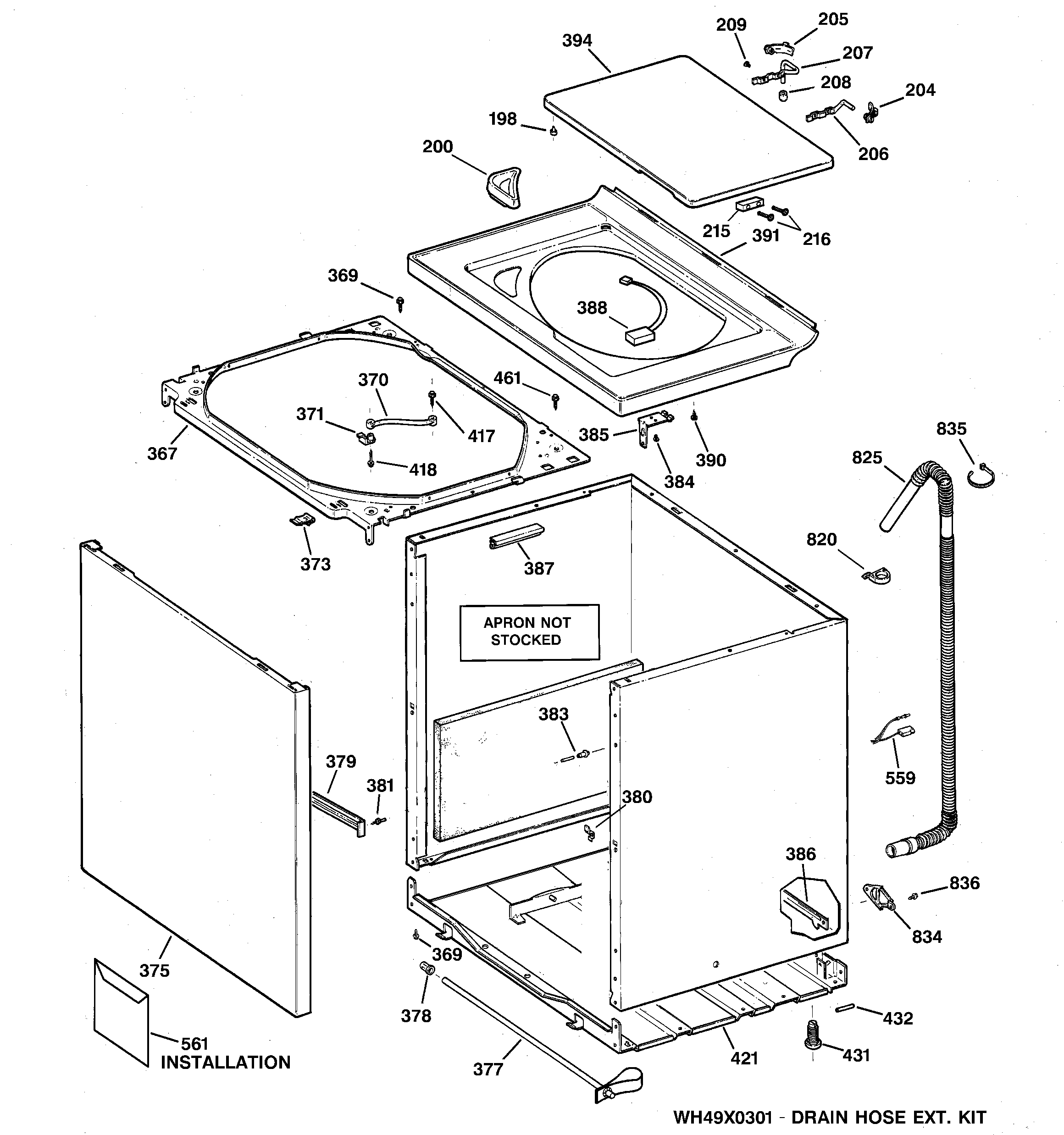

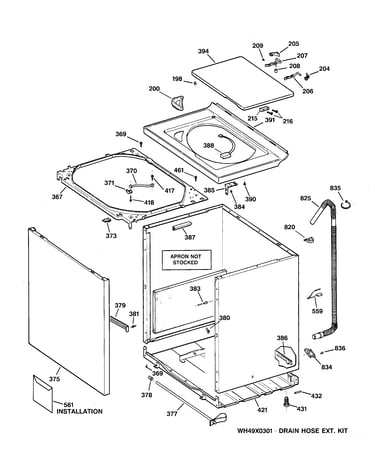

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$12.53 |
59% OFF Was : $30.67
In Stock
Valve WH13X0086
#805

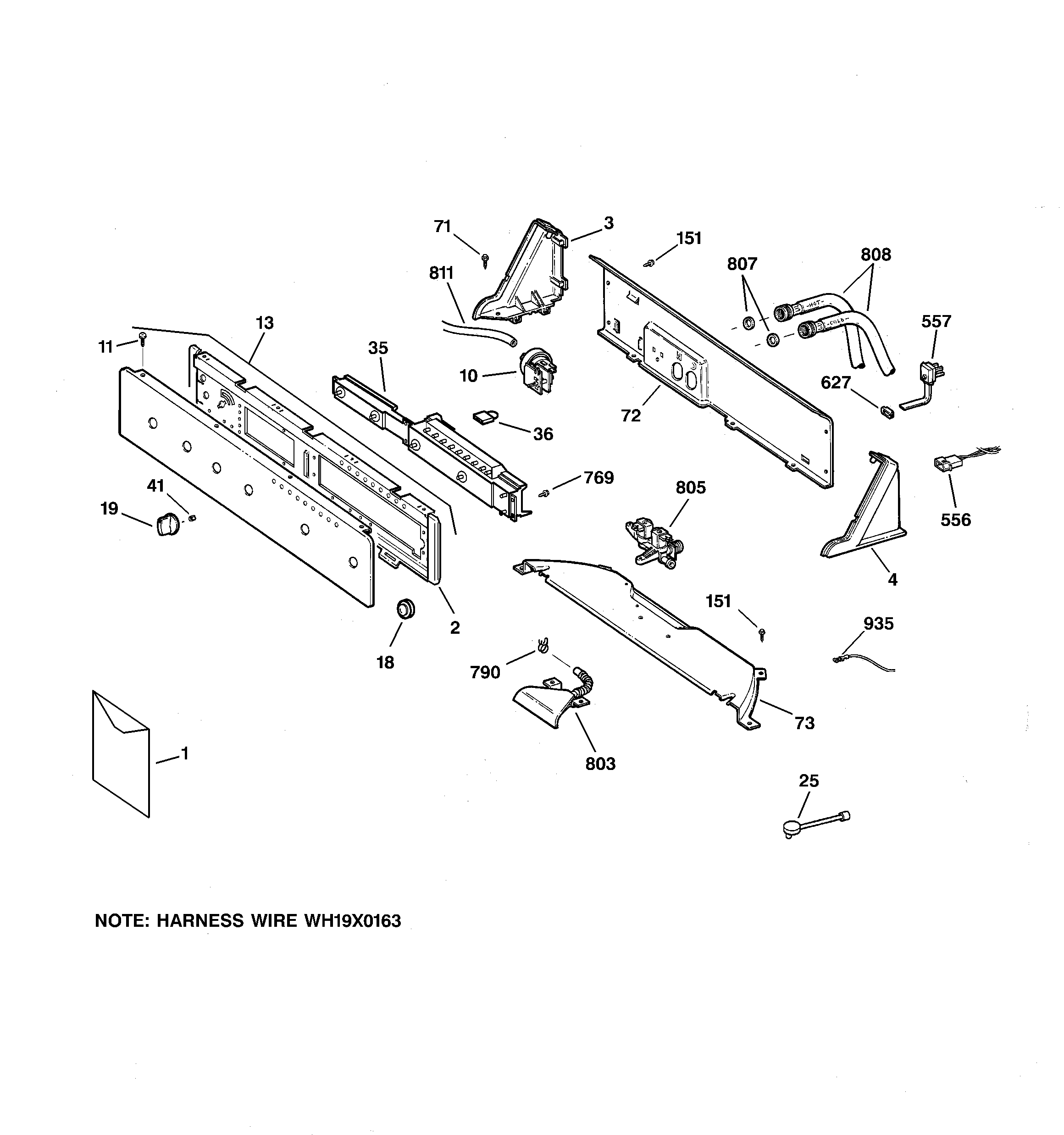

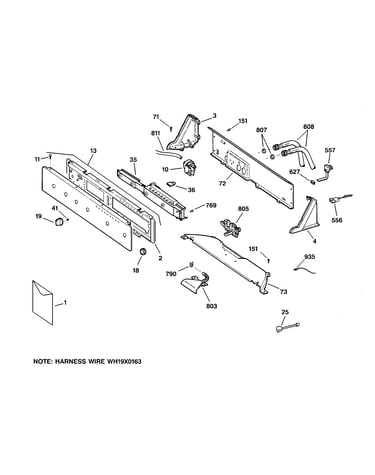

Controls & backsplash diagram

Valve

Part #WH13X0086

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X0086. Substitute parts can look different from the original.
BEST SELLER
$120.14 |
9% OFF Phone Price : $132.14
In Stock
Drive Extension Hose WH41X0367
#825

Cabinet, cover & front panel diagram

Drive extension hose

Part #WH41X0367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X0367. Substitute parts can look different from the original.
BEST SELLER
$23.39 |
20% OFF Phone Price : $29.39
In Stock
Drain Hose WH41X0371
#304

Tub, basket & agitator diagram

Drain hose

Part #WH41X0371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X0371. Substitute parts can look different from the original.
This item is not returnable
$15.32 |
12% OFF Phone Price : $17.32
In Stock
Washer Start/stop Switch Button (replaces Wh01x10032, Wh01x10306, Wh12x10140) WH01X10088
#18

Controls & backsplash diagram

Washer start/stop switch button (replaces wh01x10032, wh01x10306, wh12x10140)

Part #WH01X10088

$15.19 |
12% OFF Phone Price : $17.19
In Stock
Washer Suspension Rod Socket (replaces Wh01x10197) WH01X10001
#419

Suspension, pump & drive components diagram

Washer suspension rod socket (replaces wh01x10197)

Part #WH01X10001

This item is not returnable
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Washer Lid Switch Magnet WH12X10092
#215

Cabinet, cover & front panel diagram

Washer lid switch magnet

Part #WH12X10092

Replaced by #WH12X10276

?
Manufacturer substitution
This part replaces WH12X10092. Substitute parts can look different from the original.
This item is not returnable
$11.64 |
15% OFF Phone Price : $13.64
In Stock
