Kenmore
Canister Vacuum

Model # 11629312990 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11629312990 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Vacuum Floor Brush 4370358
#3

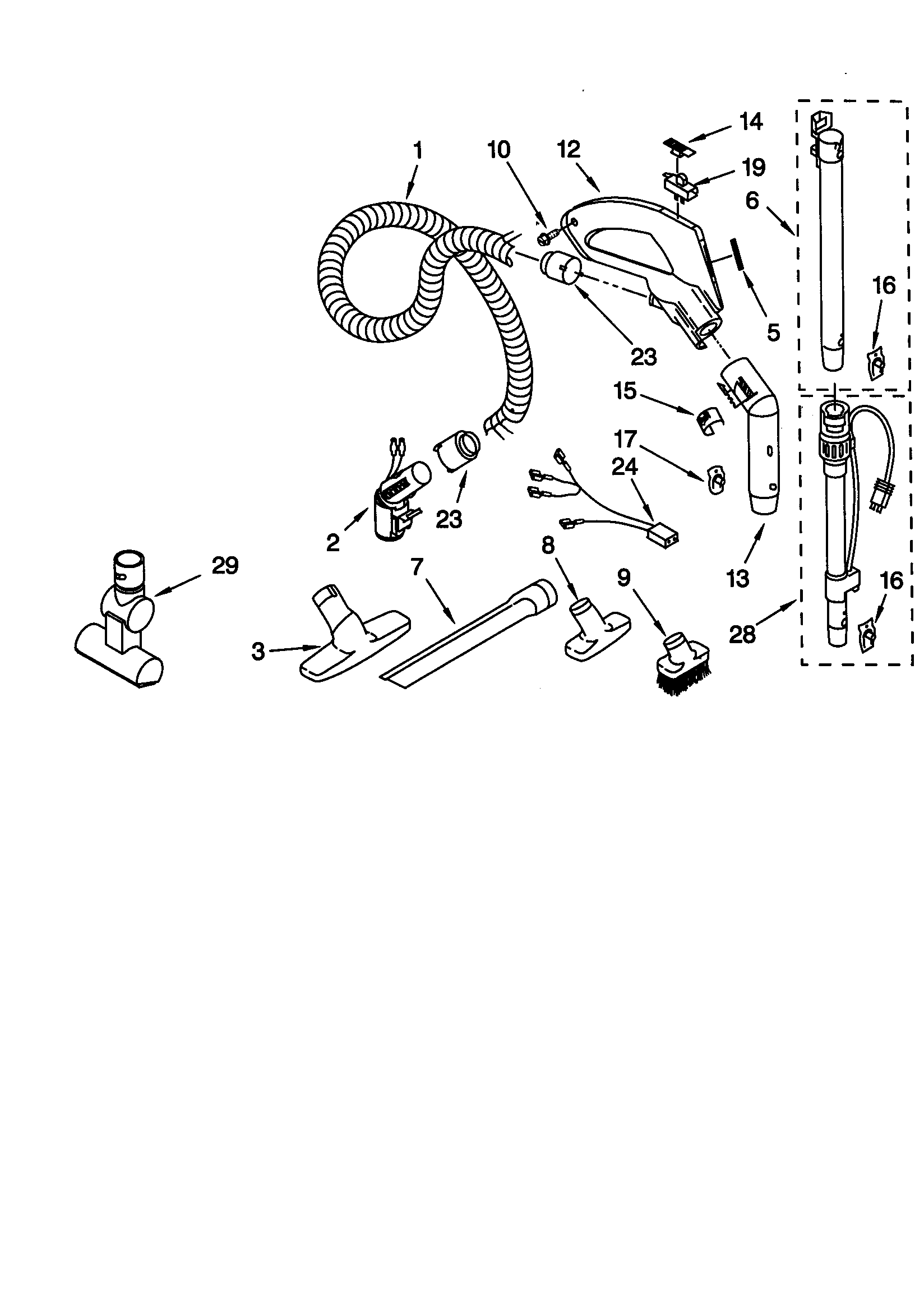

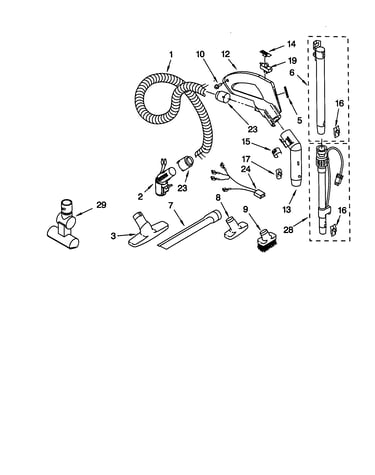

Hose and attachment diagram

Vacuum floor brush

Part #4370358

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Primary Filter 4370059
#18

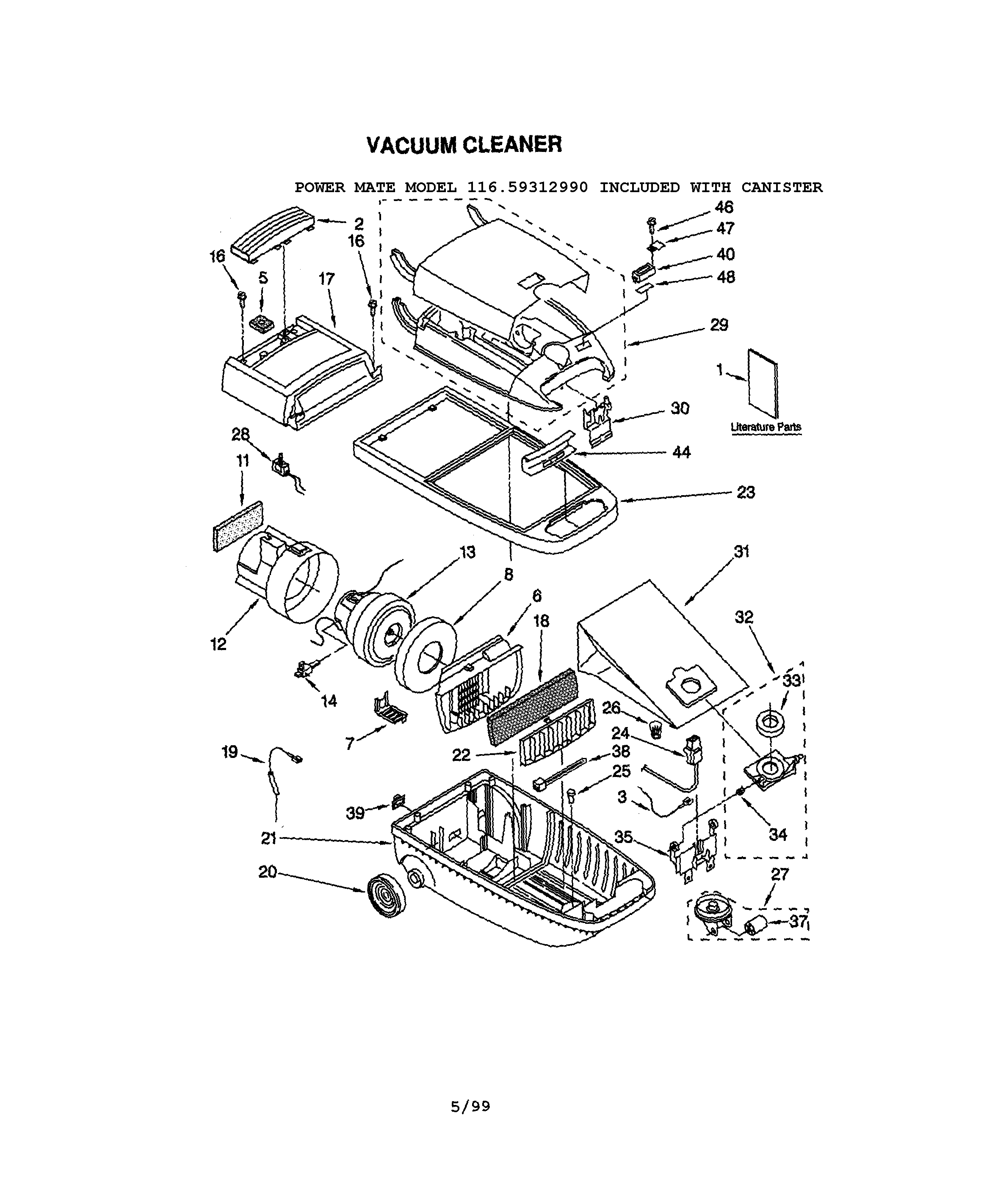

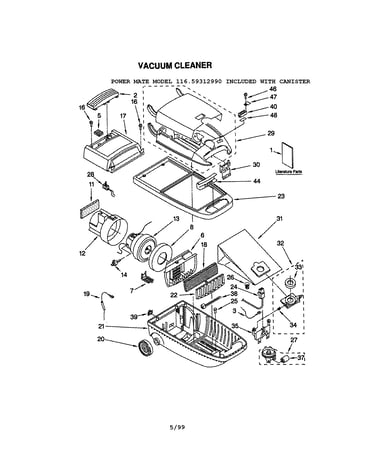

Vacuum cleaner diagram

Vacuum primary filter

Part #4370059

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Grip Handle 4155620
#44

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 4370325
#23

Hose and attachment diagram

Vacuum hose adapter

Part #4370325

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 4370335
#9

Hose and attachment diagram

Vacuum dust brush

Part #4370335

The manufacturer no longer makes this part, and there's no substitute part

Repair Parts List LIT04370936
#1C

Vacuum cleaner diagram

Repair parts list

Part #LIT04370936

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4369339
#6

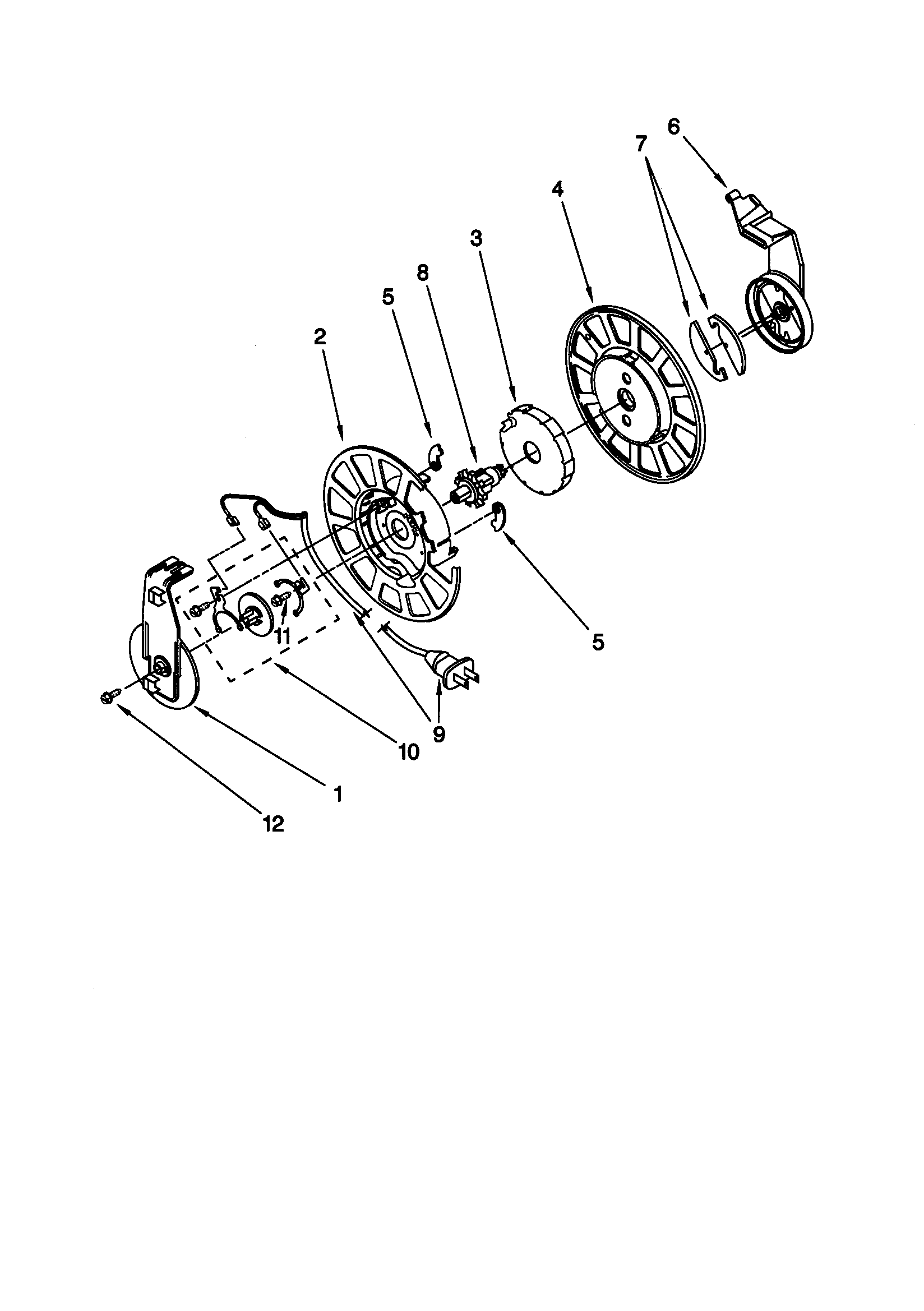

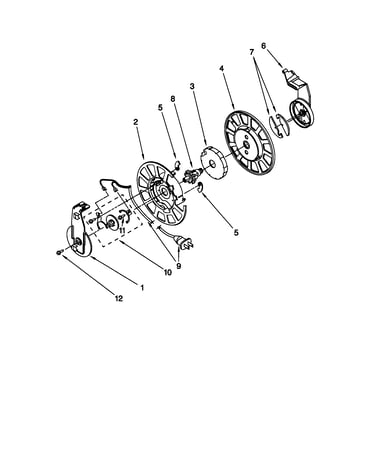

Power cord reel diagram

Bracket

Part #4369339

The manufacturer no longer makes this part, and there's no substitute part

Cover Canopy 4370925
#17

Vacuum cleaner diagram

Cover canopy

Part #4370925

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Rewind Button 4369308
#2

Vacuum cleaner diagram

Vacuum cord rewind button

Part #4369308

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush (bronze) 4370655
#14

Vacuum cleaner diagram

Motor brush (bronze)

Part #4370655

The manufacturer no longer makes this part, and there's no substitute part
