Model # H4A418GKA100 Official ICP air conditioner
Here are the diagrams and repair parts for Official ICP H4A418GKA100 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
H4A418GKA100 Air Conditioner
#4

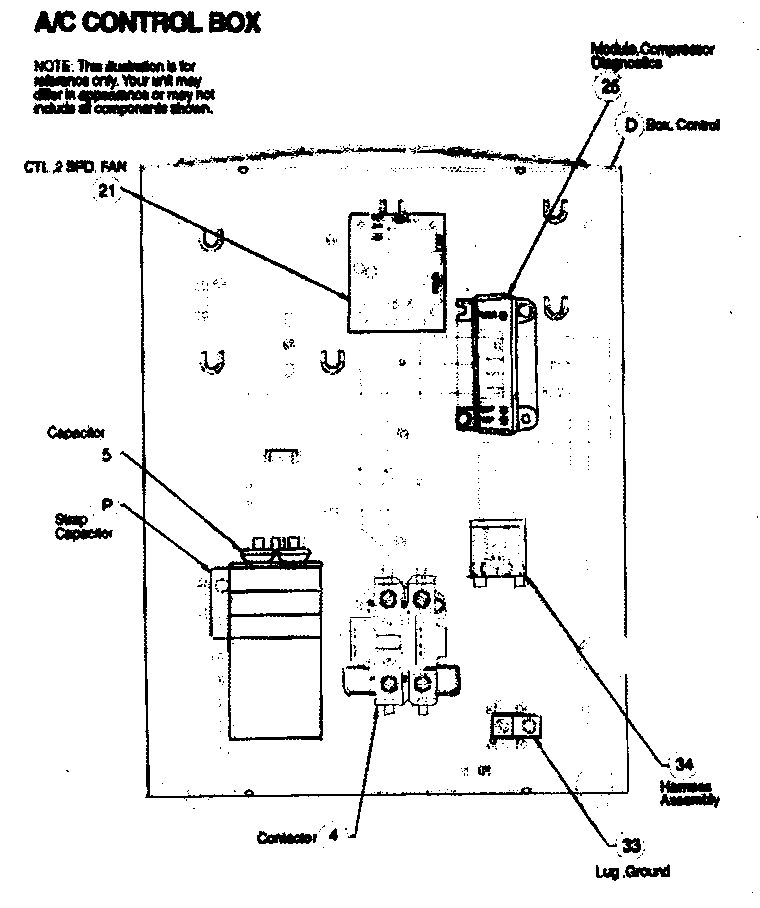

Control box diagram
Central air conditioner contactor
Part #1172472
$61.35 |
9% OFF Phone Price : $67.35
In Stock
#9

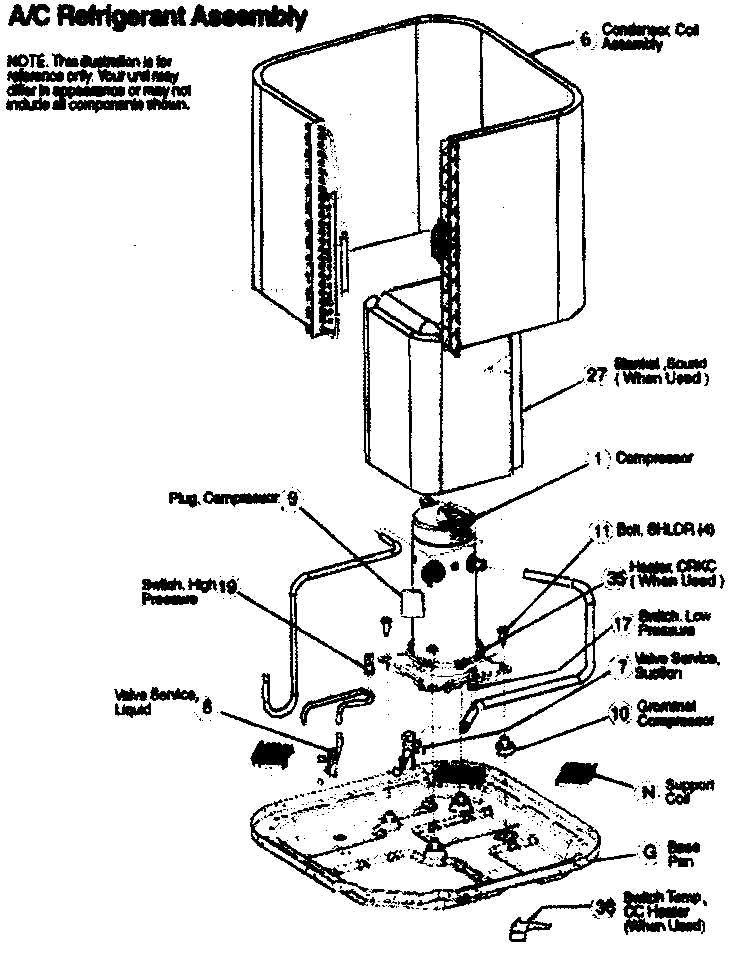

Refrigerant assy diagram
Plug compr
Part #1173963
$35.36
In Stock
#2

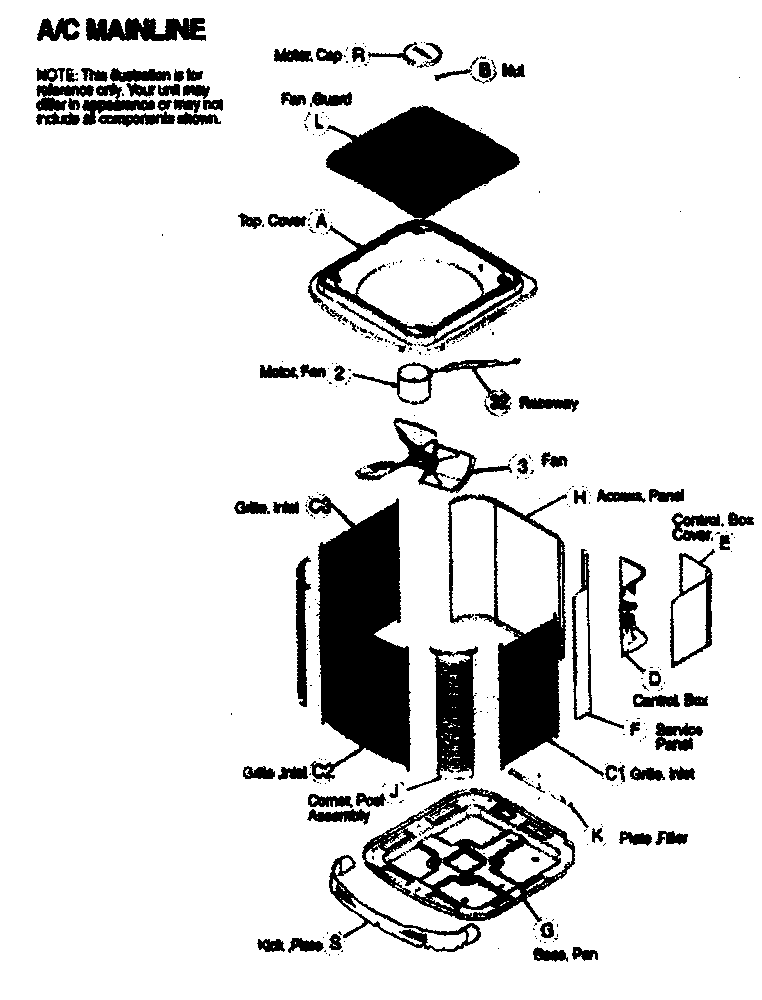

Cabinet parts diagram
Motor
Part #1173773
$378.98
In Stock
#N
Refrigerant assy diagram
Support
Part #1174068
$21.40
In Stock
#33
Control box diagram
Lug ground
Part #1172300
This item is not returnable
$6.54
In Stock
#3
Cabinet parts diagram
Fan
Part #1173787
$182.80
In Stock
#19
Refrigerant assy diagram
Switch
Part #1173954
$27.37
In Stock
#6
Refrigerant assy diagram
Condenser coil
Part #1173964
$1988.12
In Stock
#R
Cabinet parts diagram
Central air conditioner nameplate
Part #1174025
This item is not returnable
$2.16
In Stock
#11
Refrigerant assy diagram
Hex nut
Part #1174289
This item is not returnable
$2.66
In Stock
