GE
Range Hood

Model # JN322S3AD Official GE range hood

Here are the diagrams and repair parts for Official GE JN322S3AD range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Owner's Manual 49-8456

#NI

All parts diagram

Owner's manual

Part #49-8456

$8.49
In Stock
Refrigerator Fan Blade WR2X3198

#NI

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Complete Filter WB2X8406
#907B

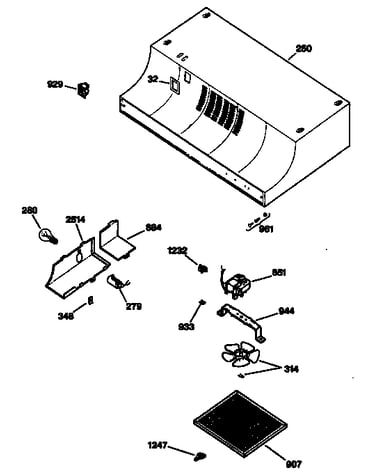

Hood/fan/motor diagram

Complete filter

Part #WB2X8406

Replaced by #WB02X10700

?
Manufacturer substitution
This part replaces WB2X8406. Substitute parts can look different from the original.
This item is not returnable
$19.11 |
9% OFF Phone Price : $21.11
In Stock
Magnetron NOT AVAIL
#250

Hood/fan/motor diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Fustat 15amp Type S OBT LOCAL
#280

Hood/fan/motor diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Wiring Guard WB2X8389
#884C

Hood/fan/motor diagram

Wiring guard

Part #WB2X8389

The manufacturer no longer makes this part, and there's no substitute part

Ground Pl WB2X646
#348

Hood/fan/motor diagram

Ground pl

Part #WB2X646

The manufacturer no longer makes this part, and there's no substitute part

Light Box WB2X8397
#2514B

Hood/fan/motor diagram

Light box

Part #WB2X8397

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Switch Assembly WB23X5097
#929

Hood/fan/motor diagram

Range hood switch assembly

Part #WB23X5097

The manufacturer no longer makes this part, and there's no substitute part

Rivet Whi WB1X5879
#961

Hood/fan/motor diagram

Rivet whi

Part #WB1X5879

The manufacturer no longer makes this part, and there's no substitute part
