Craftsman
Gas Walk-Behind Mower

Model # 917380560 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380560 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Lock Nut 83923
#43

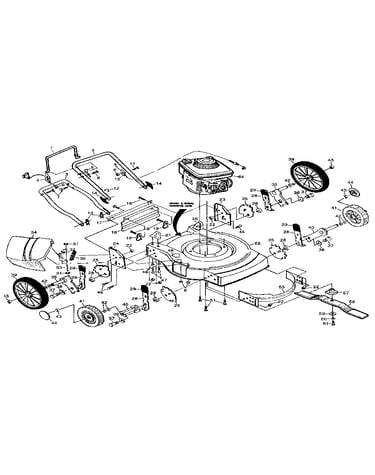

Replacement parts diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower 22-in Deck Mulching Blade 850973
Lawn mower 22-in deck mulching blade

Part #850973

Replaced by #532406713

?
Manufacturer substitution
This part replaces 850973. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Lawn Mower Blade Adapter 851514
Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#29

Replacement parts diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bolt 58714
#7

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Spring 850855X004
#28

Replacement parts diagram

Spring

Part #850855X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 850855X004. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower Cable Bracket 86899X004
#8

Replacement parts diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Handle Knob 63688
#14

Replacement parts diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn Mower E-ring 12000014
#31

Replacement parts diagram

Lawn mower e-ring

Part #12000014

Replaced by #812000014

?
Manufacturer substitution
This part replaces 12000014. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Tapping Screw 750097
#9

Replacement parts diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
