Model # NEX-3K/K Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-3K-K digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

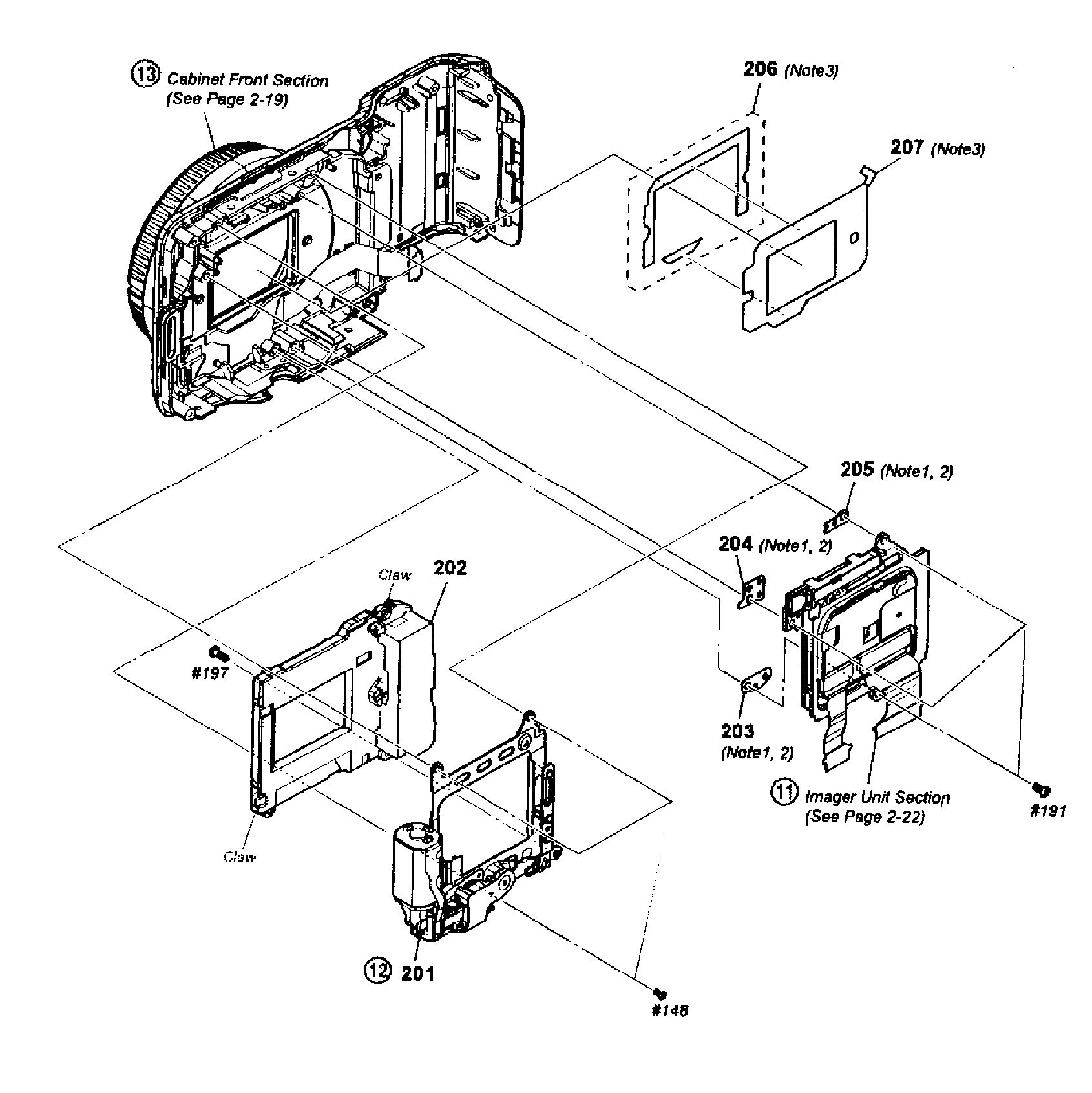

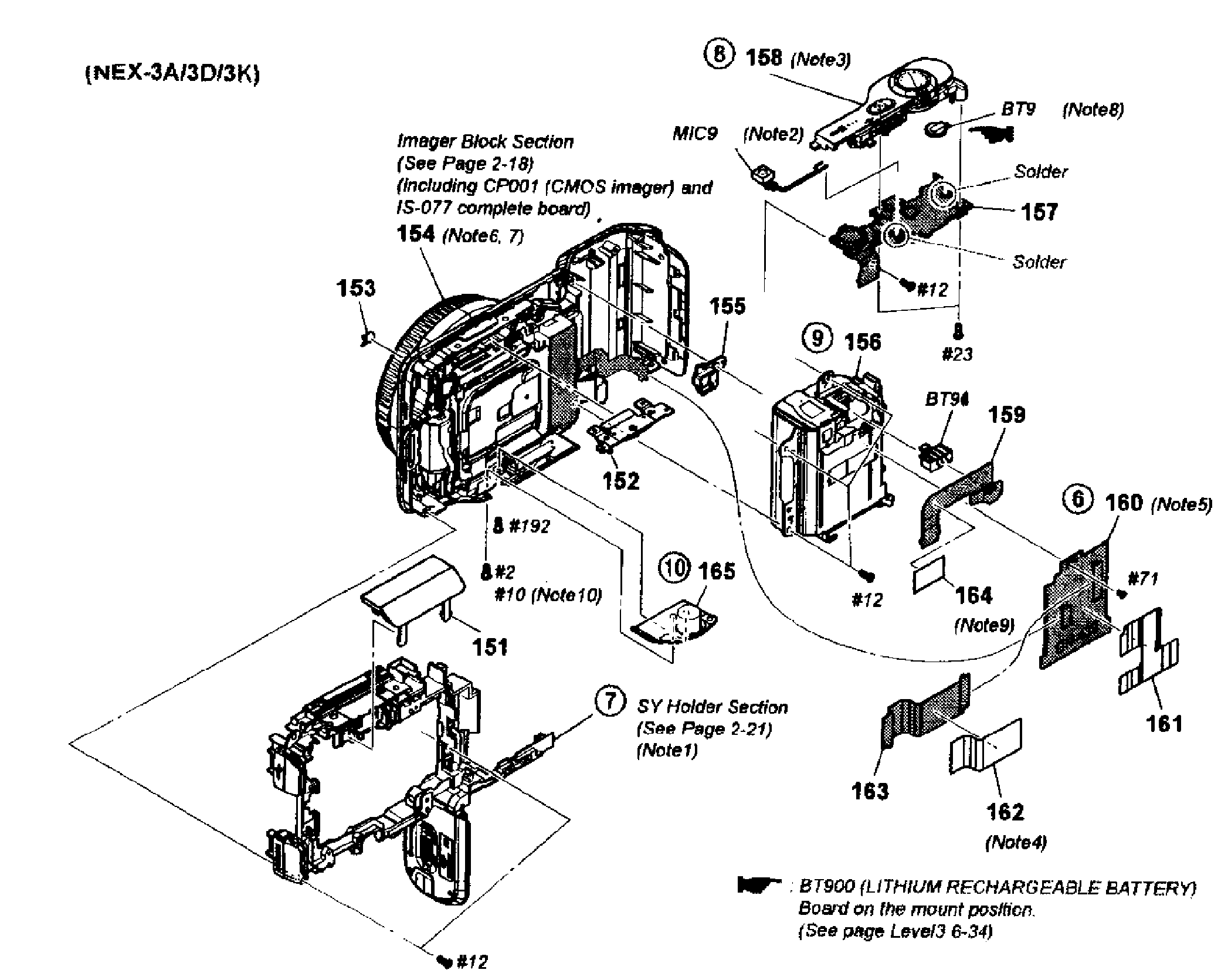

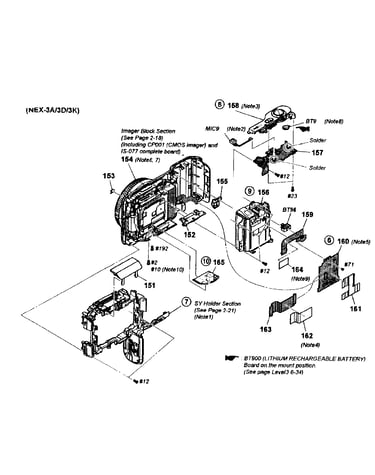

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Imager,pla 418599601
#401

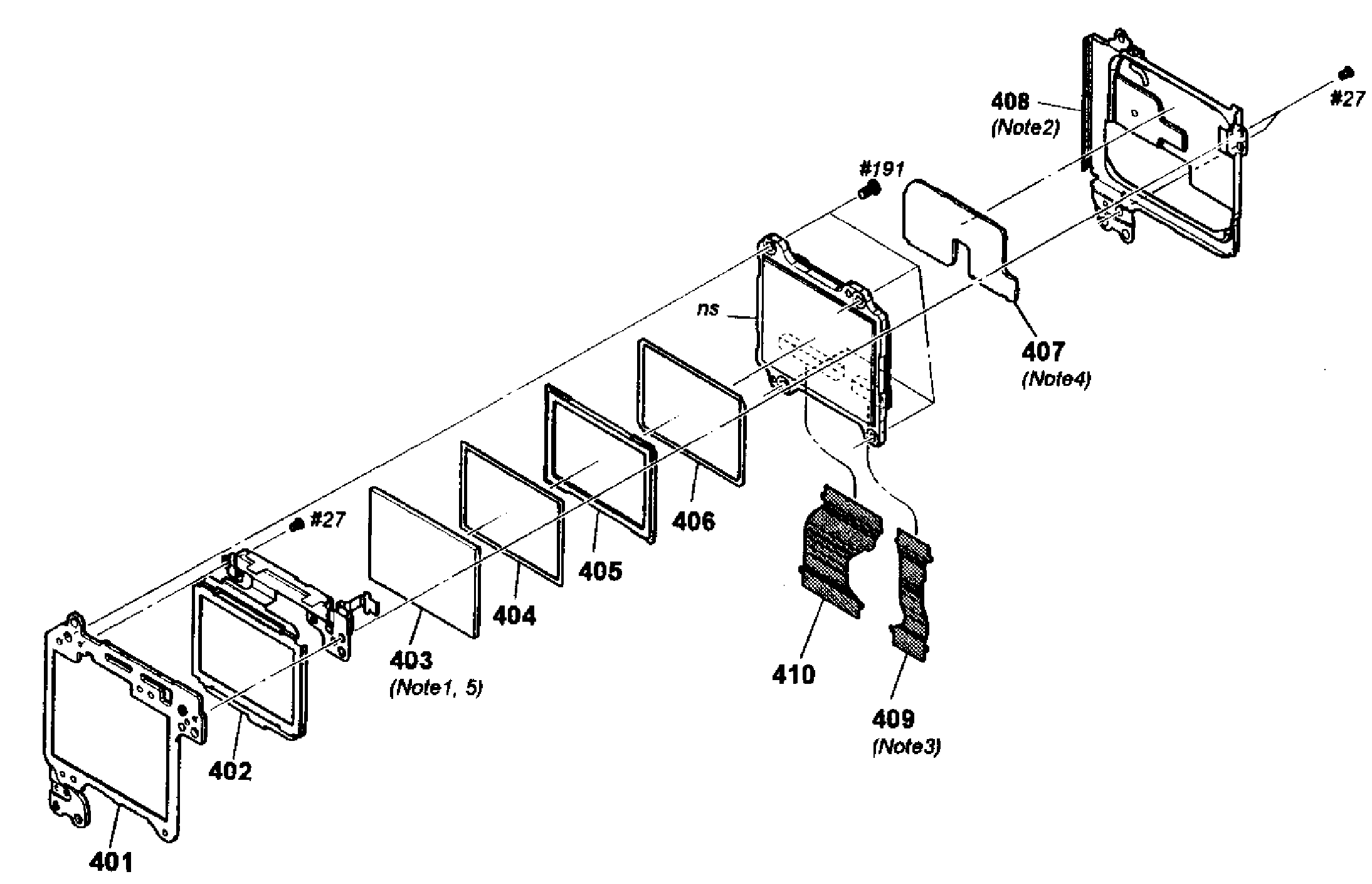

Imager unit diagram

Imager,pla

Part #418599601

$37.50
In Stock
Insulation Sheet 418656901
Insulation sheet

Part #418656901

This item is not returnable
$2.16
In Stock
Insulation Sheet 418657301
#106

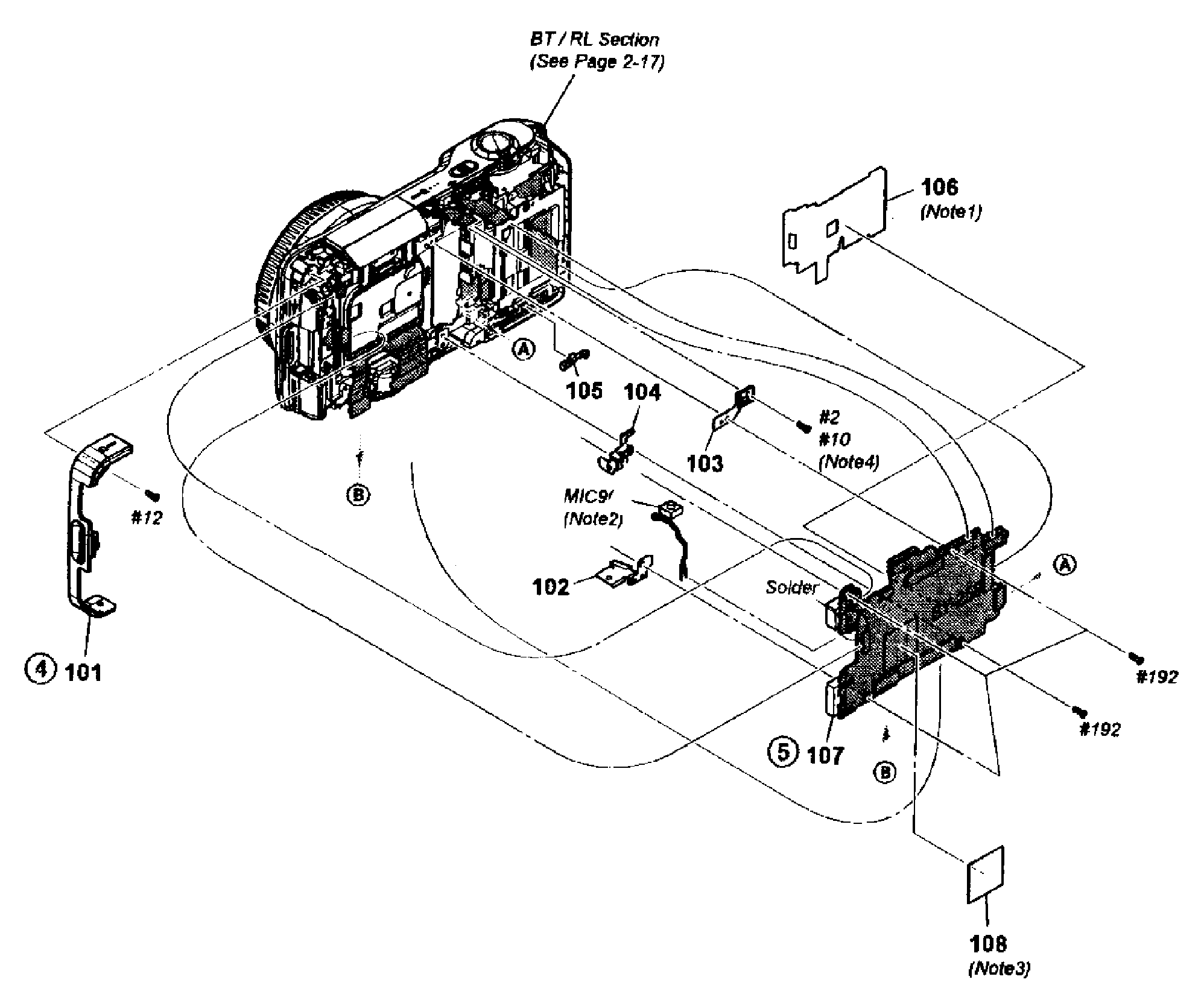

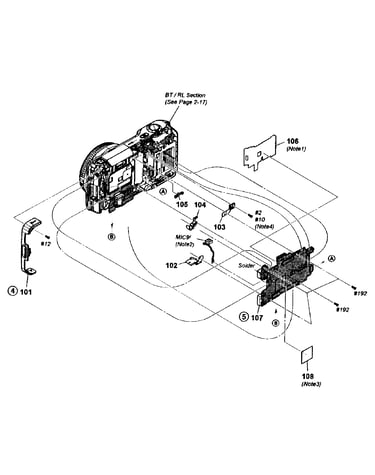

Main board diagram

Insulation sheet

Part #418657301

This item is not returnable
$3.54
In Stock
Battery Ch 148790721
#NI

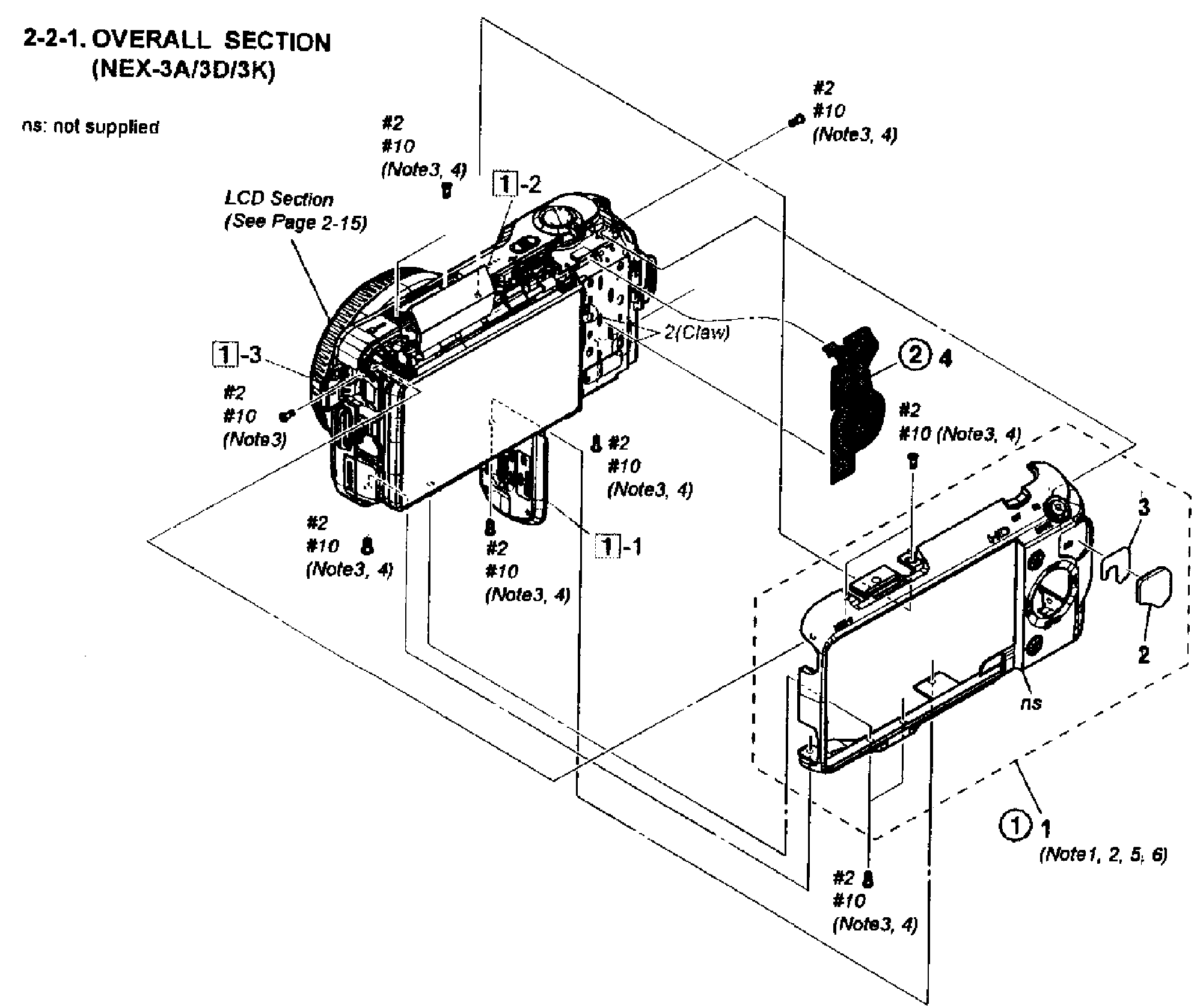

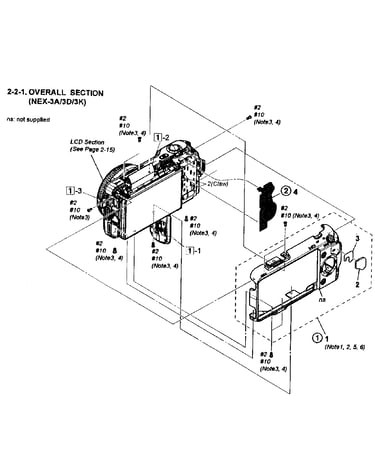

Overall view diagram

Battery ch

Part #148790721

$112.95
In Stock
Button L-l 418653401
#255

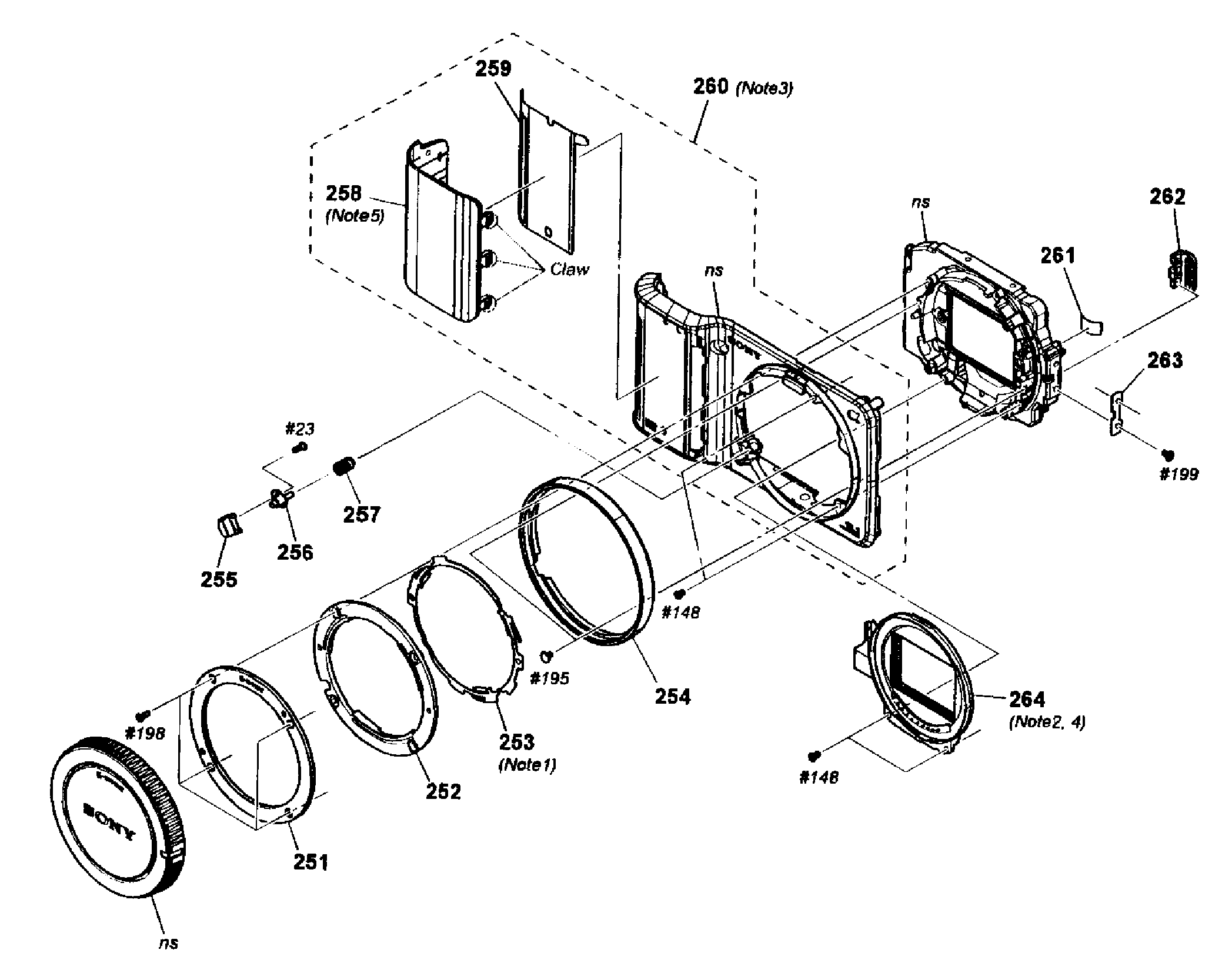

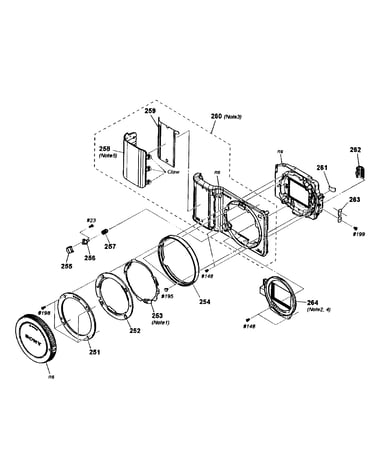

Fr cabinet diagram

Button l-l

Part #418653401

This item is not returnable
$2.16
In Stock
Sheet 418657101
#305

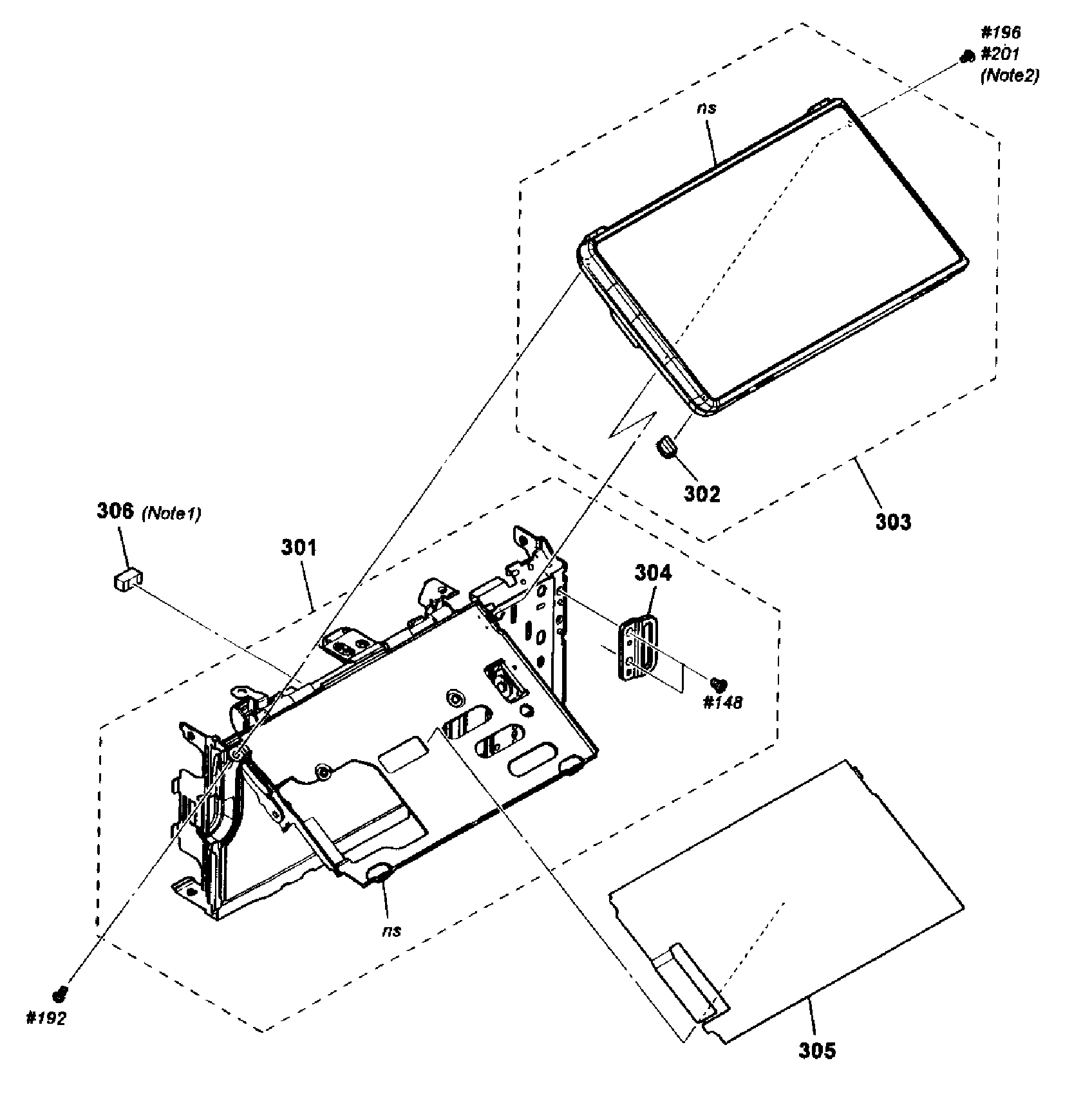

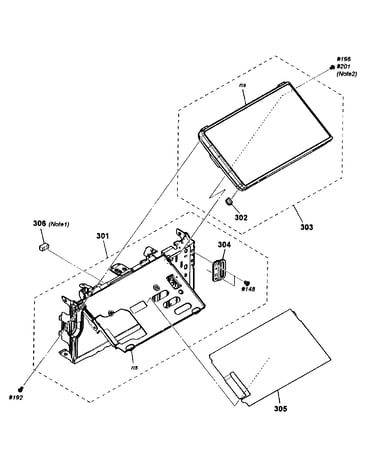

Main frame diagram

Sheet

Part #418657101

This item is not returnable
$2.65
In Stock
Holder,bla X25482751
#351

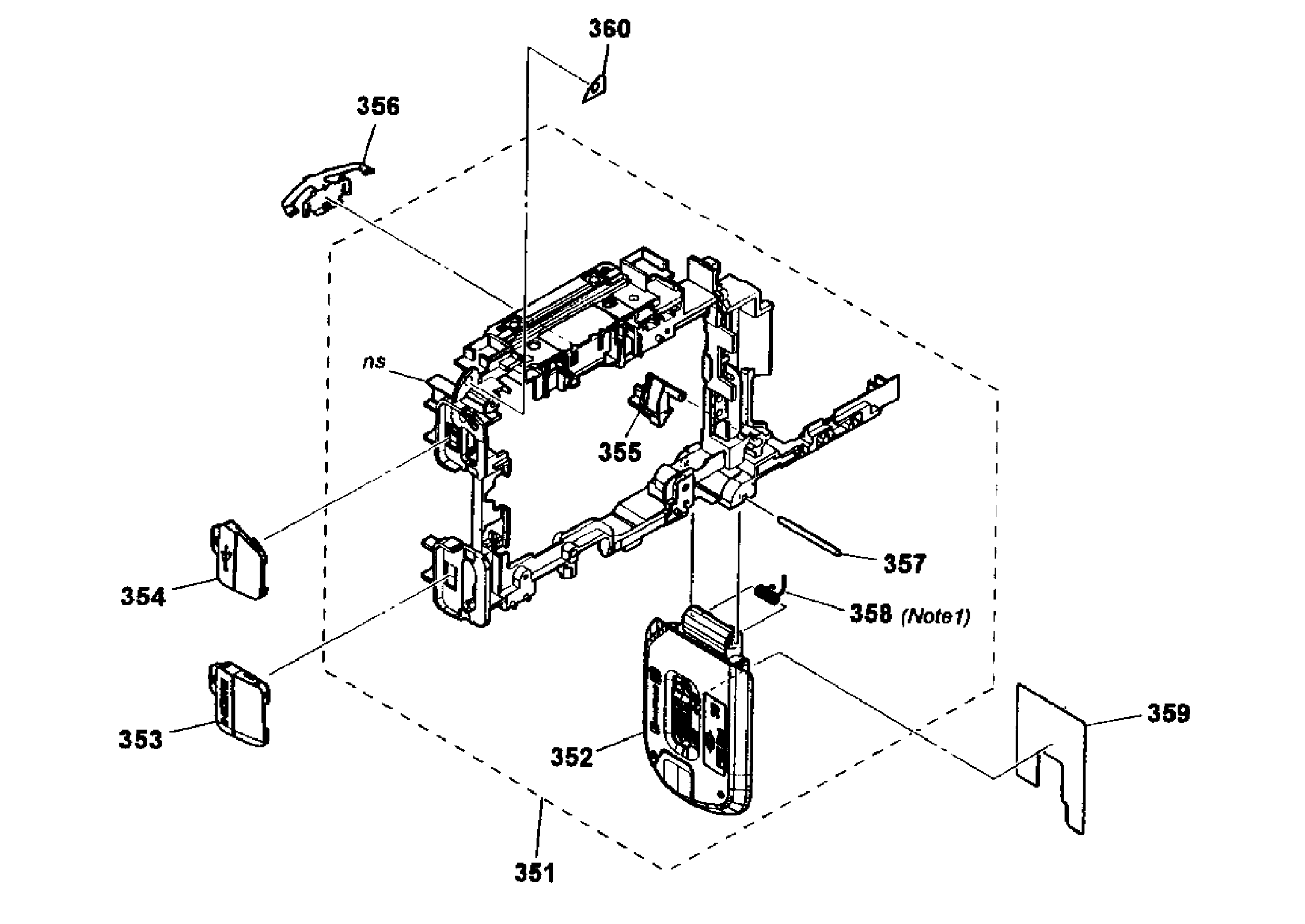

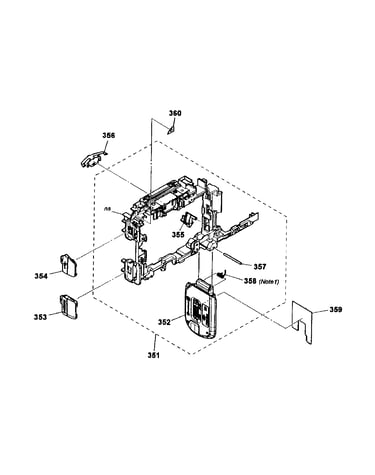

Sy holder diagram

Holder,bla

Part #X25482751

$22.86
In Stock
Plate A1773805A
#402

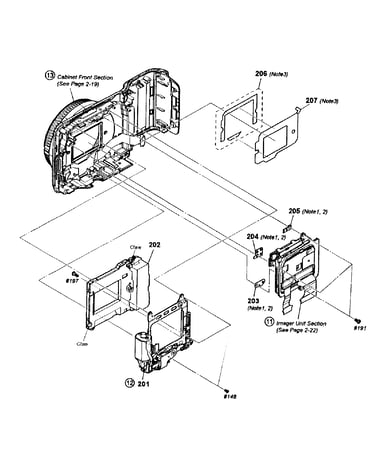

Imager unit diagram

Plate

Part #A1773805A

$38.40
In Stock
Fp-1237 Pc A1773793A
#56

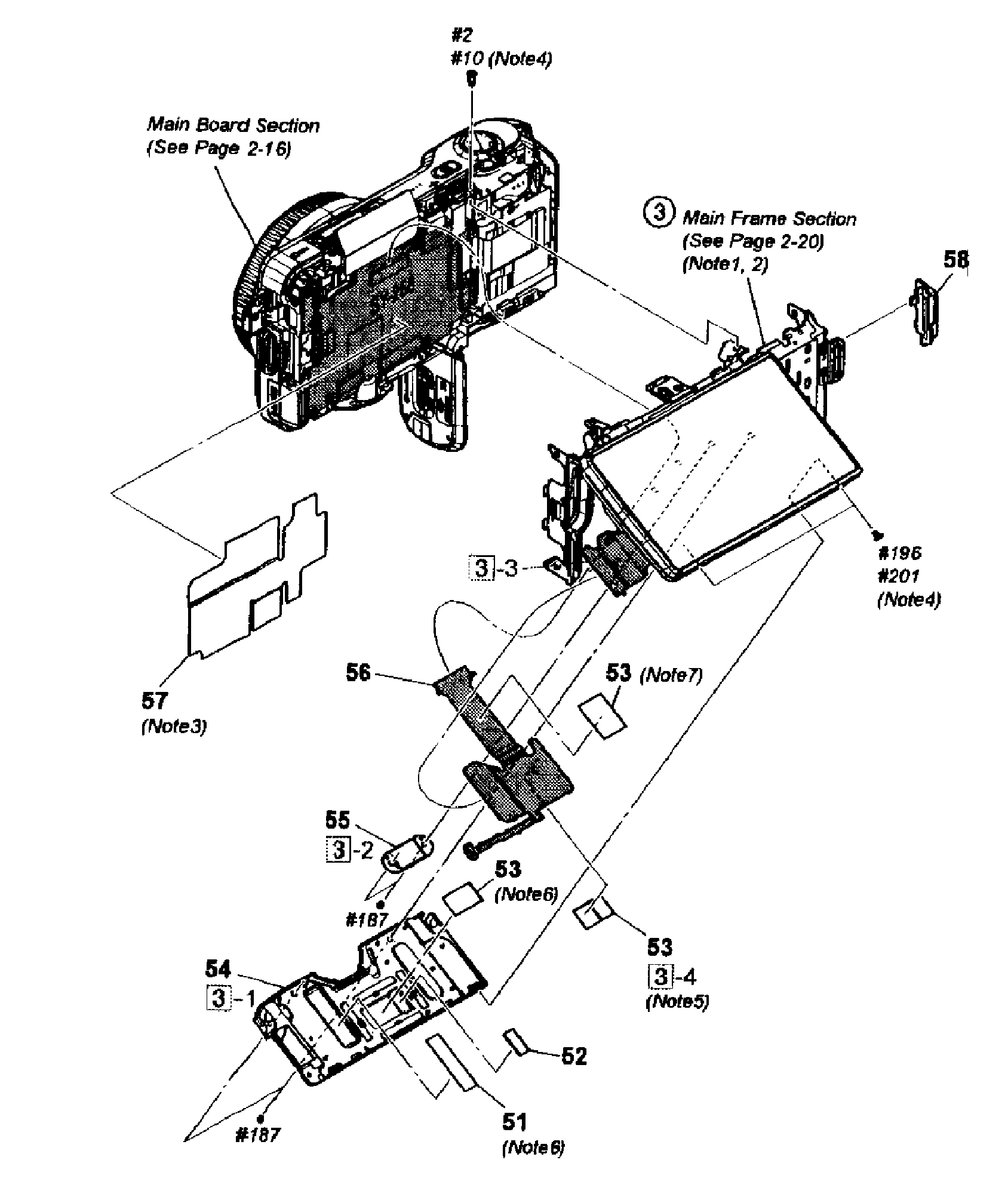

Lcd section diagram

Fp-1237 pc

Part #A1773793A

$33.13
In Stock
Insulation Sheet 418657202
#57

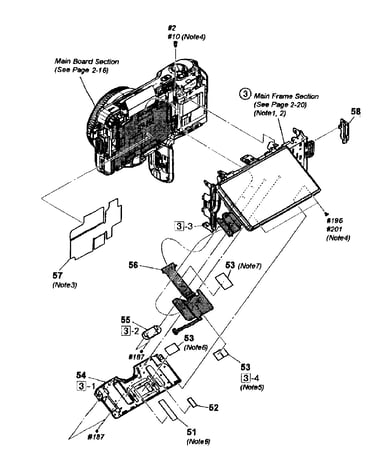

Lcd section diagram

Insulation sheet

Part #418657202

This item is not returnable
$4.80
In Stock
