Central Air Conditioner

Model # 38EZG042 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38EZG042 SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
38EZG042 SERIES300 Condensing Unit
Contactor HN51KB024
#27

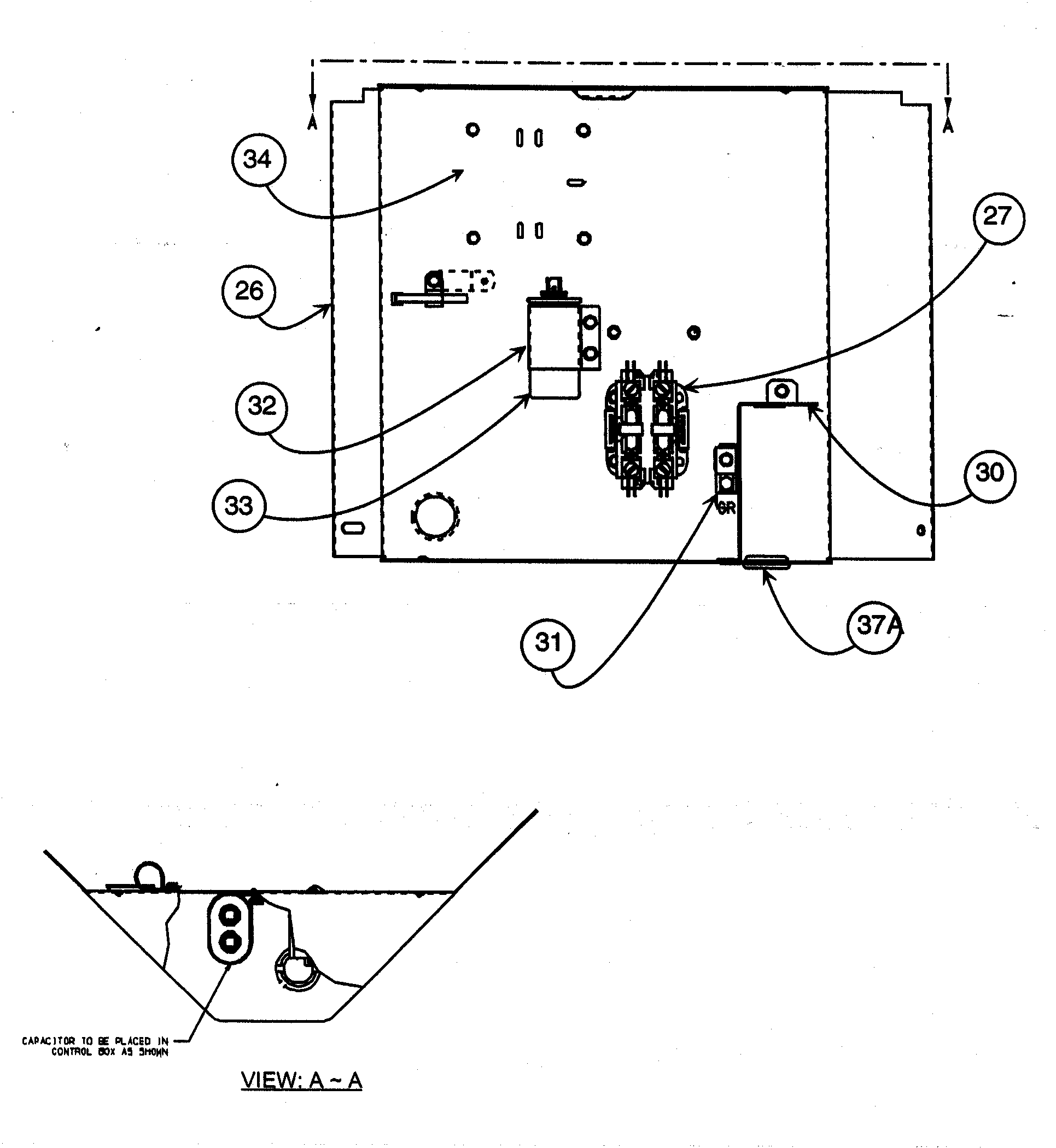

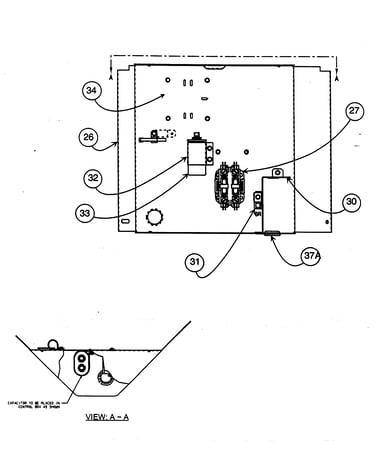

Control box diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61
18% OFF Phone Price : $32.61
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#NI

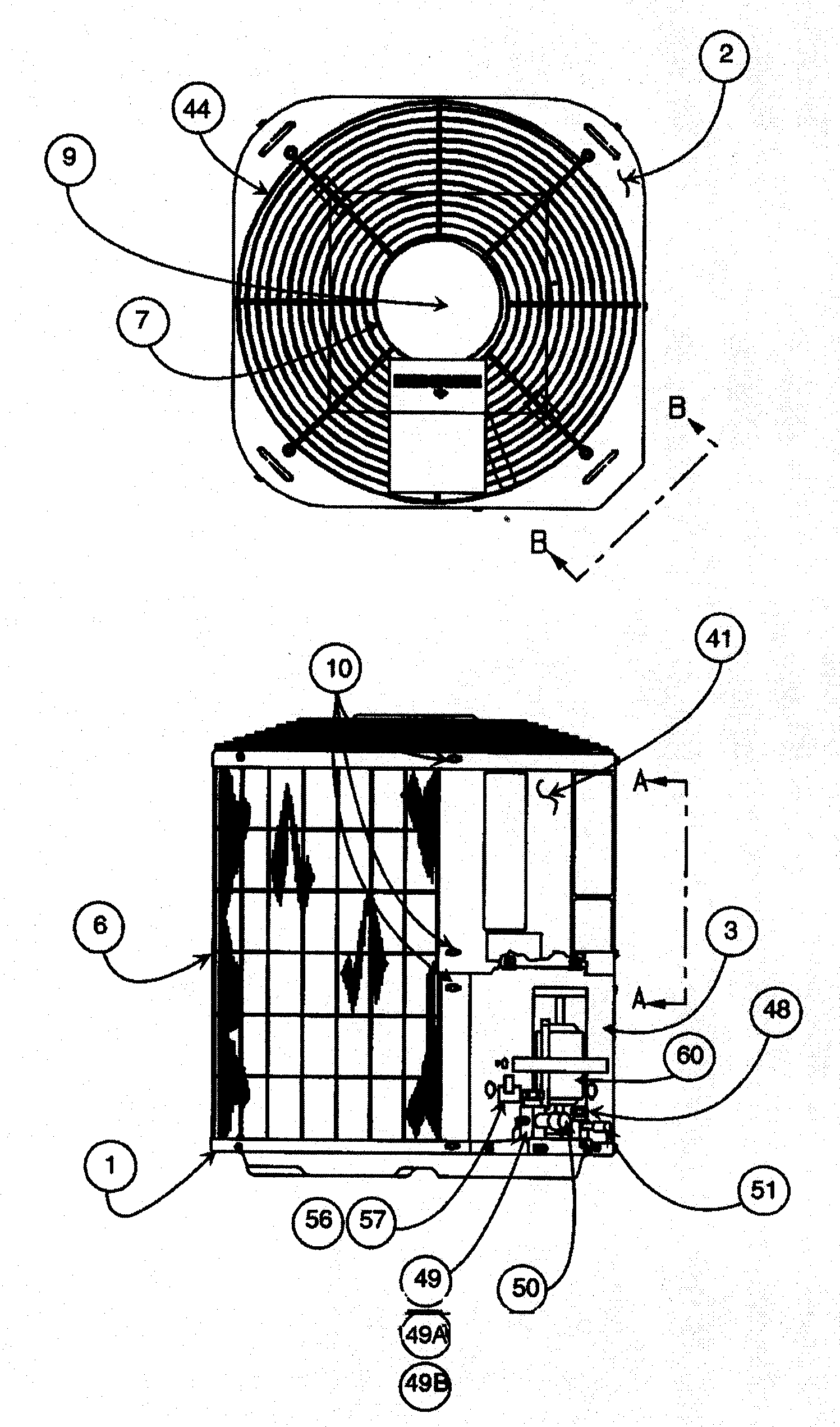

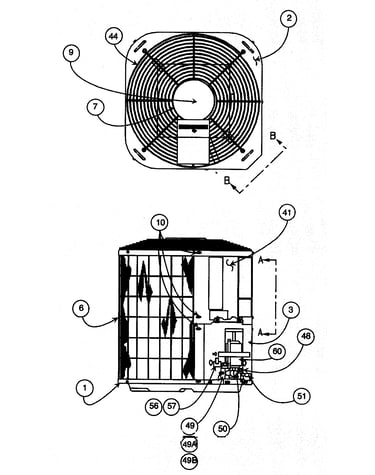

Outlet grille/service panel diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc376e210a) HC37GE210
#43

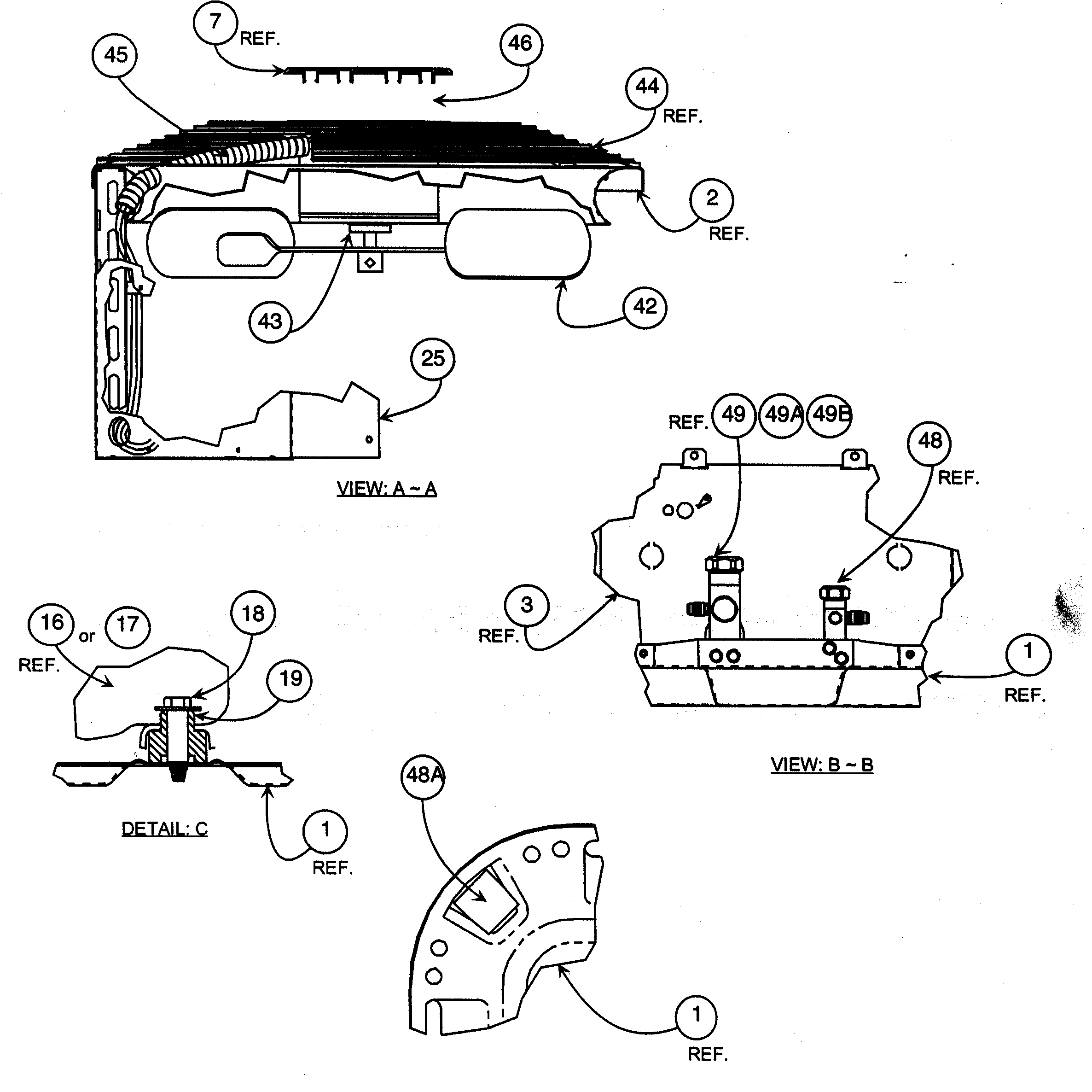

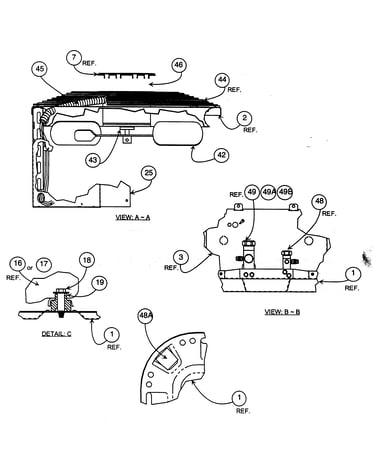

Inlet grille diagram

Central air conditioner condenser fan motor (replaces hc376e210a)

Part #HC37GE210

In Stock
Fan Guard 323745-401
#44

Outlet grille/service panel diagram

Fan guard

Part #323745-401

Replaced by #323745-412

?
Manufacturer substitution
This part replaces 323745-401. Substitute parts can look different from the original.
$245.56
5% OFF Phone Price : $257.56
In Stock
Grommet KA56TR057
#19

Inlet grille diagram

Grommet

Part #KA56TR057

This item is not returnable
In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC
#NI

Outlet grille/service panel diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

In Stock
Valve Serv 325610-401
Valve serv

Part #325610-401

In Stock
Grommet KA56GR140
#37A

Control box diagram

Grommet

Part #KA56GR140

This item is not returnable
In Stock
Heater P041-4443
#NI

Outlet grille/service panel diagram

Heater

Part #P041-4443

In Stock
Central Air Conditioner Condenser Fan Motor HC38GE231
#NI

Outlet grille/service panel diagram

Central air conditioner condenser fan motor

Part #HC38GE231

In Stock
