Kenmore
Gas Cooktop

Model # 79033012990 Official Kenmore gas cooktop

Here are the diagrams and repair parts for Official Kenmore 79033012990 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

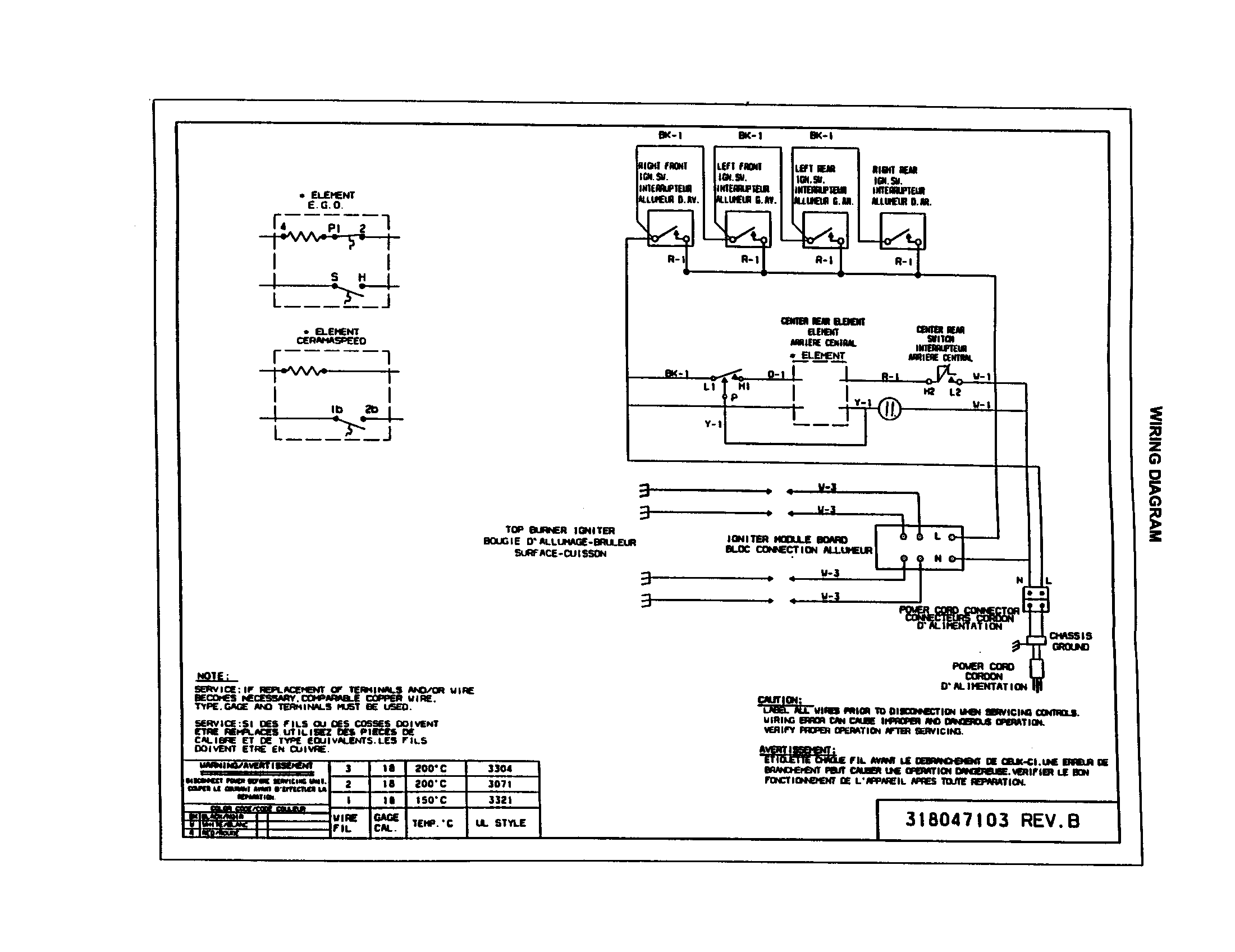

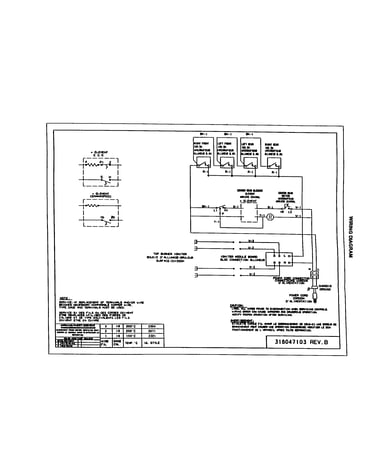

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Warmer Switch 316095500
#54C

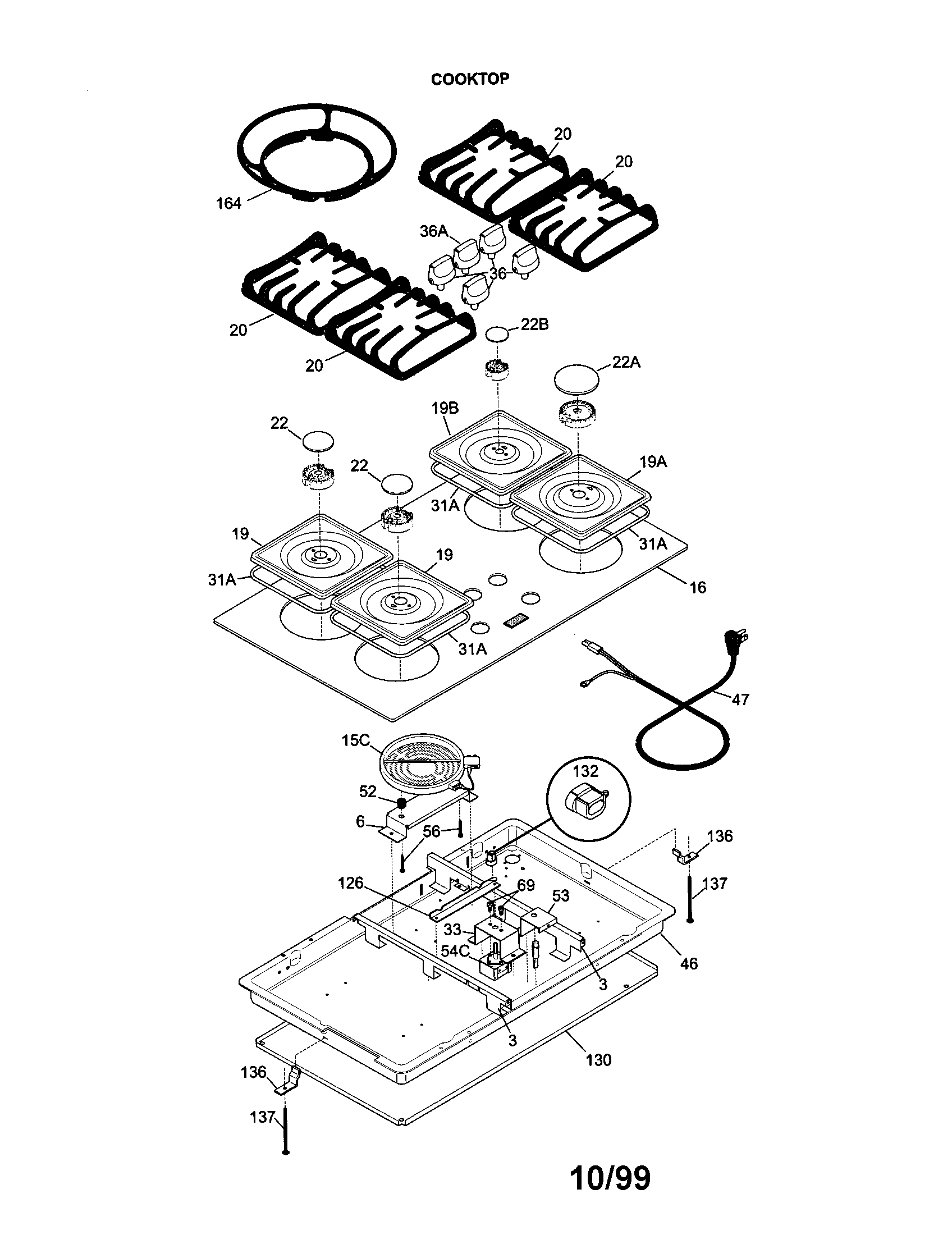

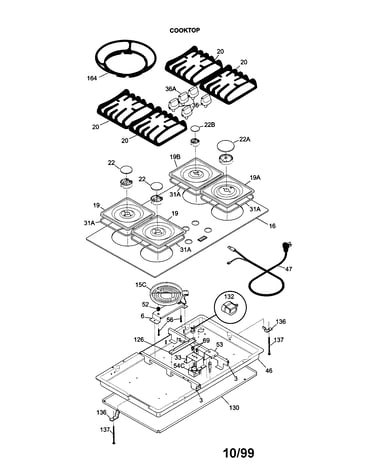

Cooktop diagram

Warmer switch

Part #316095500

Replaced by #5304508926

?
Manufacturer substitution
This part replaces 316095500. Substitute parts can look different from the original.
$75.39
7% OFF Phone Price : $81.39
In Stock
Gasket Seal 318053900
#31A

Cooktop diagram

Gasket seal

Part #318053900

Replaced by #318053901

?
Manufacturer substitution
This part replaces 318053900. Substitute parts can look different from the original.
$24.70
20% OFF Phone Price : $30.70
In Stock
Cooktop Burner Igniter Switch 318037700
#3

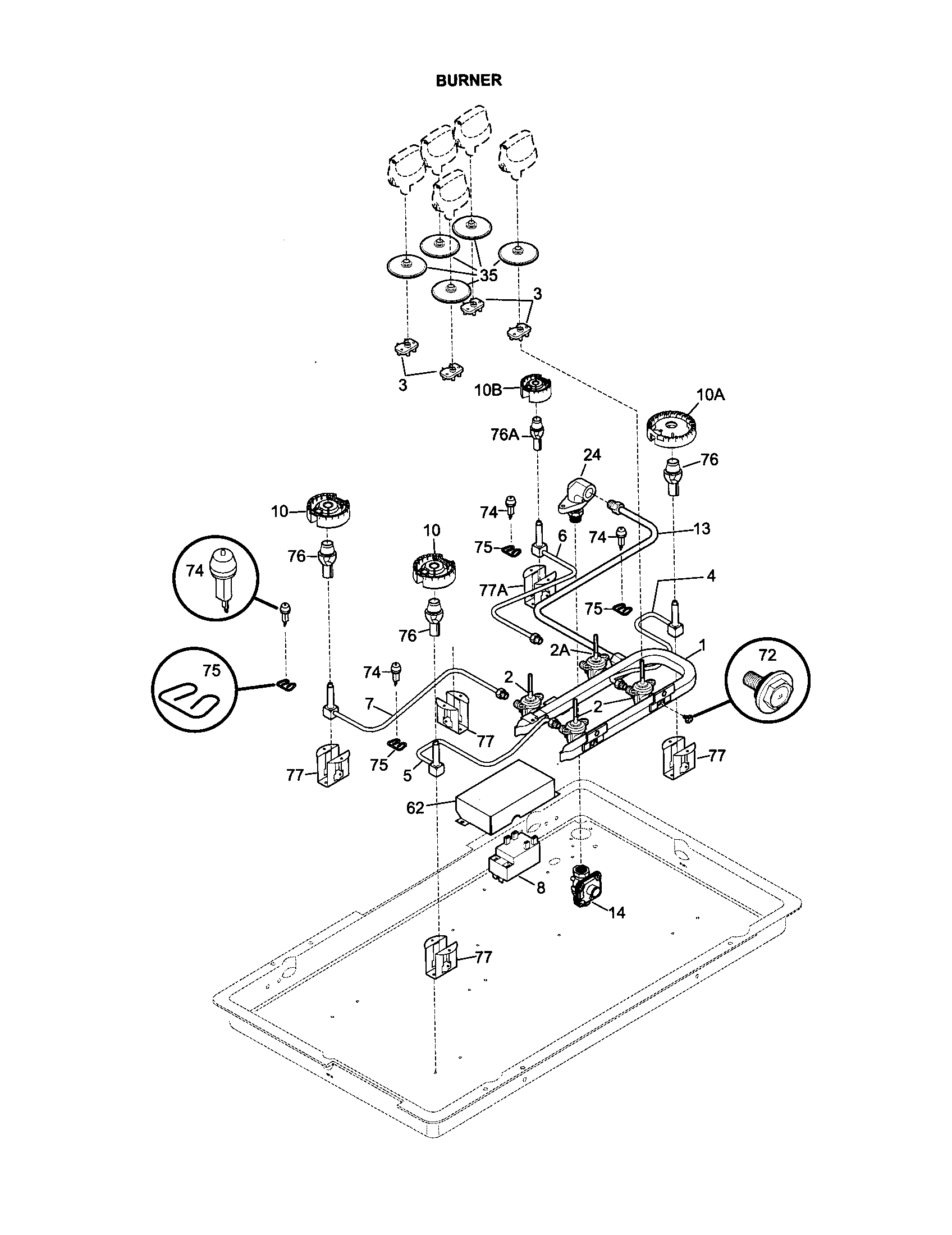

Burner diagram

Cooktop burner igniter switch

Part #318037700

$60.59
9% OFF Phone Price : $66.59
In Stock
Range Drip Pan 318168124
#19AA

Cooktop diagram

Range drip pan

Part #318168124

$122.59
9% OFF Phone Price : $134.59
In Stock
Range Drip Pan 318168114
#19C

Cooktop diagram

Range drip pan

Part #318168114

$117.33
9% OFF Phone Price : $129.33
In Stock
Cooktop Screw, #10-16 X 0.25-in 5304403558

#NI

All parts diagram

Cooktop screw, #10-16 x 0.25-in

Part #5304403558

In Stock
Cooktop Installation Bracket Kit (replaces 5303283686, 5303283687, 5303302432) 5303935029
#136

Cooktop diagram

Cooktop installation bracket kit (replaces 5303283686, 5303283687, 5303302432)

Part #5303935029

$49.83
11% OFF Phone Price : $55.83
In Stock
Cooktop Medium And Large Burner Venturi Nozzle 318167801
#76

Burner diagram

Cooktop medium and large burner venturi nozzle

Part #318167801

$74.99
7% OFF Phone Price : $80.99
In Stock
Burner Tube 318167707
#7

Burner diagram

Burner tube

Part #318167707

In Stock
Range Screw 5303300265

#NI

All parts diagram

Range screw

Part #5303300265

This item is not returnable
In Stock
