Kenmore
Gas Range

Model # 1037166304 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037166304 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Support 86931
#50

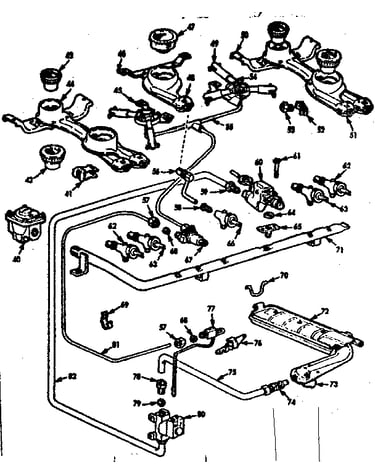

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#113A

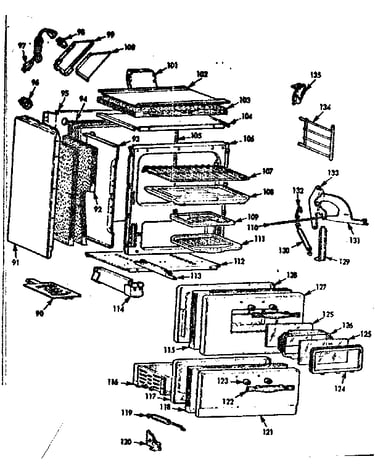

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#58

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Insulation 87576
#94

Body section diagram

Insulation

Part #87576

The manufacturer no longer makes this part, and there's no substitute part

Timer Dial 98561
#16

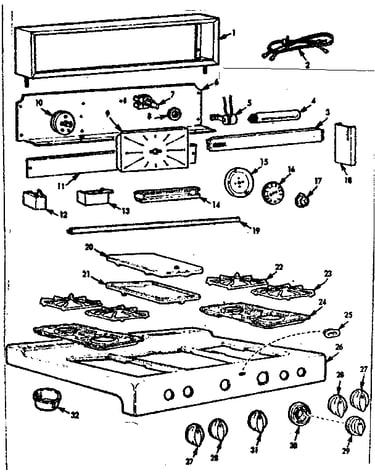

Backguard & maintop section diagram

Timer dial

Part #98561

The manufacturer no longer makes this part, and there's no substitute part

Motor Box 100523
#141

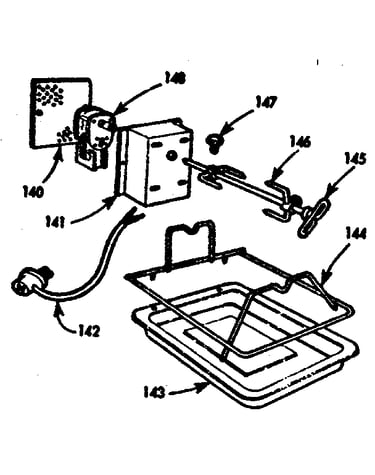

Optional equipment diagram

Motor box

Part #100523

The manufacturer no longer makes this part, and there's no substitute part

Timer Holder 103340
#9

Backguard & maintop section diagram

Timer holder

Part #103340

The manufacturer no longer makes this part, and there's no substitute part

Hanger 70400
#129

Body section diagram

Hanger

Part #70400

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 103784
#2

Backguard & maintop section diagram

Wire harness

Part #103784

The manufacturer no longer makes this part, and there's no substitute part

Reflect End 103517
#18

Backguard & maintop section diagram

Reflect end

Part #103517

The manufacturer no longer makes this part, and there's no substitute part
