Craftsman
Circular Saw

Model # 315271190 Official Craftsman trim saw

Here are the diagrams and repair parts for Official Craftsman 315271190 trim saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

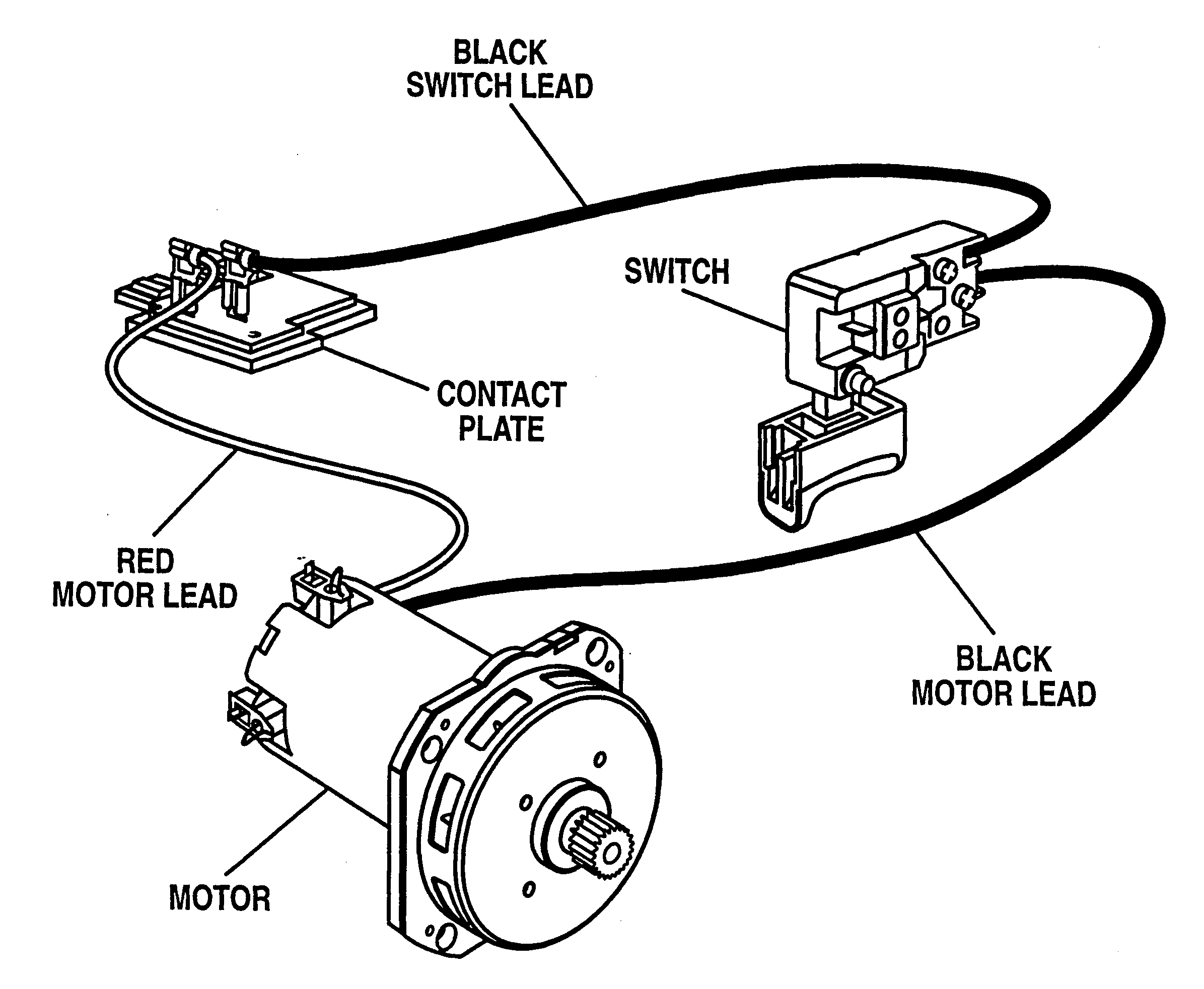

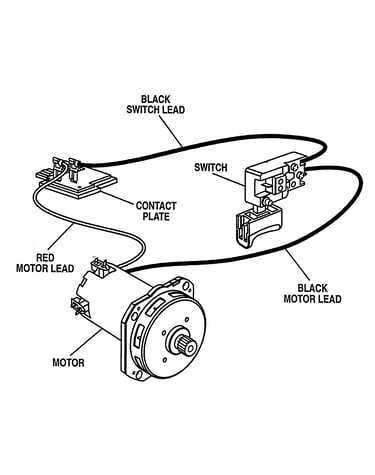

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
End Cap 982195-001
#17

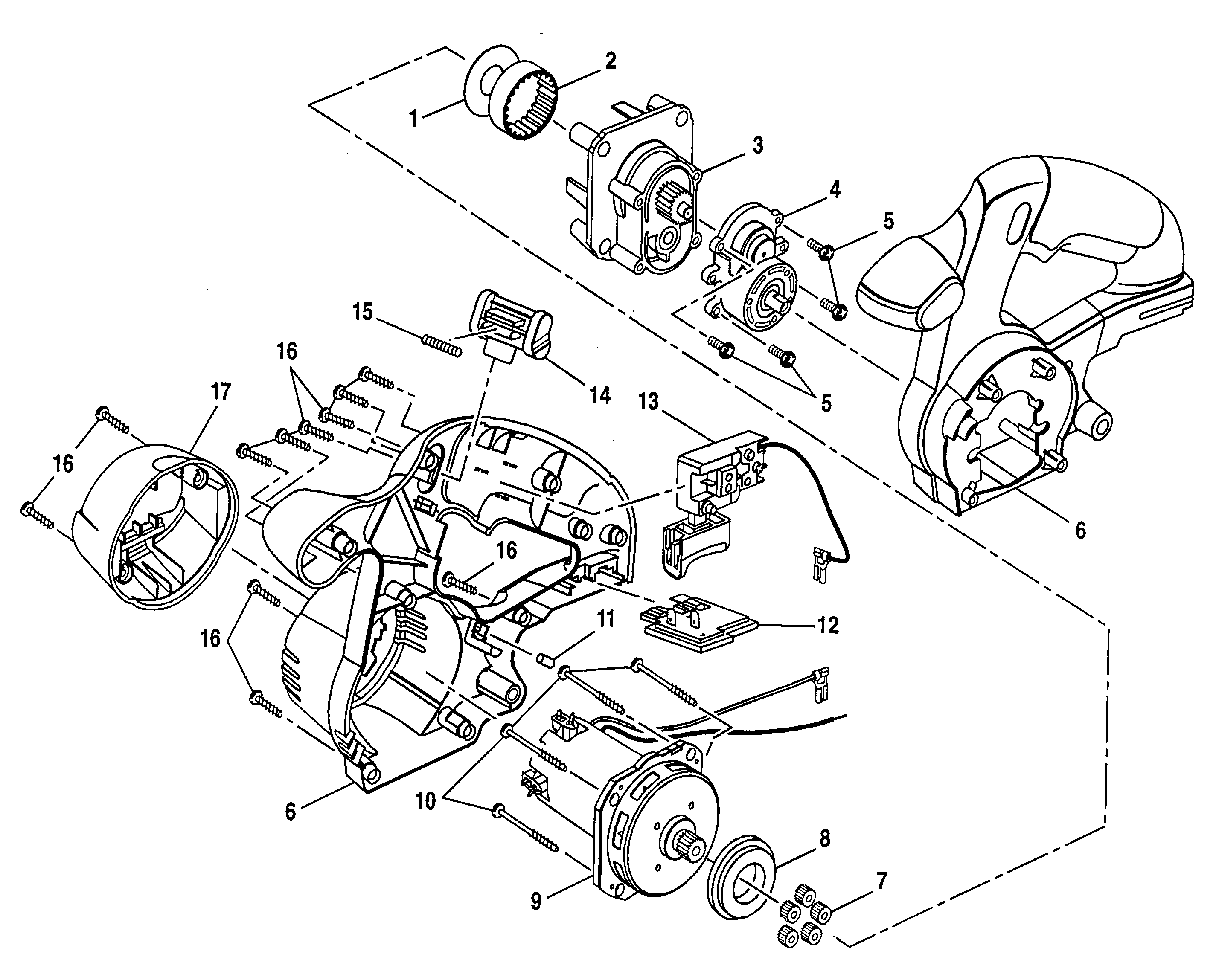

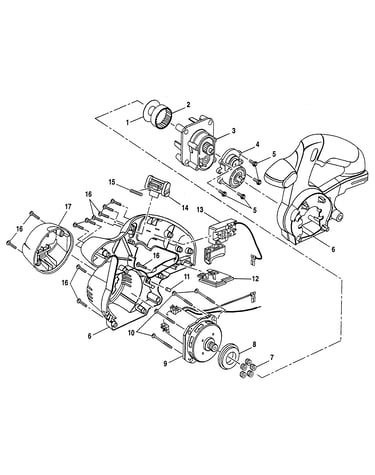

Motor diagram

End cap

Part #982195-001

The manufacturer no longer makes this part, and there's no substitute part

Housing 982180-001
#3

Motor diagram

Housing

Part #982180-001

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Edge Guide 975554-000
#33

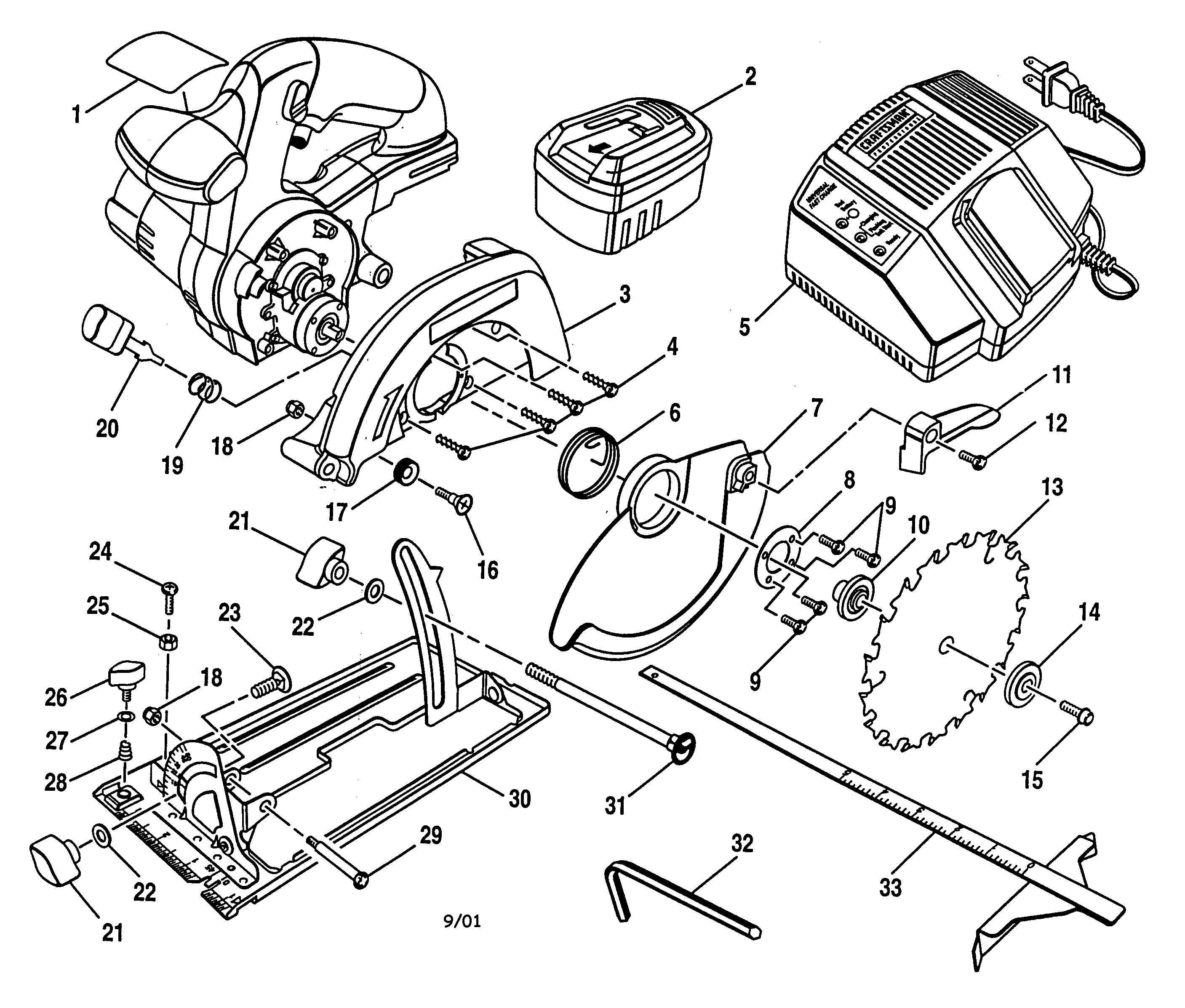

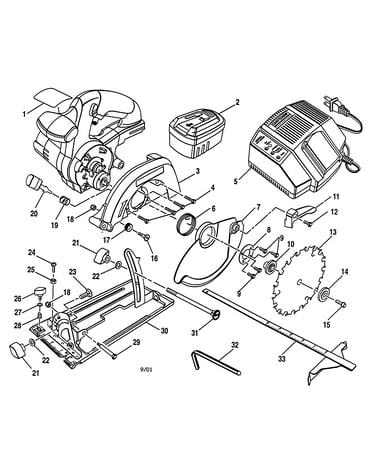

Housing diagram

Circular saw edge guide

Part #975554-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 982426-001
#16

Housing diagram

Screw

Part #982426-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 982194-001
#16

Motor diagram

Screw

Part #982194-001

The manufacturer no longer makes this part, and there's no substitute part

Wrench 975553-000
#32

Housing diagram

Wrench

Part #975553-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 982163-001
#9

Housing diagram

Screw

Part #982163-001

The manufacturer no longer makes this part, and there's no substitute part

Guard 982161-001
#7

Housing diagram

Guard

Part #982161-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 982167-001
#22

Housing diagram

Washer

Part #982167-001

The manufacturer no longer makes this part, and there's no substitute part

Gear Set 982184-001
#7

Motor diagram

Gear set

Part #982184-001

The manufacturer no longer makes this part, and there's no substitute part
