Model # H248AKA1 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP H248AKA1 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Drier 1064507
#NI

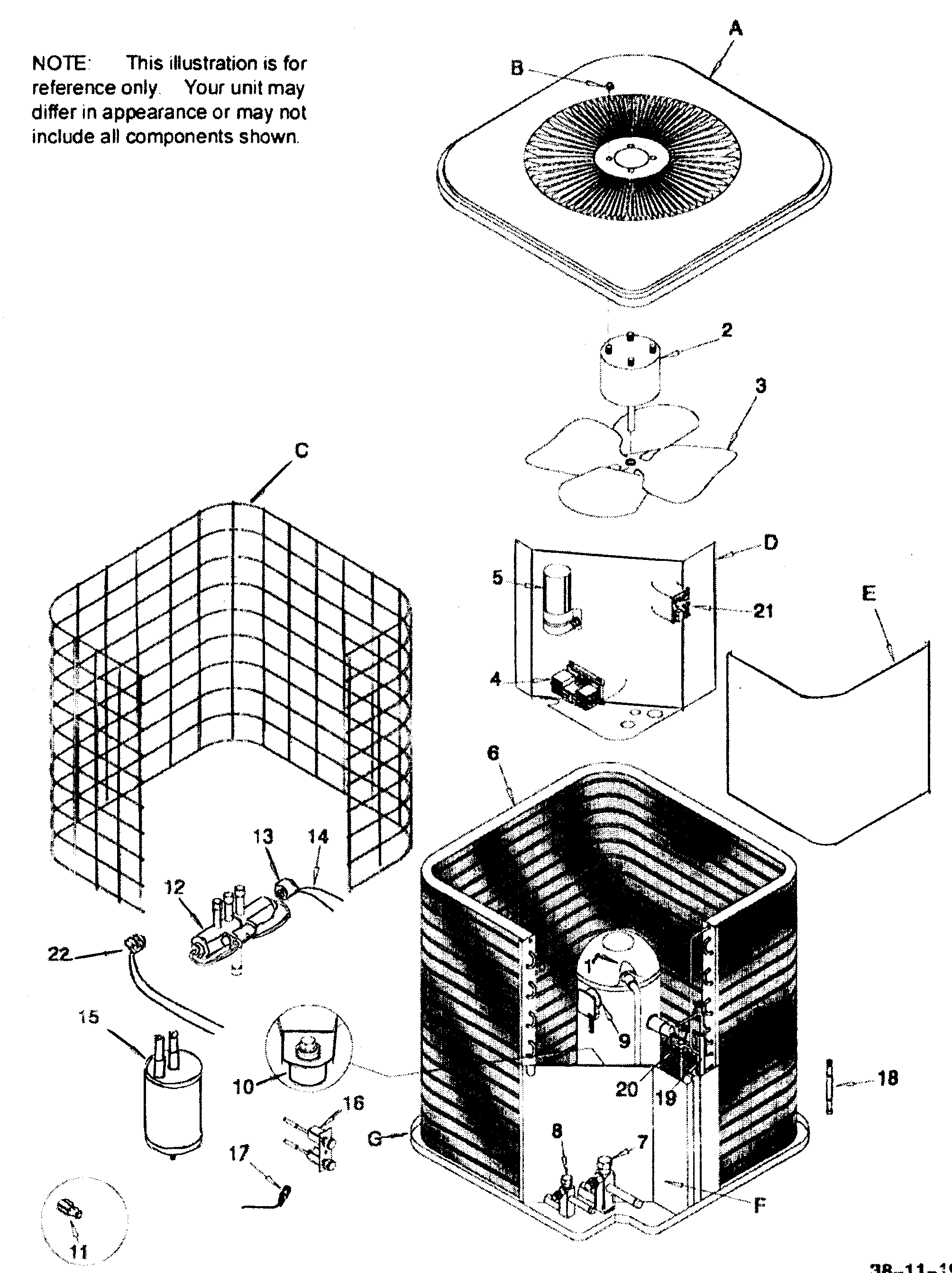

Cabinet parts diagram

Drier

Part #1064507

Replaced by #BFK083S

?
Manufacturer substitution
This part replaces 1064507. Substitute parts can look different from the original.
$82.35 |
7% OFF Phone Price : $88.35
In Stock
Valve 1085988
#7

Cabinet parts diagram

Valve

Part #1085988

$105.86
In Stock
Valve Txv 1087436
#NI

Cabinet parts diagram

Valve txv

Part #1087436

$159.20
In Stock
Valve 1085989
#8

Cabinet parts diagram

Valve

Part #1085989

$73.29
In Stock
Accumulato 1081065
#15

Cabinet parts diagram

Accumulato

Part #1081065

The manufacturer no longer makes this part, and there's no substitute part

Harness Rev 1066711
#14

Cabinet parts diagram

Harness rev

Part #1066711

$101.58
In Stock
Fan Motor 1086696
#2

Cabinet parts diagram

Fan motor

Part #1086696

$337.58
In Stock
Distributor 1052793
#20

Cabinet parts diagram

Distributor

Part #1052793

$12.09
In Stock
Central Air Conditioner Heat Pump Defrost Control Board (replaces Icm304c) 1087562
#21

Cabinet parts diagram

Central air conditioner heat pump defrost control board (replaces icm304c)

Part #1087562

$82.17 |
7% OFF Phone Price : $88.17
In Stock
Plug Wire 1081940
#9

Cabinet parts diagram

Plug wire

Part #1081940

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081940. Substitute parts can look different from the original.
$54.17 |
10% OFF Phone Price : $60.17
In Stock
