Model # CTF17ABCR Official Hotpoint top-mount refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTF17ABCR top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

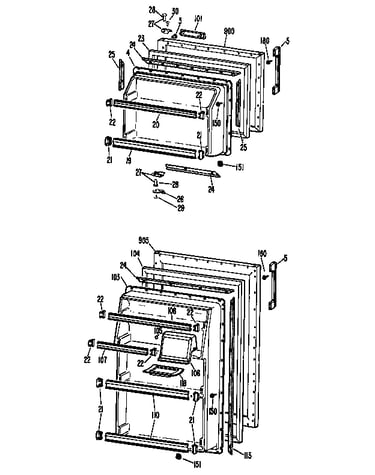

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Grommet Tube WR17X1550
#260

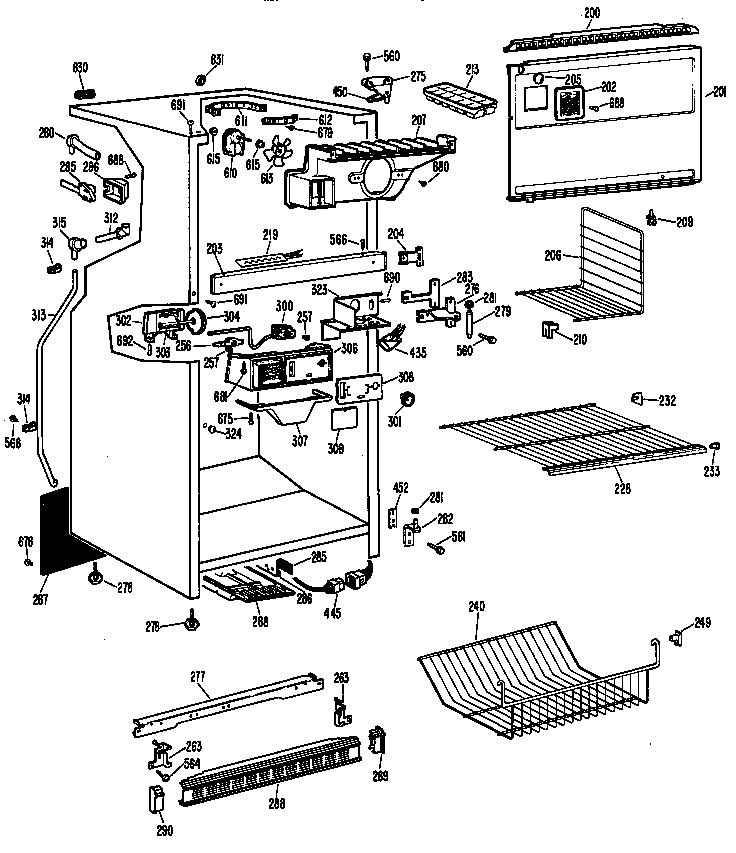

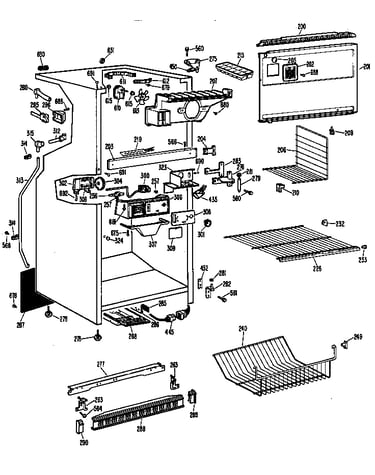

Cabinet and racks diagram

Grommet tube

Part #WR17X1550

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR17X1550. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Light Switch WR23X193
#609

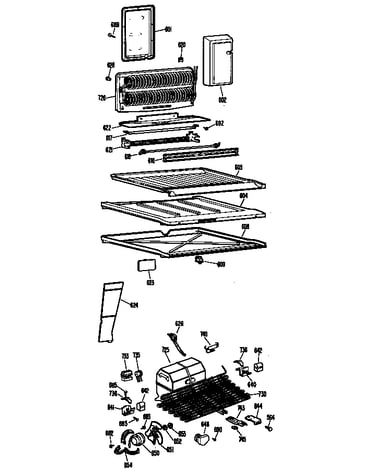

Unit and shelves diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit and shelves diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

Cabinet and racks diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit and shelves diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Cvr Mtg B WR2X7029
#736

Unit and shelves diagram

Cvr mtg b

Part #WR2X7029

This item is not returnable
$2.49
In Stock
Refrigerator Screw WR1X1596
#685

Unit and shelves diagram

Refrigerator screw

Part #WR1X1596

This item is not returnable
$2.49
In Stock
Glide WR2X4978
#278

Cabinet and racks diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Cabinet and racks diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Screw WZ5X246
#689

Unit and shelves diagram

Refrigerator screw

Part #WZ5X246

Replaced by #WZ5X246

?
Manufacturer substitution
This part replaces WZ5X246. Substitute parts can look different from the original.
This item is not returnable
$4.35
In Stock
