Craftsman
Gas Walk-Behind Mower

Model # 917371811 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371811 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Husqvarna Lawn Mower 21-in Deck Mulching Blade (replaces 187183, 33273, 33364, 532159267) 159267
#16

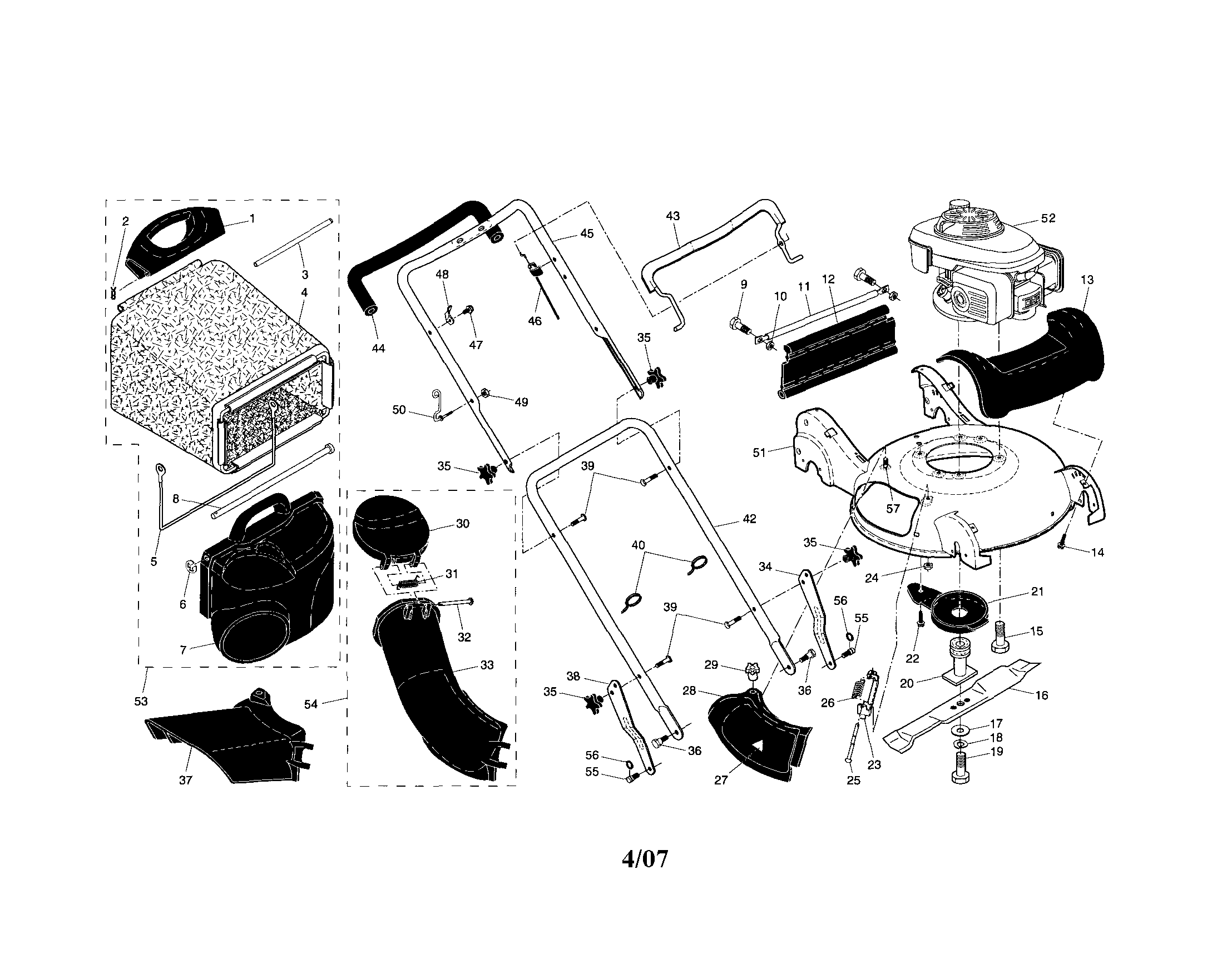

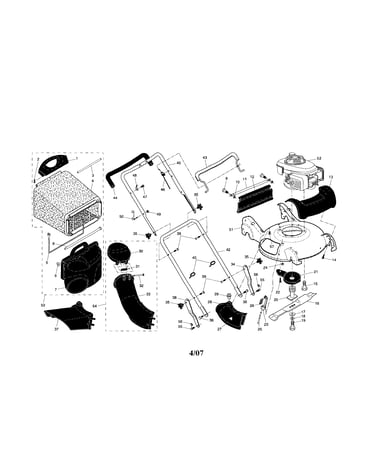

Engine/housing/handle/grassbag diagram

Husqvarna lawn mower 21-in deck mulching blade (replaces 187183, 33273, 33364, 532159267)

Part #159267

BEST SELLER

Get free shipping with Automatic Reorder

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Spring 188291
#36

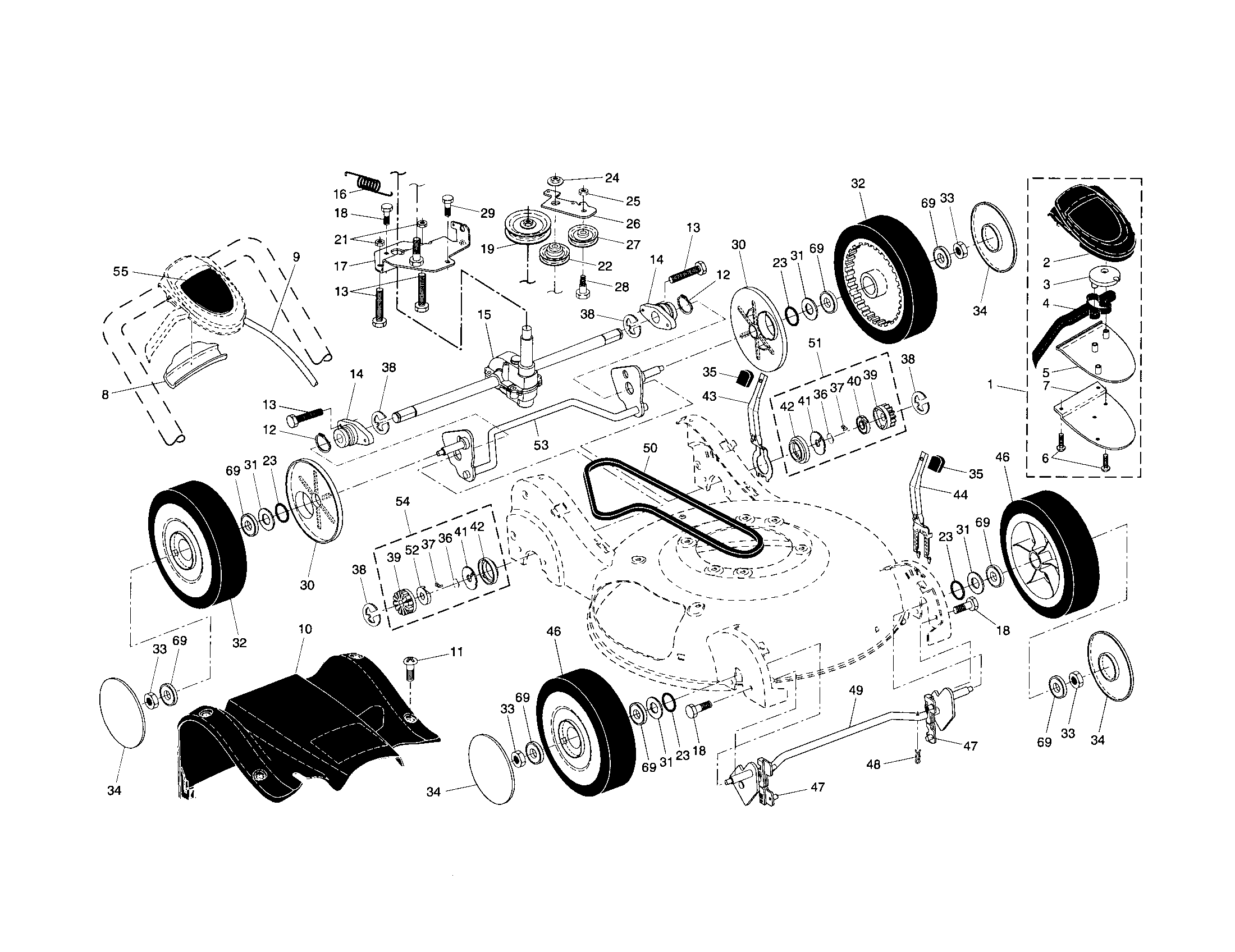

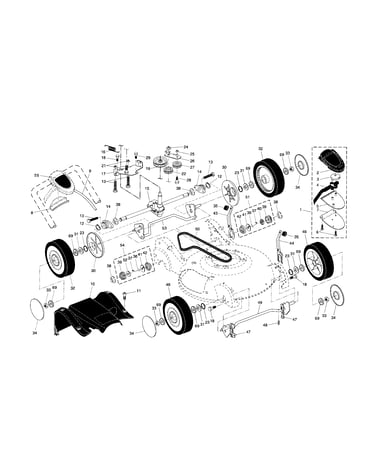

Drive control/gear case/wheels diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#10

Engine/housing/handle/grassbag diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bolt 72140405
#9

Engine/housing/handle/grassbag diagram

Bolt

Part #72140405

Replaced by #872140405

?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Weed Eater Lawn & Garden Equipment Screw, 14-20 X 5/8-in 17060410
#29

Drive control/gear case/wheels diagram

Weed eater lawn & garden equipment screw, 14-20 x 5/8-in

Part #17060410

Replaced by #817060410

?
Manufacturer substitution
This part replaces 17060410. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Drive Pawl (replaces 532175098, 5321750-98) 175098
#37

Drive control/gear case/wheels diagram

Lawn mower drive pawl (replaces 532175098, 5321750-98)

Part #175098

Replaced by #532175098

?
Manufacturer substitution
This part replaces 175098. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower E-ring 12000014
#6

Engine/housing/handle/grassbag diagram

Lawn mower e-ring

Part #12000014

Replaced by #812000014

?
Manufacturer substitution
This part replaces 12000014. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Idler Pulley 166043
#27

Drive control/gear case/wheels diagram

Lawn mower idler pulley

Part #166043

Replaced by #532166043

?
Manufacturer substitution
This part replaces 166043. Substitute parts can look different from the original.
$37.31
In Stock
