Model # WAM751/ZA-ZZ01 Official Samsung audio speakers

Here are the diagrams and repair parts for Official Samsung WAM751-ZA-ZZ01 audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Screw 6003-000276
#14

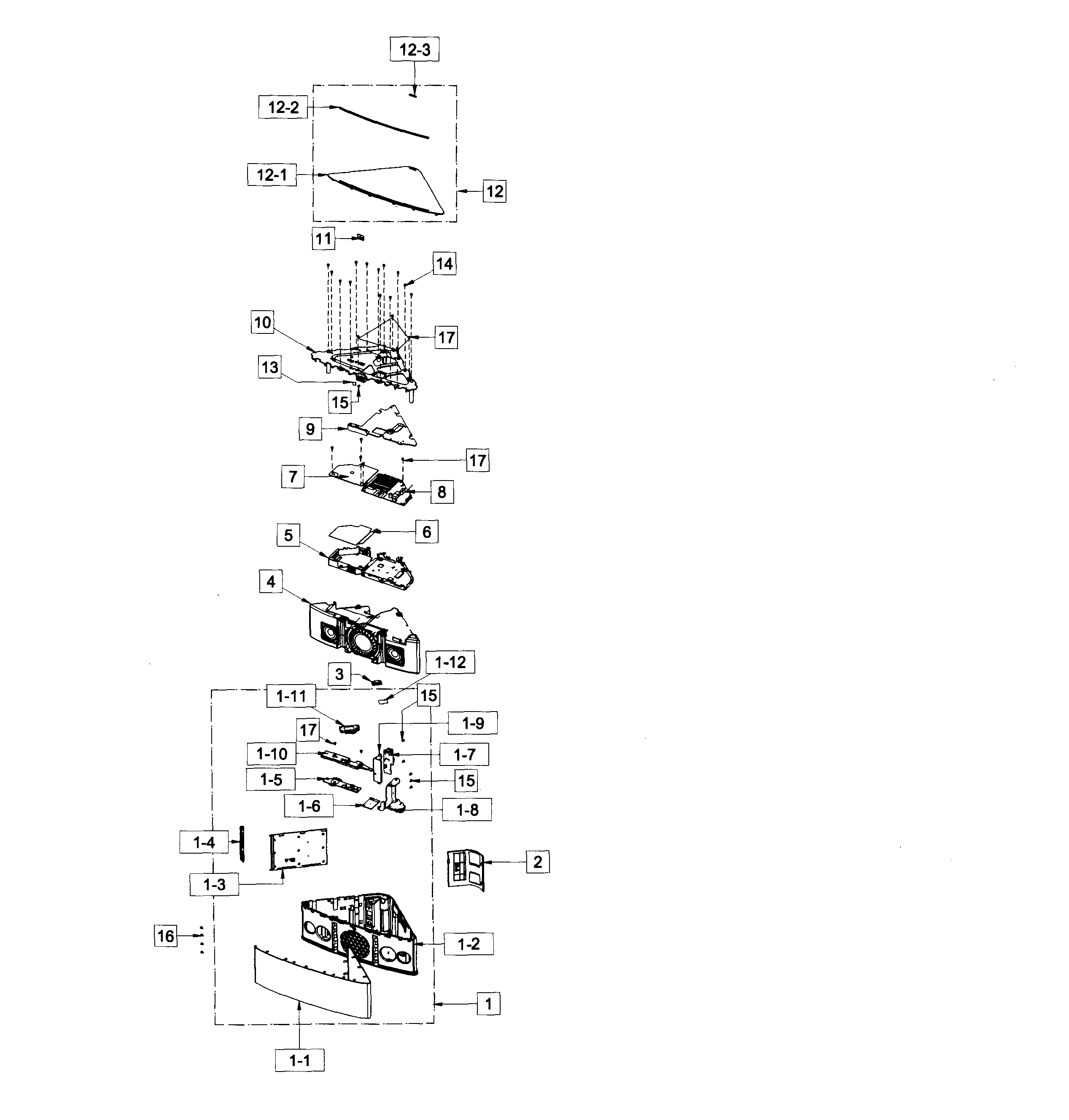

Cabinet parts diagram

Screw

Part #6003-000276

The manufacturer no longer makes this part, and there's no substitute part

Ic-switch 1205-004727
#NI

Cabinet parts diagram

Ic-switch

Part #1205-004727

The manufacturer no longer makes this part, and there's no substitute part

Ic-eeprom 1103-001531
#NI

Cabinet parts diagram

Ic-eeprom

Part #1103-001531

The manufacturer no longer makes this part, and there's no substitute part

Ic,tps5433 1203-007144
#NI

Cabinet parts diagram

Ic,tps5433

Part #1203-007144

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb AH94-03191A
#8

Cabinet parts diagram

Main pcb

Part #AH94-03191A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Blutoo AH96-02298A
#3

Cabinet parts diagram

Pcb blutoo

Part #AH96-02298A

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000598
#NI

Cabinet parts diagram

Television power cord

Part #3903-000598

The manufacturer no longer makes this part, and there's no substitute part

Ic Convert 1203-006455
#NI

Cabinet parts diagram

Ic convert

Part #1203-006455

The manufacturer no longer makes this part, and there's no substitute part

Cover AH63-03406B
#2

Cabinet parts diagram

Cover

Part #AH63-03406B

The manufacturer no longer makes this part, and there's no substitute part

Ic-dc/dc C 1203-007700
#NI

Cabinet parts diagram

Ic-dc/dc c

Part #1203-007700

The manufacturer no longer makes this part, and there's no substitute part
