Dyson
Upright Vacuum

Model # DC26 Official Dyson vacuum

Here are the diagrams and repair parts for Official Dyson DC26 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

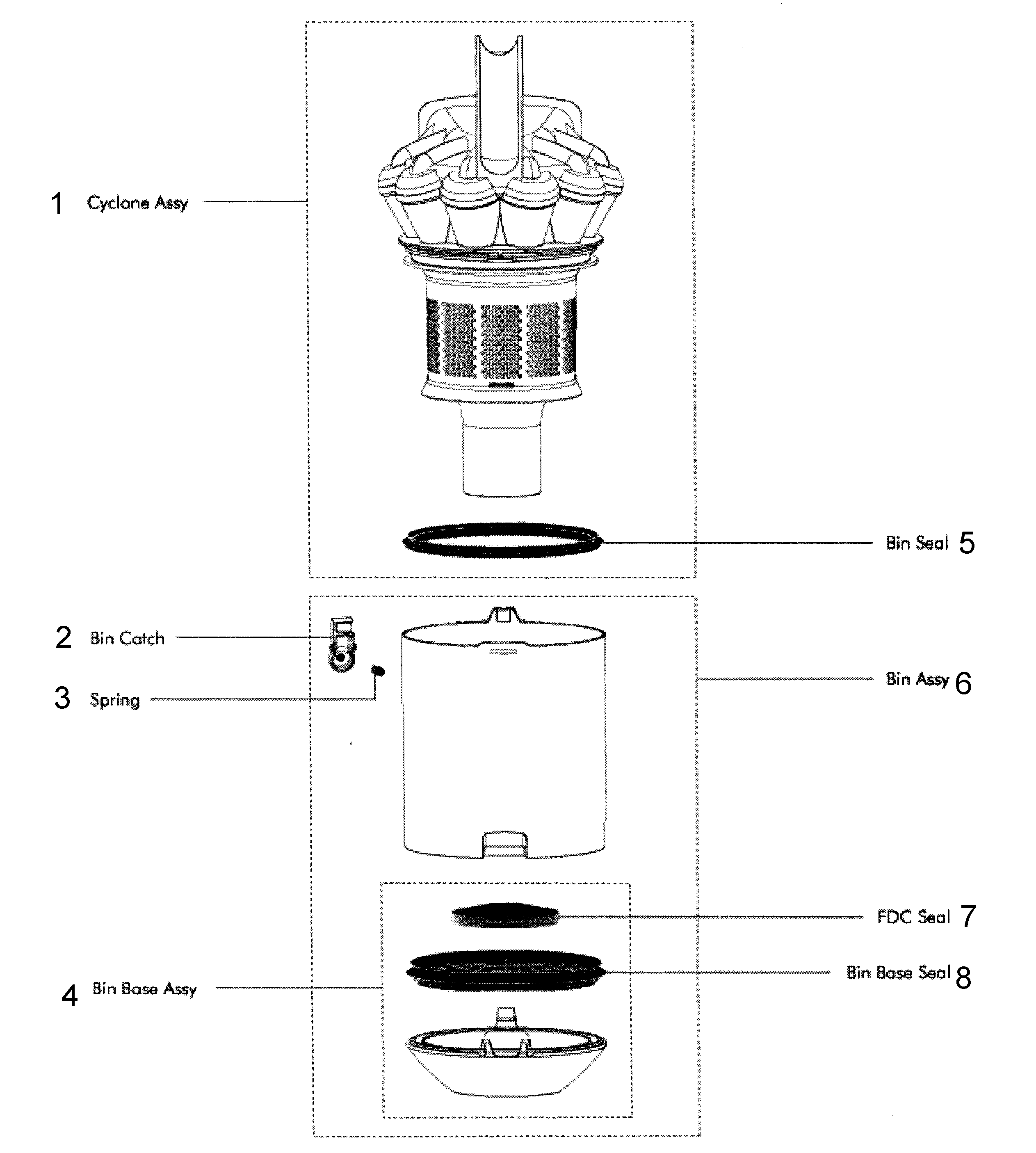

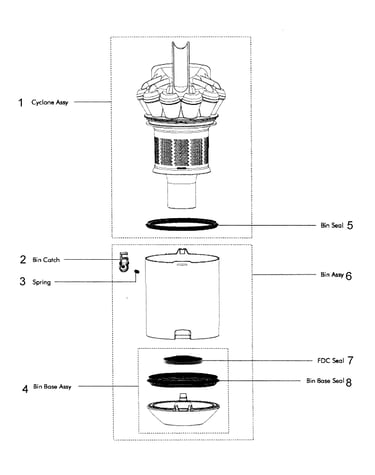

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Axle 914872-01
#20

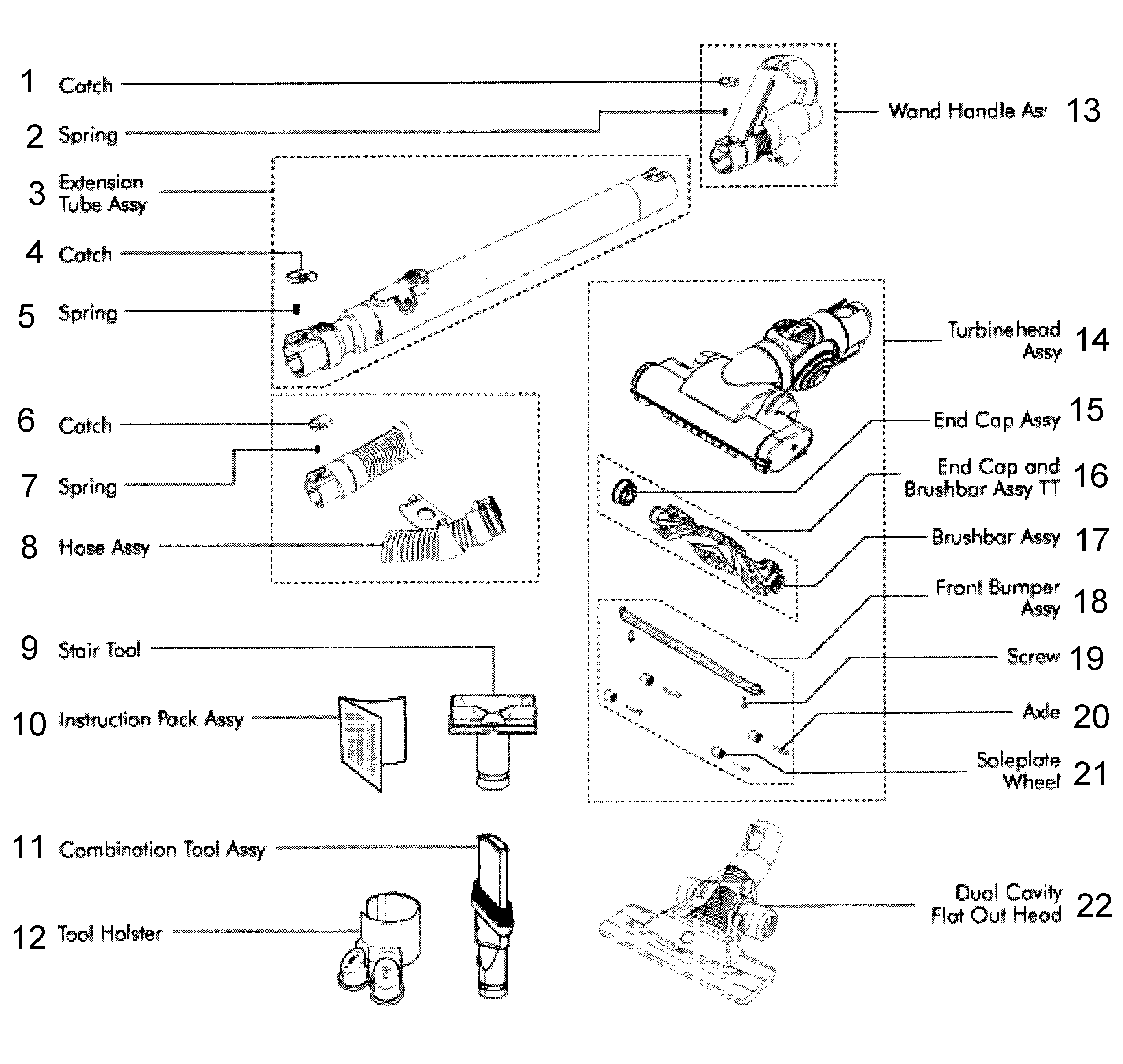

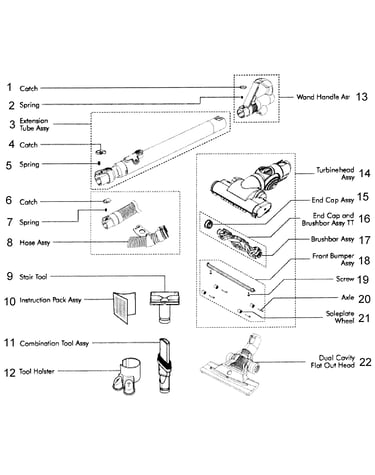

Wand assy diagram

Axle

Part #914872-01

The manufacturer no longer makes this part, and there's no substitute part

Dyson Wheel 915251-01
#34

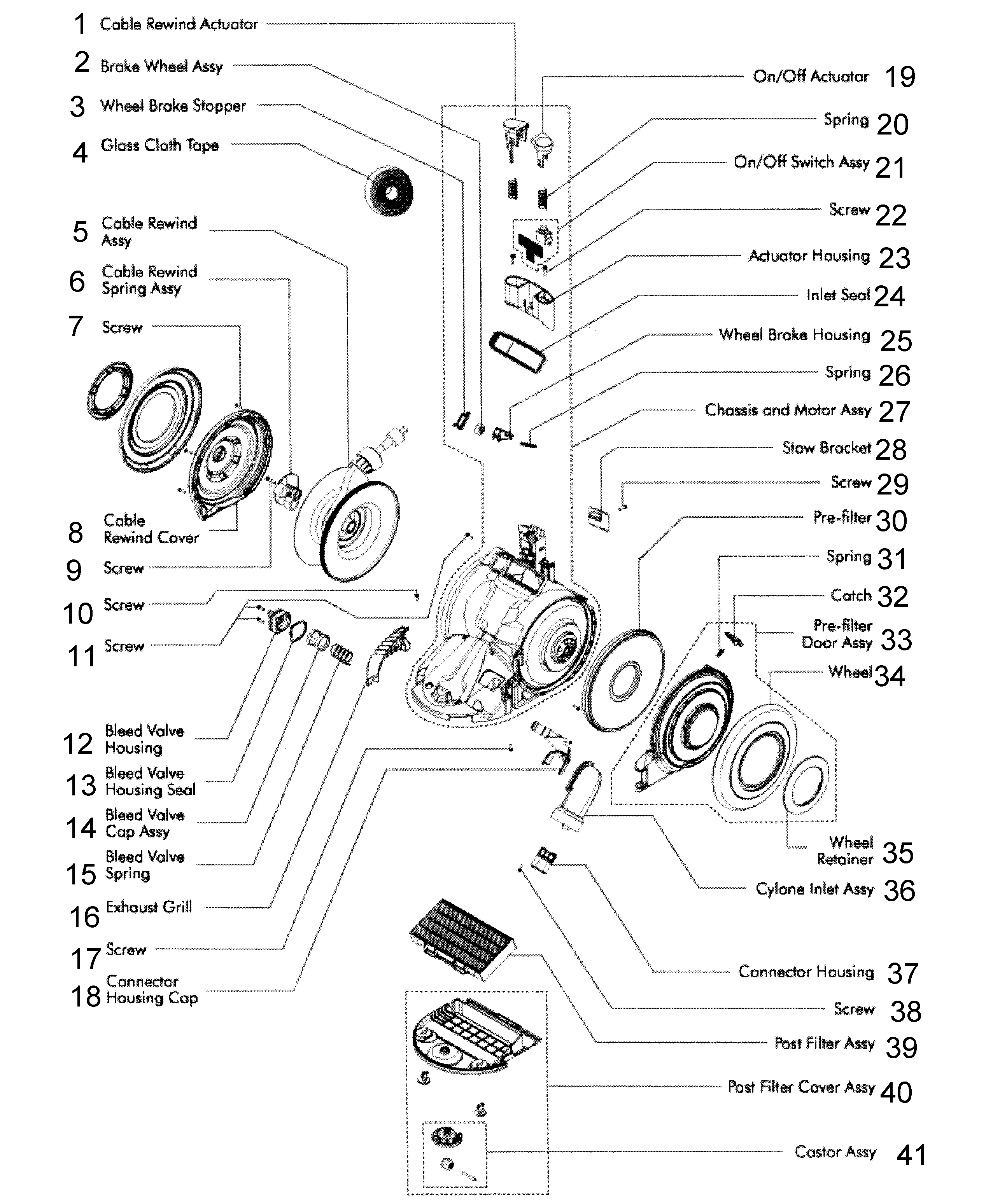

Main body diagram

Dyson wheel

Part #915251-01

The manufacturer no longer makes this part, and there's no substitute part

End Cap 915137-01
#15

Wand assy diagram

End cap

Part #915137-01

The manufacturer no longer makes this part, and there's no substitute part

Dyson Groo 921001-01
#19A

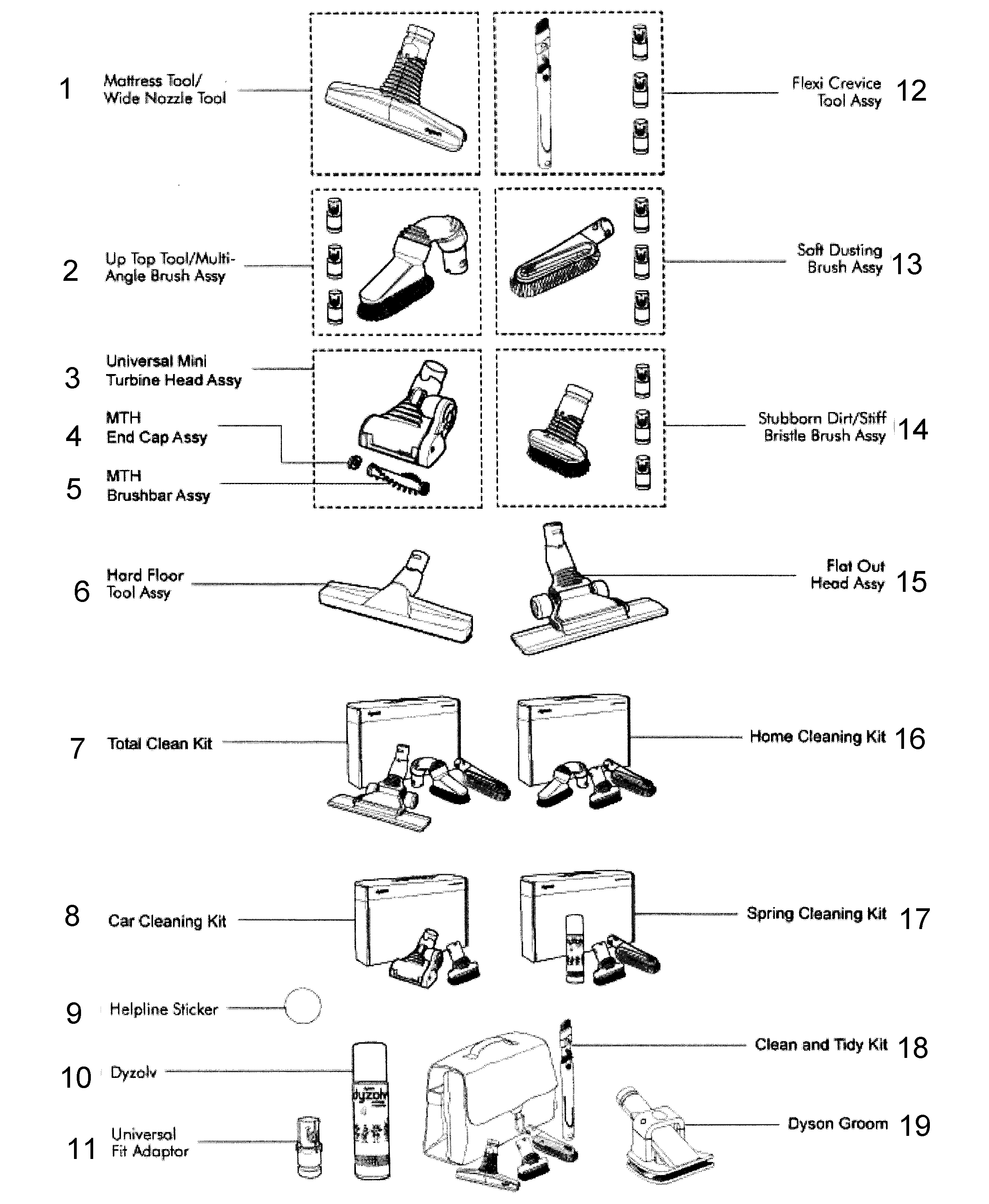

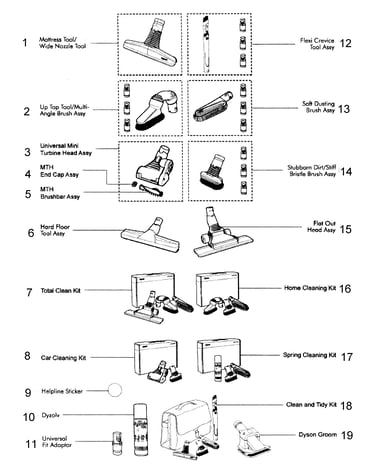

Accessories diagram

Dyson groo

Part #921001-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 910971-01
#21

Main body diagram

Vacuum on/off switch

Part #910971-01

The manufacturer no longer makes this part, and there's no substitute part

Dyson Spring 919900-87
#31

Main body diagram

Dyson spring

Part #919900-87

The manufacturer no longer makes this part, and there's no substitute part

Dyson Fr Bumper 921138-01
#18

Wand assy diagram

Dyson fr bumper

Part #921138-01

The manufacturer no longer makes this part, and there's no substitute part

Brake Wheel 918195-01
#2

Main body diagram

Brake wheel

Part #918195-01

The manufacturer no longer makes this part, and there's no substitute part

Brush 917646-01
#2

Accessories diagram

Brush

Part #917646-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Bar 922341-01
#5

Accessories diagram

Brush bar

Part #922341-01

The manufacturer no longer makes this part, and there's no substitute part
