Model # GNRP48L00 Official GE water softener

Here are the diagrams and repair parts for Official GE GNRP48L00 water softener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Control Assembly WS21X10022
#3

Controls & pump diagram

Control assembly

Part #WS21X10022

$849.99
In Stock
Micro-switch WS21X10023
#27

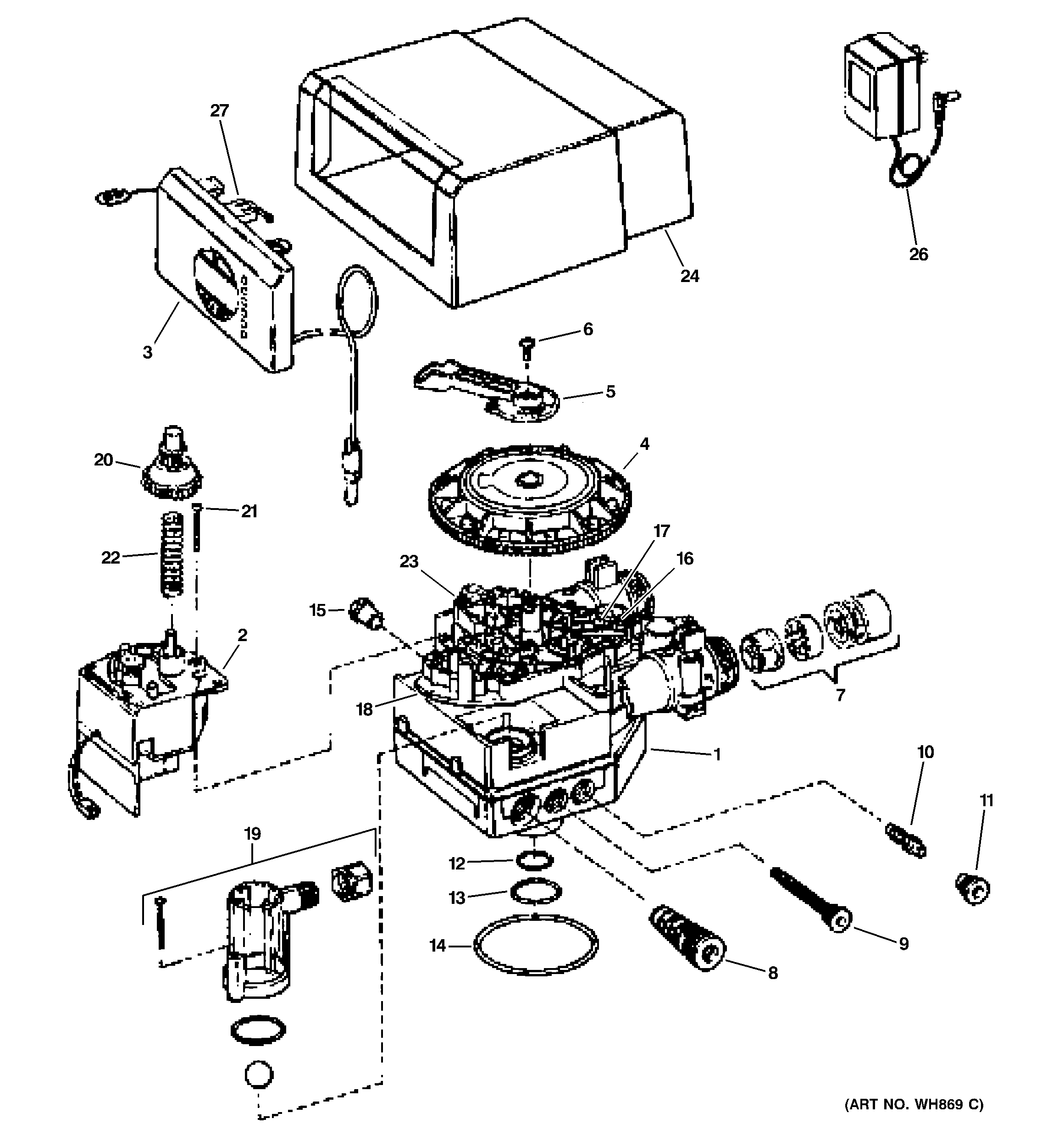

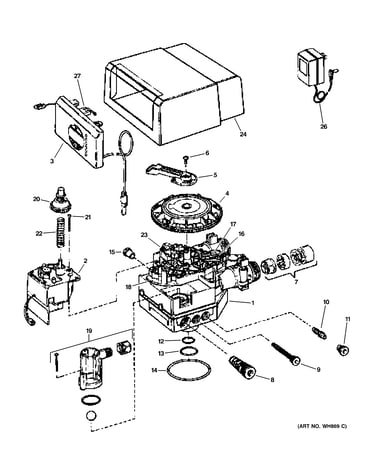

Controls & pump diagram

Micro-switch

Part #WS21X10023

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1 X 1-1/4 X 1/8 WS03X10049
#12

Controls & pump diagram

O-ring 1 x 1-1/4 x 1/8

Part #WS03X10049

The manufacturer no longer makes this part, and there's no substitute part

Drain Flow Ctrl-high Pr WS15X10061
#48

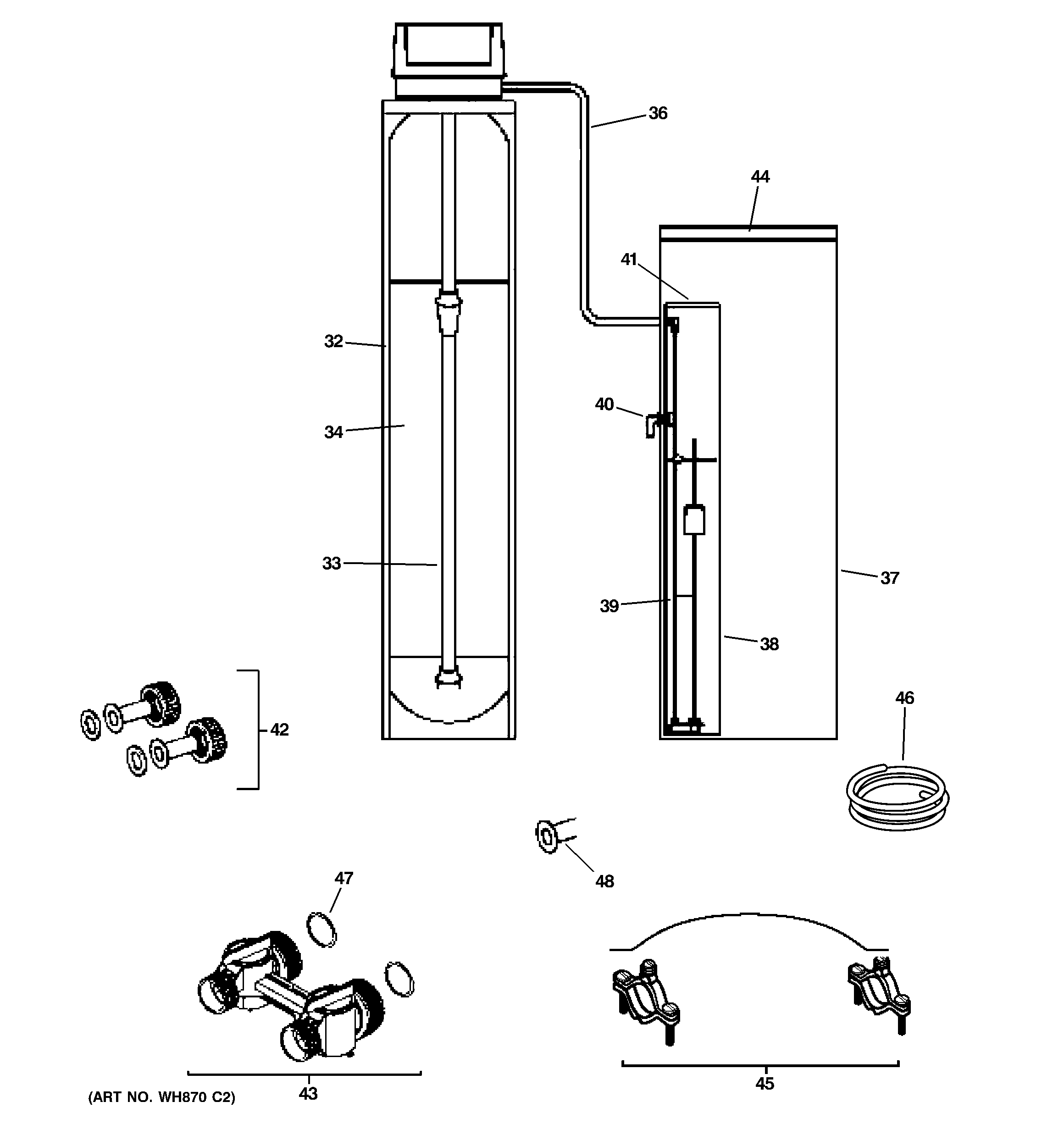

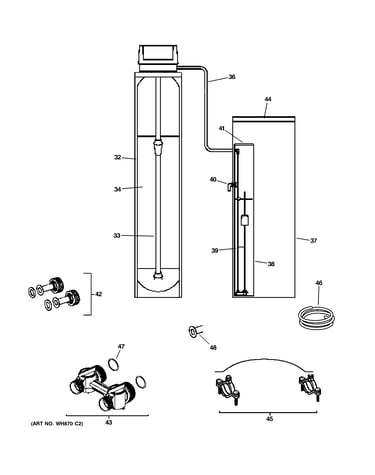

Body parts diagram

Drain flow ctrl-high pr

Part #WS15X10061

The manufacturer no longer makes this part, and there's no substitute part

1" Copper Tail Piece WS60X10015
#42

Body parts diagram

1" copper tail piece

Part #WS60X10015

The manufacturer no longer makes this part, and there's no substitute part

Valve Disc Spring WS03X10052
#17

Controls & pump diagram

Valve disc spring

Part #WS03X10052

The manufacturer no longer makes this part, and there's no substitute part

Spring WS03X10053
#22

Controls & pump diagram

Spring

Part #WS03X10053

The manufacturer no longer makes this part, and there's no substitute part

Gear Cam WS26X10015
#4

Controls & pump diagram

Gear cam

Part #WS26X10015

The manufacturer no longer makes this part, and there's no substitute part

Valve Disc Kit WS35X10053
#16

Controls & pump diagram

Valve disc kit

Part #WS35X10053

The manufacturer no longer makes this part, and there's no substitute part

Screw 10-32 X 1/2 WS02X10037
#6

Controls & pump diagram

Screw 10-32 x 1/2

Part #WS02X10037

The manufacturer no longer makes this part, and there's no substitute part
